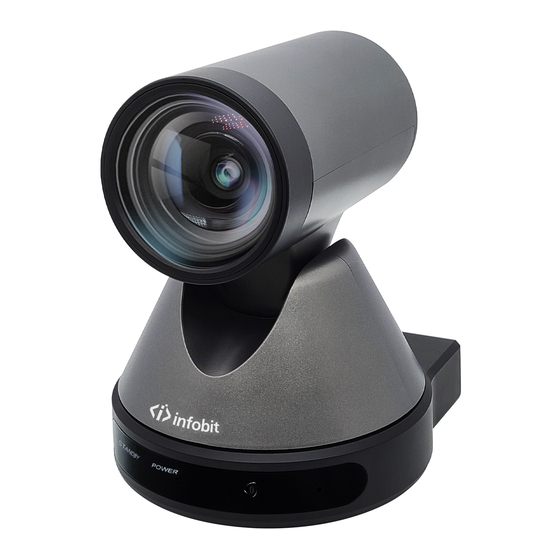

iCam P10
USB HD Video Conference Camera
User Manual
V2.0
Copyright Notice
All contents of this manual, whose copyright belongs to our corporation cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which were
referred to in this document are for reference only. We may change, delete, or update any content at
any time and without prior notice.
=============================================================================
This is class A production. Electromagnetic radiation at specific frequencies may affect the image
quality of TV in home environment.
Advertisement
Table of Contents
Related Manuals for infobit iCam P10
Summary of Contents for infobit iCam P10
- Page 1 P10 USB HD Video Conference Camera User Manual V2.0 Copyright Notice All contents of this manual, whose copyright belongs to our corporation cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only.
-
Page 2: Table Of Contents
USB HD Video Conference Camera User Manual Catalogue Note .......................... 1 Packing List ......................1 Quick Start ....................... 1 About Product ......................2 Features ..........................2 Product Specification ......................2 Interfaces and Buttons ......................3 Dimension ..........................4 Remote Control ........................5 RS-232 Interface ........................ -
Page 3: Note
USB HD Video Conference Camera User Manual material) damage. Make sure there is no Note obstacle within rotation range. Do not power on before installation is l Electric Safety completed. Installation and operation must accord with l Do not Dismantle the Camera electric safety standard. -
Page 4: About Product
P10 USB HD Video Conference Camer User Manual 2) Connect the power adapter to the power l Low Illumination connector on the rear panel of the The new CMOS image sensor with ultra-high camera. The power indicator on the front SNR can effectively reduce the image noise panel of the camera turns on. -
Page 5: Interfaces And Buttons
P10 USB HD Video Conference Camer User Manual Pan Speed Input Current 1.5A (max.) 1.61° ~ 75.56°/s Range Operating -10°C ~ 40°C Tilt Speed Temperature 0.44° ~ 15°/s Range Storage -40°C ~ 60°C H & V Flip Support Temperature... -
Page 6: Dimension
P10 USB HD Video Conference Camer User Manual 4.4 Dimension 120.0... -
Page 7: Remote Control
P10 USB HD Video Conference Camer User Manual 4.5 Remote Control 4. Preset Key Set preset: Store a preset position. [PRESET] + Number key (0-9): Set a CAMERA SELECT corresponding preset position. 5. HOME Key Confirm selection or press to turn PTZ back to the middle position. -
Page 8: Rs-232 Interface
P10 USB HD Video Conference Camer User Manual 4.6 RS-232 Interface 13. RESET Key Clear the preset position: [RESET] + Number key (0-9). Or: [*] + [#] + [CLEAR PRESET]: Erase all the preset individually. 14. PTZ Control Key Press arrow button to perform panning and tilting. -
Page 9: Visca Network
P10 USB HD Video Conference Camer User Manual 4.7 VISCA Network GUI Settings VISCA Controller 5.1 MENU Press [MENU] key to display the main menu on the screen. Use the arrow key to move the cursor to desired item and press the [HOME]... -
Page 10: Color
P10 USB HD Video Conference Camer User Manual Bright: 0 ~ 17 (Effective only in Bright mode). R Gain (Red Gain): 0 ~ 255 (Effective only in Gain Limit: 0 ~ 15 (Effective in Auto, SAE Manual mode). AAE, Bright mode). -
Page 11: Noise Reduction
P10 USB HD Video Conference Camer User Manual 2D NR (2D Noise Reduction): Auto, Close P/T/Z D-Zoom Limit 1 ~ 5. AF-Sense High 3D NR (3D Noise Reduction): Auto, Close, AF-Zone Front 1 ~ 8. Speed By Zoom 5.7 AUDIO... -
Page 12: Communication Setup
P10 USB HD Video Conference Camer User Manual 5.9 COMMUNICATION SETUP The above information is for reference only, When in main menu page, move the cursor to please refer to the real product for the actual [Communication Setup] and press [HOME] specification. -
Page 13: Maintenance And Troubleshooting
P10 USB HD Video Conference Camer User Manual Troubleshooting Maintenance and Image Troubleshooting l There have no image shows on the Camera Maintains monitor. l If camera will not be used for a long time, 1) Check that the camera power supply is... - Page 14 www.infobitav.com info@infobitav.com...
