HARDWARE INSTALLATION GUIDE

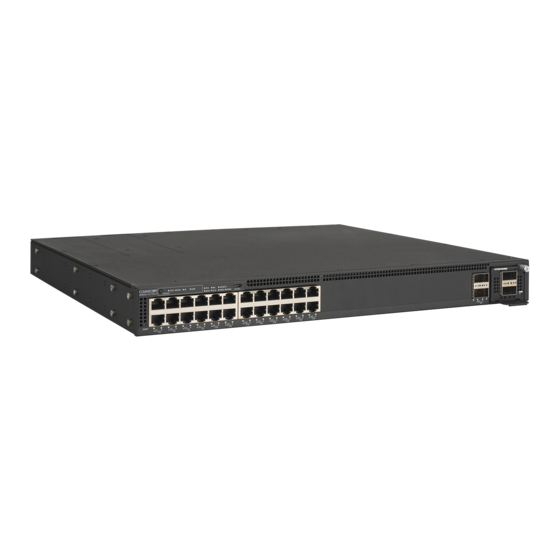

RUCKUS ICX 7550 Switch
Hardware Installation Guide
Part Number: 53-1005648-04
Publication Date: 05 May 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RUCKUS ICX 7550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CommScope RUCKUS ICX 7550

Summary of Contents for CommScope RUCKUS ICX 7550

  • Page 1 HARDWARE INSTALLATION GUIDE RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04 Publication Date: 05 May 2021...
  • Page 2 Materials in terms of their completeness, correctness, accuracy, adequacy, usefulness, timeliness, reliability or otherwise. As a condition of your use of the Materials, you warrant to CommScope that you will not make use thereof for any purpose that is unlawful or prohibited by their associated terms of use.

  • Page 3: Table Of Contents

    What's New in This Document....................................11 Supported Hardware and Software..................................11 Device Overview........................................13 Hardware Features........................................13 Port-Side View of the Ruckus ICX 7550 Switch................................. 14 Nonport-Side View of the RUCKUS ICX 7550 Switch..............................18 Preparing for the Installation....................................21 Safety Precautions........................................21 General Precautions......................................
  • Page 4 Status Mode Selection Button and STATUS LEDs..............................81 System Status (SYS) LED....................................83 Master/Slave Status (MS) LED..................................84 Software Update Status (UPDATE) LED................................84 Diagnostics Status (DIAG) LED..................................84 Cloud/On-premise-SmartZone management status LED..........................84 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 5 Installing or Replacing an Expansion Module.................................110 Resolving Module 3 Mismatches................................... 112 Resolving Module 3 Mismatches in a Standalone RUCKUS ICX 7550 Switch....................112 Resolving Module 3 Mismatches in a RUCKUS ICX 7550 Stack........................112 RUCKUS ICX 7550 Switch Technical Specifications............................... 115 System Specifications ......................................
  • Page 6 Cautions and Danger Notices....................................129 Cautions..........................................129 General Cautions......................................129 Electrical Cautions......................................133 Danger Notices ........................................135 General Dangers......................................135 Electrical Dangers......................................136 Dangers Related to Equipment Weight................................139 Laser Dangers......................................... 140 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 7: Preface

    Bold and italic text identify command syntax components. Delimiters and operators define groupings of parameters and their logical relationships. Convention Description bold text Identifies command names, keywords, and command options. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 8: Document Feedback

    Document Feedback RUCKUS is interested in improving its documentation and welcomes your comments and suggestions. You can email your comments to RUCKUS at #Ruckus-Docs@commscope.com. When contacting us, include the following information: • Document title and release number •...

  • Page 9: Contacting Ruckus Customer Services And Support

    Using these resources will help you to resolve some issues, and will provide TAC with additional data from your troubleshooting analysis if you still require assistance through a support case or RMA. If you still require help, open and manage your case at https://support.ruckuswireless.com/ case_management. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 10 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 11: About This Document

    Supported Hardware and Software The ICX 7550 supports FastIron software versions 8.0.95 and later. This document is applicable for the various Ruckus ICX 7550 Ethernet switch models. The following tables list the device models and rack mount kits supported. TABLE 2 ICX 7550 Ethernet Switch Models...
  • Page 12 1 Dual Port adapter with 1 LRM optic Not included with the device. Additional LRM optics can be ordered: 10GbE-SFPP-LRM (1-pack) and 10GbE-SFPP-LRM-2-ADP 1 Dual Port adapter with 2 LRM optics 10GbE-SFPP-LRM-8 (8-pack) RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 13: Device Overview

    Port-Side View of the Ruckus ICX 7550 Switch......................... 14 • Nonport-Side View of the RUCKUS ICX 7550 Switch........................ 18 Hardware Features The RUCKUS ICX 7550 offers the following hardware features and capabilities: • Equipped with RJ-45 ports with 1GBASE-T / MultiGiG for downlink ports •...

  • Page 14: Port-Side View Of The Ruckus Icx 7550 Switch

    Device Overview Port-Side View of the Ruckus ICX 7550 Switch TABLE 6 Switch Model and Corresponding PoE Support Model VAC (V) #PSU Max PoE Maximum Number of Ports Supported output 802.3af/at 802.3at/bt 802.3bt 802.3bt 802.3bt 802.3bt power /bt Class 3...
  • Page 15 Device Overview Port-Side View of the Ruckus ICX 7550 Switch FIGURE 2 Port-Side View of ICX 7550-48 Mode status LEDs: STAT, SPD, ID, USB 40 Gbps link/activity LEDs for stacking port 2/2 System LEDs 40 Gbps stacking port 2/2 Type-C USB console port...
  • Page 16 Device Overview Port-Side View of the Ruckus ICX 7550 Switch FIGURE 4 Port-Side View of ICX 7550-48P Mode status LEDs: STAT, SPD, ID, USB, PoE 40 Gbps link/activity LEDs for stacking port 2/2 System LEDs 40 Gbps stacking port 2/2...
  • Page 17 Device Overview Port-Side View of the Ruckus ICX 7550 Switch FIGURE 6 Port-Side View of ICX 7550-48ZP Mode status LEDs: STAT, SPD, ID, USB, PoE 40/100 GbE uplink/stacking port 2/2 System LEDs 12x1/2.5/5/10 GbE RJ-45 ports Type-C USB console port 36x1/2.5G GbE RJ-45 ports...

  • Page 18: Nonport-Side View Of The Ruckus Icx 7550 Switch

    Device Overview Nonport-Side View of the RUCKUS ICX 7550 Switch FIGURE 8 Port-Side View of ICX 7550-48F Mode status LEDs: STAT, SPD, ID, USB 40/100 GbE uplink/stacking port 2/2 System LEDs 12x10 GbE SFP ports Type-C USB console port 36x1 GbE SFP ports 40/100 GbE Uplink/Stacking port 2/1 SFP port status LEDs (upper-pointing triangles are for upper ports;...
  • Page 19 Device Overview Nonport-Side View of the RUCKUS ICX 7550 Switch FIGURE 10 Nonport-Side View of ICX 7550-24 and ICX 7550-48 (with 400 DC Power) Fan assembly 1 USB port (for flash drive) Fan assembly 2 Power supply unit 1 Fan assembly 3...
  • Page 20 Device Overview Nonport-Side View of the RUCKUS ICX 7550 Switch FIGURE 13 Nonport-Side View of ICX 7550-24F and ICX 7550-48F (with 400 AC Power) Fan assembly 1 External reference clock input Fan assembly 2 USB port (for flash drive) Fan assembly 3...

  • Page 21: Preparing For The Installation

    Do not install the device in an environment where the operating ambient temperature might exceed 45°C (113°F). ESD Precautions DANGER For safety reasons, the ESD wrist strap should contain a series 1 megohm resistor. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 22: Power Precautions

    Use safe lifting practices when moving the product. DANGER Mount the devices you install in a rack as low as possible. Place the heaviest device at the bottom and progressively place lighter devices above. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 23: Laser Precautions

    Circuit protected by a circuit breaker and grounded in accordance with local electrical codes Tor complete power supply specifications, refer to RUCKUS ICX 7550 Switch Technical Specifications on page 115. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 24: Quick Installation Checklists

    Decide whether you want to install the unit on a flat surface or in a rack. For rack installation, obtain the appropriate rack mount kit. Refer to Mounting Options on page 27. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 25: Installation And Initial Configuration

    By establishing a connection to the out-of-band management port, you can complete the device management port. configuration using an SSH session, Telnet, or management application. Refer to Establishing a Connection to the Out-of-Band Management Port on page 64. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 26: Shipping Carton Contents

    Shipping Carton Contents RUCKUS ICX 7550 devices ship with all of the following items included in the shipping carton. When unpacking the device, verify that the contents of the shipping carton are complete. If any items are missing, contact the place of purchase.

  • Page 27: Mounting The Device

    This equipment is suitable for mounting on concrete or other noncombustible surfaces only. CAUTION Make sure the airflow around the front and back of the device is not restricted. CAUTION Never leave tools inside the chassis. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 28: Removing Port Covers

    Complete the following steps to install the device on a desktop or other flat surface. NOTE The hardware device illustrated in this procedure is only for reference and may not depict the actual device that you are installing. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 29: Two-Post Rack Mount Installation (Icx7000-Rmk)

    The ICX7000-RMK rack mount kit is the default two-post kit for the ICX 7550. The RUCKUS ICX 7550 can be installed in the two-post rack in various mounting positions, as shown in the following figure: RUCKUS ICX 7550 Switch Hardware Installation Guide...
  • Page 30 Front mid-mount Two-post rack, side view Complete the following steps to mount the RUCKUS ICX 7550 in a two-post rack. NOTE Hardware devices illustrated in these procedures are only for reference and may not depict the device you are installing into the rack.
  • Page 31 Mounting the Device Two-Post Rack Mount Installation (ICX7000-RMK) FIGURE 18 Attaching the Mounting Brackets for a RUCKUS ICX 7550 Position the device in the rack, providing temporary support under the switch until the rail kit is secured to the rack.

  • Page 32: Two-Post Rack Mount Installation (Icx-Rmk-4Post-Tl)

    Front flush mount Two-post rack, side view Rear mount Use the instructions in the following sections to install the RUCKUS ICX 7550 switch into two-post Telco racks using the front brackets in the four- post flush-mount rack kit (ICX-RMK-4POST-TL). NOTE Hardware devices illustrated in these procedures are only for reference and may not depict the device you are installing into the rack.

  • Page 33: Flush-Front Mounting

    Slide the bracket toward the front of the device until the bracket latch clicks into its secure position. Repeat the preceding steps to attach the left front bracket to the left side of the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 34 Attach the left front bracket to the left front rack post using two 10-32 x 5/8-inch panhead screws and two retainer nuts. Use the upper and lower holes in the bracket. Tighten all the 10-32 x 5/8-inch screws to a torque of 25 in-lb (29 cm-kg). RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 35: Four-Post Rack Mount Installation (Icx-Rmk-4Post-Tl)

    Four-Post Rack Mount Installation (ICX-RMK-4POST-TL) Use the following instructions to install the RUCKUS ICX 7550 switch in EIA racks that are between 46 cm and 79 cm (18 inches to 31 inches) using the four-post flush-mount rack kit included with the switch.

  • Page 36: Flush-Front Mounting

    Slide the bracket toward the front of the device until the bracket latch clicks into its secure position. Repeat the preceding steps to attach the left front bracket to the left side of the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 37 Attach the left front bracket to the left front rack post using two 10-32 x 5/8-inch panhead screws and two retainer nuts. Use the upper and lower holes in the bracket. Tighten all the 10-32 x 5/8-inch screws to a torque of 25 in-lb (29 cm-kg). RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 38 Attach the left rear bracket to the left rear rack post using two 10-32 x 5/8-inch panhead screws and two retainer nuts. Use the upper and lower holes in the bracket. Tighten all the 10-32 x 5/8-inch screws to a torque of 25 in-lb (29 cm-kg). RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 39: Installing The 1U, 1.5U, And 2U Universal Kit For Four-Post Racks (Xbr-R000295)

    Allow 15 to 30 minutes to complete this procedure. The following items are required to install the device using the 1U, 1.5U, and 2U Universal Kit for Four-Post Racks: • #2 Phillips torque screwdriver RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 40: Parts List

    Ensure that the items listed and illustrated are included in the kit. Note that not all parts may be used with certain installations depending on the device type. CAUTION Use the screws specified in the procedure. Using longer screws can damage the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 41: Flush-Front Mounting The Device In A Rack

    Use the upper and lower screw holes, leaving the center holes empty. Repeat Step 1 Step 2 to attach the left front bracket to the left side of the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 42 Use the upper and lower screw holes, leaving the center holes empty. Repeat Step 1 Step 2 to attach the left bracket extension to the left side of the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 43 Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 44 Attach the brackets using four 6-32 x 1/4-in. panhead screws. Repeat Step 2 Step 3 to attach the left rear bracket to the left extension. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 45 FIGURE 32 Attaching the Short Rear Brackets to the Extensions Rear brackets Screws, 6-32 x 1/4-in., panhead Phillips FIGURE 33 Attaching the Medium or Long Rear Brackets to the Extensions RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 46: Flush-Rear (Recessed) Mounting The Device In The Rack

    Retainer nuts, 10-32 Flush-Rear (Recessed) Mounting the Device in the Rack The flush-rear (recessed) mounting is similar to the flush-front mounting except that the brackets are reversed on the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 47 Use the upper and lower screw holes, leaving the center holes empty. Repeat Step 1 Step 2 to attach the left front bracket to the left rear side of the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 48 Use the upper and lower screw holes, leaving the center holes empty. Repeat Step 1 Step 2 to attach the left bracket extension to the left side of the device. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 49 Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 50 Attach the brackets using four 6-32 x 1/4-in. panhead screws. Repeat Step 2 Step 3 to attach the left rear bracket to the left extension. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 51 Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lb (10 cm-kg). FIGURE 38 Attaching the Short Rear Brackets to the Extensions at the Front of the Device Rear brackets, short Screws, 6-32 x 1/4-in., panhead Phillips RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 52 Attach the left rear bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts. Use the upper and lower holes in the bracket. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 53 Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg). FIGURE 40 Attaching the Rear Brackets to the Front Rack Posts Screws, 10-32 x 5/8-in., panhead Phillips Retainer nuts, 10-32 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 54 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 55: Connecting Icx 7550 Devices In A Stack

    Available front panel stacking ports are 1/2/1 and 1/2/2. These two ports form the ICX 7550 valid-stack-port set. FIGURE 41 ICX 7550 Stacking Ports The following figure shows an ICX 7550-48F linear stack. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 56: Icx 7550 Two-Unit Stack With Linear-Topology Trunk

    The following figure depicts an ICX 7550-48F two-unit stack with a linear-topology trunk. This is the only form of stacking trunk available for ICX 7550 devices. For more information, refer to the "Support for Two-unit Stack Linear-topology Trunks" section of the RUCKUS FastIron Stacking Configuration Guide. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 57: Icx 7550 Stacking Configuration Notes

    Refer to the "Converting from Stacking to Data Uplink on ICX 7550 Module 2" section of the RUCKUS FastIron Stacking Configuration Guide. NOTE In 100-Gbps uplink mode on ICX 7550-24F or ICX 7550-24ZP, port 1/2/1 is invalid. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 58: Icx 7550 Module 2 Profile Compatibility With Module 3

    1 X 100-Gbps data uplink ICX 7550-48F 2 X 40-Gbps stacking or 2 X 100-Gbps 2 X 40G 1 X 100G 4 X 10GF stacking ICX 7550-48ZP 2 X 100-Gbps data uplink RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 59: Initial Setup And Verification

    You can use either the USB Type-C console port or the RJ-45 serial console port to establish the first-time connection to the device. The console port allows you to configure and manage the device using a third-party terminal emulation application from a workstation that is directly connected to RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 60 In a UNIX environment using TIP, enter the following string at the prompt: tip /dev/ttyb -9600. If ttyb is already in use, use ttya instead and enter the following string at the prompt: tip /dev/ttya -9600 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 61 Enter the following command to set the Super User password: device(config)# enable super-user-password joe NOTE Make sure to write down the new passwords and keep the information in a secure location. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 62: Performing The Factory Reset

    For example, enter "10.157.22.99/24" for an IP address that has a network mask with 24 significant ("mask") bits. At the opening CLI prompt, enter the following commands. device> enable device# erase startup-config device# configure terminal RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 63: Customizing The Host Name And Chassis Name

    The name, contact, and location each can be up to 255 alphanumeric characters. The text strings can contain blanks. The SNMP text strings do not require quotation marks when they contain blanks but the host name does. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 64: Setting The Date And Time

    After you assign an IP address, you can access the RUCKUS ICX 7550 from anywhere in the attached network using Telnet, a web browser, or other network management tools. To prevent unauthorized access, RUCKUS recommends that the management port only be connected to a secure private network.

  • Page 65: Backing Up The Running Configuration

    2001:DB8:e0ff:7837::3 newrun.cfg This command example copies the running configuration to a TFTP server with the IPv6 address of 2001:DB8:e0ff:7837::3 and names the file on the TFTP server newrun.cfg. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 66 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 67: Installing Transceivers And Cables

    Most RUCKUS switches come with a transceiver extraction tool and holster. The extraction tool is designed to remove transceivers from modules where the space is limited. FIGURE 45 Optical Transceiver Extraction Tool RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 68: Precautions Specific To Transceivers And Cables

    For easier maintenance, label the fiber-optic cables and record the devices to which they are connected. • Keep LEDs visible by routing port cables and other cables away from the LEDs. • Use hook and loop style straps to secure and organize fiber-optic cables. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 69: Installing The Ethernet Rj-45 Cables

    Straight-through UTP cabling is required for direct UTP attachment to workstations, servers, or routers using network interface cards (NICs). Fiber-optic cabling is required for direct attachment to Gigabit NICs or switches and routers through fiber ports. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 70: Cleaning The Fiber-Optic Connectors

    You can install a new transceiver in a slot while the device is powered on and running. For ports not configured in breakout mode, a fixed speed can also be set using the CLI (refer to the RUCKUS FastIron Management Configuration Guide). Port speed changes are dynamic and do not require a system reboot. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 71 The correct position to insert a fiber-optic transceiver in the lower row of ports is with the gold-plated edge up. FIGURE 48 Installing an SFP+ Transceiver in a Port Slot SFP+ transceiver RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 72: Cabling A Fiber-Optic Transceiver

    Observe the link and active LEDs to determine if the network connections are functioning properly. NOTE To verify that a RUCKUS ICX 7550 can reach another device through the network, use the ping command at any level of the CLI. For more information, refer to the RUCKUS FastIron Management Configuration Guide.

  • Page 73: Long-Reach Multimode Adapter Module

    10G LRM cages Port 2 LRM Adapter body Passive cable (280 mm) The LRM adapter module ships with either one or two LRM optics (10G-SFPP-LRM) depending on the model that you purchased. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 74: Lrm Adapter Module Specifications

    Installing Transceivers and Cables Long-Reach Multimode Adapter Module LRM Adapter Module Specifications • Compatible with SFP+ ports on the ICX 7550-24F and RUCKUS ICX 7550-48F • Two independent SFP+ sockets for LRM optics • Two integrated Twinax cables for power and data connectivity to the host switch •...

  • Page 75: Unpacking The Lrm Adapter Module

    • One or two L-shaped mounting brackets (depending on the model purchased) • One or two 10G-SFPP-LRM optics (depending on the model purchased) • China-RoHS Hazardous and Toxic Substance statement RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 76 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 77: Monitoring The Device

    Member ID status mode LED Power 2 LED USB status mode LED Power 1 LED System status LED Cloud/On-premise-SmartZone management status LED Master/Slave status LED Diagnostics status LED Software update status LED RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 78 Member ID status mode LED Power 2 LED USB status mode LED Power 1 LED PoE LED Cloud/On-premise-SmartZone management status LED System status LED Diagnostics status LED Master/Slave status LED Software update status LED RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 79 Member ID status mode LED Power 2 LED USB status mode LED Power 1 LED PoE LED Cloud/On-premise-SmartZone management status LED System status LED Diagnostics status LED Master/Slave status LED Software update status LED RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 80 Member ID status mode LED Power 2 LED USB status mode LED Power 1 LED System status LED Cloud/On-premise-SmartZone management status LED Master/Slave status LED Diagnostics status LED Software update status LED RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 81: Status Mode Selection Button And Status Leds

    TABLE 15 Link Status Mode (STAT) LED During Normal Operation LED Color Status of Hardware Recommended Action The port does not have a valid link. None. Steady green The link is up and there is no traffic. None. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 82 TABLE 17 Member ID Status Mode (ID) LED During Normal Operation LED Color Status of Hardware Recommended Action Steady green Port number is the same as the stack ID. None. Port number is the first digit of the PE ID. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 83: System Status (Sys) Led

    Steady amber The device is booting up or has stopped at the booting stage. None. Flashing amber The device is in the crash state or the watchdog timeout state. None. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 84: Master/Slave Status (Ms) Led

    Power cycle the device to try and clear the condition. • If the condition persists, contact Technical Support. Cloud/On-premise-SmartZone management status LED Refer to the following table to interpret the Cloud/On-premise-SmartZone management status LED. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 85: Power Status (Pwr1 And Pwr2) Leds

    Internal power supply for the PoE ports has failed. Contact Technical Support. Interpreting Nonport-Side LEDs The RUCKUS ICX 7550 contains the following LEDs on the rear panel: • Power supply LEDs: Two single-color status LEDs (green) on each installed power supply •...
  • Page 86 Fan assembly 1 LED PSU2 status LED Fan assembly 2 LED Management port (RJ-45): LED on left is for link/activity; LED on right is for speed Fan assembly 3 LED PSU1 status LED RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 87: Led Patterns

    Pinging an IP Address To verify that a device can reach another device through the network, enter a command similar to the following at any level of the CLI. device> ping 10.33.4.7 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 88: Tracing A Route

    There is no change to the Critical (shutdown) temperature value for these modules. TABLE 32 Temperature Thresholds Model Low Limit Temperature (oC) High Limit Temperature (oC) Critical (Shutdown) Temperature (oC) ICX 7550-24 ICX 7550-48 ICX 7550-24P ICX 7550-48P ICX 7550-24ZP RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 89 Slot 2 Current Temperature: NA Slot 3 Current Temperature: Empty / Powered Down Warning level..: 55.0 deg-C Shutdown level..: 65.0 deg-C Boot Prom MAC : c803.f53a.94ae Management MAC: c803.f53a.94ae GZ48P-Chamber# RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 90 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 91: Power Supplies

    The RUCKUS ICX 7550 switch supports alternating-current (AC) 400 watt and 1200 watt power supplies, and a direct-current (DC) 400 watt power supply. The RUCKUS ICX 7550 is capable of running on one power supply but requires a minimum of two fan assemblies. The second power supply and additional fan assemblies provide redundancy.
  • Page 92 Power Supplies Power Supply Overview FIGURE 62 AC 400 Watt Power Supply FIGURE 63 AC 1200 Watt Power Supply FIGURE 64 DC Power Supply RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 93: Precautions Specific To Power Supplies

    – Nonport-side air intake – Port-side air exhaust – Back-to-front (nonport-side to port-side) airflow – Part numbers ending with -R FIGURE 65 Intake Power Supply with Orange Label RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 94: Time And Items Required

    Inserting a New AC Power Supply Use the following steps to install an AC power supply (the 400 watt or 1200 watt power supply) in the RUCKUS ICX 7550 switch. RUCKUS ICX 7550 Switch Hardware Installation Guide...
  • Page 95 Insert the power cord into the AC power inlet. When the RUCKUS ICX 7550 switch is powered on, the LED on the power supply rear panel should light up green to confirm that the power supply is correctly installed and supplying power.

  • Page 96: Installing The Ac Power Cord Strap

    Strap latch position Strap tightness adjustment latch Use the following steps to install the AC power cord strap for the RUCKUS ICX 7550 switch: Use the strap position latch to move the cord strap furthest away from the attachment point.
  • Page 97 Slide the cord strap next to the power cord: FIGURE 71 Sliding Cord Strap Near Power Cord Wrap the cord strap on the power cord: FIGURE 72 Wrapping Cord Strap on Power Cord RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 98: Inserting A New Dc Power Supply

    FIGURE 73 Adjusting Strap Tightness Inserting a New DC Power Supply Use the following steps to install a DC power supply (400W only) in the RUCKUS ICX 7550 switch. FIGURE 74 Installing a DC Power Supply Unit The DC PSU uses A Dinkle 2EHDP-03P connector, and the mating connector is a Dinkle 2ESDVM-03P or equivalent, as shown in the following illustrations.
  • Page 99 Before opening the package that contains the DC power supply, touch the bag to the switch casing to discharge any potential static electricity. Commscope recommends using an ESD wrist strap during installation. Remove the power supply from the anti-static shielded bag.

  • Page 100: Grounding The Ruckus Icx 7550 Switch

    Power Supplies Grounding the RUCKUS ICX 7550 Switch When the RUCKUS ICX 7550 switch is powered on, the power LED on the front of the device lights up green to confirm that the power supply is correctly installed and supplying power.

  • Page 101: Connecting To The Grounding Terminal

    Crimp the included grounding lug to a grounding wire of at least 12 American Wire Gauge (AWG). The 12 AWG wire and grounding lug should be crimped together using a proper tool. Attach the 12 AWG stranded copper wire to the grounding terminal on the RUCKUS ICX 7550 using the screw(s) included in the grounding kit.
  • Page 102 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 103: Fan Assemblies

    RUCKUS recommends that the RUCKUS ICX 7550 operate with two power supplies and three fan assemblies installed. If a power supply or fan assembly fails, it must be replaced as soon as possible. The fan assemblies in the RUCKUS ICX 7550 switch chassis can be removed and replaced without special tools. The device can continue operating during the replacement.

  • Page 104: Precautions Specific To Fan Assemblies

    Exhaust power supply and fan assembly with a green "E" label: Pulls air from the port side of the switch and exhausts it out the nonport side. – Nonport-side air exhaust – Port-side air intake – Front-to-back (port-side to non-port-side) airflow – Part numbers ending with -E2 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 105: Time And Items Required

    FIGURE 81 Exhaust Power Supply with Green Label Time and Items Required Installing or removing and replacing a fan assembly in the RUCKUS ICX 7550 should require less than two minutes to complete. The following items are required to replace a fan assembly: •...
  • Page 106 When a fan assembly is installed in a slot, the power LED on the fan assembly lights up green to confirm that the fan assembly is correctly installed and running. Refer to LED Patterns on page 87. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 107 Fan Assemblies Inserting a New Fan Assembly CAUTION Empty fan assembly and power supply slots must be covered using filler panels. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 108 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 109: Expansion Modules

    Expansion Module Overview The RUCKUS ICX 7550 switch includes one port-side slot for media expansion modules, including a 4-port SFP+ 10-GbE module, a 2-port QSFP+ 40- GbE module, and a 1-port QSFP28 100-GbE module. If not installed, the empty expansion module slot must be covered using a filler panel.

  • Page 110: Precautions Specific To Expansion Modules

    Time and Items Required Replacing an expansion module in the RUCKUS ICX 7550 should take less than two minutes to complete. You need the following items to replace an expansion module in the RUCKUS ICX 7550: •...
  • Page 111 If you do not install a module or a power supply in a slot, you must keep the slot filler panel in place. If you run the chassis with an uncovered slot, the system will overheat. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 112: Resolving Module 3 Mismatches

    When these configuration mismatches occur, action must be taken to resolve the mismatch. The procedures to resolve a Module 3 mismatch in a standalone RUCKUS ICX 7550 switch and a mismatch in a RUCKUS ICX 7550 stack are different. Resolving Module 3 Mismatches in a Standalone RUCKUS ICX 7550 Switch Use the following procedure to resolve a Module 3 configuration mismatch for a RUCKUS ICX 7550 switch in standalone mode.
  • Page 113 ICX7550-48F Router#sh stack T=11h44m16.0: alone: standalone, D: dynamic cfg, S: static Type Role Mac Address Pri State Comment S ICX7550-48F active 4cb1.cd20.29f8 128 local Ready S ICX7550-48ZP standby c803.f53a.7c46 128 remote Ready RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 114 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 115: Ruckus Icx 7550 Switch Technical Specifications

    RUCKUS ICX 7550 Switch Technical Specifications This content highlights the features and specifications for the RUCKUS ICX 7550 switch. System Specifications System Component Description Enclosure Stackable up to 12 switches per stack, chassis-mountable (1U) in a standard 2 or 4-post rack Power inlet C14 for AC power;...

  • Page 116: Leds

    LEDs indicate port status or switch ID based on the status mode selection. Other System Component Description Serial cable 1 (RJ-45 to RJ-45) RJ-45 to DB9 adapter 1 adapter AC power cord IEC 320-C14 RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 117: Weight And Physical Dimensions

    ICX 7550-24: 51 dBA ICX 7550-48: 51 dBA ICX 7550-24P: 51 dBA ICX 7550-48P: 51 dBA ICX 7550-24ZP: 51 dBA ICX 7550-48ZP: 56.7 dBA ICX 7550-24F: 51 dBA ICX 7550-48F: 51 dBA RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 118: Power Supply Specifications (Per Psu)

    Power Supply Specifications (Per PSU) All the RUCKUS ICX 7550 power supply units (PSUs) are field replaceable. All the AC PSUs use a C14 inlet and connect to standard AC power. All the DC PSUs use a three-input 48V DC connector and connect to a standard 48V DC power source.

  • Page 119: Power Consumption (Maximum Configuration)

    1 x 1200 W AC 1 PSU 3928.32 BTU/hr 4398.9 BTU/hr 2113 W 2353.1 W 2 x 1200 W AC 2 PSUs required for PoE loading 7205.33 BTU/hr 8024.07 BTU/hr RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 120: Power Consumption (Modules)

    ICX 7550-24 40 GbE 2 (slot 2) QSFP+ stacking ports, 40 Gbps, compatible with optical transceivers, or direct attached copper cable 1 GbE 24 (slot 1) 10/100 Mbps/1 GbE RJ-45 ports RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 121: Serial Port Specifications (Pinout - Usb Type-C)

    ZR. Or USR optical transceivers Serial Port Specifications (Pinout - USB Type-C) Signal Description USB-C_GND Ground Reserved Not used Reserved Not used USB_TYPE_C_5V_IN 5 V bus power USB-C_CC1 Configuration channel RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 122: Serial Port Specifications (Pinout Rj-45)

    Logic ground Not supported UART1_RXD Receive data from ICX Not supported Not supported Serial Port Specifications (Protocol) Parameter Value Baud 9600 bps Data bits Parity None Stop bits Flow control None RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 123: Memory Specifications

    IEC 62368-1:2014 (Second Edition) • EN 62368-1:2014+A11:2017 Regulatory Compliance (Environmental) • 2014/35/EU and 2014/30/EU • 2011/65/EU – Restriction of the use of certain hazardous substance in electrical and electronic equipment (EU RoHS) RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 124 SJ/T 11363-2006 Requirements for Concentration Limits for Certain Hazardous Substances in EIPs (China) • SJ/T 11364-2006 Marking for the Control of Pollution Caused by EIPs (China) • CNS 15663 (BSMI) (Taiwan) RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 125: Regulatory Statements

    Machine noise information regulation - 3. GPSGV, the highest sound pressure level value is 53.0 dB(A) in accordance with EN ISO 7779. Maschinenlärminformations-Verordnung - 3. GPSGV, der höchste Schalldruckpegel beträgt 53.0 dB(A) gemäss EN ISO 7779. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 126: Vcci Statement

    Class A device (Broadcasting Communication Device for Office Use): This device obtained EMC registration for office use (Class A), and may be used in places other than home. Sellers and/or users need to take note of this. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 127: China Ccc Statement

    Regulatory Statements BSMI Statement (Taiwan) China CCC Statement BSMI Statement (Taiwan) Warning: RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 128 BSMI Statement (Taiwan) This is Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 129: Cautions And Danger Notices

    Para prevenir daños al chasis y a los componentes, nunca intente levantar el chasis usando las asas de la fuente de alimentación o del ventilador. Tales asas no han sido diseñadas para soportar el peso del chasis. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 130 La référence se termine par -F (flux d'air de l'avant vers l'arrière) ou par -R (flux d'air de l'arrière vers l'avant). Vous devez utiliser une pièce détachée dont l'indicatif de flux d'air est le même. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 131 Das Kühlsystem beruht auf Überdruck. Lassen Sie die Einschübe für Netzteile und Lüfter daher nicht länger als zwei Minuten unbelegt, während der Switch in Betrieb ist. Falls ein Netzteil oder ein Lüfter ausfällt, belassen Sie die Komponente im Switch, bis sie ausgetauscht werden kann. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 132 être isolées du câblage à découvert du réseau extérieur. L'ajout d'une protection primaire n'est pas suffisant pour réaliser une connexion métallique entre ces interfaces et le câblage du réseau extérieur. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 133: Electrical Cautions

    Alle Geräte mit DC-Netzteil sind nur für die Installation in Bereichen mit beschränktem Zugang gedacht. Ein Bereich mit beschränktem Zugang ist ein Ort, zu dem nur ausgebildetes Wartungspersonal mit Spezialwerkzeug, Schloss und Schlüssel oder anderen Sicherheitsvorrichtungen Zugang hat. Dieser Zugang wird von für den Bereich zuständigen Personen überwacht. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 134 Compare esta suma con el límite nominal para el circuito. Las capacidades nominales de corriente máximas están generalmente impresas en los instrumentos, cerca de los conectores de corriente de entrada. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 135: Danger Notices

    Les procédures décrites dans ce manuel doivent être effectuées par le personnel de service qualifié uniquement. PELIGRO Los procedimientos de este manual se han hecho para personal de servicio cualificado. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 136: Electrical Dangers

    à grande vitesse. PELIGRO Procure no insertar los dedos accidentalmente en la bandeja del ventilador cuando esté desmontando el chasis. El ventilador podría estar girando a gran velocidad. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 137 To avoid high voltage shock, do not open the device while the power is on. GEFAHR Das eingeschaltete Gerät darf nicht geöffnet werden, da andernfalls das Risiko eines Stromschlags mit Hochspannung besteht. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
  • Page 138 Mettez votre appareil hors tension avant d'installer ou de remettre en place une source ou un module d'alimentation pour des raisons de sécurité et pour éviter une instabilité due au délai de redémarrage. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 139: Dangers Related To Equipment Weight

    La surface fixe doit être suffisamment solide pour supporter le poids de l’appareil de telle sorte que ni l’apprareil ni la surface ne puissent tomber. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...

  • Page 140: Laser Dangers

    Utilice sólo transceptores ópticos aprobados por Ruckus y que cumplan con las normas IEC 60825 y EN60825, y con los estándares de rendimiento Clase 1 de FDA definidos en el subcapítulo I de 21 CFR. Los productos ópticos que no cumplan con estos estándares pueden emitir luz dañina para los ojos. RUCKUS ICX 7550 Switch Hardware Installation Guide Part Number: 53-1005648-04...
