12-24 Screw
(4 places)

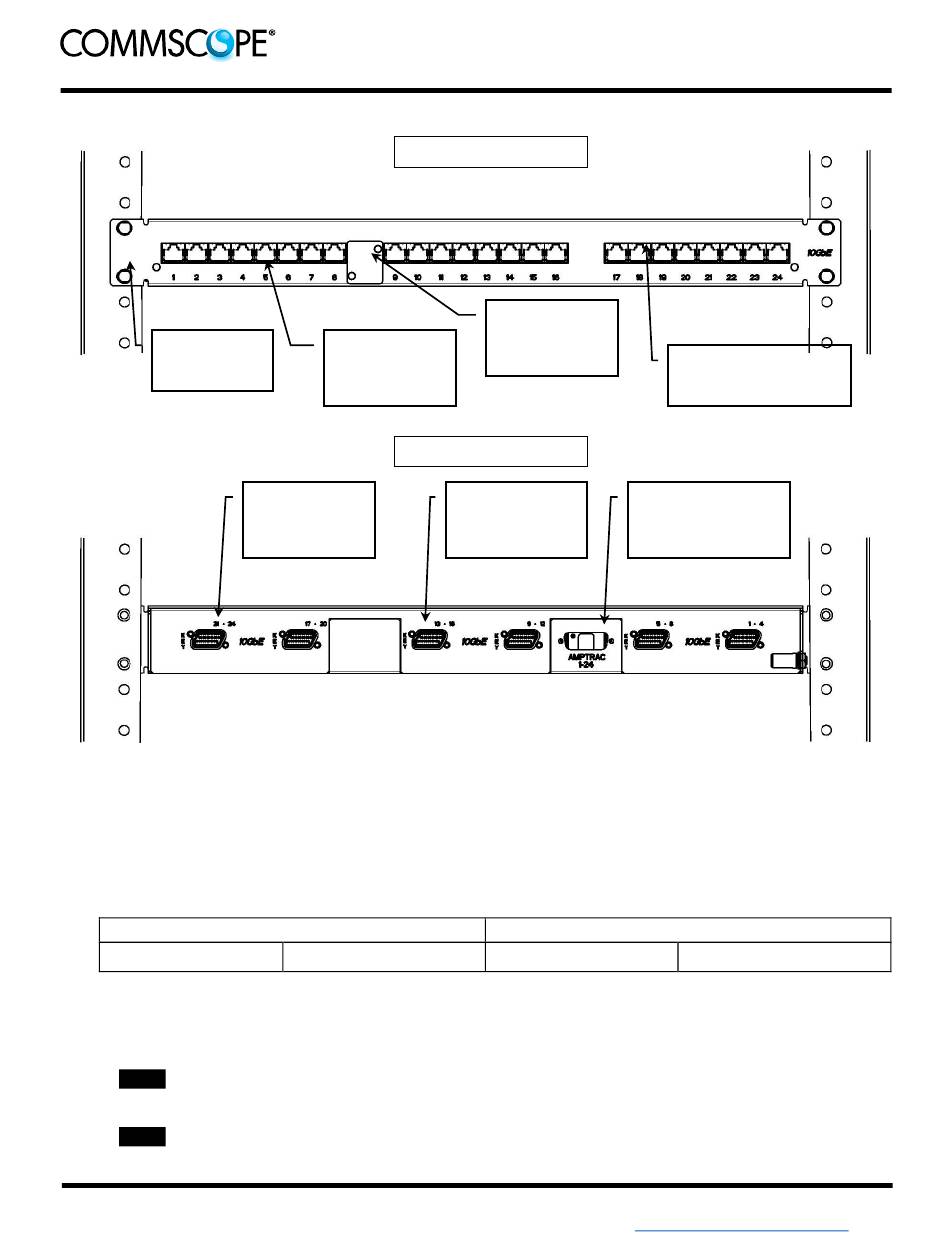

Figure 1
(2153041-1 panel as shown. Use appropriate customer drawing for other panel views)
1.
INTRODUCTION
MRJ21 ™ 10GbE 24-Port Patch Panels are designed to be mounted onto a standard 483mm [19in.]
Electronic Industries Alliance (EIA) rack or equipment cabinet as shown in Figure 1 and is designed to
be used with AMPTRAC
2153040-1 With AMPTRAC
Read these instructions thoroughly before starting installation.
NOTE
All numerical values in this instruction sheet are in metric units [WITH U.S. customary units in
brackets]
NOTE
These instructions assume that reader understand the operation of equipment and software
used with the AMPTRAC
To obtain information on CommScope
®
contact your local CommScope
account
™
representative, PartnerPRO
Netw ork Partner
or visit our w ebsite at
www.commscope.com
MRJ21
Front of Patch Panel
Port
identification
(24 places)
Back of Patch Panel
Port
identification
(24 places)
™
system.
24 ports
2153041-1 Without AMPTRAC
™
system (not shown).
®
products,
©2016 CommScope, Inc.
All Rights Reserved
10G Patch Panels
™
™
AMPTRAC
Upgrade PCB
location
™
MRJ21
Receptacle
(6 places)
2153049-1 With AMPTRAC
Instruction Sheet
411-93026
Jan. 2017
1x8 RJ45 Connector
Assembly (3 places)
™
AMPTRAC
Upgrade HDP-22
conn location
48 ports
2153046-1 Without AMPTRAC
This product is covered by one or more U.S.patents
or their foreign equivalents. For patents, see
www.commsc ope.com /ProductPatent/Produc tPatent.as px
Rev D
1 of 3
