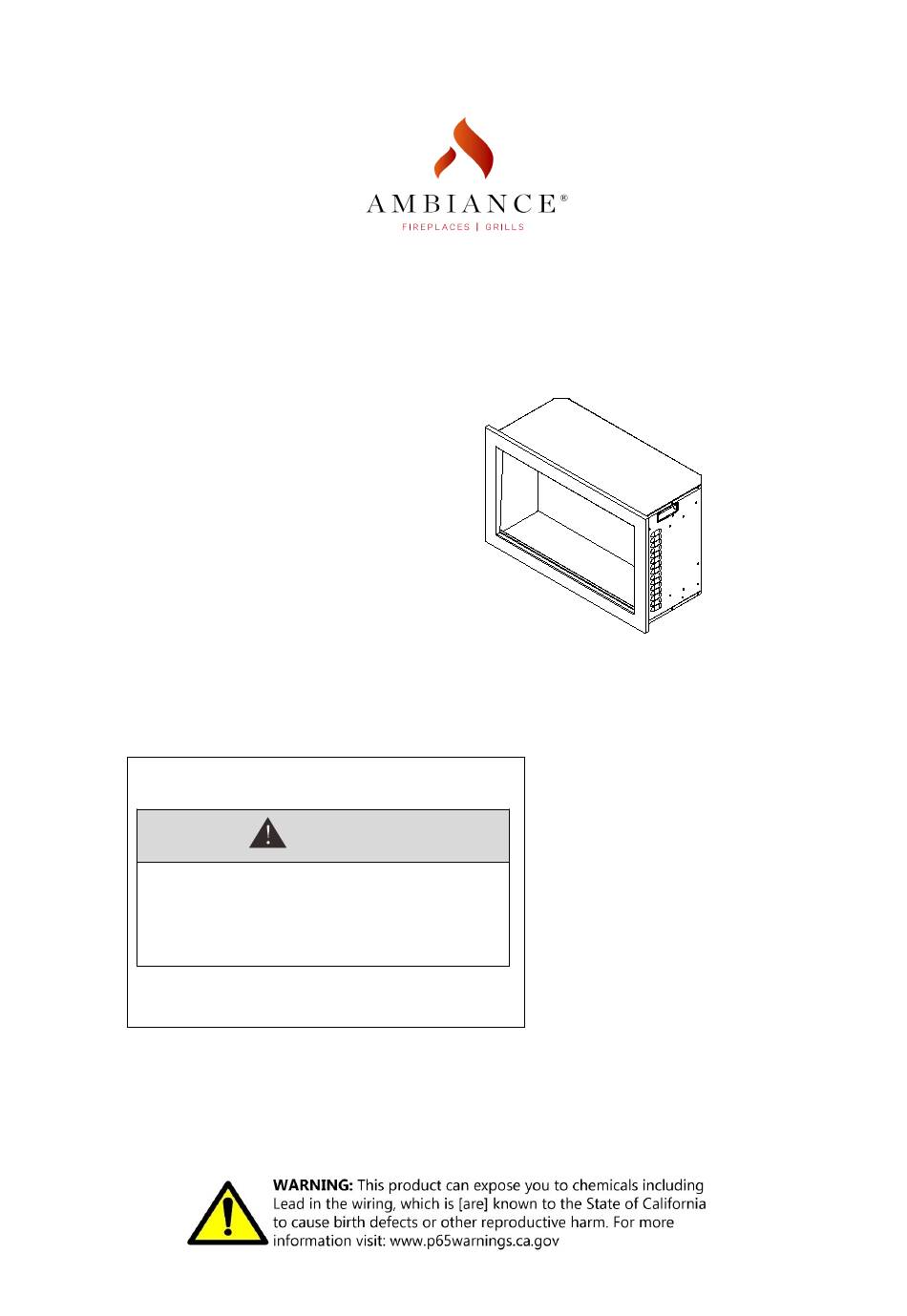

INSTALLATION AND OPERATION INSTRUCTIONS FOR FP-36 FP-42 SAFETY INFORMATION WARNING For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this appliance.
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii Electric Fireplace Table of Contents IMPORTANT INSTRUCTIONS ..........................3 UNPACKING AND TESTING APPLIANCE .......................
IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1) Read all instructions before using this fireplace 2) The fireplace is hot when in use.
UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly.
Page 5
FP 36 Description This appliance has been tested in ELECTRIC FIREPLACE accordance with the UL Standard 2021 Voltage 120V AC 60Hz for fixed and location dedicated Watts 1200W Max electric room appliances in the United NO HEATER States and Canada. If you need MOTOR HEATER assistance during installation, please Appliance Width...
Page 6
FP 42 Description This appliance has been tested in ELECTRIC FIREPLACE accordance with the UL Standard 2021 Voltage 120V AC 60Hz for fixed and location dedicated Watts 1200W Max electric room appliances in the United NO HEATER States and Canada. If you need MOTOR HEATER assistance during installation, please Appliance Width...
OUTDOOR INSTALLATIONS The TRD series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance.
INSTALLATION- BUILT-IN NOTE: Due to the many different materials used to build walls, it is highly NOTE: Due to the many different materials used to build walls, it is highly recommended that recommended that you consult your local builder before you install this appliance on a wall. you consult your local builder before you install this appliance on a wall.
Page 9
2. When the trim is removed, take off the front glass panel. When the trim is removed, take off the front glass panel. 3. Unscrew the screws located on each screws located on each side and take off the inner side steel panels. side and take off the inner side steel panels.
Page 10
4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure that the fireplace fits the wall opening well and there is no gap between the trim and the sure that the fireplace fits the wall opening well and there is no gap between the trim and the sure that the fireplace fits the wall opening well and there is no gap between the trim and the...
Page 11
6. Remove the trim following STEP 1. Screw back the inner side steel panels. Remove the trim following STEP 1. Screw back the inner side steel panels. Remove the trim following STEP 1. Screw back the inner side steel panels. 7.
HARD- WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified technician should service and repair this electric appliance.
MEDIA OPTIONS Your fireplace ships with a 10 piece Birch Log Set, Charcoal Grey Real Fireglass, one (1) bag of Black Vermiculite and one (1) bag of White Vermiculite. CHARCOAL GREY REAL VERMICULITE FIREGLASS 10-PIECE BIRCH LOG SET MEDIA INSTALLATION Unscrew 4 screws and take off the trim.
OPERATION The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of the fireplace, or by supplied remote control.
REMOTE CONTROL OPERATION For remote to function make sure the heater is plugged in and the main power switch located on the bottom left hand side is at position I. Important: When operating the remote make sure you point the remote to the center of the fireplace each time you press the button.
INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS Wire the wall thermostat prior to installing the fireplace. WALL THERMOSTAT WIRING (24 AWG) Install Wall Thermostat per instructions provided with kit and per the following information: 1. Turn off circuit breaker. 2. Remove cover plate located on the left side of appliance. Pull the wire out and cut the inside thermostat.
This list contains replacement parts PART NUMBER DESCRIPTION FP 36 FP 42 10702251 10702253 BOTTOM GLASS 10701378 10701379 FRONT CLEAR GLASS 3218501 3219501 TRIM SIDE STEEL PANEL 10702250 10702252 BACK GLASS 301506 REMOTE RECEIVER 601095D CIRCUIT BOARD 602130B BLOWER AND HEATER ASSEMBLY 10101225 FLAME MOTOR...
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out. Inspect the LED’s and replace them if necessary. Back black cloth is falling off Change a flicker and back black cloth. and rolled up in the flicker. Ember Ember LED’s are burnt out Inspect the ember bed LED’s and...
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service technician Service Performed Special Concerns Name Name NOTES:...
WARRANTY FOR PRODUCTS MANUFACTURED AFTER JANUARY 1st, 2016 Amantii Imports Corp. ("Amantii " ) warrants that your newly purchased Amantii electric fireplace is free from manufacturing and material defects for a period of two (2) years from the date of the first purchase, subject to the conditions and limitations contained below. &...
