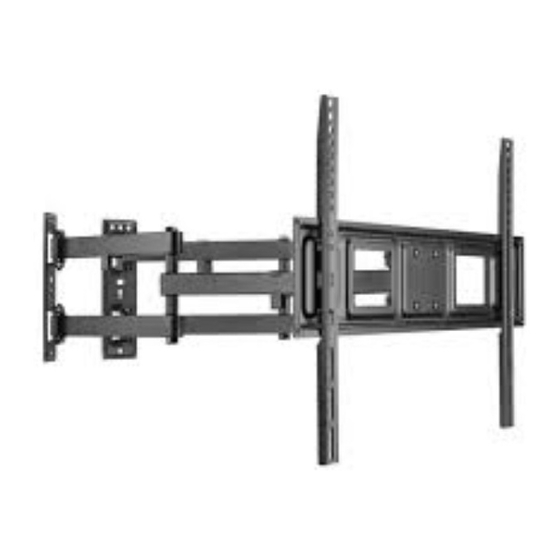

- Page 1 TILT EXTENDABLE FULL MOTION CORNER WALL MOUNT (32" - 70") KAWLM70CNRA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS CAUTION: Rated weight is 45kg (99 lbs). Use with products heavier than the rated weights indicated may result in instability causing possible injury. • Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury. •... - Page 4 COMPONENTS Wall mount assembly: A (x1) B (x2) C (x1) W-A ST6.3x55 (x8) W-B 10x45 (x8) W-C (x8) Adapters (depends on TV): M-B M6x14 M-A M5x14 (x4) M-C M6x30 (x4) M-D M8x30 (x4) (x4) M-E M8x50 (x4) M-F (x4) M-G (x8) M-H (x8) Additional Tools Required (Not Supplied): Phllips head...
- Page 5 ASSEMBLY Step 1: Drywall, plaster or timber walls (with studs) Use a stud finder to locate safe and suitable locations to install into wall. Use a spirit level to double check the correct angle of the mount and mark the intended hole positions with a pencil.
- Page 6 Step 1: Concrete and masonry walls Use a spirit level to double check the correct angle of the mount and mark the intended hole positions with a pencil. Drill holes in the desired locations (60mm deep, 10mm wide). Insert the screw anchors (W-B) into each pre-drilled hole. With the wall mount held in place, insert the washers and screws (W-C, W-A), tightening with a socket wrench.
- Page 7 Step 2: Attaching the mounting brackets to your TV. Depending on your TV, a combination of spacers (M-G, M-H) may be required to help create the correct amount of space for the brackets. Ensure the screws are fitted correctly into your TV’s VESA mount holes, and are not too long or too short in the back of the TV.
- Page 8 Step 3: Attaching the TV to the wall mount. With two people, lift the TV up and above the installed wall mount and gently lower down into place (3a), ensuring the TV is positioned evenly in the middle of the mount. The brackets each feature a vertical screw to secure to the bottom of the mount.
- Page 9 Step 4: Use the supplied cable management clips to secure all of the TV’s power and connection cables, as shown below.
- Page 10 ADJUSTING Note: Adjust to the desired angle then tighten the screws using the tool as shown, alternating from each screw as you tighten them.
- Page 11 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
