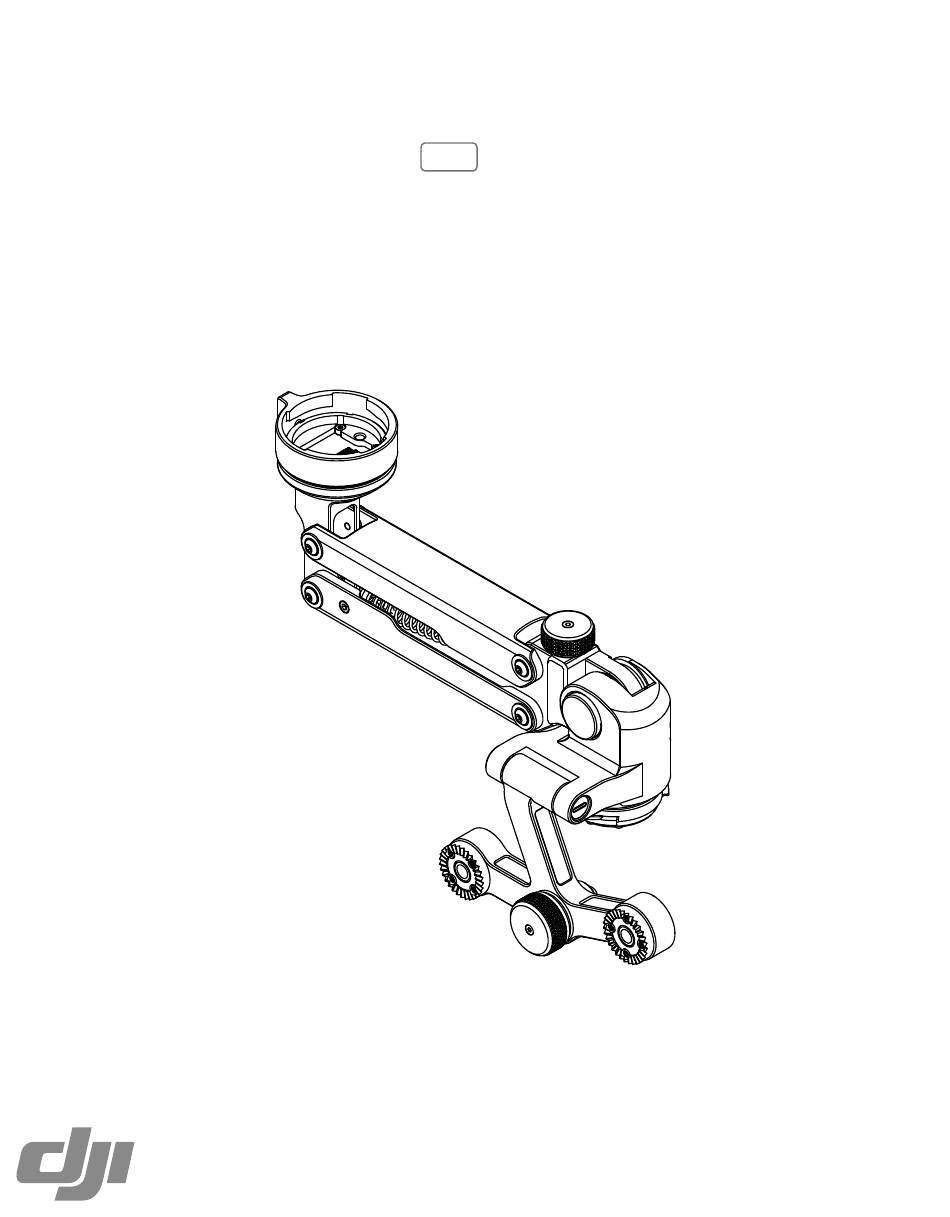

- Page 1 OSMO Z-Axis Quick Start Guide V1.0 2016.04...
- Page 2 Read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity. This document and all other collateral documents are subject to change at the sole discretion of DJI.

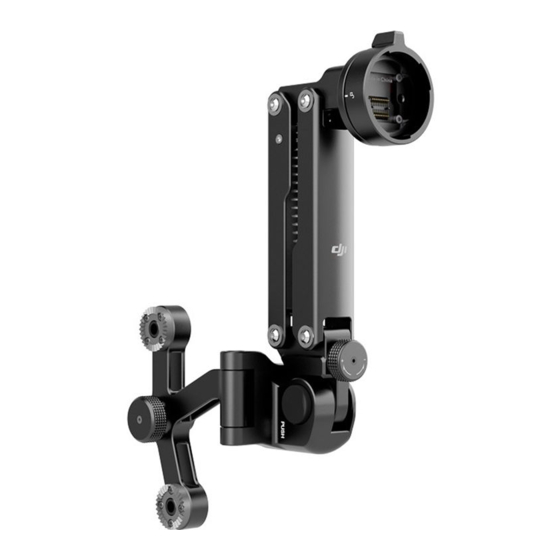

- Page 3 [6] Handle Connector [7] Tension Adjustment Knob The Z-Axis is NOT intended for action sports that involve extreme movement or to be used with other non-DJI devices. Specifications Weight: 282 g Dimensions: 212 mm x 67 mm x 127 mm...
- Page 4 Installation 1. Rotate the Osmo handle’s gimbal securing ring to its unlocked position. 2. Insert the Z-Axis’s handle connector into the gimbal securing ring. 3. Lock the gimbal securing ring. 4. Screw the Z-Axis’s securing knob to the Rosette Mount on the side of the Osmo handle.
- Page 5 5. Rotate the Z-Axis’s gimbal securing ring to its unlocked position and attach the Zenmuse X3. 6. Lock the gimbal securing ring. Ensure that the Zenmuse X3 is mounted securely. Adjusting the Balance The balance of the Z-Axis should be adjusted to ensure that the arm can move up and down freely without bumping against the endpoints.
- Page 6 Place the Osmo on a flat and stable surface so that it is perfectly upright. Adjust the height of the arm by turning the tension adjustment knob. The arm should be elevated slightly above the horizontal plane as shown. Horizontal Line Avoid flicking your wrist when filming.
- Page 7 Adjusting the Grip Angle While holding down the pivot release button on the Z-Axis, rotate the Osmo handle vertically to the desired position, and then release the button to lock that position. DO NOT attempt to adjust the grip angle without pressing the pivot release button as this will damage the Z-Axis.
- Page 8 DJI Support: www.dji.com/support The content in this document is subject to change. Download the latest version from www.dji.com/product/osmo If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2016 DJI. All Rights Reserved.
