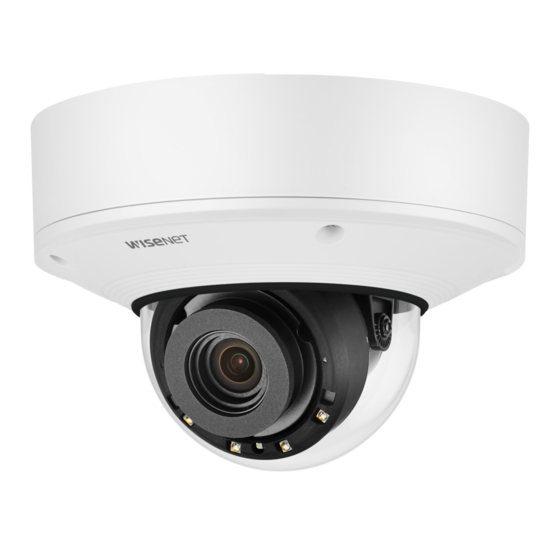

PNV-A6081R
PND-A6081RV/PND-A6081RF
PNO-A6081R/PNB-A6001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNV-A6081R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet PNV-A6081R

Summary of Contents for Wisenet PNV-A6081R

  • Page 1 NETWORK CAMERA User Manual PNV-A6081R PND-A6081RV/PND-A6081RF PNO-A6081R/PNB-A6001...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated NO USER SERVICEABLE PARTS INSIDE. from 12 Vdc 1.42 A or PoE, 0.37 A. (PNV-A6081R) REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
  • Page 4 For below models only. The ITE is to be connected only to PoE networks without routing to the outside plant. PNV-A6081R/PND-A6081RV/PND-A6081RF/PNO-A6081R The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3.at shall be a UL Listed device with the output evaluated as a Limited Power Source Risk Group 1 as defined in UL60950-1 or PS2 as defined in UL62368-1.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW BOX CAMERA Important Safety Instructions What’s Included Recommended PC Specifications At a Glance Recommended Micro SD/SDHC/SDXC Mounting the Lens Memory Card Specifications Inserting/Removing a Micro SD card NAS recommended specs Optional Accessories for Installation INSTALLATION & CONNECTION Adjusting the monitoring direction for the OUTDOOR VANDAL DOME CAMERA camera What’s Included...

  • Page 6: Overview

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS • CPU : Intel(R) Core(TM) i7 3.4 GHz or higher • Recommended capacity : 200GB or higher is recommended. • RAM : 8G or higher • For this camera, you are recommended to use a NAS with the following manufacturer’s specs. Recommended products : QNAP NAS, Synology NAS •...
  • Page 7 Outdoor Vandal Dome Camera Indoor Dome Camera Flush Mount Dome Camera PNV-A6081R PND-A6081RV PND-A6081RF Outdoor Bullet Camera Box Camera PNO-A6081R PNB-A6001 English _7...

  • Page 8: Optional Accessories For Installation

    OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. Model name Hanging Mount Pole Mount Housing SBP-300LMW (Parapet Mount) PNV-A6081R SBP-187HMW SBP-156LMW (Parapet Mount) SBP-300CMW (Ceiling Mount) SBP-156CMW (Ceiling Mount) SBP-300WMW (Wall Mount) SBP-300WMW1 (Wall Mount) SBP-300NBW (Installation Box)

  • Page 9: Outdoor Vandal Dome Camera

    WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate Camera-case Camera-module Dome-cover <PNV-A6081R> Pipe-cover IR LED Illumination Sensor Reset button Zoom/Focus Network Control Button Port Micro USB port Separator strap...
  • Page 10 outdoor vandal dome camera INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP67 / IP6K9K spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: •...
  • Page 11 Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. Before removing the Micro SD card, in <Storage>, set the device to <Off>...
  • Page 12 outdoor vandal dome camera [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
  • Page 13 1-4. Mount the cable bushing to the camera case. 2-3. Mount the cable bushing to the camera case. [Installing the network cable] (IP66) [Installing audio/alarm cables] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 2-2.
  • Page 14 outdoor vandal dome camera Installing the camera module 4. Join the mount plate with the camera case. 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
  • Page 15 Assembling the dome cover [Using Weather cap] 1. Remove the screws from the dome cover. [Directly installing on wall/ceiling] 1. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 TR20 2.
  • Page 16 outdoor vandal dome camera Outdoor installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.

  • Page 17: At A Glance

    indoor dome camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Pipe-cover Mount-plate Camera-case Camera-module Dome-cover <PND-A6081RV> IR LED Illumination Sensor Reset button Zoom/Focus Network Control Button Port Microphone cable port Separator strap Audio/Alarm cable Micro SD card slot port...
  • Page 18 indoor dome camera INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: •...
  • Page 19 Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. Before removing the Micro SD card, in <Storage>, set the device to <Off>...
  • Page 20 indoor dome camera [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
  • Page 21 1-4. Mount the cable bushing to the camera case. 2-3. Mount the cable bushing to the camera case. [Installing the network cable] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. 2-2. Use the cap installer to pass through the RJ45 cable. Cap Installer English _21...
  • Page 22 indoor dome camera Installing the camera module [Installing audio/alarm cables] 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
  • Page 23 Assembling the dome cover Be careful not to alter the monitoring direction of your camera. [Directly installing on wall/ceiling] 1. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 English _23...

  • Page 24: At A Glance

    flush mount dome camera flush mount dome camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Bracket Housing Camera-module <PND-A6081RF> Dome-cover IR LED Illumination Sensor Reset button Zoom/Focus Network Control Button port Micro USB port Separator strap Audio/Alarm cable Micro SD card slot...
  • Page 25 INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: •...
  • Page 26 flush mount dome camera Removing a Micro SD card Installation (housing) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD 1. Attach the installation template to the ceiling and mark its location with a pencil. card from the slot.
  • Page 27 3. Connect the safety cable. 4-2. Pull out necessary cables among network/power/audio/alarm cables through the pipe. A safety cable is not provided. e.g. [Using pipe] 4-1. Install the pipe in a fitting hole. ¾” NUT ½” NUT English _27...
  • Page 28 flush mount dome camera Installation (camera case) [Installing the network cable] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. Use a cable bushing compliant with the network cable to be connected. 2-2. Use the cap installer to pass through the RJ45 cable. Components: use a cable with the diameter of Ø5 to 8.5 Cap Installer [Installing network/power cables]...
  • Page 29 Installing the camera module [Installing audio/alarm cables] 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
  • Page 30 flush mount dome camera Assembling the dome cover Waterproofing cables If there is any possibility of moisture intrusion through the gap of the cable, please waterproof the concerned 1. Assemble the dome cover. area with waterproof butyl rubber tape (can be purchased in stores) as below. Make sure to firmly tighten the fastening screws so that there is no water damage issue.

  • Page 31: At A Glance

    outdoor bullet camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Pipe-cover Sunshield fixing screw Mount plate Sunshield Bottom cover <PNO-A6081R> Camera body Network port Reset button Test monitor out port Zoom/Focus Audio/Alarm cable Control Button port Micro USB...
  • Page 32 outdoor bullet camera INSTALLATION Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. This camera is waterproof and in compliance with the IP67 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.
  • Page 33 Installation (Mount plate) [Installing using pipe] 2-1. Attach the installation template and drill holes for screws and cables. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 2-2. Separate the pipe cover of the Mount plate by pressing its sides. 1-2.
  • Page 34 outdoor bullet camera 2-3. Place the pipe on the Mount plate. 1-4. Mount the cable bushing to the Bottom cover. 2-4. Fix the Mount plate using appropriate screws. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. Installation (Bottom cover) [Installing the network cable] 2-1.
  • Page 35 2-3. Mount the cable bushing to the Bottom cover. 4. Join the Mount plate with the Bottom cover. [Installing audio/alarm cables] 3-1. Mount the cable bushing of the provided audio/alarm cables to the Bottom cover. English _35...
  • Page 36 outdoor bullet camera Installing the camera module 3. Attach the camera body to the Bottom cover. 1. Hang the safety cable up on a hook that looks like an arrow in the Bottom cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. e.g.
  • Page 37 Outdoor installation 5. Assemble the sunshield to the camera body using sunshield fixing screw. When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.

  • Page 38: At A Glance

    box camera box camera WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mounting Bracket Screw Hole CS mount Lens (not included) Auto Iris Lens port Test monitor out port <PNB-A6001> Audio cable port Micro SD card Compartment Option (not included) Micro USB port...

  • Page 39: Mounting The Lens

    MOUNTING THE LENS Disconnect the power before proceeding. Focusing The CS mount Lens are not included in the product package. Select a target to film, turn the zoom lever of the lens to adjust the magnification and then focus the lens so that It is recommended that megapixel lens are use on this camera to optimise performance.

  • Page 40: Inserting/Removing A Micro Sd Card

    box camera INSERTING/REMOVING A MICRO SD CARD Inserting a Micro SD card Removing a Micro SD card Insert a Micro SD card in the arrow direction shown in the figure. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.

  • Page 41: Installation & Connection

    installation & connection ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Adjust the direction of IR LEDs not to hinder their view by an instrument. Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting Adjust the direction of IR LEDs not to hinder their view by a weather cap (if any).

  • Page 42: Connecting With Other Device

    Grounding cable Ethernet Power Power Monitor for installation <PNV-A6081R/PND-A6081RV/PND-A6081RF> Ethernet <PNB-A6001> Monitor for installation The Test Monitor Out port of the product is provided for easier installation, and is not recommended for monitoring purposes. The Micro USB port of the product is provided for easier installation, and is not recommended for monitoring purposes.
  • Page 43 Smartphone Setup - Use PoE+ that is compliant with the IEEE 802.3at protocols. 1. Install the Wisenet Installation application. Be careful not to reverse the polarity when you connect the power cable. 2. Select the camera SSID after turning on the WiFi.
  • Page 44 - Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz) • Full duplex Audio Microphone • Audio in (PND-A6081RV/PNB-A6001) : Selectable (microphone/Line-in/Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm • Audio in (PNV-A6081R/PND-A6081RF/PNO-A6081R) : Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm Microphone Speaker Speaker •...
  • Page 45 Connecting to the I/O port box Connecting to the I/O port box(PNB-A9001) Connect the Alarm I/O cable to the corresponding port of the port box. Connect the Alarm I/O cable to the corresponding port of the port box. 1 2 3 4 5 6 7 AUDIO AUDIO LINK...
  • Page 46 installation & connection Alarm In Wiring Diagram External Inside of the camera VCC_3.3V connection RESISTOR RESISTOR Sensor ALARM #1(5 mA SINK) RESISTOR DIODE MLCC TRANSISTOR To connect the alarm out If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction.

  • Page 47: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 48: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 49: Manually Registering Camera

    AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically • Example of the Dynamic IP environment configure the IP. PNO-A6081R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2.

  • Page 50: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.

  • Page 51: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _51...

  • Page 52: Web Viewer

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.

  • Page 53: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.
  • Page 54 appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses y You must enable the <Audio In> check box in <Basic> - <Video Profile>. y This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured.
  • Page 55 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
