Page 3
15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. from 12 Vdc, min. 1.56A or PoE, min. 0.38A. (PNV-A9081RX) 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from 12 Vdc, min.
Page 4
For below models only. Do not arbitrarily loosen or tighten the gore valve. PNV-A9081RX/PND-A9081RX The ITE is to be connected only to PoE networks without routing to the outside plant. XNV-8083RX/XND-8083RVX The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3at...
CONTENTS NETWORK CONNECTION AND Connecting the Camera Directly to Local OVERVIEW Important Safety Instructions Area Networking Recommended PC Specifications SETUP Connecting the Camera Directly to a DHCP Recommended Micro SD/SDHC/SDXC Based DSL/Cable Modem Memory Card Specifications Using Device Manager NAS recommended specs Automatically searching camera Video output Configuring IP address...
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)
Page 7
Vandal Dome Camera Indoor Dome Camera PNV-A9081RX/XNV-8083RX PND-A9081RVX/XND-8083RVX English _7...

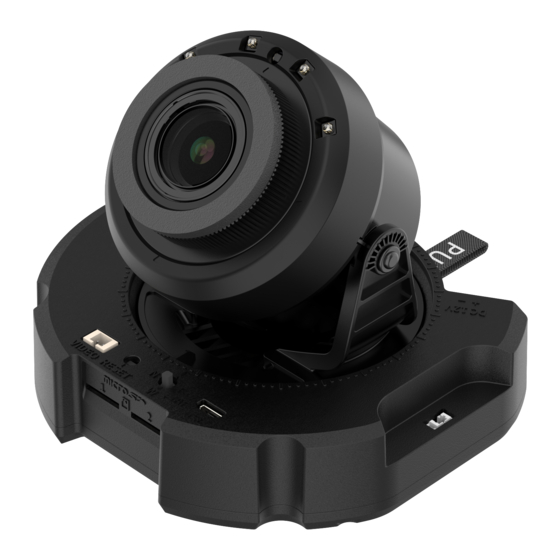

WHAT’S INCLUDED AT A GLANCE Module shape may vary by product. Mount-plate Camera-case Camera-module Dome-cover Pipe-cover <PNV-A9081RX/XNV-8083RX> Use installation screws of at least M4, L30 for the installation of this product. Lens IR LED Illumination Sensor Reset button Zoom/Focus Network...
vandal dome camera INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP67 / IP6K9K spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Select an installation site that can hold at least 5 times the camera’s weight.
Page 11
Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. VIDEO RESET VIDEO RESET Before removing the Micro SD card, in <Setup (...
Page 12
vandal dome camera [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
Page 13
1-4. Mount the cable bushing to the camera case. 2-3. Mount the cable bushing to the camera case. [Installing the network cable] (IP66) [Installing audio/alarm cables] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 2-2.
Page 14
vandal dome camera 4. Join the mount plate with the camera case. Installing the camera module 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
Page 15
Assembling the dome cover [Using Weather cap] 1. Remove the screws from the dome cover. [Directly installing on wall/ceiling] 1. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 TR20 2.
Page 16
vandal dome camera Outside installation When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.
indoor dome camera WHAT’S INCLUDED AT A GLANCE Module shape may vary by product. Pipe-cover Mount-plate Camera-case Camera-module Dome-cover <PND-A9081RVX/XND-8083RVX> Use installation screws of at least M4, L30 for the installation of this product. Internal microphone connection port Lens IR LED Reset button Illumination Sensor Zoom/Focus...
indoor dome camera INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: ~ Select an installation site that can hold at least 5 times the camera’s weight.
Page 19
Removing a Micro SD card Installation (mount plate) Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD [Directly installing on wall/ceiling] card from the slot. 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. VIDEO RESET VIDEO RESET Before removing the Micro SD card, in <Setup (...
Page 20
indoor dome camera [Installing using pipe] 2-3. Place the pipe on the mount plate. 2-4. Fix the mount plate using appropriate screws. 2-1. Attach the installation template and drill holes for screws and cables. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. 2-2.
Page 21
1-4. Mount the cable bushing to the camera case. 2-3. Mount the cable bushing to the camera case. [Installing the network cable] 2-1. Pull off the extruded part of the 1-hole cable bushing provided. 2-2. Use the cap installer to pass through the RJ45 cable. Cap Installer English _21...
Page 22
indoor dome camera [Installing audio/alarm cables] Installing the camera module 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 1. Connect the network/power/audio/alarm cables to the camera module terminal. 2. Attach the camera module to the case. A magnet is embedded at the bottom of the module Take caution not to allow any foreign objects between the attaching surfaces.
Page 23
Assembling the dome cover [Directly installing on wall/ceiling] 1. Assemble the dome cover. Make sure to firmly tighten the fastening screws so that there is no water damage issue. TR20 Be careful not to alter the monitoring direction of your camera. English _23...
installation & connection ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Adjust the direction of IR LEDs not to hinder their view by an instrument. Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Adjust the direction of IR LEDs not to hinder their view by a weather cap (if any).
Camera Setup 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Smartphone Setup 1. Install the Wisenet Installation application. 2. Select the camera SSID after turning on the WiFi. 3. Run the Wisenet Installation application. 4. When you log in to the camera, the video will be connected.
Page 26
Network Power Cable Specification for Each Model Model Input power Wire Type (AWG) Cable Length (Max.) PNV-A9081RX/PND-A9081RVX DC 12V Speaker XNV-8083RX/XND-8083RVX DC 12V Microphone 1. Connect the MIC port of the camera with the microphone or LINE OUT port of the amplifier that the Be careful not to reverse the polarity when you connect the power cable.
Page 27
~ Audio in (PND-A9081RVX/XND-8083RVX) : Selectable (microphone/Line-in/Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm ~ Audio in (PNV-A9081RX/XNV-8083RX) : Selectable (microphone/Line-in), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm ~ Audio out : Line-out (3.5mm mono jack), Maximum output: 1Vms, Line out impedance : 600Ω...
Page 28
installation & connection To connect to an external sensor To connect to an alarm output To use as an Alarm IN: Connect one of the [ALARM I/O] port and the other terminal to the [GND] port. If devices (e.g., flashing light and siren) that exceed the voltage and current specifications (DC12V / 50mA) are connected by using the open collector method, it may cause damage.
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tool> menu at Hanwha Techwin website (http://www. ex) 192.168.1.2~254, 192.168.0.2~254, hanwha-security.com).
~ Example of the Dynamic IP environment configure the IP. PNV-A9081RX - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.
Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _33...
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and system over the network.
appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses ~ You must enable the <Audio In> check box in <Basic> - <Video Profile>. ~ This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured.
Page 37
Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
