Summary of Contents for Woxcon SC51TS
- Page 1 User Manual SC51TS (NR) Compact Scaler Switcher (with PoH) All Rights Reserved Version: SC51TS (NR) _2017V1.1...
- Page 2 Compact Scaler Switcher (with PoH) Preface Read this user manual carefully before using the product. Pictures are shown in this manual for reference only, different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 Compact Scaler Switcher (with PoH) SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
Compact Scaler Switcher (with PoH) Contents 1. Introduction ........................1 1.1 Introduction to the Scaler Switcher ..............1 1.2 Features ......................1 1.3 Package List ....................... 2 2. Panel Description ......................3 2.1 Front Panel ......................3 2.2 Rear Panel ......................4 3. - Page 5 Compact Scaler Switcher (with PoH) 4.4 OSD Menu Control ................... 28 4.4.1 OPTIONS ....................29 4.4.2 PICTURE ....................30 4.4.3 SETUP ....................31 4.5 GUI Control ...................... 32 4.5.1 Control Menu ..................33 4.5.2 Configuration Menu ................34 4.5.3 RS232 Control Menu ................36 4.5.4 Password Menu ..................
-
Page 6: Introduction

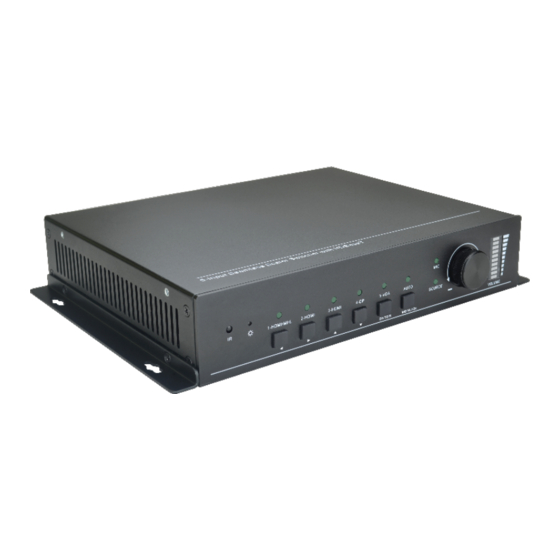

Compact Scaler Switcher (with PoH) 1. Introduction 1.1 Introduction to the Scaler Switcher The Scaler Switcher is a compact mini scaler switcher with 5 video inputs (1 HDMI/MHL, 2 HDMI, 1 DP, and 1 VGA) and 3 audio inputs (1 DP external audio, 1 VGA auxiliary audio, 1 MIC audio). -
Page 7: Package List
Compact Scaler Switcher (with PoH) 1.3 Package List l 1 x Compact Scaler Switcher l 2 x Mounting Ears with 4 Screws l 4 x Plastic Cushions l 1 x IR Remote l 1 x IR Receiver (with carrier wave) l 1 x IR Emitter l 1 x 3-Pin Phoenix Connectors l 1 x 5-Pin Phoenix Connector... -
Page 8: Panel Description
Compact Scaler Switcher (with PoH) 2. Panel Description 2.1 Front Panel 1-HDMI/MHL 2-HDMI 3-HDMI 4-DP 5-VGA AUTO SOURCE ENTER MENU/2s VOLUME ① Built-in IR Receiver ② Power indicator Off when there is no power to the device. Red when the device is in standby mode. Green when the device is powered on. -
Page 9: Rear Panel
Compact Scaler Switcher (with PoH) 2.2 Rear Panel CONTROL MIC INPUT LINE RES RESET IR IN IR OUT IR EYE FIRMWARE RS232 AUDIO OUT DC 24V HDBT 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI INPUTS OUTPUTS ① INPUTS Video input ports: 1 HDMI/MHL input, 2 HDMI inputs, 1 DP and 1 VGA Audio input ports: 1 DP external audio input and 1 VGA auxiliary audio input. - Page 10 Compact Scaler Switcher (with PoH) IR EYE: connect with IR receiver (with carrier wave only) to receive IR signal send by IR remote to control this Scaler Switcher. FIRMWARE: Type-A USB port for updating system firmware or loading customized EDID data. RS232: Serial port, 3-pin phoenix connector, connect with a control device (such as PC) to control the Scaler Switcher or other devices connected with HDBaseT Receiver.
-
Page 11: System Connection
Compact Scaler Switcher (with PoH) 3. System Connection 3.1 Usage Precautions System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safe. All devices should be connected before power on. -
Page 12: Connection Of Microphone
Compact Scaler Switcher (with PoH) and VGA audio input port with audio cable. Step4. Select MIC level and connect right microphone to MIC input port. MIC audio will be transmitted to AUDIO OUTPUT port and mixed with source audio. Step5. Connect a HDMI display device to HDMI output port with HDMI cable. Step6. - Page 13 Compact Scaler Switcher (with PoH) Connect the microphone in this way: “+” connects to positive, “-” connects to negative and “ ” to ground. Ø MIC Mode MIC input has a low frequency characteristics, and wide frequency response. When switch to “MIC”, the microphone input is used for connecting with dynamic microphone.
- Page 14 Compact Scaler Switcher (with PoH) 2) Balanced connection: “+” connects to positive, “-” connects to negative and “ ” connects to ground.
- Page 15 Compact Scaler Switcher (with PoH) Ø LINE Mode LINE input has a low frequency characteristics, and wide frequency response. When switch to “LINE”, the microphone input is used for connecting with line audio or wireless microphone output. There are two different connection methods: 1) Unbalanced connection: “+”...
-
Page 16: Application
Compact Scaler Switcher (with PoH) 3.5 Application The Scaler Switcher has a good application in various occasions, such as computer realm, monitoring, conference room, big screen displaying, television education, command & control center and smart home etc. -
Page 17: System Operations
Compact Scaler Switcher (with PoH) 4. System Operation 4.1 Front Panel Buttons Front panel buttons can be used for switching operations and volume adjusting. 4.1.1 Manual-Switching Press 1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP, 5-VGA on front panel to select the corresponding input source. 4.1.2 Auto-Switching Press AUTO to enter in auto-switching mode. -
Page 18: Volume Adjusting
Compact Scaler Switcher (with PoH) 4.1.3 Volume Adjusting Press Volume Knob to choose MIC/Source audio needed to be adjusted, the corresponding LED will turn green and keep on. Adjusting the Volume Knob in clockwise direction to increase sound volume. Adjusting the Volume Knob in anti-clockwise direction to decrease sound volume. 4.2 IR Control 4.2.1 IR Remote Connect IR receiver to IR EYE port, the Scaler Switcher cans be controlled by using IR... -
Page 19: Control Far-End Device From Local
Compact Scaler Switcher (with PoH) ① Enter/ exit standby mode ② Input channel selection buttons(1~5): Select video source via pressing corresponding button (audio switched following the corresponding DP/VGA ) INPUT 1 INPUT 2 INPUT 3 ③ Auto button: Enter/Exit auto-switching INPUT 4 INPUT 5 AUTO... -
Page 20: Control Local Device From Remote
Compact Scaler Switcher (with PoH) IR Remote MIC INPUT CONTROL LINE RES RESET IR IN IR OUT IR EYE FIRMWARE RS232 AUDIO OUT DC 24V HDBT 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI INPUTS OUTPUTS HDBT IN HDTV HDBaseT Receiver HDTV 4.2.3 Control local device from remote Connect an IR emitter to IR OUT port on the Compact Scaler Switcher and connect IR... -
Page 21: Cec Function
Compact Scaler Switcher (with PoH) 4.2.4 CEC Function The Scaler Switcher supports CEC, it can be turned on/ off by sending RS232 commands or OSD menu operations. The default setting is ON. Commands pertaining to CEC: “50686%” (enable CEC) and “50687%” (disable CEC) HDMI INPUT ports 1~3 support CEC, if the connected source devices also support CEC and their CEC are on, users can control the source device and display via the IR remote of the Scaler Switcher. -
Page 22: Rs232 Control
Compact Scaler Switcher (with PoH) 4.3 RS232 Control As RS232 can be transmitted bi-directionally between the Scaler Switcher and the HDBaseT Receiver, so it is able to control a third party RS232 device from local or control the Scaler Switcher from remote. The baud rate support 2400, 4800, 9600(default), 19200, 38400, 57600 or 115200. - Page 23 Compact Scaler Switcher (with PoH) Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
-
Page 24: Rs232 Communication Commands
Compact Scaler Switcher (with PoH) 4.3.3 RS232 Communication Commands Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Command Function Feedback Example Switch Commands 50701% Switch to 1-HDMI/MHL input Switch to HDMI 1 50702% Switch to 2-HDMI input Switch to HDMI 2... - Page 25 Compact Scaler Switcher (with PoH) Command Function Feedback Example 508xx% Set the volume of MIC audio MIC Volume: xx (xx=00~60) 510xx% Set the volume of source audio Source Volume: xx (xx=00~60) Select embedded audio as audio input 50706% DP Audio from Embedded for DP video signal Select external audio as audio input 50707%...
- Page 26 Compact Scaler Switcher (with PoH) Command Function Feedback Example Aspect Ratio: xx (xx= 16:9/ 4:3/ 50608% Set the aspect ratio auto) Picture Mode: xx (xx= dynamic/ 50614% Set the picture mode standard/ mild/ user) 50655% Freeze output image Freeze: enable 50656% Cancel the freezing of output image Freeze: disable...
- Page 27 Compact Scaler Switcher (with PoH) Command Function Feedback Example HDCP OFF/ON 50767% Restore default EDID EDID: initial 50768% Bypass EDID data from output to input EDID: bypass Upload custom EDID data to the 50769% EDID: user switcher EDID: initial 50770% Inquire EDID status EDID: bypass EDID: user...
- Page 28 Compact Scaler Switcher (with PoH) Command Function Feedback Example Manual Switch Mode: Set no input to power off function: Disable Manual Switch Mode: Disable Manual Switch Mode: Set no 50740% automatic power off function input to power off time: 0 minutes Manual Switch Mode: Set the power Manual Switch Mode: Set no 50741%...
- Page 29 Compact Scaler Switcher (with PoH) Command Function Feedback Example Resolution: xx (xx=1920×1200/ 1920×1080/ 1600×1200/ 50632% Check the output resolution 1360×768/ 1280×800/ 1280×720/ 1024×768/1600x900 Picture Mode: xx (xx= Dynamic/ 50633% Check the image mode Standard/ Mild/ User) Aspect Ratio: xx (xx= 16:9/ 4:3/ 50635% Check the image aspect ratio auto/)
- Page 30 Compact Scaler Switcher (with PoH) Command Function Feedback Example VGA Mute/Unmute DP Mute/Unmute Audio from Embedded/External 50657% Check IP address 192.168.0.178! Audio from 50712% Check DP audio path Embedded/External Adjustment Commands 50678% Enable screen output adjusting Enter Output Position Adjust 50679% Disable screen output adjusting Exit Output Position Adjust...
- Page 31 Compact Scaler Switcher (with PoH) Command Function Feedback Example 50686% Enable CEC HDMI CEC ON 50901% Play&pause CEC cmd: play&pause 50902% Stop CEC cmd: stop 50903% Menu CEC cmd: menu 50904% Retreat CEC cmd: rev 50905% Forward CEC cmd: fwd 50906% CEC cmd: up 50907%...
-
Page 32: Control Compact Scaler Switcher Or 3Rd Party Device From Local
Compact Scaler Switcher (with PoH) 4.3.4 Control Compact Scaler Switcher or 3rd Party Device from Local Firstly, according the following connection diagram to connect all devices as needed. Secondly, send command 50787% (serial control mode 1, factory default) via RS232 communication software. -
Page 33: Osd Menu Control
Compact Scaler Switcher (with PoH) 3rd party CONTROL MIC INPUT LINE RES RESET IR IN IR OUT IR EYE FIRMWARE RS232 AUDIO OUT DC 24V HDBT 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI INPUTS OUTPUTS HDBT IN HDBaseT Receiver Control Compact Scaler Switcher or 3rd party device from Remote 4.4 OSD Menu Control The Scaler Switcher provides a powerful OSD operation menu, contains 3 parts:... -
Page 34: Options
Compact Scaler Switcher (with PoH) 4.4.1 OPTIONS Includes Output Adjust, Input 5 Select, Baud rate, User EDID Load (USB), Resolution, and Software Update (USB). Output Adjust: Adjust output image position (X: horizontal direction and Y: vertical direction), ratio aspect (width and height), polarity adjustment (H Polarity and V Polarity) and output setting (HDMI on/off and HDBT on/off). -
Page 35: Picture
Compact Scaler Switcher (with PoH) of the Scaler Switcher, to update the software through this menu. 4.4.2 PICTURE Including Picture Mode, Color Temperature, Aspect Ratio, Noise Reduction, Screen and Color Range. Please check the picture below: Picture mode: Include Dynamic, Standard, Mild, and User. Only in User mode, will it be able to set the image contrast, brightness, color and sharpness. -
Page 36: Setup
Compact Scaler Switcher (with PoH) 4.4.3 SETUP Including OSD Language, Restore Factory Default, Blending, HDMI CEC, OSD Duration and version inquiry OSD Language: Supports 7 languages, including English (default), Chinese etc. Restore Factory Default: Restores to original system state Blending: Includes Low, Middle, High and Off. HDMI CEC: Enable/disable CEC and auto-standby function. -
Page 37: Gui Control
Compact Scaler Switcher (with PoH) 4.5 GUI Control In addition to control the Scaler Switcher via front panel button, IR remote and RS232 communication software. The Scaler Switcher can be controlled via GUI. It allows users to interact with the Scaler Switcher through graphical icons and visual indicators. Type 192.168.0.178 in your browser, it will enter the log-in interface shown as below:... -
Page 38: Control Menu
Compact Scaler Switcher (with PoH) 4.5.1 Control Menu Type user name: user and password: user (default setting) on the log-in interface, and then click Login to enter Control menu shown as below: Sources: Click the corresponding button (1-HDMI/MHL, 2-HDMI, 3-HDMI, 4-DP, and 5-VGA) to select video input source. -
Page 39: Configuration Menu
Compact Scaler Switcher (with PoH) 4.5.2 Configuration Menu Click on control menu to enter setting menu shown as below: Output Resolution: Select the output resolution that you need and then click Confirm. Update: Insert the USB flash disk with EDID file/software updating file to FIRMWARE port, and then click EDID/Firmware to start update procedure. - Page 40 Compact Scaler Switcher (with PoH) Click Network to enter network setting menu shown as below: In this interface, dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are different to avoid IP conflict.
-
Page 41: Rs232 Control Menu
Compact Scaler Switcher (with PoH) In this interface, the name of source input selection button can be modified as you need. 4.5.3 RS232 Control Menu Click RS232 Control on the top of interface to enter RS232 control menu shown as below: Port: Local port refers to the RS232 port of the Scaler Switcher, and the HDBT port refers to the RS232 port of HDBaseT Receiver. -
Page 42: Password Menu
Compact Scaler Switcher (with PoH) 4.5.4 Password Menu Click Password on the top of interface to enter password menu shown as below: In this interface, the user name and password can be modified as you need. 4.5.5 GUI Update GUI for the Scaler Switcher supports online update in http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, modified password will be available only after rebooting) to log in the configuration interface. -
Page 43: Specification
Compact Scaler Switcher (with PoH) 5. Specification Video Video input (1) HDMI/MHL; (2) HDMI; (1) DP; (1) VGA (3) female HDMI; (1) DisplayPort; (1) female VGA (15- Video Input Connector pin) Input Video Signal HDMI, DP, YPbPr, C-video, VGA Video Output (1) HDMI;... -
Page 44: Panel Drawing
Compact Scaler Switcher (with PoH) 6. Panel Drawing MIC INPUT CONTROL LINE RES RESET IR IN IR OUT IR EYE FIRMWARE RS232 AUDIO OUT DC 24V HDBT 1-HDMI / MHL 2-HDMI 3-HDMI 4-DP 5-VGA HDMI INPUTS OUTPUTS 5-input Seamless Scaler Switcher with HDBaseT 220 mm 1-HDMI/MHL 2-HDMI... -
Page 45: Troubleshooting & Maintenance
Compact Scaler Switcher (with PoH) 7. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality connecting cable. cable. Output image with snowflake. Fail or loose Make sure the connection is connection. good. Check with oscilloscope or No signal at the input / multimeter if there is any output end. -
Page 46: Customer Service
Compact Scaler Switcher (with PoH) find further assistance. 8. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years. - Page 47 Compact Scaler Switcher (with PoH)
