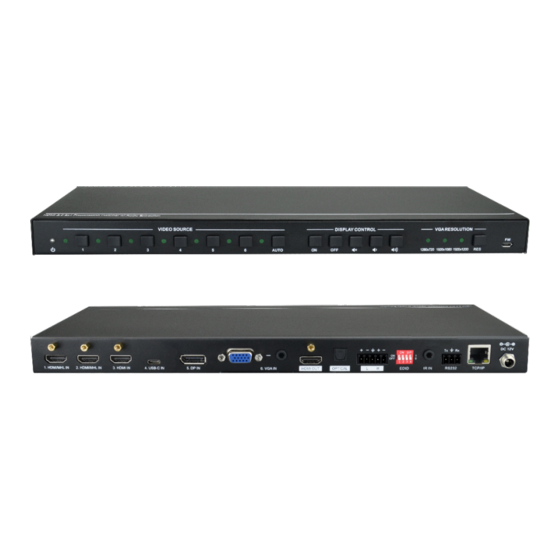

Woxcon SCU61E User Manual

Hdmi 2.0 6x1 presentation switcher with audio extraction
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SCU61E
HDMI 2.0 6x1 Presentation Switcher with
Audio Extraction
All Rights Reserved
Version: SCU61E_2019V1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCU61E and is the answer not in the manual?

Questions and answers

Related Manuals for Woxcon SCU61E

Summary of Contents for Woxcon SCU61E

  • Page 1 User Manual SCU61E HDMI 2.0 6x1 Presentation Switcher with Audio Extraction All Rights Reserved Version: SCU61E_2019V1.4...
  • Page 2 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
  • Page 3 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment.

  • Page 4: Table Of Contents

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction Table of Content 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ....................... 2 2. Specification ........................ 3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ......................6 4.
  • Page 5 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 8.2 RS232 Command ..................... 25 8.2.1 Device Control ..................25 8.2.2 Source Switching ................... 26 8.2.3 VGA Resolution Selection ..............28 8.2.4 EDID Management ................. 29 8.2.5 Audio Control ..................29 8.2.6 Display Control ..................30 8.2.7 CEC Control ...................

  • Page 6: Product Introduction

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 1. Product Introduction Thanks for choosing the HDMI 2.0 6x1 Presentation Switcher. The switcher allows selection of six different sources (three HDMI inputs, one USB-C input, one DisplayPort input and one VGA input), and will simultaneously switch the selected video to HDMI output.

  • Page 7: Package List

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 1.2 Package List 1x SCU61E HDMI 2.0 6x1 Presentation Switcher 2x Mounting Ears with 4 Screws 4x Plastic Cushions 1x IR Receiver 1x IR Remote 1x 3-pin Terminal Block 1x 5-pin Terminal Block...

  • Page 8: Specification

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 2. Specification Video Video Input (2) HDMI/MHL, (1) HDMI, (1) USB-C, (1) DP, (1) VGA (3) Type-A female HDMI, (1) Type-C USB 3.0, Video Input Connector (1) DisplayPort, (1) 15-pin female VGA HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit MHL Input Resolution...
  • Page 9 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV Max Output Level (316mV) nominal consumer line level signal <0.05% (-80dB), 20Hz ~ 20KHz bandwidth, 1KHz sine at THD+N 0dBFS level (or max level) >80dB, 20Hz ~ 20KHz bandwidth >70dB, 10KHz sine at 0dBFS level (or max level before Crosstalk Isolation...

  • Page 10: Panel Description

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 3. Panel Description 3.1 Front Panel VIDEO SOURCE DISPLAY CONTROL VGA RESOLUTION AUTO 1280x720 1920x1080 1920x1200 ① Power LED: The LED illuminates red when the device is in standby, or illuminates green when the device is power on. ②...

  • Page 11: Rear Panel

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 3.2 Rear Panel 1 2 3 4 1. HDMI/MHL IN 2. HDMI/MHL IN 3. HDMI IN 4. USB-C IN 5. DP IN 6. VGA IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP ①...

  • Page 12: System Connection

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe.

  • Page 13: Button Control

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 5. Button Control 5.1 Manual Switching When the switcher is in the manual switching mode, the Auto Mode LED goes out. If need to change the input source, please directly press the 1, 2, 3, 4, 5 or 6 button, and the corresponding LED illuminates green immediately.

  • Page 14: Vga Resolution Selection

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 5.4 VGA Resolution Selection The RES button on the front panel is designed for VGA resolution selection. OFF: Display Off. Press RES button repeatedly to set the VGA resolution to 1280x720, 1920x1080 or 1920x1200, and its corresponding LED will illuminates green.
  • Page 15 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 1010 1920x1200@60Hz RGB 4:4:4 8bit Stereo Audio 1011 User-defined 1 1100 User-defined 2 1101 User-defined 3 1110 User-defined 4 1111 Enable GUI or RS232 EDID management. Note: Stereo Audio: LPCM 2Ch High Definition Audio: LPCM 8Ch, AC-3 6Ch, DTS 5.1, Dolby Digital5.1...

  • Page 16: Ir Remote Control

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 6. IR Remote Control Connect the IR IN port to an IR receiver, the switcher can be controlled by the below IR remote. ① Enter or exit standby mode. ② Video input selection buttons (1~6) and AUTO mode button.

  • Page 17: Gui Control

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7. GUI Control The switcher also be controlled via TCP/IP, and the default IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.250.0 Please type 192.168.0.178 in the internet browser, and it will enter the below log-in webpage: Username: admin Password: admin...

  • Page 18: Switching Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.1 Switching Tab Click the AUTO button to enable automatic switching mode. Click 1~6 button to select input source respectively.

  • Page 19: Display Control Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.2 Display Control Tab 1) CEC Control ON: Display On. OFF: Display Off. : Mute/unmute display audio. : Volume down display audio. : Volume up display audio.
  • Page 20 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 2) VGA Resolution Selection VGA output resolution can be selected as 1024x768@60Hz, 1280x720@50Hz, 1280x720@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1080@50Hz, 1920x1080@60Hz (Default) or 1920x1200@60Hz.

  • Page 21: Audio Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.3 Audio Tab Turn on or turn off the digital audio output. Turn on or turn off the analog audio output.

  • Page 22: Edid Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.4 EDID Tab Note: Before select EDID in this tab, please ensure the 4-pin DIP switch on the rear panel is on the “1111” position. Built-in EDID: There are ten built-in EDID values can be selected by this tab. User-defined EDID: There are four EDID values can be customized by the below steps: Step 1: Prepare the EDID file (.bin) on the control PC.

  • Page 23: Rs232 Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.5 RS232 Tab Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Command Ending: NULL, CR, LF or CR+LF can be chosen. Command: Type the command in this box to control the third-party device which is connected to the RS232 port of the switcher.

  • Page 24: Interface Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.6 Interface Tab Modify the title bar label. Modify the button labels.

  • Page 25: Access Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.7 Access Tab Modify the login password. Lock or unlock the front panel buttons.

  • Page 26: Network Tab

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 7.8 Network Tab Set Static IP or Dynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. 7.9 GUI Upgrade Please visit at http://192.168.0.178:100 for GUI online upgrade. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login the configuration interface.
  • Page 27 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction Select the update file and click Apply button, and then it will start upgrade process.

  • Page 28: Rs232 Control

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 8. RS232 Control Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher can be controlled by sending the RS232 commands. 8.1 RS232 Control Software Installation: Copy the control software file to the control PC. Uninstallation: Delete all the control software files in corresponding file path.
  • Page 29 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction The main view is shown as below: Parameter configuration area Monitoring area, show the commands and its feedback information. Command sending area Operation area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then the command is ready to be sent in command sending area.

  • Page 30: Rs232 Command

    GETGUIIP. Example: SETGUIIP: SETGUIIP:192.168.0.178. Set GUI IP to [xxx.xxx.xxx.xxx]. Feedback: [xxx.xxx.xxx.xxx]. SETGUIIP:192.168.0.178! GUI/RS232 QUERY STATUS! SCU61E VERSION V1.0.0 POWER ON! Report system status. FRONT PANEL UNLOCK! STA. HDMI OUT SWITCH TO AUTO MODE! HDMI OUT SWITCH TO 2! DIP0000! ⑤...

  • Page 31: Source Switching

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction SPDIF OUT ON! IIS OUT ON! FACTORY DEFAULT! SCU61E VERSION V1.0.0 POWER ON! FRONT PANEL UNLOCK! HDMI OUT SWITCH TO Factory reset. RST. AUTO MODE! HDMI OUT SWITCH TO 1! DIP0000! DIP EDID0000!
  • Page 32 HDMI 2.0 6x1 Presentation Switcher with Audio Extraction HDMI OUT SWITCH TO Enable manual switching mode. HDMIM. MANUAL MODE!

  • Page 33: Vga Resolution Selection

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 8.2.3 VGA Resolution Selection When VGA source is selected, the below commands can be used to set the VGA output resolution. Command Function Feedback Example SET RESOLUTION OF VGA Set the VGA output resolution to VGARES1.

  • Page 34: Edid Management

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 8.2.4 EDID Management Command Function Feedback Example EDID_0001! Read the preset EDID. [xxxx] represents EDIDR[xxxx]. the 4-pin DIP switch status. … EDIDUSE0001! Invoke the preset EDID. [xxxx] represents EDID_RS232&GUI_MODE! EDIDUSE[xxxx]. the 4-pin DIP switch status. EDID0001! User-define EDID There are four EDID values can be customized by sending the below command.

  • Page 35: Display Control

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 8.2.6 Display Control Command Function Feedback Example Power on the display. CEC TV POWER ON! TVON. Power off the display. CEC TV POWER OFF! TVOFF. TVVOL+. Increase the display audio. CEC TV VOLUME INCREASE! CEC TV VOLUME Decrease the display audio.

  • Page 36: Third-Party Device Control

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 8.2.8 Third-party Device Control The switcher supports RS232 pass-through control, the third-party device can be controlled by RS232 command, and the command format as shown below: Command Function Command Example /+3:abc123 xxx: ASCII string. The “B”...

  • Page 37: Panel Drawing

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 9. Panel Drawing 1 2 3 4 1. HDMI/MHL IN 2. HDMI/MHL IN 3. HDMI IN 4. USB-C IN 5. DP IN 6. VGA IN HDMI OUT OPTICAL EDID IR IN RS232 TCP/IP 342.5 mm VIDEO SOURCE...

  • Page 38: Troubleshooting & Maintenance

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 10. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the connecting Try another high quality cable. cable. Output image with snowflake. Make sure the connection is Fail or loose connection. good.

  • Page 39: Customer Service

    HDMI 2.0 6x1 Presentation Switcher with Audio Extraction 11. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years.
