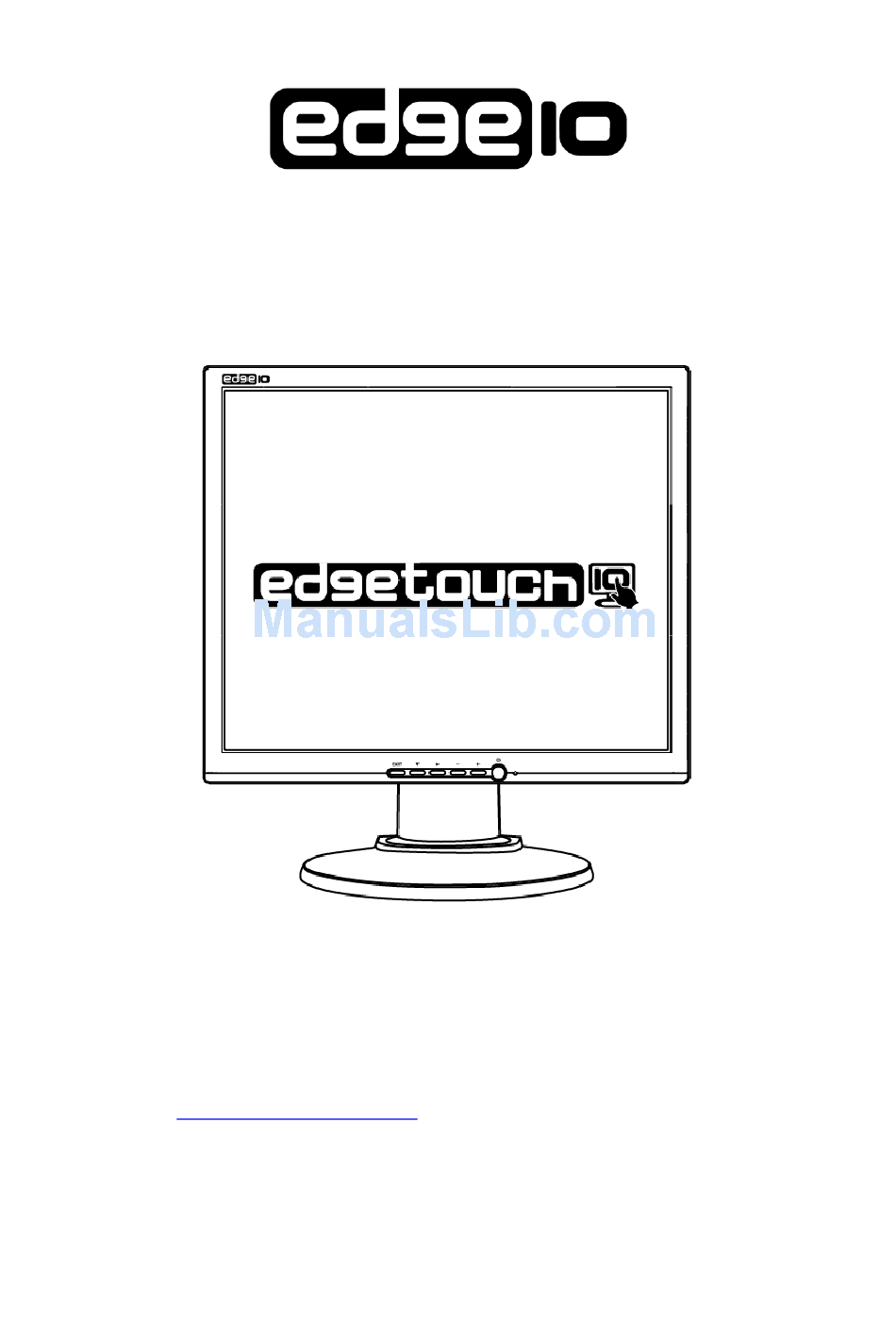

- Page 1 Advanced Display Systems The display comes with a three year on site warranty. To activate your warranty please register your display at http://www.edge10.com by clicking on the help & support link. LCD Display...
-
Page 2: Table Of Contents
Table of Contents Introduction Product Description………………………………………….2 Package Contents…………………………………………….2 Product Features and Benefits……………………………….2 Recommended Use Working Environment………………………………….…….3 Cleaning…………………..………………………………….3 Control Function Control Button Front View……………...…….………….….4 OSD Control……………...………………………………….5 OSD Icon Overview……………...………………………….6 Inputs Diagram………….…………………………………….8 Display Angle…………………….…………………………...9 Installing TouchKit Driver...…...11 Product Specification………………………………………...12 Display Modes ………………………………………...13 Important Notice……………………………………...14... -
Page 3: Product Description
Product Description Congratulations on your purchase of this innovative monitor. Your LCD monitor incorporates high quality display into a small lightweight module. It is environment friendly because of its zero radiation emission and low power consumption. This LCD monitor utilizes 17”color active matrix thin-film transistor (TFT) liquid crystal display to provide superior display performance. -
Page 4: Recommended Use
For optimal performance, allow 1~2 minutes for warm-up. ※ Adjust the monitor height so that the top of the screen is at or slightly ※ below eye level. Your eyes should look slightly downward when viewing the middle of the screen. -
Page 5: Control Function Control Button Front View
Control Function Control Button Front View 1. Exit: Exit the OSD (On Screen Display); Channel“ ”: Press to bring up the On Screen Display and select main menu items. 3. Channel “ ”: Press to bring up the On Screen Display and select sub menu items. -
Page 6: Osd Control
5. Press “+” and “-“buttons to adjust. 6. Press the EXIT button when finishes adjusting. The Adjustment of Monitor’s Screen Display ■ There are two ways to adjust the monitor’s screen, i.e. auto adjustment and manual adjustment. Auto adjustment ■... -
Page 7: Osd Icon Overview
OSD Icon Overview Sub Menu Main Menu Function Name Adjusts the level of brightness and darkness BRIGHTNESS CONTRAST Adjusts the RGB color pattern set of the contrast Tune off OSD window EXIT CLOCK Adjusts the number of pixels from source video CLOCK PHASE Adjusts the phase relative to video H-sync signal Moves the screen horizontally (left/right) -
Page 8: No Signal Input
1. If this warning appears, please check the connector. If it is bent or damaged, the signal cable may be affected. 2. If the monitor is in “sleep” mode to save power, please move the mouse or press any key to “wake” it and return to working mode. -
Page 9: Inputs Diagram
Inputs Diagram Inputs 1. VGA IN: This is to be connected to the D-Sub 15 pin signal connector. 2. RS232: This can be connected for touch panel. 3. USB: This can be connected for touch panel. 4. AUDIO IN: The audio jack is connecting to audio source. 5. -
Page 10: Display Angle
Display Angle Tilting for viewing clarity or personal preferences 1. you can tile the LCD forward (Down to 4 degrees) or backward (up to 20 degrees). 2. You can adjust the stand of the LCD to turn upward for 110mm height. - Page 11 3. You can revolve the LCD to clockwise or inverse from 0° to 90°. 3. You can title the left of LCD backward from 0° to 45°, the same as the right of LCD.
-
Page 12: Installing Touchkit Driver
Installing TouchKit Driver TouchKit is software, which contains drivers of the touch panel controllers for the specified communication connectors, RS232 and USB, and another utility. The touch panel driver emulates mouse left and right button function and supports operation systems including Microsoft Windows 95/98/ME/NT4 /2000/XP/XP Tablet PC Edition, Windows CE 2.12/3.0/NET, Linux, iMac and DOS. -
Page 13: Product Specification
Product Specification Display Type Pixel pitch Contrast Ratio Viewing Angle Operation Feature H Frequency Input Range V Frequency Input Range Video Frequency Display Colors Resolution Brightness Response Time Input Connector Audio System Touch Screen Users Control Front Panel Controls OSD Controls Power Power Saving Power Consumption... -
Page 14: Display Modes
Display Modes Display Mode Clock (MHz) 640 x 350 25.18 25.18 640 x 480 640 x 480 31.50 VESA 640 x 480 31.50 VESA 28.32 720 x 400 800 x 600 36.00 VESA 40.00 SVGA 800 x 600 800 x 600 49.50 VESA 800 x 600... -
Page 15: Important Notice
Important Notice All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. This crossed-out wheeled bin symbol on the product means the product is covered by the European Directive 2002/96/EC.
