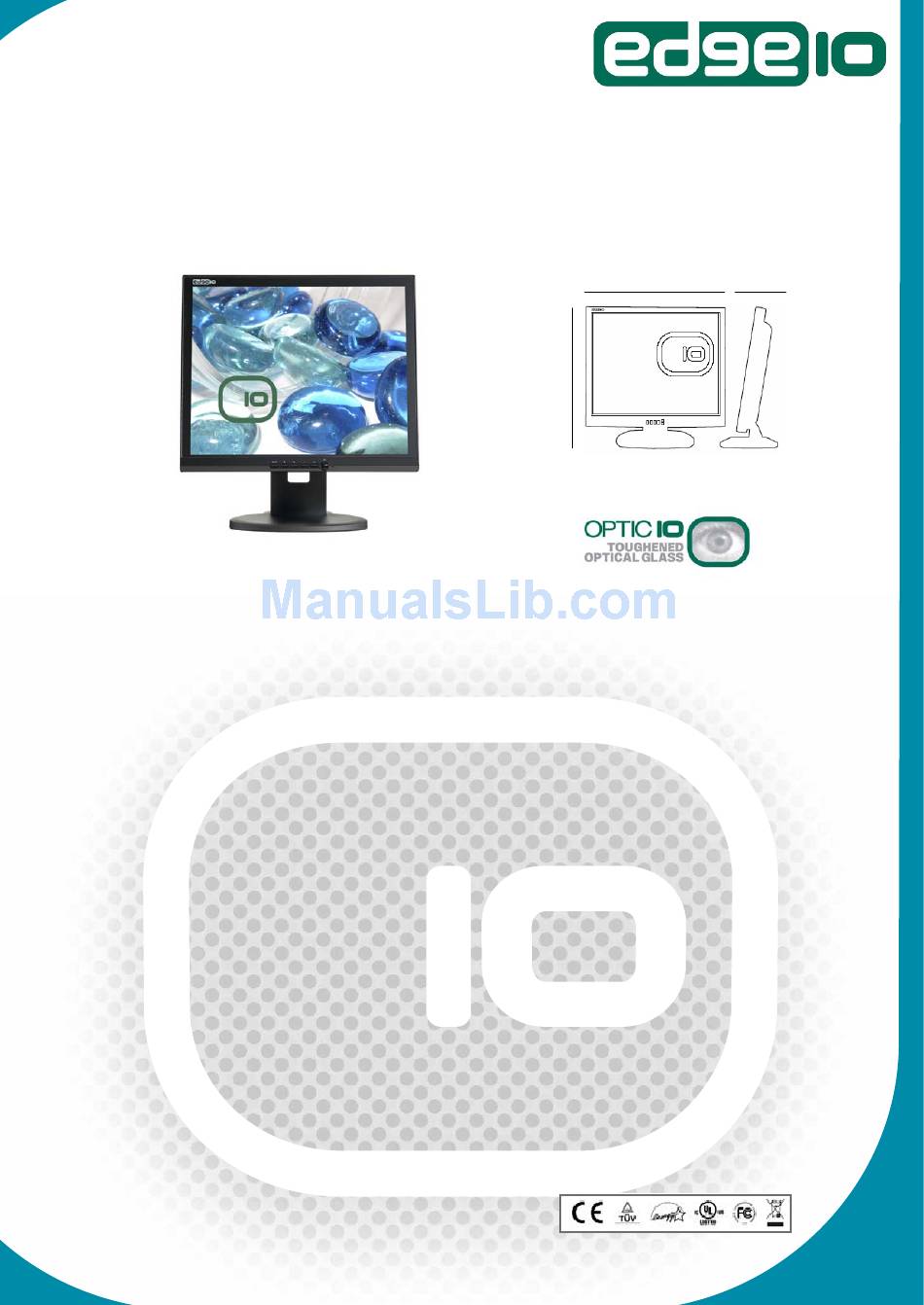

Edge10 T171 Specifications

T171
17" Multimedia Toughened Glass TFT LCD Monitor
The hard glass T series range of LCD Monitors from Edge10 is designed for any environment.
As well as the obvious advantage of protecting the LCD panel the special glass improves the
visual experience to the user by raising the colour intensity and enhancing the sharpness of the
image. The monitor is ideal for wall mounting with VESA 75 compliance and coupled with the
anti glare glass makes this the perfect monitor for professional installations. Yet this is a monitor
which looks equally at home in the home.

KEY FEATURES

Monitor Cosmetics:
LCD:
Pixel Pitch (mm):
Native Resolution:
Scan Frequency:
View Angle:
Display Area (mm):
Display Colour:
Contrast Ratio:
Brightness:
Response Time (Tr+Tf):
Speakers:
Anti-theft Security:
Compatibility:
Input Video Signal:
Input power source:
Power management (EPA Compliant): Normal operation: < 42W Off/Suspend/Stand-by mode: < 2W
Operation Environment: Temperature:
Tilt Angle: Max.
Weight:
Dimensions (W x D x H):
VESA Wall Mount Compliant:
Warranty:
Edge10 Corporation Limited. Manchester Business park, 3000 Aviator Way, Manchester. M22 5TG. UK.
tel: +44 ( 0 ) 871 855 0110 fax: +44 ( 0 ) 871 855 2153 web: www.edge10.com
Compliant with ISO-13406-2 regarding pixel faults. Specifications are subject to change without notice.
TOUGHENED GLASS
IDEAL FOR WALL MOUNTING
INTERNAL POWER SUPPLY
MULTIMEDIA
Black bezel with black stand and black rear cabinet
17.0" active matrix, thin film transistor (TFT) LVDS
0.264mm
SXGA 1280 x 1024
Horizontal: 30kHz - 80kHz Vertical: 55Hz - 75Hz
Horizontal: 140° Vertical: 130°
337.92(H) x 270.34(V)
16.2 Million (6bit +FRC)
500:1
300 cd/m2
8ms
2 x 2 Watts per channel
Kensington® Lock
Windows 95/98/98SE/Me/NT4/2000/XP, Mac OS, Macintosh,
Linux Plug & Play - DDC1/2B
Analogue: (Connector: 15 pin D-sub) 0.7 Vp-p separate sync.
TTL level, RGB analogue, Detachable cable
Digital: DVI Connector, Detachable cable
AC 100-240V, 50-60Hz
5 - 40°C Humidity: 20% - 80%
Forward tilt 3° Max. backward tilt: 20°
Net: 4.4kg. Gross: 6.2kg
374 x 198 x 397mm
75mm x 75mm
Three year on-site exchange
374mm
397mm
198mm
