User Manual
TS701

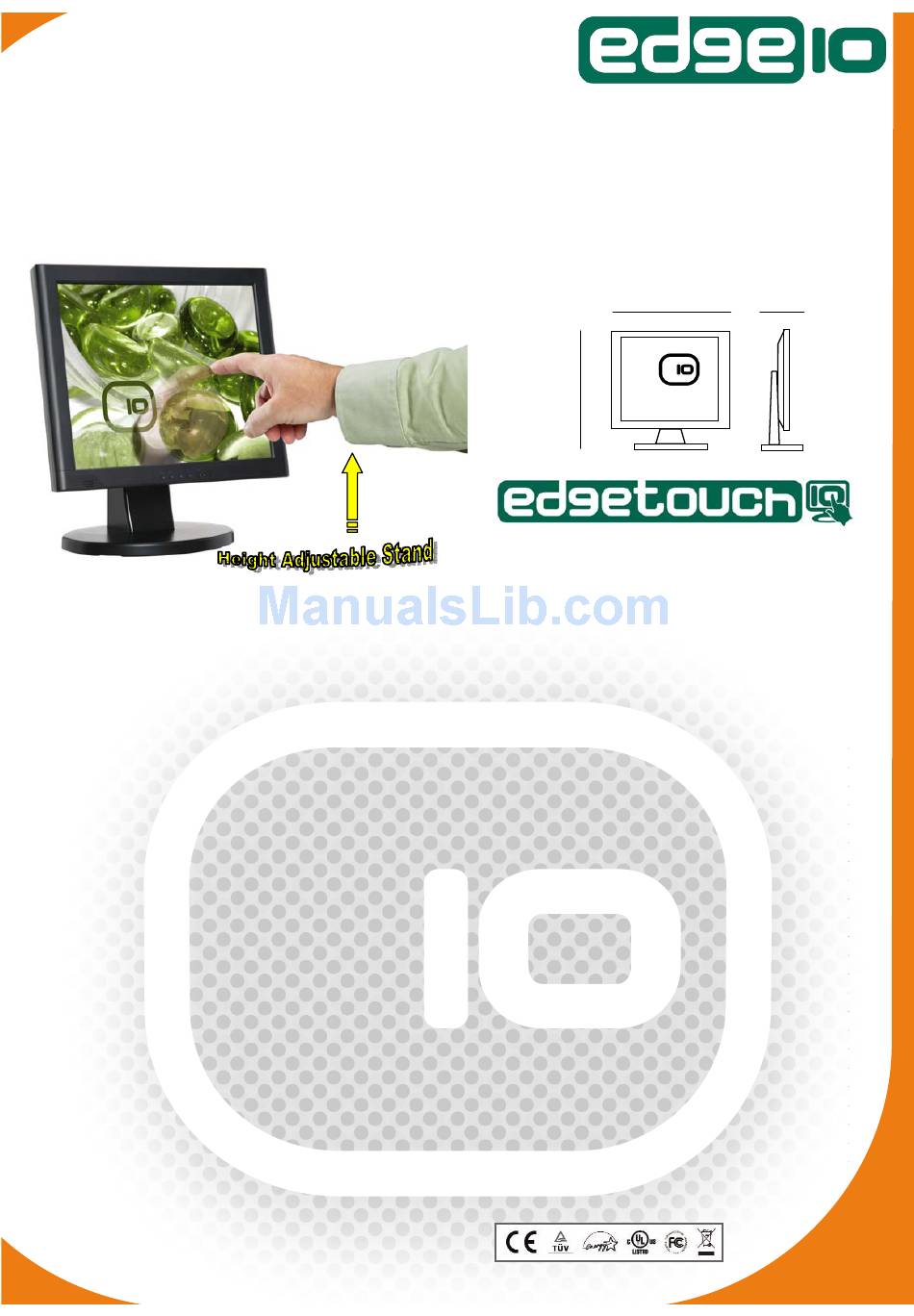

17" Multimedia Touch Screen LCD Monitor
This monitor is fitted with a 5-wire touch screen which provides high clarity, exceptional
durability and reliability. An ideal solution for repetitive applications such as POS, office and
hospitality applications. The screen is pressure sensitive and so will work equally well with
any input device such as a stylus or finger. It comes fitted with a height adjustable stand which
can be easily removed allowing it be wall mounted. Just like the entire Edge10 range this
monitor is backed by a three year on site exchange warranty.
Monitor Cosmetics:
LCD:
Touch Technology:
Touch Screen Interface:
Pixel Pitch (mm):
Native Resolution:
Scan Frequency:
View Angle:
Display Area (mm):
Display Colour:
Contrast Ratio:
Brightness:
Response Time (Tr+Tf):
Speakers:
Anti-theft Security:
Compatibility:
Input Video Signal:
Power Supply:
Power management (EPA Compliant): Normal operation: < 50W Off/Suspend/Stand-by mode: < 3W
Operation Environment: Temperature:
Tilt Angle:
Weight:
Dimensions (W x D x H):
VESA Wall Mount Compliant:
Warranty:
.
Edge10 Corporation Limited, 39a London Road, Alderley Edge, Cheshire. SK9 7JT
T: +44 (0) 871 855 0110 | F: +44 (0) 871 855 2153
Compliant with ISO-13406-2 regarding pixel faults. Specifications are subject to change without notice
Black bezel with black stand and black rear cabinet
17" active matrix, thin film transistor (TFT) LVDS
5 wire resistive
USB & RS232 (software included)
0.264mm
SXGA+ 1280 x 1024
Horizontal: 31.5kHz - 80kHz Vertical: 50Hz - 75Hz
Horizontal: 140° Vertical: 130°
338 (H) x 270 (V)
16.2 Million (6 bits +FRC)
450:1
300 cd/m2
5ms
2 x 2 Watts per channel
Kensington® Lock
Windows 95/98/98SE/Me/NT4/2000/XP/Vista, Mac OS,
Macintosh, Linux Plug & Play - DDC1/2B
Analogue: (Connector: 15 pin D-sub) 0.7 Vp-p separate sync.
TTL level, RGB analogue, Detachable cablePower
Internal
0°C to 40°C Humidity: 20% - 80%
Max. Forward tilt 5° Max. backward tilt: 15°
Net: 7.56kg
378 x 210 x 387 to 500mm (height adjustable)
100mm x 100mm
Three year on-site exchange
378mm
387mm
to
500 mm
210mm
