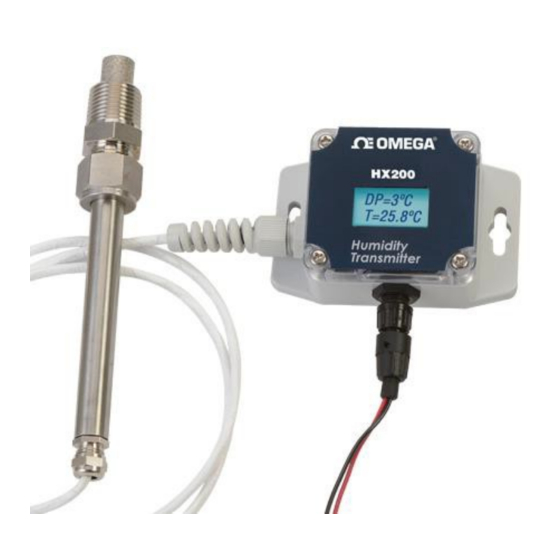

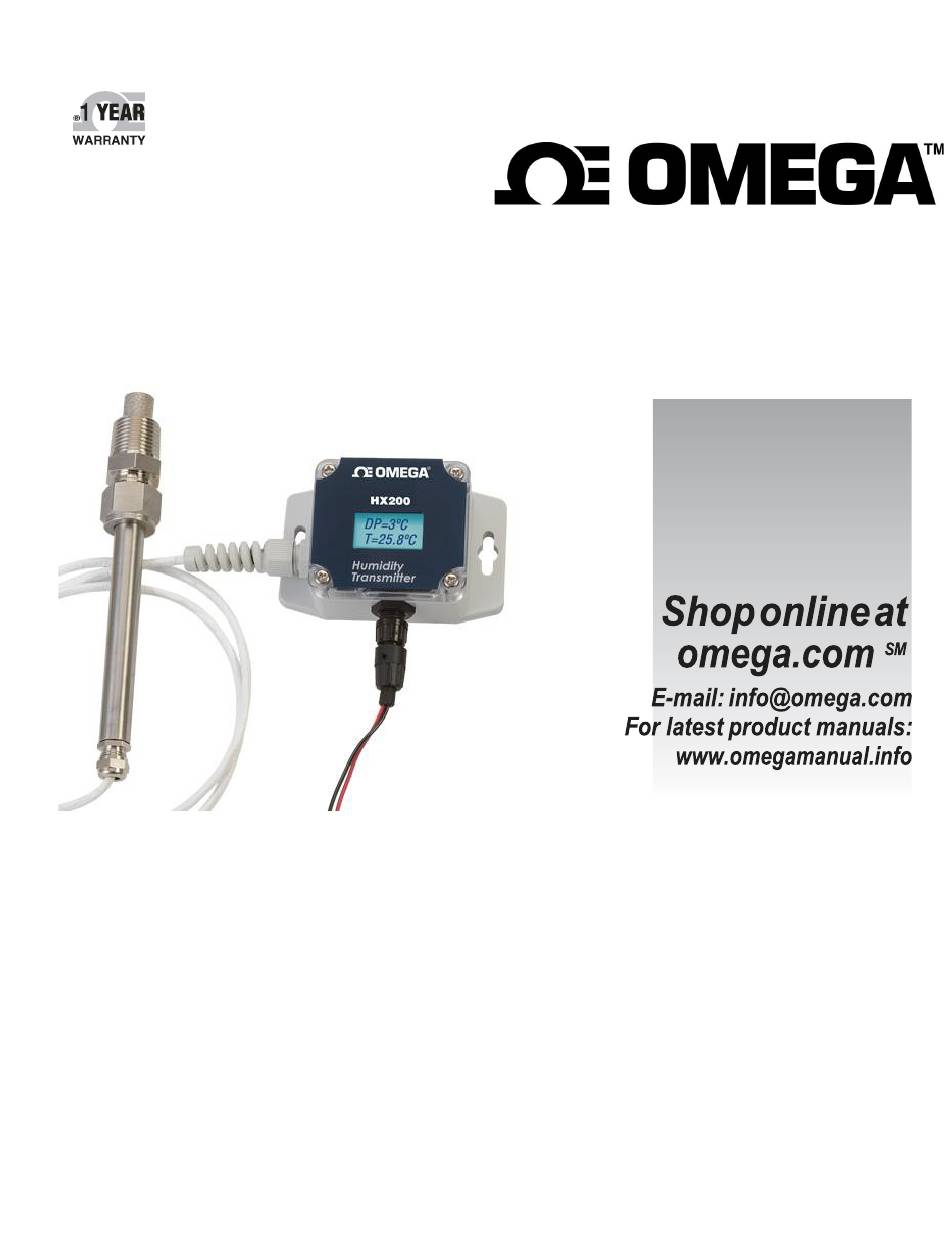

- Page 1 User’ s Gui d e HX200 Dew point/RH Transmitter...
- Page 2 Servicing North America: U.S.A. Omega Engineering, Inc. Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada o n l y) Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 E-mail: info@omega.com For Other Locations Visit omega.com/worldwide...
-
Page 3: Quick Startup Guide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains and reserves the right to alter specifications without notice. HX200 Series QUICK STARTUP GUIDE Installing the probe for compressed air and dryer applications. - Page 4 The output load if isolated from the excitation voltage can be in line with either the red or black wire. If the load shares a common connection to the negative excitation voltage, the HX200 (-) terminals must be connected to the (+) of the load device. HX200-RS Connections: Connect white wire (+) to the positive excitation source and the black wire (-) to a negative excitation.
-
Page 5: General Description
INTRODUCTION 3.1 GENERAL DESCRIPTION The HX200 Series is a family of humidity probes and electronic modules that offer %RH and dew point measurements with NIST traceable calibration. All stainless-steel probe construction coupled with a high temperature cable allows up to 200c operations. For pressure applications the probe is capable of handling 750PSI. - Page 6 Dimensions of Probe: Length: 6.5” (185mm), O.D.: 0.5” (13mm) For the HX200-RS series The HX200-RS meets all the spec’s listed above for both the HX200HD and HX200HR. Digital Output: Bidirectional RS-232C outputs will display RH, dew point and temperature, in the streaming command.
- Page 7 The red block switch has 2 switches, the one furthest from the blue connector is for changing the reading from Dew Point to RH or vice versa, and the switch closes to the white connector is for changing it to degree F or C for both dew point and temperature.
- Page 8 Update rate is 5 seconds for dew point, or RH and temperature To change the scaling Connect the HX200 series to the PC via the above settings When finished connecting to the PC and the protocol is set: Hit the “escape” key...
- Page 9 Wiring Diagram-HX200 Loop Powered Power Supply HX200 24 VDC @500mA Black Iout (4-20mA)
- Page 10 WARRANTY/DISCLAIMER OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
- Page 11 OMEGA ENGINEERING, INC.
-
