PRONAR RC2100-2 Operator's Manual

Agricultural trailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ISSUE 2A-09-2017
PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
phone:
fax:

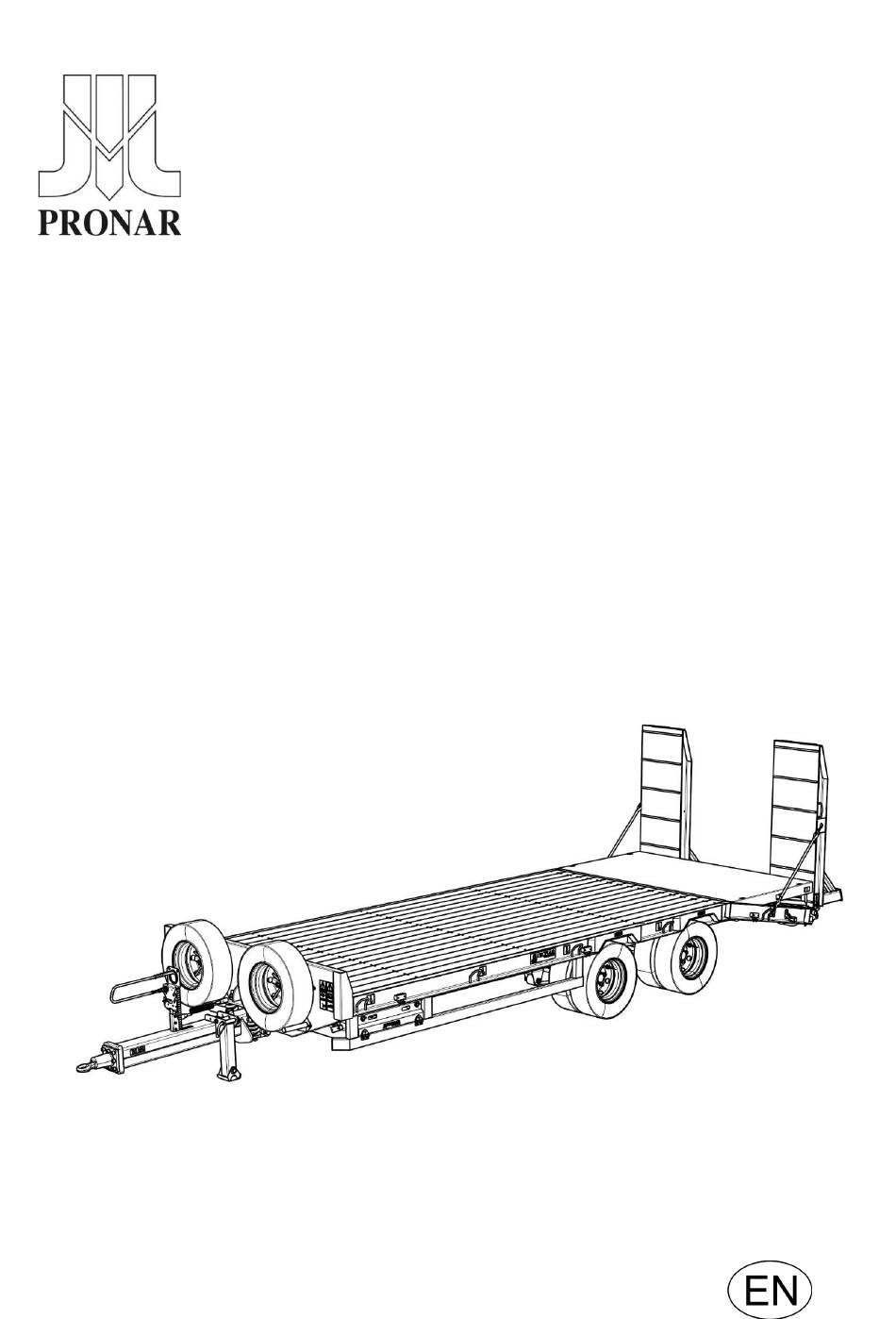

OPERATOR'S MANUAL
AGRICULTURAL TRAILER
PRONAR RC2100-2
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
+48 085 681 63 29
+48 085 681 63 81
+48 085 681 63 83
PUBLICATION NO 437N-00000000-UM
+48 085 681 64 29
+48 085 681 63 82
+48 085 682 71 10
www.pronar.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC2100-2 and is the answer not in the manual?

Questions and answers

Related Manuals for PRONAR RC2100-2

Summary of Contents for PRONAR RC2100-2

  • Page 1 PRONAR Sp. z o.o. 17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE phone: +48 085 681 63 29 +48 085 681 64 29 +48 085 681 63 81 +48 085 681 63 82 fax: +48 085 681 63 83 +48 085 682 71 10 www.pronar.pl...
  • Page 3 The machine is designed to meet obligatory standards, documents and legal regulations currently in force. The manual describes the basic safety rules and operation of trailer Pronar RC2100-2. If the information stated in the Operator's Manual needs clarification then the user should refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
  • Page 4 SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL Information, descriptions of danger and precautions and also recommendations and prohibitions associated with user safety instructions are marked: and also preceded by the word "DANGER”. Failure to observe the instructions may endanger the machine operator's or other person's health or life. Particularly important information and instructions, the observance of which is essential, are distinguished in the text by the sign: and also preceded by the word "ATTENTION".
  • Page 5 DIRECTIONS USED IN THIS OPERATOR'S MANUAL Left side – side to the left hand of the operator facing in the direction of machine's forward travel. Right side – side to the right hand of the operator facing in the direction of machine's forward travel.

  • Page 7: Table Of Contents

    CONTENTS 1 BASIC INFORMATION IDENTIFICATION 1.1.1 TRAILER IDENTIFICATION 1.1.2 AXLE IDENTIFICATION 1.1.3 LIST OF FACTORY NUMBERS PROPER USE EQUIPMENT TERMS & CONDITIONS OF WARRANTY TRANSPORT 1.5.1 TRANSPORT ON VEHICLE 1.5.2 INDEPENDENT TRANSPORT BY THE USER 1.11 ENVIRONMENTAL HAZARDS 1.11 WITHDRAWAL FROM USE 1.13 2 SAFETY ADVICE BASIC SAFETY RULES...
  • Page 8 3 DESIGN AND OPERATION TECHNICAL SPECIFICATION TRAILER CONSTRUCTION 3.2.1 CHASSIS AND LOAD PLATFORM 3.2.2 DRAWBAR OF TRAILER 3.2.3 SUSPENSION 3.2.4 MAIN BRAKE 3.2.5 PARKING BRAKE 3.2.6 LIGHTING SYSTEM 4 CORRECT USE PREPARING FOR WORK BEFORE FIRST USE 4.1.1 CHECKING THE TRAILER AFTER DELIVERY 4.1.2 PREPARE A TRAILER FOR FIRST HITCHING TO TRACTOR HITCHING AND DISCONNECTING FROM TRACTOR TRAILER SUPPORT OPERATION...
  • Page 9 5.2.2 INITIAL INSPECTION OF AXLE BRAKES 5.2.3 CHECK BRAKE SHOE LININGS FOR WEAR 5.2.4 CHECK WHEEL AXLE BEARINGS FOR LOOSENESS 5.2.5 ADJUSTMENT OF PLAY OF WHEEL AXLE BEARINGS 5.2.6 MOUNTING AND DISMOUNTING WHEELS, INSPECTION OF WHEEL NUT TIGHTENING. 5.2.7 CHECK AIR PRESSURE, EVALUATE TECHNICAL CONDITION OF WHEELS AND TYRES 5.12 5.2.8 MECHANICAL BRAKES ADJUSTMENT...
  • Page 10 5.11 TROUBLESHOOTING 5.31...

  • Page 11: Basic Information

    SECTION BASIC INFORMATION...

  • Page 12: Identification

    PRONAR RC2100-2 SECTION 1 1.1 IDENTIFICATION 1.1.1 TRAILER IDENTIFICATION FIGURE 1.1 Location of the data plate and serial number (1) data plate, (2) example of serial number, (3) right longitudinal member of lower frame The trailer is marked with data plate (1), located on the trailer's front wall and with serial number (2) located on a gold painted rectangle.

  • Page 13: Axle Identification

    SECTION 1 PRONAR RC2100-2 TABLE 1.1 Markings on data plate ITEM MARKING General description and purpose Symbol / type of trailer Trailer's year of manufacture Seventeen digit serial number (VIN) Official certificate number Tare weight Maximum gross weight Carrying capacity...

  • Page 14: List Of Factory Numbers

    PRONAR RC2100-2 SECTION 1 1.1.3 LIST OF SERIAL NUMBERS If spare parts have to be ordered or if problems occur, it is very often necessary to give the factory numbers of parts or the VIN number of the trailer. Therefore, it is recommended that these numbers are inscribed in the table (1.2).
  • Page 15 SECTION 1 PRONAR RC2100-2 ATTENTION The trailer must not be used for purposes other than those for which it is intended. The user MUST NOT: • transport people, animals, hazardous materials, chemically aggressive loads that will corrode the structural elements of the trailer (causing corrosion of steel, destruction of paint coat, dissolving plastic elements and destruction of rubber elements etc.),...
  • Page 16 PRONAR RC2100-2 SECTION 1 • comply with the road traffic regulations in force in a given country, in which the trailer is used, • carefully read the Operator's Manual and comply with its recommendations, • only hitch the trailer to an agricultural tractor which fulfils all the requirements specified by the trailer's Manufacturer.

  • Page 17: Equipment

    Use of other oil is permitted on condition that it may be mixed with the oil used in the trailer. Detailed information can be found on the product information card. 1.3 EQUIPMENT TABLE 1.4 RC2100-2 trailer equipment EQUIPMENT • THE OPERATOR'S MANUAL •...

  • Page 18: Terms & Conditions Of Warranty

    Ramp floor insert 1.4 TERMS & CONDITIONS OF WARRANTY PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used according to its intended purpose as described in the OPERATOR'S MANUAL. The repair period is specified in the WARRANTY BOOK.
  • Page 19 SECTION 1 PRONAR RC2100-2 • seals, • bearings, • floor planks. The warranty service only applies to such cases as: mechanical damage which is not the user's fault, factory defects of parts, etc. In the event of damage arising from: •...

  • Page 20: Transport

    PRONAR RC2100-2 SECTION 1 1.5 TRANSPORT The trailer is ready for sale completely assembled and does not require packing. Packing is only required for the machine's technical documentation and any extra equipment. The trailer is delivered to the user either transported on a vehicle or, after being attached to a tractor, independently (trailer towed with a tractor).
  • Page 21 SECTION 1 PRONAR RC2100-2 movement. The number of securing elements (cables, straps, chains and stay etc.) and the force necessary for their tensioning depends on a number of things, including weight of the trailer, the construction of vehicle carrying trailer, speed of travel and other conditions. For this reason it is impossible to define the securing plan precisely.

  • Page 22: Independent Transport By The User

    PRONAR RC2100-2 SECTION 1 1.5.2 INDEPENDENT TRANSPORT BY THE USER In the event of independent transport by the user after purchase of the trailer, the user must read the trailer Operator's Manual and adhere to the recommendations contained therein. Transport of the trailer by the user involves towing the trailer with own agricultural tractor to destination.

  • Page 23: Withdrawal From Use

    SECTION 1 PRONAR RC2100-2 Detailed information concerning hydraulic oil may be found on the product's Material Safety Data Sheet. The hydraulic system of the trailer is filled with L-HL32 Lotos hydraulic oil. ATTENTION Waste oil should only be taken to the appropriate facility dealing with the re-use of this type of waste.
  • Page 24 PRONAR RC2100-2 SECTION 1 1.14...

  • Page 25: Safety Advice

    SECTION SAFETY ADVICE...

  • Page 26: Basic Safety Rules

    Pronar RC2100-2 SECTION 2 2.1 BASIC SAFETY RULES 2.1.1 USE OF TRAILER • Before using the machine, the user must carefully read this Operator's Manual and the WARRANTY BOOK. When operating the machine, the operator must comply with all recommendations contained in the Operator's Manual.
  • Page 27 SECTION 2 Pronar RC2100-2 • Before lowering the ramps, make certain that there are no bystanders or other obstacles in the ramp lowering zone. • Be especially careful when lowering or raising the ramps because the ramps are heavy and there is a risk of crushing.

  • Page 28: Hydraulic System

    Pronar RC2100-2 SECTION 2 2.1.3 HYDRAULIC SYSTEM • The hydraulic system is under high pressure when operating. • Regularly check the technical condition of the hydraulic connections and conduits. There must be no oil leaks. • In the event of the hydraulic system malfunction, discontinue using the trailer until the malfunction is corrected.
  • Page 29 SECTION 2 Pronar RC2100-2 • The trailer is not intended for transporting people, animals or hazardous materials, to which separate regulations apply. • The load must be arranged in such a way that it does not threaten the stability of the trailer and does not hinder driving.

  • Page 30: Transporting The Machine

    Pronar RC2100-2 SECTION 2 • After completion of loading, make certain that no tools remain on the load platform. • Ends of load fixing belts, chains or ropes should be secured in such a manner as to ensure that they do not fall down onto road surface and do not become tangled with moving elements of the trailer (wheels –...
  • Page 31 SECTION 2 Pronar RC2100-2 system, the brake system, indicator lights and the connective elements of the hydraulic and electrical systems. • The trailer is designed to operate on slopes up to 8 . Driving trailer across ground with steeper slopes may cause the trailer to tip over as a result of loss of stability.
  • Page 32 Pronar RC2100-2 SECTION 2 • A load protruding beyond the edge of the trailer should be marked according to the road traffic regulations. Do NOT transport loads forbidden by the Manufacturer. • Do NOT exceed the trailer's maximum carrying capacity. Exceeding the carrying capacity may lead to damage to the machine, loss of stability and danger while driving.

  • Page 33: Tyres

    SECTION 2 Pronar RC2100-2 should be fixed using sufficiently strong chains, belts or ropes with a tightening mechanism. • During reversing one should use the assistance of another person. During manoeuvring the assistant must stay at a safe distance from the danger zone and be visible all the time to the tractor driver.

  • Page 34: Maintenance

    Pronar RC2100-2 SECTION 2 2.1.7 MAINTENANCE • During the warranty period, any repairs may only be made by the Warranty Service authorised by the Manufacturer. After the expiry of the warranty period it is recommended that possible repairs to the trailer be performed by specialised workshops.
  • Page 35 SECTION 2 Pronar RC2100-2 • During maintenance or repair work, the trailer may be unhitched from tractor, but it must be secured with chocks and parking brake. • Should it be necessary to change individual parts, use only those parts indicated by the Manufacturer.
  • Page 36 Water stored in the tank is not potable. 2.2 RESIDUAL RISK Pronar Sp. z o. o. in Narew has made every effort to eliminate the risk of accidents. There is, however, a certain residual risk, which could lead to an accident, and this is connected mainly with the actions described below: •...

  • Page 37: Information And Warning Decals

    In the event of their destruction, they must be replaced with new ones. Safety decals are available from your PRONAR dealer or directly from PRONAR customer service. New assemblies, changed during repair, must be labelled once again with the appropriate safety signs.
  • Page 38 Pronar RC2100-2 SECTION 2 DECAL MEANING Before beginning servicing or repairs, consult Operator's Manual, turn off engine and remove key from ignition. 70RPN-00.00.00.05 Danger of crushing or severing. Do not place hands between the ramps and the trailer frame. 123RPN-00.00.00.04...
  • Page 39 SECTION 2 Pronar RC2100-2 DECAL MEANING Marking of mounting points for belts, ropes, chains or other devices for securing load on the platform. 123RPN-00.00.00.13 Manufacturer's decal. 187N-00000016 Trailer version. 437-20000001 Information decal identifying the hydraulic brake connection. 29RPN-00.00.028 Numbers in the Item column correspond to labels in figure (2.3)
  • Page 40 Pronar RC2100-2 SECTION 2 FIGURE 2.3 Locations of information and warning decals 2.16...

  • Page 41: Design And Operation

    SECTION DESIGN AND OPERATION...

  • Page 42: Technical Specification

    Pronar RC2100-2 SECTION 3 3.1 TECHNICAL SPECIFICATION TABLE 3.1 Basic technical specification of RC2100-2 trailer CONTENTS UNIT DATA Dimensions Length 9 450 Width 2 550 Height (in condition ready for travel) 2 450 Floor width 2 540 Ramps length 1 900...

  • Page 43: Trailer Construction

    SECTION 3 Pronar RC2100-2 3.2 TRAILER CONSTRUCTION 3.2.1 CHASSIS AND LOAD PLATFORM FIGURE 3.1 Rear view (1) ramp, (2) transport strap, (3) auxiliary spring, (4) locking pin, (5) rear light assemblies, (6) floor insert - additional equipment Low chassis trailer is a welded structure made from steel profiles. The main support elements are two longitudinal members connected with crossbars.
  • Page 44 Pronar RC2100-2 SECTION 3 transport straps (2). Lighting elements and reflective lights are attached to the bottom side of the ramps – rear lamp assemblies (5). FIGURE 3.2 Front view (1) floor planks, (2) fixing lugs, (3) front wall, (4) spare wheel, (5) under-run protective device, (6) side holder wall The load platform floor is made of profiled planks (1) - figure (3.2) with a thickness of 45 mm.

  • Page 45: Suspension

    (4) (mechanical or hydraulic). On the upper profile of the drawbar there is a holder for installing bracket for conduit connectors (5). FIGURE 3.3 RC2100-2 trailer drawbar (1) drawbar, (2) spring, (3) rotating drawbar with a ∅50 eye, (4) parking stand, (5) bracket for conduit connectors 3.2.3 SUSPENSION...

  • Page 46: Main Brake

    Pronar RC2100-2 SECTION 3 bearings. Brake drums with shoe brakes are activated by mechanical expander cams, which are operated by hydraulic cylinders bolted to axle brackets. FIGURE 3.4 Tandem suspension (1) wheel axle, (2) rocker arm, (3) parabolic leaf spring, (4) rocker arm pin, (5) lubricated leaf spring pin, (6) smooth leaf spring pin, (7) twin wheels 3.2.4 MAIN BRAKE...
  • Page 47 SECTION 3 Pronar RC2100-2 FIGURE 3.5 Design and diagram of the hydraulic braking system (1) hydraulic cylinder, (2) hydraulic quick coupler, (3) information decal, (4) draw back spring Brake hydraulic cylinders (1) used in the systems are mounted on specially designed brackets welded to the wheel axles.
  • Page 48 Pronar RC2100-2 SECTION 3 FIGURE 3.6 Design and diagram of double conduit pneumatic braking system with ALB regulator (1) air tank, (2) control valve, (3) automatic braking force regulator, (4) relay valve, (5) pneumatic cylinder, (6) ALB beam, (7) conduit connector, yellow, (8) conduit connector,...
  • Page 49 SECTION 3 Pronar RC2100-2 FIGURE 3.7 Design and diagram of combined braking system (double conduit pneumatic braking system + single conduit hydraulic braking system) (1) air tank, (2) control valve, (3) manual braking force regulator, (4) relay valve, (5) pneumatic cylinder, (6) hydraulic cylinder, (7) conduit connector, yellow, (8) conduit...
  • Page 50 Pronar RC2100-2 SECTION 3 applied when trailer is disconnected from the tractor. When compressed air conduit is connected to the tractor, the device automatically applying the brakes changes its position to allow normal brake operation. FIGURE 3.8 Control valve and braking force regulator (1) control valve, (2) braking force regulator, (3) push-button for applying the trailer brakes while standing motionless, (4) regulator working position selection lever, (A) "NO LOAD"...

  • Page 51: Parking Brake

    SECTION 3 Pronar RC2100-2 3.2.5 PARKING BRAKE FIGURE 3.9 Parking brake (1) crank mechanism, (2) wheel axle, (3) expander arm, (4) cable, (5) roller The parking brake is used for immobilising the trailer while parking. The brake crank mechanism (1) is attached to the right longitudinal member of the lower frame. Steel cable (4), routed through guide rollers (5), is connected with expanded levers (3) of front axle (2).

  • Page 52: Lighting System

    Pronar RC2100-2 SECTION 3 3.2.6 LIGHTING SYSTEM The trailer's electrical lighting system is designed to be supplied from direct current source of 12 V. The trailer's electrical system should be connected to the tractor using an appropriate connection lead that is a part of the trailer's standard equipment.
  • Page 53 SECTION 3 Pronar RC2100-2 3.3 HYDRAULIC SYSTEM OF THE SUPPORT (OPTION) FIGURE 3.11 Design and diagram of hydraulic support system (1) straight hydraulic support, (2) cut off valve, (3) hydraulic coupler, (4) information decal, (5) information decal 3.13...
  • Page 54 Pronar RC2100-2 SECTION 3 Design of the control system for the hydraulic support is shown in figure (3.11). The hydraulic system is equipped with a support with a single acting cylinder. The support foot return is accomplished by the tensioning springs located inside the support body. Supply conduit is marked with information decal (5).
  • Page 55 SECTION 3 Pronar RC2100-2 FIGURE 3.12 Design of the ramps' hydraulic system (1) hydraulic distributor, (2) flow divider, (3) ramp cylinder, (4) hydraulic pipe, (5) quick coupler - plug (supply), (6) quick coupler - plug with return valve (return), (7) information decal, (8) information decal, (9) hydraulic distributor with floating position (option) 3.15...
  • Page 56 Pronar RC2100-2 SECTION 3 FIGURE 3.13 Concept diagram of the ramps' hydraulic system (1) hydraulic distributor, (2) cylinder, (3) flow divider, (4) supply, (5) return The hydraulic system of the ramps is filled with L-HL32 Lotos hydraulic oil. Oil demand - 5l.
  • Page 57 SECTION 3 Pronar RC2100-2 3.5 HYDRAULIC BRAKING SYSTEM WITH EMERGENCY BRAKE (OPTION) FIGURE 3.14 Braking system with emergency brake brake cylinder, hydraulic quick coupler, expander lever, brake crank mechanism, emergency brake cable, guide roller, (7) handbrake cable, (8) bottle screw, (9) lever, (10), (11) (12) steel cables, (13) decal The RC2100/2 trailer can be equipped with hydraulic braking system with emergency lever brake - figure (3.14).
  • Page 58 Pronar RC2100-2 SECTION 3 ATTENTION Connect the cable (5) to tractor in such a manner as not to activate the trailer's brakes. 3.18...

  • Page 59: Correct Use

    SECTION CORRECT USE...

  • Page 60: Preparing For Work Before First Use

    Pronar RC2100-2 SECTION 4 4.1 PREPARING FOR WORK BEFORE THE FIRST USE 4.1.1 CHECKING THE TRAILER AFTER DELIVERY The manufacturer guarantees that the trailer is fully operational and has been checked according to quality control procedures and is ready for normal use. This does not release the user from an obligation to check the machine's condition after delivery and before first use.
  • Page 61 SECTION 4 Pronar RC2100-2 4.1.2 PREPARING THE TRAILER FOR THE FIRST HITCHING TO TRACTOR Preparation Check all the trailer's lubrication points, lubricate the machine as needed according to recommendations provided in section 5. Check if the nuts and bolts fixing the wheels are properly tightened.
  • Page 62 Pronar RC2100-2 SECTION 4 or other faults, find the cause of the problem. If a fault cannot be rectified or the repair could void the guarantee, please contact the dealer for additional clarifications or to make a repair. DANGER Careless and incorrect use and operation of the trailer, and non-compliance with the recommendations given in this operator's manual is dangerous to your health.
  • Page 63 SECTION 4 Pronar RC2100-2 DANGER When hitching, there must be nobody between the trailer and the tractor. When hitching the machine, tractor driver must exercise caution and make sure that nobody is present in the hazard zone. Be especially careful when hitching the machine.
  • Page 64 Pronar RC2100-2 SECTION 4 ATTENTION Low chassis trailer may only be hitched to a tractor which has the appropriate connection sockets for brake system, hydraulic system and electrical system. Hydraulic oil in both machines must be of the same type and the tractor hitch must be capable of withstanding the drawbar's vertical load of correctly loaded trailer.
  • Page 65 SECTION 4 Pronar RC2100-2 DANGER Exercise caution when unhitching the trailer from the tractor. Ensure good visibility. Unless it is necessary, do not go between tractor and trailer. Before disconnecting conduits and drawbar eye, close tractor cab and secure it against access by unauthorised persons.
  • Page 66 Pronar RC2100-2 SECTION 4 Setting the support to driving position Immobilise tractor and trailer with parking brake. The tractor must be connected with the trailer before the support foot is raised. Unlock the cotter pin (4) and remove the safety pin from the parking position (3).

  • Page 67: Trailer Support Operation

    SECTION 4 Pronar RC2100-2 4.4 HYDRAULIC SUPPORT OPERATION Setting the support to driving position Immobilise tractor and trailer with parking brake. Open valve (5). Shift valve lever in the direction of „O” – decal (6). Operate selective control valve in the tractor in order to raise the support foot.
  • Page 68 Pronar RC2100-2 SECTION 4 FIGURE 4.2 Support operation (1) support in parking position, (2) support in driving position, (3) safety pin, (4) R-clip of safety pin, (5) cut off valve, (6) information decal „O/Z”, (7) information decal, (A), (B) safety pin sockets Turn support foot to position (2).

  • Page 69: Loading And Unloading The Trailer

    SECTION 4 Pronar RC2100-2 Prior to moving off, release trailer's parking brake. ATTENTION Do NOT move off or drive with the support raised only by means of the hydraulic cylinder. The support must be set to driving position. Do NOT travel with the trailer if the support securing elements are damaged or lost –...
  • Page 70 Pronar RC2100-2 SECTION 4 Loading of trailer may only take place when the machine is hitched to tractor. The load must be arranged in such a manner that it does not overload the axle or hitch system of the tractor and trailer.

  • Page 71: Oversize Loads

    SECTION 4 Pronar RC2100-2 When using a tractor for loading the trailer, remember to ensure that the gross weight (tractor + loaded machine) does not exceed the trailer's maximum carrying capacity. Otherwise, the ramps, drawbar or other elements of the low chassis trailer may get damaged.

  • Page 72: Ramps' Protections

    Pronar RC2100-2 SECTION 4 Unload the trailer using overhead crane, hoisting crane or another tractor. ATTENTION Lower the ramps until they fully rest on the ground. Otherwise, when a machine is driven off the load platform, the trailer will have a tendency to raise the drawbar, which may cause damage to the tractor hitch or drawbar.
  • Page 73 SECTION 4 Pronar RC2100-2 Spring catches (1) Figure (4.4) are mounted near the ramp rotation pin. Pull out the lever to position (2) in order to release the catch. In this position, the catch lever can not be automatically closed. After releasing the interlock, the ramps can be lowered to working position.

  • Page 74: Securing Load

    Pronar RC2100-2 SECTION 4 4.7 SECURING LOAD Regardless of the type of load carried, the user is obliged to secure it in such a manner that the load is unable to move freely on the load platform and pose a threat to other road users during transport.

  • Page 75: Transporting The Machine

    SECTION 4 Pronar RC2100-2 The low chassis trailer is equipped with 5 pairs of transport lugs arranged on the external longitudinal members of the lower frame – Figure (4.5). 4.8 TRANSPORTING THE MACHINE When driving on public roads, respect the road traffic regulations, exercise caution and prudence.

  • Page 76: Proper Use And Maintenance Of Tyres

    Pronar RC2100-2 SECTION 4 and indicator lights clean at all times and ensure they are in good condition. Any damaged or lost lamps or indicator lights must be immediately repaired or replaced. • Avoid ruts, depressions, ditches or driving on roadside slopes. Driving across such obstacles could cause the machine or the tractor to suddenly tilt.
  • Page 77 SECTION 4 Pronar RC2100-2 • Regularly check and maintain correct pressure in tyres according to Operator's Manual (especially if trailer is not used for a longer period of time). • Air pressure in tyres should be also checked during the whole day of intensive work.
  • Page 78 Pronar RC2100-2 SECTION 4 4.20...

  • Page 79: Maintenance

    SECTION MAINTENANCE...

  • Page 80: Preliminary Information

    Pronar RC2100-2 SECTION 5 5.1 PRELIMINARY INFORMATION When using the trailer, regular inspections of its technical condition are essential and the performance of maintenance procedures, which keep the machine in good technical condition. In connection with this the user of the trailer is obliged to perform all the maintenance and adjustment procedures defined by the Manufacturer.

  • Page 81: Initial Inspection Of Axle Brakes

    SECTION 5 Pronar RC2100-2 DANGER Do not use the trailer when brake system is out of order. 5.2.2 INITIAL INSPECTION OF AXLE BRAKES After purchasing trailer, the user is responsible for general checking of brake system of trailer axle. Initial inspection of axle brakes must be conducted: •...

  • Page 82: Check Brake Shoe Linings For Wear

    Pronar RC2100-2 SECTION 5 brake shoes is smaller than the minimum value. Check brake shoe linings for wear through the inspection opening (2) – see Figure (5.1). Check brake shoe linings for wear: • every 6 months, • if brakes overheat, •...
  • Page 83 SECTION 5 Pronar RC2100-2 5.2.4 CHECKING WHEEL AXLE BEARINGS FOR SLACKNESS FIGURE 5.2 Lifting jack support point (1) U bolt Preparation procedures Hitch trailer to tractor. Park tractor and trailer on hard level ground. Immobilise tractor with parking brake. Place the wheel chocks under the wheel opposite to the lifted wheel. Ensure that trailer shall not move during inspection.
  • Page 84 Pronar RC2100-2 SECTION 5 The lifting jack must be suited to the weight of trailer and must be technically reliable. The lifting jack must be positioned on a level and hard surface so as to prevent sinking into the ground or relocating the jack during lifting.
  • Page 85 SECTION 5 Pronar RC2100-2 Check condition of hub cover, if necessary replace it with a new cover. Inspection of bearing play may only be conducted when the trailer is hitched to tractor and the load platform is empty. Checking wheel axle bearings for slackness: •...

  • Page 86: Mounting And Dismounting Wheels, Inspection Of

    Pronar RC2100-2 SECTION 5 Secure castellated nut with cotter pin and mount the hub cap. Delicately tap the hub cap with rubber or wooden mallet. FIGURE 5.3 Adjustment of wheel axle bearings (1) hub cover, (2) castellated nut, (3) cotter pin The wheel should turn smoothly without stiffness or detectable resistance not originating from abrasion of brake shoes in brake drum.
  • Page 87 SECTION 5 Pronar RC2100-2 Ensure that trailer is properly secured and will not move during wheel dismounting. FIGURE 5.4 Components for mounting twin wheels (1) external wheel, (2) internal wheel, (3) tyre valve extension, (4) nut , (5) external ring, (6) internal ring Loosen wheel nuts (4).
  • Page 88 Pronar RC2100-2 SECTION 5 Wheel mounting Clean axle pins and nuts of contamination. Do not grease thread of nuts and pins. Check condition of pins and nuts, if necessary replace them. Install spacer rings on pins. Install internal wheel on hub. Check condition of tyre valve extension.
  • Page 89 SECTION 5 Pronar RC2100-2 FIGURE 5.5 Sequence of nut tightening (1) - (8) sequence of nut tightening, (L) spanner length, (F) user weight Check the wheel nut tightening: • After the first use of trailer (one-time inspection). • Every 2 – 3 hours of trailer travel (during the first month of trailer use).
  • Page 90 Pronar RC2100-2 SECTION 5 ATTENTION Wheel nuts may not be tightened with impact wrench because of danger of exceeding permissible tightening torque, the consequence of which may be breaking the thread connection or breaking off the hub pin. The greatest precision is achieved using a torque spanner. Before commencing work, ensure that correct tightening torque value is set.
  • Page 91 SECTION 5 Pronar RC2100-2 Proper technical condition and appropriate maintenance of wheels significantly extends the life of these components and ensures appropriate level of safety to trailer users. Checking air pressure in tyres and visual inspection of steel wheels: • every 1 month of use, •...
  • Page 92 Pronar RC2100-2 SECTION 5 FIGURE 5.6 Adjustment of axle mechanical brakes (1) expander arm, (2) expander shaft, (3) cylinder fork, (4) adjustment bolt (L ) position of fork pin - front axle, (L ) position of fork pin - rear axle The cylinder fork mounting position is selected by the Manufacturer and may not be changed.

  • Page 93: Cable Tension

    SECTION 5 Pronar RC2100-2 Brake repairs, changes of brake linings etc. may be only undertaken in authorised service points. Making unauthorised repairs and modifications by the user voids the guarantee. Among the service operations which may be performed by the trailer user there is only brake adjustment by changing the setting of expander arms.
  • Page 94 Pronar RC2100-2 SECTION 5 Fully unscrew the bolt of the brake crank mechanism (1). Dismantle shackle (6), loosen nuts (5) of cable clamps (4). Dismantle cable (2). Lubricate parking brake mechanism (1) and pins of cable guide rollers (6). Install new cable, adjust cable tension.
  • Page 95 SECTION 5 Pronar RC2100-2 ATTENTION Clamp jaws must be placed on the side of the load bearing cable - see figure (5.8). Adjustment of parking brake cable tension Checking and/or adjustment of parking brake: • every 12 months, • if needed.

  • Page 96: Preliminary Information

    Pronar RC2100-2 SECTION 5 5.3 HYDRAULIC SYSTEM MAINTENANCE 5.3.1 PRELIMINARY INFORMATION Work connected with the repair, change or regeneration of hydraulic system components (cylinders, valves etc.) should be entrusted to specialist establishments, having the appropriate technology and qualifications for this type of work.

  • Page 97: Checking Technical Condition Of Hydraulic

    SECTION 5 Pronar RC2100-2 Checking tightness: • after the first week of use, • every 12 months of use. 5.3.3 CHECKING TECHNICAL CONDITION OF HYDRAULIC COUPLERS AND SOCKETS. Hydraulic connections must be technically reliable and kept clean. Each time before connecting, check if sockets in tractor are maintained in good working condition.
  • Page 98 Pronar RC2100-2 SECTION 5 • checking tightness and visual inspection of the system, • cleaning the air filter (filters), • draining water from air tank, • cleaning drain valve, • cleaning and maintaining pneumatic conduit connections, DANGER Do not use the trailer when brake system is out of order.
  • Page 99 SECTION 5 Pronar RC2100-2 with the system components. It is recommended to use preparations commercially available designed to facilitate detecting air leaks. Damaged components should be replaced or repaired. If leaks appear at connections then tighten the connections. If air continues to escape, replace connection components or seals with new ones.
  • Page 100 Pronar RC2100-2 SECTION 5 5.4.3 CLEANING THE AIR FILTERS FIGURE 5.9 Air filter (1) securing slide lock, (2) air filter cover DANGER Before proceeding to dismantle filter, reduce pressure in supply conduit. While dismounting the filter slide gate, hold the cover with the other hand. Stand away from filter cover vertical direction.
  • Page 101 SECTION 5 Pronar RC2100-2 Hold the filter cover (2) with the other hand. After removing slide lock, the cover is pushed off by the spring located in the filter housing. The filter element and the filter body should be carefully cleaned and blown through with compressed air.
  • Page 102 Pronar RC2100-2 SECTION 5 FIGURE 5.10 Draining water from air tank (1) air tank, (2) drain valve, (3) control connector Draining water from air tank: • after each week of use. 5.4.5 CLEANING THE DRAIN VALVE DANGER Release air from the air tank before dismantling drain valve.
  • Page 103 SECTION 5 Pronar RC2100-2 Scope of maintenance activities Completely reduce pressure in air tank. Reduction of pressure in tank is achieved by tilting the drain valve stem. Unscrew valve. Clean the valve, blow it with compressed air. Change copper seal.
  • Page 104 Pronar RC2100-2 SECTION 5 Inspecting trailer connections: • connection should be inspected every time before connecting trailer to tractor or second trailer. 5.4.7 REPLACEMENT OF PNEUMATIC CONDUIT Pneumatic conduits should be replaced when permanently deformed, cut or frayed. Push-in fittings are used for connecting conduits with pneumatic system components. The fittings enable simple, fast and tight connection by pushing the conduits in.

  • Page 105: Checking Drawbar Eye Tightness

    SECTION 5 Pronar RC2100-2 TABLE 5.3 Tightening torques for pneumatic system fittings Tightening torque PART NAME THREAD (NM) M12x1.5 M14x1.5 Pneumatic system fittings M16x1.5 M18x1.5 M22x1.5 5.5 CHECKING DRAWBAR EYE TIGHTNESS Drawbar eye tightness should be checked simultaneously with wheel nut tightness checking.

  • Page 106: Elements

    Pronar RC2100-2 SECTION 5 5.6 MAINTENANCE OF ELECTRICAL SYSTEM AND WARNING ELEMENTS 5.6.1 PRELIMINARY INFORMATION Work connected with the repair, change or regeneration of electrical system components should be entrusted to specialist establishments, having the appropriate technology and qualifications for this type of work.

  • Page 107: Trailer Lubrication

    SECTION 5 Pronar RC2100-2 Before driving off, make certain that all lamps and reflectors are clean. 5.6.2 REPLACEMENT OF BULBS If the trailer is equipped with rear lamps with bulbs, it may be necessary to change the bulbs. Compatible bulbs are shown in table (5.2). All light lenses are secured by screws and it is not necessary to dismantle whole lamp or trailer subassemblies.
  • Page 108 Pronar RC2100-2 SECTION 5 ITEM LUBRICATION POINT Expander shaft bracket sleeve Drawbar eye Absorber spring Spring sliding surface Rocker arm pin Leaf spring pin Parking brake mechanism Pin of parking brake cable guide roller Drawbar side surface Rotary drawbar Pin of ramp interlock lever...
  • Page 109 SECTION 5 Pronar RC2100-2 ITEM LUBRICATION POINT Brake expander arm M month, D – day – lubrication periods TABLE 5.6 Recommended lubricants MARKING ACCORDING DESCRIPTION TO TAB. (5.3) machine general-purpose grease (lithium, calcium grease), permanent grease for heavily loaded elements with addition of MoS...
  • Page 110 Pronar RC2100-2 SECTION 5 FIGURE 5.12 Lubrication points, part 1 5.32...
  • Page 111 SECTION 5 Pronar RC2100-2 FIGURE 5.13 Lubrication points, part 2 5.33...

  • Page 112: Consumables

    Pronar RC2100-2 SECTION 5 Parts to be lubricated with machine oil should be wiped with dry clean cloth and then a small quantity of oil should be applied to their surfaces (using oil can or brush). Wipe off excess oil.

  • Page 113: Lubricants

    SECTION 5 Pronar RC2100-2 TABLE 5.7 L-HL 32 Lotos hydraulic oil characteristics ITEM NAME UNIT VALUE ISO 3448VG viscosity classification Kinematic viscosity at 40°C 28.8 – 35.2 ISO 6743/99 quality classification DIN 51502 quality classification Flash-point ˚C Because of its composition, the oil is not classified as a dangerous substance, however long- term action on the skin or eyes may cause irritation.

  • Page 114: Cleaning Trailer

    Pronar RC2100-2 SECTION 5 5.9 CLEANING THE TRAILER Trailer should be cleaned depending on requirements and before longer idle periods (e.g. before winter period). Wash trailer each time after unloading the material which may cause corrosion of trailer components. Before using pressure washer the user is obliged to acquaint himself with the operating principles and recommendations concerning safe use of this equipment.

  • Page 115: Storage

    SECTION 5 Pronar RC2100-2 DANGER Carefully read the instructions for application of detergents and maintenance preparations. While washing with detergents wear appropriate protective clothing and goggles protecting against splashing. • Detergents should be kept in original containers, optionally in replacement containers, but very clearly marked.

  • Page 116: Tightening Torque For Nut And Bolt

    Pronar RC2100-2 SECTION 5 time the machine must be unloaded. Trailer should be very carefully washed and dried. • Corroded places should be cleaned of rust, degreased and protected using undercoat paint and then painted with surface paint according to colour scheme.
  • Page 117 SECTION 5 Pronar RC2100-2 10.9 METRIC THREAD Md [Nm] 1,150 1,650 1,050 1,450 2,100 – strength class according to DIN ISO 898 standard Hydraulic conduits should be tightened using torque of 50 – 70 Nm. FIGURE 5.14 Bolt with metric thread (1) strength class, (d) thread diameter 5.39...
  • Page 118 Pronar RC2100-2 SECTION 5 5.12 TROUBLESHOOTING TABLE 5.9 Troubleshooting FAULT CAUSE REMEDY Problem with moving off Applied parking brake Release parking brake. Excessive bearing Check slackness and adjust if slackness. needed. Noise in axle hubs Damaged bearings. Replace bearings. Damaged hub parts.
  • Page 119 NOTES …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 120 …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… …………………………………………………………………………………………………………… ……………………………………………………………………………………………………………...
  • Page 121 ANNEX A Tyre dimensions TYRES WHEEL RIM 215/75 R17.5 135/133 J 17.5x6.75...
