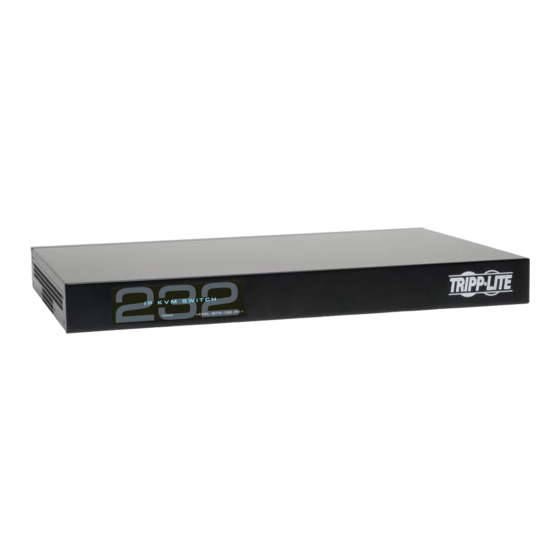

Netcommander ip cat5 multi-user kvm switch
Hide thumbs Also See for B072-032-IP2-K:
Table of Contents

Advertisement

Quick Links

Download this manual
Cat5 Multi-User KVM Switch
Models: B072-016-IP2, B072-016-IP4, B072-032-IP2,
Legal Notice
1. Product Overview
2. Web Configuration Interface
3. Conducting a Remote Session
4. Local Console
5. Warranty & Product Registration
The complete Owner's Manual is available on Tripp Lite's website:
Este manual completo esta disponible en español en la página de Tripp Lite:
Ce manuel complet est disponible en français sur le site Web de Tripp Lite :
Полная русскоязычная версия настоящего руководства представлена на веб-сайте
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Quick Start Guide
NetCommander
B072-032-IP2-K, B072-032-IP4, B072-032-IP4-K
www.tripplite.com/support
www.tripplite.com/support
www.tripplite.com/support
компании Tripp Lite по адресу: www.tripplite.com/support
www.tripplite.com/warranty
Copyright © 2017 Tripp Lite. All rights reserved.
IP
®
1
2
2
9
10
11
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B072-032-IP2-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tripp Lite B072-032-IP2-K

Summary of Contents for Tripp Lite B072-032-IP2-K

  • Page 1 Este manual completo esta disponible en español en la página de Tripp Lite: www.tripplite.com/support Ce manuel complet est disponible en français sur le site Web de Tripp Lite : www.tripplite.com/support Полная русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: www.tripplite.com/support PROTECT YOUR INVESTMENT! Register your product for quicker service and ultimate peace of mind.

  • Page 2: Legal Notice

    (B072-032-IP2 and B072-032-IP2-K), NetCommander 416 IP (B072-016-IP4), and NetCommander 432 IP (B072-032-IP4 and B072-032-IP2-K). The first digit of the number in the product description represents the number of remote users, and the second and third digits represent the number of server ports. Functionally these KVMs are all the same. The only difference between them is in the number of remote users that can simultaneously access the KVM, and the number of server ports.

  • Page 3: Target Server Compatibility

    1. Product Overview 1.2 Terminology The following table describes terms used in this guide. Term Definition Target Server The computer/server that is connected directly to the KVM, and which is accessed via the local console or by a Client Computer running a remote session. A computer running a remote session, which is used to access computer/servers or devices connected to the KVM.

  • Page 4: System Components

    Before installing the NetCommander IP , verify that you have all the components on the following list, as well as any other items required for installation. • NetCommander 216 IP (B072-016-IP2), 232 IP (B072-032-IP2/B072-032-IP2-K), 416 IP (B072-016-IP4), or 432 IP (B072-032-IP4/ B072-032-IP4-K).

  • Page 5: Rackmounting The Netcommander Ip

    The NetCommander IP back panel is illustrated in the figure below. Note: The figure below shows the back panel for a B072-032-IP2/ B072-032-IP2-K and B072-032-IP4/B072-032-IP4-K, but the back panel will be functionally the same for all models, with the only difference being the number of server ports.

  • Page 6: Connecting The System

    11. Using the power cords provided, connect the NetCommander IP to the C14 outlets on the back of the KVM, and plug them into a Tripp Lite Surge Suppressor, Power Distribution Unit (PDU), or Uninterruptible Power Supply (UPS). There are no Power On/Off switches, so plugging in the power cords will power on the KVM.
  • Page 7 1. Product Overview To set the IPv4 address via the local console OSD: From the local console, press the left [Shift] key twice to open the OSD. Press the [F2] key to open the Settings menu. In the Settings menu, press the [Tab] key until the DHCP field is highlighted. Press the [Spacebar] key to toggle the DHCP field from Enabled to Disabled.
  • Page 8 1. Product Overview Upon installing the certificate or accepting the unrecognized certificate for the current session, the Java application begins to install. Before the installation completes, a security warning may appear stating that the connection to this website is untrusted. This is a security issue similar to one you get from your web browser.

  • Page 9: Logging Into The Web Configuration Interface

    2. Web Configuration Interface The NetCommander IP can be accessed in two ways; locally via the local console OSD, or remotely via the Web Configuration Interface. This section of the manual details the Web Configuration Interface, which can be used to access the computer/servers and other devices connected to the KVM, as well as to configure the KVM’s settings and accounts.

  • Page 10: Conducting A Remote Session

    3. Conducting a Remote Session A remote session allows accounts IP access to computer/servers and serial devices connected to the KVM. In a remote session, accounts can access computers/servers, power cycle or turn power to a Target Server Off/On, virtually mount an .iso file, and configure the remote session settings.

  • Page 11: Local Console

    4. Local Console This chapter explains how to operate the NetCommander IP via the local console. The local console allows you to access connected computer/servers, configure the KVM’s network settings, and to configure some more basic settings specific to local access. To display the OSD: From the local keyboard, press the left Shift key twice.

  • Page 12: Warranty And Product Registration

    3-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center.
