TECHNICAL DOCUMENT
Version 0522A
INSTALLATION GUIDE

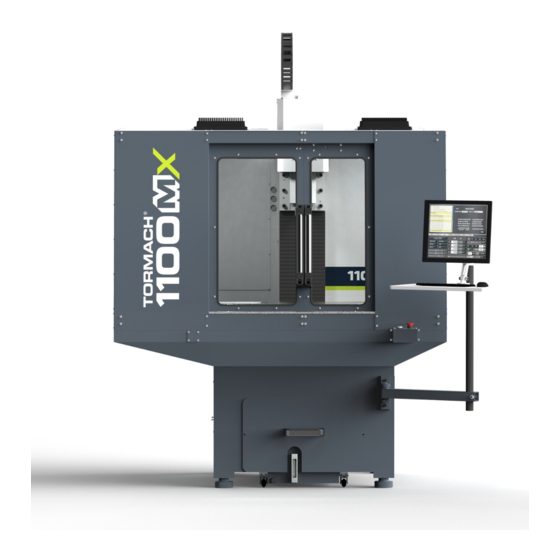

1100MX ENCLOSURE KIT
Page 1
Specifications subject to change without notice.
©Tormach® 2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1100MX and is the answer not in the manual?

Questions and answers

Related Manuals for Tormach 1100MX

Summary of Contents for Tormach 1100MX

  • Page 1 TECHNICAL DOCUMENT Version 0522A INSTALLATION GUIDE 1100MX ENCLOSURE KIT Page 1 Specifications subject to change without notice. ©Tormach® 2022...

  • Page 2: Product Information

    Photograph any damage that may have occurred during shipping. Verify the received goods against the packing list. If there is any damage or shortages, you must contact Tormach within 30 days of receipt. Create a support ticket with Tormach Technical Support at tormach.atlassian.net/servicedesk...

  • Page 3: Required Tools

    REQUIRED TOOLS Metric hex wrench set Permanent marker Shears or knife Page 3 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)

  • Page 4: Installation

    3. Attach the left rear panel to the left chip pan with three M6 × 1.0 - 12 screws. Figure 1: Left rear panel attached to the left chip pan. Page 4 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 5 2. Attach the left side panel to the left chip pan with five M6 × 1.0 - 12 screws. Figure 3: Left side panel attached to the left chip pan. Page 5 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 6 3. Loosely attach one horizontal window retainer to the bottom of the left side panel's window opening with two M5 × 0.8 - 10 screws. Figure 4: Side window retainers attached to the left side panel. Page 6 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 7 2. Attach the left front panel to the left side panel with eight M5 × 0.8 - 10 screws. Figure 6: Left front panel attached to the left side panel. Page 7 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 8 M5 × 0.8 - 10 screws. Don't fully tighten the screws. Leaving the window retainers loose makes it easier to install the side windows. Page 8 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 9 1. Attach the right front panel to the right chip pan with two M6 × 1.0 - 12 screws. Figure 8: Right front panel attached to the right chip pan. Page 9 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 10 1. Attach the left top panel to the panels on the left side of the enclosure with 12 M5 × 0.8 - 10 screws. Figure 10: Left top panel attached to the left side of the enclosure. Page 10 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 11 1. Attach the right top panel to the panels on the right side of the enclosure with nine M5 × 0.8 - 10 screws. Figure 12: Right top panel attached to the right side of the enclosure. Page 11 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 12 3. Attach three cable tie anchors to the right top panel with three M5 × 0.8 - 10 screws. Figure 14: Location to attach three cable tie anchors. Page 12 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 13 2. Attach the front upper panel to the right and left top panels with four M5 × 0.8 - 10 screws. Figure 16: Front upper panel attached to the right and left top panels. Page 13 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 14 Attach the rear splash shield to the right chip pan below the electrical cabinet with four M6 × 1.0 - 12 screws. Page 14 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 15 1. Align one short linear rail assembly to the two holes on the inside of both the right front panel and the front lower panel. The linear rail mount's clamping screws must face up. Page 15 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 16 M6 × 1.0 - 12 screws. Figure 21: Right lower linear assembly attached to the outside of the enclosure's lower right side. Page 16 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 17 Up on the lower linear assemblies Down on the upper linear assemblies Figure 22: Four linear assemblies attached to the enclosure. Page 17 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 18 M5 × 0.8 - 10 screws. NOTICE! To prevent window damage from over-tightening, use your fingers to tighten the screws. Page 18 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 19 1. Starting with the top linear assembly, attach the narrow door to the two upper linear bearings with two sets of four M5 × 0.8 - 10 screws. Page 19 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 20 3. Repeat Steps 1 to 2 to attach the wide door to the top and bottom linear rail assemblies on the remaining side of the enclosure. Figure 26: Both front doors attached to the enclosure. Page 20 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 21 Figure 28: Both front door handles attached to the enclosure. 7. Push one square tube plug into the bottom of each door handle. Page 21 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 22 Read the OHMS value that displays. The value should be less than 5 OHMS. If the value is greater than 5 OHMS, don't install the floodlight. Create a support ticket with Tormach Technical Support at tormach.atlassian.net/servicedesk for guidance on how to proceed.
  • Page 23 7. Route the power cables from the floodlights to the electrical cabinet. 8. Plug the floodlights into the Enclosure Lights outlet on the back of the electrical cabinet. Page 23 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 24 When finished, use shears or a knife to cut the excess trim. Figure 31: Rubber trim pushed onto the window opening. 2. Remove and discard the protective plastic film from the windows. Page 24 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 25 5. Attach one horizontal window retainer above the window on the left side panel with two M5 × 0.8 - 10 screws. Figure 33: Horizontal window retainer attached above the window. Page 25 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)

  • Page 26: Install The Access Panel

    2. Push a strip of rubber trim to the edge of the access panel opening on the left rear panel. Verify that the trim covers the entire perimeter of the opening. When finished, use shears or a knife to cut the excess trim. Page 26 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 27 4. Tilt the access panel and put it through the opening on the left rear panel. Then, hang it inside the enclosure on the installed M5 × 0.8 - 10 screw. Figure 36: Access panel moving inside the enclosure. Page 27 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 28 Attach it to the lower front panel with two M5 × 0.8 - 10 screws. Figure 38: Stainless steel wear guard attached to the lower front panel. Page 28 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)
  • Page 29 When required, replace the windows with the following parts: Window, 1100, Side (PN 37648) Window, 1100, Left Door (PN 37649) Window, 1100, Right Door (PN 37650) Page 29 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)

  • Page 30: Exploded Views And Parts Lists

    EXPLODED VIEWS AND PARTS LISTS EXPLODED VIEWS AND PARTS LISTS Read the following sections for reference: Enclosure Exploded View Enclosure Parts List Enclosure Exploded View Page 30 ©Tormach® 2022 tormach.com Specifications subject to change without notice. TD10711: Installation Guide: 1100MX Enclosure Kit (0522A)

  • Page 31: Enclosure Parts List

    Enclosure Parts List Description Quantity Enclosure Panel, 1100, Lower Front (PN 37630) Enclosure Panel, 1100MX, Left Front (PN 39546) Enclosure Panel, 1100MX, Right Front (PN 39547) Enclosure Panel, 1100, Upper Front (PN 37633) Enclosure Panel, 1100MX, Left Side (PN 39548) Enclosure Panel, 1100MX, Right Side (PN 39549)
  • Page 32 Screw, Socket Head Cap, M5 × 0.8 - 20 (PN 30357) Screw, Socket Head Cap, M8 × 1.25 - 22 (PN 37190) Washer, Flat, M8 (PN 30531) Decal, Enclosure, 1100MX, Front Left Panel (PN 39032) Page 32 ©Tormach® 2022 tormach.com Specifications subject to change without notice.
