MOHAWK

MADE IN THE USA

MODELS LMF-12

TP-15 & TP-16

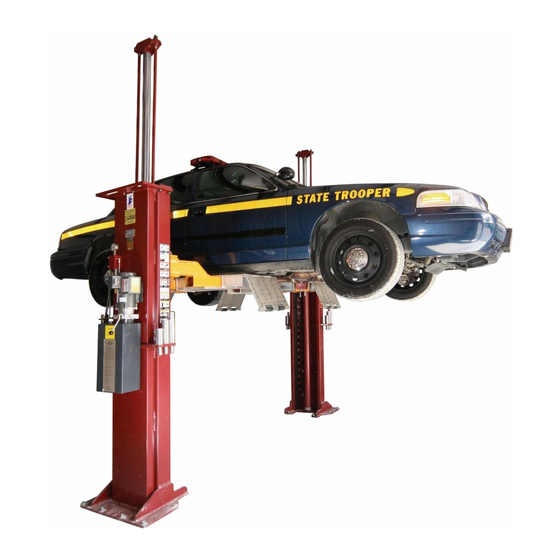

LMF-12 – 12,000 LB. CAPACITY TWO POST

TP-15 - 15,000 LB. CAPACITY TWO POST

TP-16 – 16,000 LB. CAPACITY TWO POST

MOHAWK RESOURCES LTD.

65 VROOMAN AVE.

AMSTERDAM, NY 12010

TOLL FREE:

1-800-833-2006

LOCAL:

1-518-842-1431

FAX:

1-518-842-1289

INTERNET:

WWW.MOHAWKLIFTS.COM

E-MAIL:

SERVICE@MOHAWKLIFTS.COM

LMF-15-16-Master-2-2006.doc

Rev Date 2/8/2006

Part #601-800-256

VEHICLE LIFT MANUAL

INSTALLATION

OPERATION

MAINTENANCE

PARTS

Standard Mohawk Models

LMF-12, TP-15 & TP-16

READ MANUAL

THOROUGHLY BEFORE

INSTALLING,

OPERATING OR SERVICING

THIS LIFT !!

Deliver these instructions to lift

owner/user/employer along with

other instructional materials

furnished with this lift.

Need help?

Do you have a question about the TP-15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mohawk TP-15

Page 1 MOHAWK MADE IN THE USA MODELS LMF-12 TP-15 & TP-16 LMF-12 – 12,000 LB. CAPACITY TWO POST TP-15 - 15,000 LB. CAPACITY TWO POST TP-16 – 16,000 LB. CAPACITY TWO POST VEHICLE LIFT MANUAL INSTALLATION OPERATION MAINTENANCE PARTS Standard Mohawk Models LMF-12, TP-15 &...
Page 2 MOHAWK MODEL LMF-12, TP-15 & TP-16 IMPORTANT SAFETY INSTRUCTIONS When using your garage equipment, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Care must be taken as burns can occur from touching hot parts.
Page 3 If attachments, accessories or configuration modifying components are used on this lift and, if they are not certified for use on this lift, then the certification of this lift shall become null and void. Contact the participant (Mohawk Resources Ltd.) for information pertaining to certified attachments, accessories or configuration modifying components.
Page 4 MOHAWK MODEL LMF-12, TP-15 & TP-16 HAVE A QUESTION? Call your local Mohawk distributor For parts, service and technical support. Distributor Place Card Here Please have this unit’s model and serial number when calling for service. Model Number ______________________ Serial Number ______________________ OR CONTACT: MOHAWK RESOURCES LTD.
Page 5 "ALI/ETL certification mark" (Above on right), and, if applicable, the ETL listing mark to ANSI/UL-201. Mohawk has been a long-standing member of ALI and most of Mohawk’s popular models are currently listed and certified. Other Mohawk models are in various stages of testing. To obtain a complete and current certification listing, contact Mohawk Resources Ltd.
Page 6 EFFECTIVE DATE: 3/2/2006 * GENERAL WARRANTY INFORMATION: MOHAWK’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING ANY PART OR PARTS RETURNED TO THIS FACTORY, TRANSPORTATION CHARGES PREPAID, WHICH PROVE UPON INSPECTION TO BE DEFECTIVE AND WHICH HAVE NOT BEEN MISUSED.
Page 7 SECTIONS IN THE USERS MANUAL FOR THIS SPECIFIC MODEL, WARRANTY IS SUSPENDED UNTIL THE LIFT CONDITION IS PROVEN TO BE TO MOHAWK’S SATISFACTION (ANY CURRENT CLAIMS WILL NOT BE PAID UNTIL THIS REQUIREMENT IS MET). OSHA, ANSI AND MOHAWK REQUIRE THAT RECORDS MUST BE MAINTAINED TO PROVE THAT INSPECTIONS AND MAINTENANCE OF THIS UNIT HAVE BEEN ROUTINELY PERFORMED BY QUALIFIED INDIVIDUALS.
Page 8 WARRANTY. TO QUALIFY FOR THIS WARRANTY, THE FOLLOWING CONDITIONS MUST BE MET: ♦ ALL LIFTS MUST BE REGISTERED WITH MOHAWK RESOURCES, LTD., P.O. BOX 110, 65 VROOMAN AVENUE, AMSTERDAM, NY 12010, WITH THE ORIGINAL CUSTOMER NAME, ADDRESS AND PHONE NUMBER, WITHIN 30 DAYS OF INSTALLATION.
Page 9 MOHAWK MODEL LMF-12, TP-15 & TP-16 CONTENTS TEXT PAGE APPENDAGES SPECIFICATIONS PACKING LIST RECOMMENDED TOOL LIST BEFORE INSTALLING A LIFT / WEJ-IT INSTALLATION INSTALLATION INSTRUCTIONS SAFETY TIPS LIFT FINAL CHECKOUT 2-POST LIMITATIONS AND ADAPTER USAGE PRE - OPERATION CHECK LIST / LIFTING PROCEDURES...
Page 10 THIS EQUIPMENT SHOULD DOCUMENTED SUBMITTED IN WRITING TO MOHAWK RESOURCES LTD. FOR INSTALL THIS EQUIPMENT ON CONCRETE ONLY EXAMINATION. THE USER ASSUMES FULL RESPONSIBILITY FOR ANY EQUIPMENT DAMAGE, PERSONAL INJURY, OR ALTERATION IF, FOR ANY REASON, A NEW CONCRETE SLAB SECTION IS...
Page 11 MINIMUM SHIPPING WEIGHT 3,100 LBS. THICKNESS STRENGTH AGING 6 - 1/2 IN 4000 P.S.I. 28 DAYS POWER UNIT SPECIFICATIONS DO NOT INSTALL ANY MOHAWK LIFT ON ANY SURFACE OTHER BRAND NAME MONARCH THAN CONCRETE CONFORMING MINIMUM COMPRESSIVE STRENGTH, MINIMUM AGING,...
Page 12 MOHAWK MODEL LMF-12, TP-15 & TP-16 LMF-12/TP-15/TP-16 PACKING LIST *** ALSO SEE DRAWINGS MAN511, MAN512, & MAN513 IN PARTS MANUAL *** ORDER PART PART QTY. NUMBER NUMBER DESCRIPTION 015-000-014 PARTS BOX #1CONTENTS 007-007-075 SHIM BAG 012-012-047 LIFTING PAD 012-012-058 SMALL PARTS BAG...
Page 13 MOHAWK MODEL LMF-12, TP-15 & TP-16 RECOMMENDED TOOL LIST SIZE / QTY DESCRIPTION USED IN 1 - 1/8 IN WRENCH & SOCKET WEJ-IT ANCHORS 15 / 16 IN WRENCH & SOCKET CARRIAGE STOPS 11/16 IN WRENCH HYDRAULIC LINES 5/8 IN...
Page 14 BEFORE INSTALLING A LIFT IMPORTANT BEFORE INSTALLING A MOHAWK LIFT THERE ARE A FEW ITEMS THAT MUST BE INSPECTED. EACH REPAIR SHOP BAY IS DIFFERENT. IN AN ATTEMPT TO PREVENT OVERSIGHTS, ALL OF THE FOLLOWING INFORMATION IS TO BE VERIFIED.
Page 15 MOHAWK MODEL LMF-12, TP-15 & TP-16 INSTALLATION INSTRUCTIONS IMPORTANT READ THIS MANUAL IN ITS ENTIRETY. BE FAMILIAR WITH PART NAMES AND HAVE A GOOD UNDERSTANDING OF HOW THIS UNIT IS TO BE ASSEMBLED AND OF HOW INDIVIDUAL PARTS OPERATE, BEFORE ASSEMBLING THE UNIT.
Page 16 MOHAWK MODEL LMF-12, TP-15 & TP-16 INSTALLATION INSTRUCTIONS, CONT. BLEEDING PROCEDURE DIVERTER VALVE OPERATION ENGAGE THE UP BUTTON ON THE POWER UNIT. OBSERVE THE WARNING CARRIAGE. WHEN THE MAIN AND OFF SIDE CARRIAGES HAVE REACHED FULL HEIGHT CONTINUE TO RUN THE UNIT FOR TWO AS WITH ALL FUNCTIONS OF THE LIFT UNIT, NEVER OPERATE MINUTES.
Page 17 PLEASE POST THE (A COPY IS INCLUDED IN THE PARTS BOX) WHERE THEY WILL BE CONSTANTLY REMINDED TO YOUR LIFT OPERATOR. FOR INFORMATION SPECIFIC TO THE LIFT, ALWAYS REFER TO THE MOHAWK MANUAL. • UNOBSTRUCTED CLEARANCE. DO NOT HIT OR INSPECT YOUR LIFT DAILY.
Page 18 MOHAWK MODEL LMF-12, TP-15 & TP-16 LIFT FINAL CHECKOUT (AFTER INSTALLATION): REV (2/9/2006) THIS PROCEDURE OUTLINES THE FINAL CHECKS TO MAKE AFTER INITIAL INSTALLATION OF THE LIFT UNIT. REPEAT THIS PROCEDURE IF THE LIFT IS RELOCATED. RAISE LIFT TO FULL STROKE. VERIFY THE FOLLOWING: AFTER THE LIFT IS FULLY ASSEMBLED, RAISE THE LIFT •...
Page 19 ADAPTER USAGE AND LIMITATIONS: 2-POST LIMITATIONS: THE USE OF HEIGHT ADAPTERS IS COMMON FOR MOST LIFTING ALL MOHAWK 2-POST LIFTS ARE FOR INDOOR USE UNLESS SITUATIONS TO ACCOMMODATE HIGH FRAMES AND LOW SPECIFICALLY QUALIFIED AND MODIFIED FOR A CUSTOM OVERHANGING BODIES OF VEHICLES.
Page 20 MOHAWK MODEL LMF-12, TP-15 & TP-16 PRE - OPERATION CHECK LIST NO LOAD PERFORMANCE CHECK TRAINED OPERATOR • • ALL MECHANICAL SAFETIES OPERATE PROPERLY AND THE OPERATOR MUST BE FULLY TRAINED AND QUALIFIED CONSISTENTLY. TO SAFELY AND EFFECTIVELY OPERATE THIS EQUIPMENT OF THIS SPECIFIC MAKE AND MODEL.
Page 21 MOHAWK MODEL LMF-12, TP-15 & TP-16 MAINTENANCE PROCEDURES -- TRAINED LIFT SERVICE PERSONNEL ONLY – REFER TO ANSI/ALI ALIS, SAFETY REQUIREMENTS FOR INSTALLATION AND SERVICE OF AUTOMOTIVE LIFTS. DAILY • VERIFY ALL FASTENERS TO PROPER TORQUE: • SWING ARM NUTS TO 1000 FT-LB PERFORM THE PRE-OPERATION CHECK LIST.
Page 22 NOTE: THE HYDRAULIC SAFETY CHECK IS TO BE PERFORMED WITH NO VEHICLE ON THE UNIT. THE HYDRAULIC SYSTEM CHECKS WILL DETECT INTERNAL HYDRAULIC LEAKS. CONTACT YOUR LOCAL MOHAWK DISTRIBUTOR OR THE MOHAWK FACTORY SERVICE DEPARTMENT IF A CHECK SHOULD FAIL.
Page 23 MOHAWK MODEL LMF-12, TP-15 & TP-16 TROUBLE SHOOTING WARNING: NEVER ATTEMPT TO LOOSEN HYDRAULIC FITTINGS, OR OVERRIDE SAFETY DEVICES IN AN ATTEMPT TO CORRECT A PROBLEM. ALL TESTS ARE TO BE PERFORMED WITH NO VEHICLE. POSSIBLE CAUSE SOLUTION NOT RAISING LOAD LOW HYDRAULIC FLUID LEVEL LOWER UNIT.
Page 24 DIVERTER VALVE REMOVE BLEED LINE FROM THE TOP OF THE OFF SIDE CYLINDER AND CAP USING MOHAWK PART # 601-420-001. IF THE UNIT CONTINUES TO DRIFT DOWN THE DIVERTER PULL VALVE WILL NEED TO BE CLEANED OR REPLACED. BLEEDER VALVE REMOVE BLEED LINE FROM THE TOP OF THE OFF SIDE CYLINDER AND CAP USING MOHAWK PART # 601-420-001.
Page 25 MOHAWK MODEL LMF-12, TP-15 & TP-16 SERVICE CHART MODEL: _________________________ SERIAL NUMBER: _________________________ DATE OF INSTALLATION: _________________________ DATE PART REPLACED / SERVICED SERVICE SERVICED BY COMPANY MAINTENANCE CHART DATE MAINTENANCE PERFORMED SERVICE SERVICED BY COMPANY...
Page 26 MOHAWK MODEL LMF-12, TP-15 & TP-16 MOHAWK MODEL LMF-12 TP-15 & TP-16 FIGURES & DIAGRAMS MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE: 1-800-833-2006 LOCAL: 1-518-842-1431 FAX: 1-518-842-1289 INTERNET: WWW.MOHAWKLIFTS.COM E-MAIN: SERVICE@MOHAWKLIFTS. COM...
Page 27 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 1...
Page 28 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 2...
Page 29 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 3...
Page 30 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 4a...
Page 31 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 4b...
Page 32 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 5...
Page 33 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 6...
Page 34 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 7...
Page 35 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 8...
Page 36 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 9...
Page 37 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 10...
Page 38 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 11...
Page 39 MOHAWK MODEL LMF-12, TP-15 & TP-16 Figure 12...
Page 40 MOHAWK MODEL LMF-12, TP-15 & TP-16 MOHAWK MODEL LMF-12 TP-15 & TP-16 PARTS MANUAL MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE: 1-800-833-2006 LOCAL: 1-518-842-1431 FAX: 1-518-842-1289 INTERNET: WWW.MOHAWKLIFTS.COM E-MAIN: SERVICE@MOHAWKLIFTS.
Page 41 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 42 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 43 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 44 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 45 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 46 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 47 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 48 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 49 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 50 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 51 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 52 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 53 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 54 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 55 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 56 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 57 MOHAWK MODEL LMF-12, TP-15 & TP-16 MOHAWK PRE-EXISTING SLAB REQUIREMENTS & NEW SLAB RECOMMEDATIONS MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE : 1-800-833-2006 LOCAL : 1-518-842-1431 FAX : 1-518-842-1289 INTERNET: www.MOHAWKLIFTS.com E-MAIN: Service@MOHAWKLIFTS.com...
Page 58 * The floor must be properly aged to American Concrete Institute specifications. The floor does not require reinforcement, but a minimum of wire mesh is recommended. ** Larger 4’ x 4’ base pads (available from Mohawk) required for floors with a thickness range less than 6”, but greater or equal to 4 1/2”.
Page 59 MOHAWK MODEL LMF-12, TP-15 & TP-16 New Slab Recommendations: The information contained in this appendage supercedes any other information given in the accompanied manual. This information is presented for design recommendations for a new concrete slab in the event that the pre-existing floor does not meet minimum requirements of the applicable lift type.
Page 60 MOHAWK MODEL LMF-12, TP-15 & TP-16 New Slab Recommendations File: New-slab.xls NEW SLABS MUST BE 12" THICK MINIMUM !! (See Notes Below) Rev Date: 6/7/06 S1 & S2 Lift Model Slab Width, Slab Length, Reinforcement Reinforcement Wej-it Wej-it (Inches) (Inches)
Page 61 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 62 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 63 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 64 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 65 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 66 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 67 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 68 MOHAWK MODEL LMF-12, TP-15 & TP-16...
Page 69 MOHAWK MODEL LMF-12, TP-15 & TP-16 SEND US YOUR PHOTOS! MOHAWK IS ALWAYS INTERESTED IS SEEING HOW YOUR LIFTS ARE USED. WE HAVE CREATED AN ON-LINE PHOTO DATABASE FOR CUSTOMERS TO VIEW OUR LIFTS IN USE. VISIT WWW.MOHAWKLIFTS.COM/PR/ AND MAYBE WE CAN ADD YOUR PHOTOS TO OUR COLLECTION.
