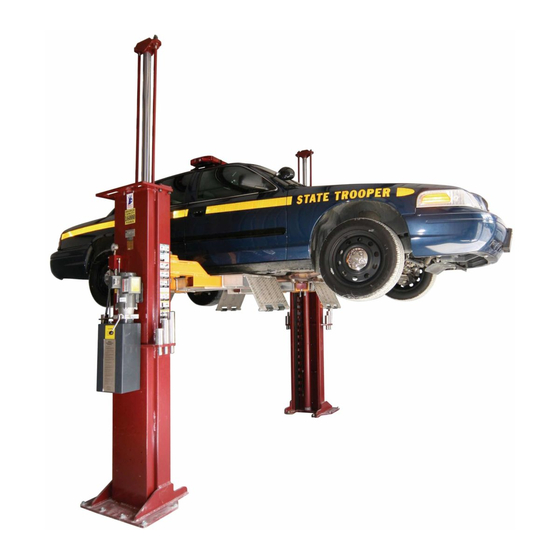

12 000 lb. capacity two post vehicle lift
Hide thumbs Also See for LMF-12:
Table of Contents

Advertisement

Quick Links

MOHAWK
MADE IN THE USA
MODEL LMF-12
12,000 LB. CAPACITY TWO POST
MOHAWK RESOURCES LTD.
65 VROOMAN AVE.
AMSTERDAM, NY 12010
TOLL FREE:
1-800-833-2006
LOCAL:
1-518-842-1431
FAX:
1-518-842-1289
INTERNET:
WWW.MOHAWKLIFTS.COM
E-MAIL:
SERVICE@MOHAWKLIFTS.COM
LMF-12-Master.doc
Rev Date 4/23/2002
Part #601-800-067
VEHICLE LIFT MANUAL
INSTALLATION
OPERATION
MAINTENANCE
PARTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMF-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Mohawk LMF-12

Summary of Contents for Mohawk LMF-12

  • Page 1 MOHAWK MADE IN THE USA MODEL LMF-12 12,000 LB. CAPACITY TWO POST VEHICLE LIFT MANUAL INSTALLATION OPERATION MAINTENANCE PARTS MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE: 1-800-833-2006 LOCAL: 1-518-842-1431 FAX: 1-518-842-1289 INTERNET: WWW.MOHAWKLIFTS.COM E-MAIL: SERVICE@MOHAWKLIFTS.COM LMF-12-Master.doc...

  • Page 2: Mohawk Model Lmf

    MOHAWK MODEL LMF-12 IMPORTANT SAFETY INSTRUCTIONS When using your garage equipment, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Care must be taken as burns can occur from touching hot parts. 3. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged - until it has been examined by a qualified serviceman.

  • Page 3: Appendages

    MOHAWK MODEL LMF-12 APPENDAGE: Rev (8/3/98) NOTE: All accessories (i.e. Lifting Pads, Height Adapters, Wheel Adapters, Turf Adapters) supplied with this lift are to be used on this lift only. Accessories from other lifts are not acceptable and could result in injury to the user.
  • Page 4 MOHAWK MODEL LMF-12 HAVE A QUESTION? Call your local Mohawk distributor For parts, service and technical support. Distributor Place Card Here Please have this unit’s model and serial number when calling for service. Model Number ______________________ Serial Number ______________________ OR CONTACT: MOHAWK RESOURCES LTD.
  • Page 5 "ALI/ETL certification mark" (Above on right), and, if applicable, the ETL listing mark to ANSI/UL-73. Mohawk has been a long-standing member of ALI and most of Mohawk’s popular models are currently listed and certified. Other Mohawk models are in various stages of testing. To obtain a complete and current certification listing, contact Mohawk Resources Ltd.

  • Page 6: Specifications

    UNITS LOCATED ONLY IN THE UNITED STATES OF AMERICA AND CANADA. CONTACT MOHAWK RESOURCES LTD. FOR SPECIFIC WARRANTY PROVISIONS FOR UNITS LOCATED OUTSIDE OF THESE COUNTRIES. 5-YEAR WARRANTY: THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: A-7, SYSTEM I, LMF-12, TP-15, TP-18, TP-20, TP-26, TP-30 AND STANDARD OPTIONS. 3-YEAR WARRANTY:...
  • Page 7 WARRANTY. TO QUALIFY FOR THIS WARRANTY, THE FOLLOWING CONDITIONS MUST BE MET: ♦ ALL LIFTS MUST BE REGISTERED WITH MOHAWK RESOURCES, LTD., P.O. BOX 110, 65 VROOMAN AVENUE, AMSTERDAM, NY 12010, WITH THE ORIGINAL CUSTOMER NAME, ADDRESS AND PHONE NUMBER, WITHIN 30 DAYS OF INSTALLATION.

  • Page 8: Table Of Contents

    MOHAWK MODEL LMF-12 CONTENTS TEXT PAGE APPENDAGES SPECIFICATIONS PACKING LIST RECOMMENDED TOOL LIST BEFORE INSTALLING A LIFT / WEJ-IT INSTALLATION INSTALLATION INSTRUCTIONS SAFETY TIPS PRE - OPERATION CHECK LIST / LIFTING PROCEDURES MAINTENANCE PROCEDURES HYDRAULIC SAFETY CHECKS TROUBLE SHOOTING 13-14...
  • Page 9 THIS EQUIPMENT SHOULD DOCUMENTED SUBMITTED IN WRITING TO MOHAWK RESOURCES LTD. FOR INSTALL THIS EQUIPMENT ON CONCRETE ONLY EXAMINATION. THE USER ASSUMES FULL RESPONSIBILITY FOR ANY EQUIPMENT DAMAGE, PERSONAL INJURY, OR ALTERATION IF, FOR ANY REASON, A NEW CONCRETE SLAB SECTION IS...
  • Page 10 BRAND NAME MONARCH 6 - 1/2 IN 4000 P.S.I. 28 DAYS MODEL M-4509-0101 POWER UNIT TYPE VERTICAL DO NOT INSTALL ANY MOHAWK LIFT ON ANY SURFACE OTHER MOTOR VOLTAGE THAN CONCRETE CONFORMING MINIMUM F.L.A. AT RATED CAPACITY 17.4 14.6 COMPRESSIVE...

  • Page 11: Packing List

    MOHAWK MODEL LMF-12 LMF-12 PACKING LIST *** ALSO SEE DRAWINGS MAN511, MAN512, & MAN513 IN PARTS MANUAL *** ORDER PART PART QTY. NUMBER NUMBER DESCRIPTION 012-012-056 PARTS BOX #1CONTENTS 007-007-075 SHIM BAG 012-012-047 LIFTING PAD 012-012-058 SMALL PARTS BAG 012-012-113...

  • Page 12: Recommended Tool List

    MOHAWK MODEL LMF-12 RECOMMENDED TOOL LIST SIZE / QTY DESCRIPTION USED IN 1 - 1/8 IN WRENCH & SOCKET WEJ-IT ANCHORS 15 / 16 IN WRENCH & SOCKET CARRIAGE STOPS 11/16 IN WRENCH HYDRAULIC LINES 5/8 IN WRENCH HYDRAULIC LINES 1/2 IN WRENCH &...

  • Page 13: Installation Instructions

    BEFORE INSTALLING A LIFT IMPORTANT BEFORE INSTALLING A MOHAWK LIFT THERE ARE A FEW ITEMS THAT MUST BE INSPECTED. EACH REPAIR SHOP BAY IS DIFFERENT. IN AN ATTEMPT TO PREVENT OVERSIGHTS, ALL OF THE FOLLOWING INFORMATION IS TO BE VERIFIED.
  • Page 14 MOHAWK MODEL LMF-12 INSTALLATION INSTRUCTIONS IMPORTANT READ THIS MANUAL IN ITS ENTIRETY. BE FAMILIAR WITH PART NAMES AND HAVE A GOOD UNDERSTANDING OF HOW THIS UNIT IS TO BE ASSEMBLED AND OF HOW INDIVIDUAL PARTS OPERATE, BEFORE ASSEMBLING THE UNIT.
  • Page 15 MOHAWK MODEL LMF-12 INSTALLATION INSTRUCTIONS BLEEDING PROCEDURE DIVERTER VALVE OPERATION ENGAGE THE UP BUTTON ON THE POWER UNIT. OBSERVE THE WARNING CARRIAGE. WHEN THE MAIN AND OFF SIDE CARRIAGES HAVE REACHED FULL HEIGHT CONTINUE TO RUN THE UNIT FOR TWO AS WITH ALL FUNCTIONS OF THE LIFT UNIT, NEVER OPERATE MINUTES.

  • Page 16: Safety Tips

    PLEASE POST THE (A COPY IS INCLUDED IN THE PARTS BOX) WHERE THEY WILL BE CONSTANTLY REMINDED TO YOUR LIFT OPERATOR. FOR INFORMATION SPECIFIC TO THE LIFT, ALWAYS REFER TO THE MOHAWK MANUAL. • UNOBSTRUCTED CLEARANCE. DO NOT HIT OR INSPECT YOUR LIFT DAILY.
  • Page 17 MOHAWK MODEL LMF-12 PRE - OPERATION CHECK LIST NO LOAD PERFORMANCE CHECK TRAINED OPERATOR • • ALL MECHANICAL SAFETIES OPERATE PROPERLY AND THE OPERATOR MUST BE FULLY TRAINED AND QUALIFIED CONSISTENTLY. TO SAFELY AND EFFECTIVELY OPERATE THIS EQUIPMENT OF THIS SPECIFIC MAKE AND MODEL.

  • Page 18: Maintenance Procedures

    MOHAWK MODEL LMF-12 MAINTENANCE PROCEDURES QUALIFIED MAINTENANCE PERSONNEL ONLY DAILY • TIGHTEN ALL FASTENERS AND HYDRAULIC FITTINGS AS • REQUIRED. PERFORM THE PRE-OPERATION CHECK LIST. • ALL O - RING BOSS FITTINGS JAM NUTS ARE TO BE REPORT ANY AND ALL EQUIPMENT MALFUNCTIONS TIGHTENED TO 15-FOOT POUNDS TORQUE.

  • Page 19: Hydraulic Safety Checks

    NOTE: THE HYDRAULIC SAFETY CHECK IS TO BE PERFORMED WITH NO VEHICLE ON THE UNIT. THE HYDRAULIC SYSTEM CHECKS WILL DETECT INTERNAL HYDRAULIC LEAKS. CONTACT YOUR LOCAL MOHAWK DISTRIBUTOR OR THE MOHAWK FACTORY SERVICE DEPARTMENT IF A CHECK SHOULD FAIL.

  • Page 20: Trouble Shooting

    MOHAWK MODEL LMF-12 TROUBLE SHOOTING WARNING: NEVER ATTEMPT TO LOOSEN HYDRAULIC FITTINGS, OR OVERRIDE SAFETY DEVICES IN AN ATTEMPT TO CORRECT A PROBLEM. ALL TESTS ARE TO BE PERFORMED WITH NO VEHICLE. POSSIBLE CAUSE SOLUTION NOT RAISING LOAD LOW HYDRAULIC FLUID LEVEL LOWER UNIT.
  • Page 21 DIVERTER VALVE REMOVE BLEED LINE FROM THE TOP OF THE OFF SIDE CYLINDER AND CAP USING MOHAWK PART # 601-420-001. IF THE UNIT CONTINUES TO DRIFT DOWN THE DIVERTER PULL VALVE WILL NEED TO BE CLEANED OR REPLACED. BLEEDER VALVE REMOVE BLEED LINE FROM THE TOP OF THE OFF SIDE CYLINDER AND CAP USING MOHAWK PART # 601-420-001.

  • Page 22: Service Chart

    MOHAWK MODEL LMF-12 SERVICE CHART MODEL LMF-12 SERIAL NUMBER: ________________________________ DATE OF INSTALLATION: _________________________ DATE PART REPLACED / SERVICED SERVICE SERVICED BY COMPANY MAINTENANCE CHART DATE MAINTENANCE PERFORMED SERVICE SERVICED BY COMPANY...
  • Page 23 MOHAWK MODEL LMF-12 MOHAWK MODEL LMF-12 FIGURES & DIAGRAMS MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE: 1-800-833-2006 LOCAL: 1-518-842-1431 FAX: 1-518-842-1289 INTERNET: WWW.MOHAWKLIFTS.COM E-MAIN: SERVICE@MOHAWKLIFTS. COM...
  • Page 24 MOHAWK MODEL LMF-12 Figure 1...
  • Page 25 MOHAWK MODEL LMF-12 Figure 2...
  • Page 26 MOHAWK MODEL LMF-12 Figure 3...
  • Page 27 MOHAWK MODEL LMF-12 Figure 4...
  • Page 28 MOHAWK MODEL LMF-12 Figure 5...
  • Page 29 MOHAWK MODEL LMF-12 Figure 6...
  • Page 30 MOHAWK MODEL LMF-12 Figure 7...
  • Page 31 MOHAWK MODEL LMF-12 Figure 8...
  • Page 32 MOHAWK MODEL LMF-12 Figure 9...
  • Page 33 MOHAWK MODEL LMF-12 Figure 10...
  • Page 34 MOHAWK MODEL LMF-12 Figure 11...
  • Page 35 MOHAWK MODEL LMF-12 Figure 11A...
  • Page 36 MOHAWK MODEL LMF-12 Figure 12...
  • Page 37 MOHAWK MODEL LMF-12 Figure 13...
  • Page 38 MOHAWK MODEL LMF-12 MOHAWK MODEL LMF-12 PARTS MANUAL MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE: 1-800-833-2006 LOCAL: 1-518-842-1431 FAX: 1-518-842-1289 INTERNET: WWW.MOHAWKLIFTS.COM E-MAIN: SERVICE@MOHAWKLIFTS.
  • Page 39 MOHAWK MODEL LMF-12...
  • Page 40 MOHAWK MODEL LMF-12...
  • Page 41 MOHAWK MODEL LMF-12...
  • Page 42 MOHAWK MODEL LMF-12...
  • Page 43 MOHAWK MODEL LMF-12...
  • Page 44 MOHAWK MODEL LMF-12...
  • Page 45 MOHAWK MODEL LMF-12...
  • Page 46 MOHAWK MODEL LMF-12...
  • Page 47 MOHAWK MODEL LMF-12...
  • Page 48 MOHAWK MODEL LMF-12...
  • Page 49 MOHAWK MODEL LMF-12...
  • Page 50 MOHAWK MODEL LMF-12...
  • Page 51 MOHAWK MODEL LMF-12...
  • Page 52 MOHAWK MODEL LMF-12...
  • Page 53 MOHAWK MODEL LMF-12...
  • Page 54 MOHAWK MODEL LMF-12...
  • Page 55 MOHAWK MODEL LMF-12 MOHAWK NEW SLAB RECOMMEDATIONS MOHAWK RESOURCES LTD. 65 VROOMAN AVE. AMSTERDAM, NY 12010 TOLL FREE : 1-800-833-2006 LOCAL : 1-518-842-1431 FAX : 1-518-842-1289 INTERNET: www.MOHAWKLIFTS.com E-MAIN: Service@MOHAWKLIFTS.com...

  • Page 56: New Slab Recommendations

    MOHAWK MODEL LMF-12 New Slab Recommendations: The information contained in this appendage supercedes any other information given in the accompanied manual. This information is presented for design recommendations for a new concrete slab in the event that the pre-existing floor does not meet minimum requirements of the applicable lift type.
  • Page 57 MOHAWK MODEL LMF-12 New Slab Recommendations File: New-slab.xls Rev Date: 10/12/01 NEW SLABS MUST BE 12" THICK MINIMUM !! Lift Model Slab Width, Slab Length, Reinforcement Reinforcement Wej-it Wej-it (Feet) (Feet) Size, (Inch) Spacing, (Inch) Dia, (Inch) Length, (Inch) #3 (3/8") * 8"...
  • Page 58 MOHAWK MODEL LMF-12...
  • Page 59 MOHAWK MODEL LMF-12...
  • Page 60 MOHAWK MODEL LMF-12...
  • Page 61 MOHAWK MODEL LMF-12...
  • Page 62 MOHAWK MODEL LMF-12...
