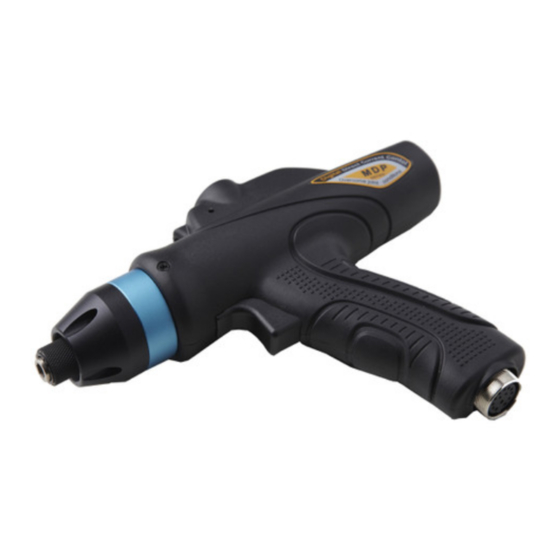

- Page 1 Revision: 1.1 July 05, 2017 E-DRIV® MD-Series DC Torque Control System Calibration Procedure www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
- Page 2 GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury SAVE THESE INSTRUCTIONS Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. Electrical Safety Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any plugs. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. If the tools should electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user. Avoid body contact with grounded surface ad pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
- Page 3 Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool. SERVICE Tool service must be performed only by qualified personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury. SPECIFIC SAFETY RULES Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator. Never lubricate aerosol oil on to the electrical part. www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
- Page 4 There are two ways of calibrating MDC tools: Tool Compensation A015 that could be adjusted up to +/-20%. This is adjusted when an application target torque slightly exceeds max or min torque capacity. Mountz strongly recommends to select a higher or lower torque capacity tool if this feature will be adjusted permanently. NOTE: Tool Compensation adjustment affects only the selected preset (program), this means that all other presets will remain as normal. Tool Compensation is stored on the Controller Memory Tool Calibration using a torque meter master (Master must be calibrated and certified under ISO17025) to validate percentage adjusted on A278 that can be adjusted up to +/- 10%. This is adjusted when customer validates tool with their torque master equipment and there is a difference between tool and master readings. This calibration is also performed when Mountz services the tool as part of a standard process. Note: Tool Calibration affects all programs (presets). Tool Calibration is stored on the Driver Memory Difference between the two is that compensation increases or decreases the motor power to achieve higher or lower torque and Calibration is the actual voltage tuning that is adjusted (calibrated) from factory using ISO17025 certified equipment and environment conditions. NOTE: It is Mountz recommendation to periodically verify torque accuracy of MDC tools with a torque verification meter and ensure quality of your process. It is up to customer’s standards to determine how often the tools needs to be validated or calibrated. Tool Calibration Torque calibration using controller panel Torque calibration using ParaMon software www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
- Page 5 When the reading on the torque meter master is lower than the setting on the tool, increase the calibration value more than 100(%) which is basic on production. To increase the output torque 5% more, key in 105(%). The calibration value works through whole range of torque. It will be refreshed and stored in the memory of the tool so it can be still effective when using the tool on another controller. NOTE: Different Torque Master Devices will provide different results. Make sure you always use the same ISO17025 Torque Tester Master Device with the same accessories and testing conditions: RDA, Tool Speed, Tester Filter Setting, Torque Arm, etc. Standard test condition on factory calibration used by Mountz Rundown screw size, joint type and filter Tool Rundown adaptor Low Pass Filter MD2601 M3 Allen, Hard joint 200Hz MD2602, MD2604 M3 Allen, Hard joint 500Hz MD2611, MD2616 M4 Allen, Hard joint 500 Hz MD3201 M3 Allen, Hard joint...
- Page 6 Tool Compensation Torque compensation using controller panel Tool Compensation Torque compensation using ParaMon software Total adjustable range is +/- 20% (80% to 120%) for all 15 presets individually. www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
- Page 7 Mountz Calibration & Repair Services Mountz Inc. features an experienced calibration and repair staff. Our trained technicians can calibrate and repair most any tool. Mountz provides rapid service with quality that you can trust as we offer three state-of-the-art calibration lab and repair facilities that can calibrate up to 20,000 lbf.ft. Since 1965, Mountz Inc. has proven in-depth knowledge of torque is reflected in our tool’s craftsmanship and our ability to provide solutions to both common and uncommon torque applications. We perform calibrations in accordance with ANSI/NCSL-Z540. Mountz is dedicated solely to the manufacturing, marketing and servicing of high quality torque tools. Tool Service & Repair Capability - Torque Wrench Calibration: Click Wrench, Dial Torque Wrench, Beam Wrench, Cam-Over & Break-Over Wrench - Torque Screwdrivers: Dial, Micrometer, Preset & Adjustable - Torque Analyzers/Sensors: All brands - Electric Screwdrivers: All brands - Air Tools: All brands Impact Wrenches, Drills, Pulse Tools, Grinders, Percussive Tools, Air Screwdrivers, Nutrunners, DC Controlled Nutrunners - Torque Multipliers: All brands www.mountztorque.com – 1080 N 11 St - San Jose CA 95112–- 408.292.2214...
