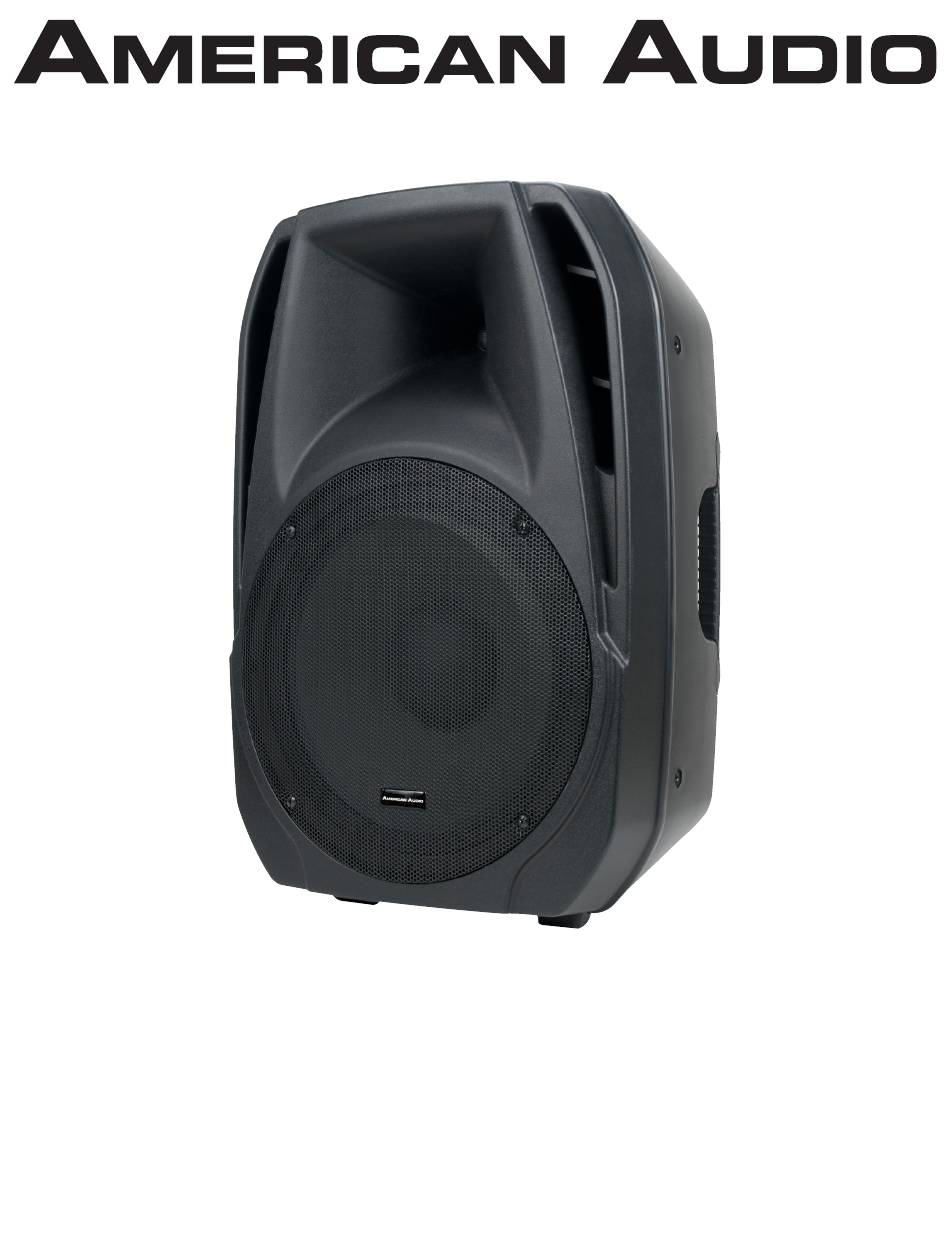

- Page 1 ELS15 USB Professional Powered Two-Way Loudspeaker 7/13...
-
Page 2: Table Of Contents
The ELS15 USB is a lightweight 15-inch active speaker. Its extremely high efficiency design, low power consumption, and plenty of output power is ideal for small and mid-size events. The ELS15 USB is multifunctional. -
Page 3: Handling Precautions
EQUIPMENT GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM Fig. A (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE American Audio - www.AmericanAudio.us - ELS15 USB - Instruction Manual Page 3 © ®... - Page 4 ELS15 USB Safety Precautions ELS15 USB loudspeaker can easily reproduce sound pressure levels (SPL) sufficient enough to cause sever and permanent hearing damage. A great degree of care should be taken to protect your ears to prolong exposure to SPL in excess of 85dB.
-
Page 5: Features
ELS15 USB Registration The ELS15 USB carry a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. -
Page 6: Rear Panel Controls
ELS15 USB Controls and Features Rear of ELS15 USB American Audio - www.AmericanAudio.us - ELS15 USB - Instruction Manual Page 6 © ®... - Page 7 12. XLR PARALLEL OUTPUT JACK – This jack is used to send the incoming line level signal from either of the Line Level Inputs Jacks to another ELS15 USB or other line level input jack such as a mixer or power amp.
- Page 8 FUSE HOLDER – This housing stores the 3.15 amp GMA protective fuse. Always replace with the exact same type fuse, unless otherwise instructed, by an authorized American Audio ® service technician. Replacing with any other type of fuse than that of the recommended fuse will void your unit warranty.
- Page 9 ELS15 USB Typical Speaker Set-Up Typical ELS15 USB Output Set-Up XLR-XLR Balanced Cables American Audio - www.AmericanAudio.us - ELS15 USB - Instruction Manual Page 9 © ®...
- Page 10 ELS15 USB Looping Speakers ELS15 USB Looping From Mixer To Next ELS15 USB (If Applicable) American Audio - www.AmericanAudio.us - ELS15 USB - Instruction Manual Page 10 © ®...
-
Page 11: Rigging And Mounting
• Observe and follow all safety guidelines and regulations specified by the tri-pod’s manufacturer • Be sure the tri-pod is situated on a flat, level, and stable surface • Always tighten all tri-pod locks. American Audio - www.AmericanAudio.us - ELS15 USB - Instruction Manual Page 11 © ®... -
Page 12: Available Accessories
American Audio carries an assortment of rigging hardware specially designed to work with the ® ELS15 USB. Please contact your dealer for more information and availability. SPS-1B - Speaker Stands - American Audio carries the SPS-1B speak- ®... -
Page 13: Warranty
American Audio concludes, after inspection, affects the reliability of the ® product; if the product has been repaired or serviced by anyone other than the American Audio ® factory unless prior written authorization was issued to purchaser by American Audio ;... -
Page 14: Specifications
ELS15 USB Technical Specifications Model: American Audio® ELS15 USB - Professional Powered Sound Reinforcement Loud Speaker Dimensions: 18.5” (L) x 14.75” (W) x 27.75” (H) / 469mm x 372mm x 700mm Weight: 39.5 Lbs. / 17 kgs Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)
