Summary of Contents for Buhler FK308
-
Page 3: Table Of Contents

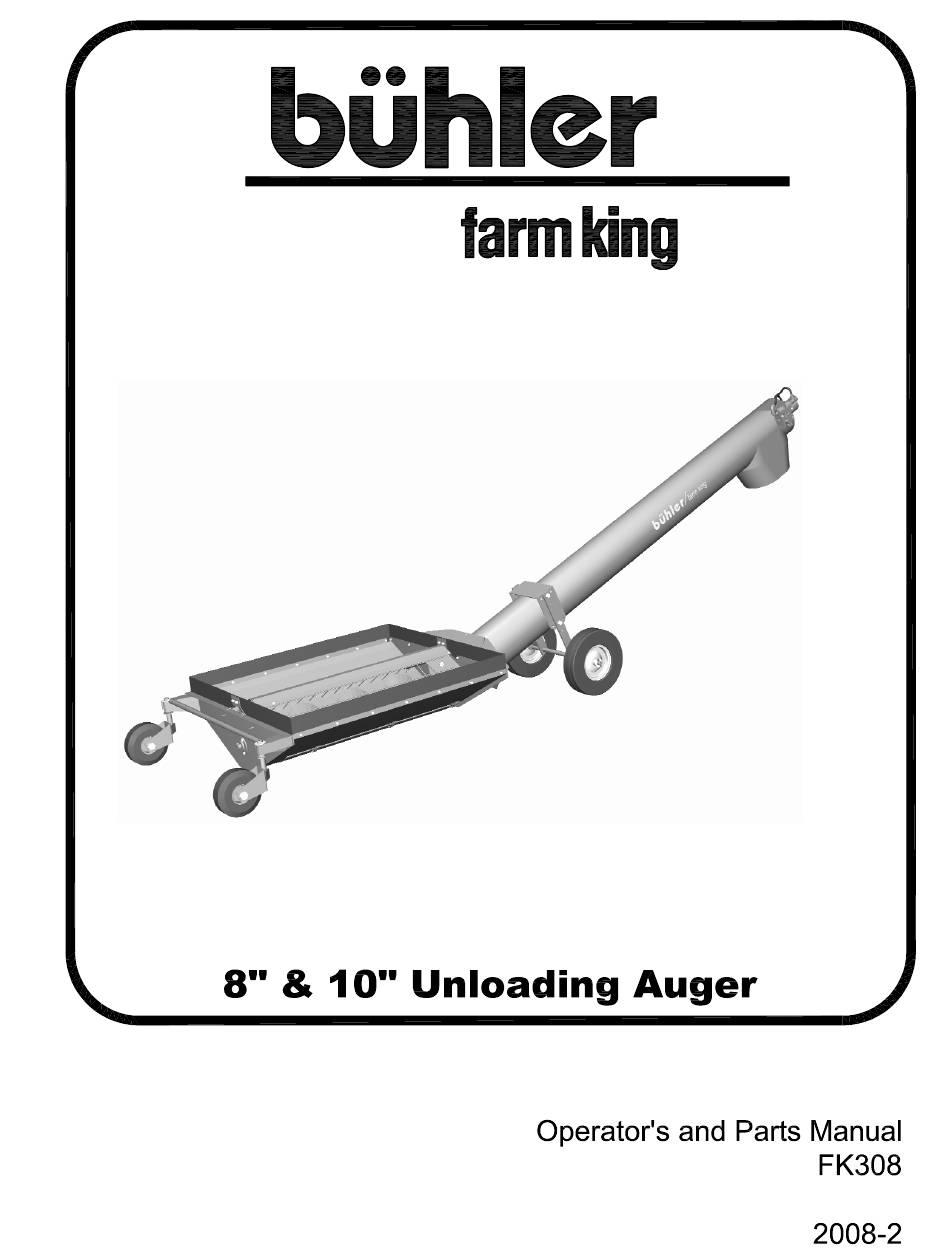

8” & 10” Unloading Auger TABLE OF CONTENTS DESCRIPTION PAGE WARRANTY..............1 INTRODUCTION ............2 SAFETY............... 3 Safety ..............3 General Safety ............4 Start Up Safety ............4 Operation Safety ............ 4 Transport Safety ............. 5 Service and Maintenance Safety......5 Storage Safety............ -
Page 4: Warranty
8” & 10” Unloading Auger WARRANTY POLICY Buhler Manufacturing products are warranted for a period of twelve (12) months (90 days for commercial application) from original date of purchase, by original purchaser, to be free from defects in material and workmanship under correct, normal agricultural use and proper applications. -
Page 5: Introduction
With a hopper that is almost four feet square and your choice of 8” or 10” diameter tubing, the Buhler Farm King unloading augers transfer your grains and oilseeds much faster than conventional utility augers. The weight is evenly distributed on either side of the pivot wheels. -
Page 6: Safety
8” & 10” Unloading Auger SAFETY Remember, YOU are the key to safety. Good safety practices not only protect you, but also the people around you. Make these practices a working part of your safety program. Be certain that everyone operating this equipment is familiar with the recommended operating and maintenance procedures and follows all the safety precautions. -
Page 7: General Safety
Read and understand the Operator’s Manual and all safety signs before operating, servicing, adjusting, repairing, or unplugging the equipment. Do not attempt any unauthorized modifications to your Buhler product as this could affect function or safety, and could affect the life of the equipment. -
Page 8: Transport Safety
8” & 10” Unloading Auger TRANSPORT SAFETY Review Transport Safety instructions in tractor manual before moving. Check with local authorities regarding transport on public roads. Obey all applicable laws and regulations. Make sure the SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that are required by the local highway and transport authorities are in place, are clean, and can be seen clearly by all overtaking and oncoming traffic. -
Page 9: Safety Sign Installation
8” & 10” Unloading Auger SAFETY SIGN INSTALLATION To install safety signs, ensure the installation area is clean and dry. Decide on the exact position before you remove the backing paper. Remove the smallest portion of the split backing paper and align over the specified area. Carefully press in place. Slowly peel back the remaining paper and smooth the remaining portion in place. -
Page 10: Assembly
8” & 10” Unloading Auger ASSEMBLY INSTRUCTIONS Bolt the hopper and tube together using six ½” x 1 ¼” hex bolts, lock washers, and hex nuts on the 10”. Use 3/8" x 1" hex bolts on the 8”. Bolt the stand to the tube using four ½” x 1 ¼” hex bolts, lockwashers, and hex nuts. -
Page 11: Operation
8” & 10” Unloading Auger OPERATING INSTRUCTIONS When operating an auger for the first time when new, or at the beginning of a season, run only partially full until flighting becomes polished. Also check the spout and hopper for bird nests or other obstructions before starting the auger. The set screws in the universal joint joining the hopper and tube flighting must be checked regularly and tightened if necessary. -
Page 12: Theory Of Operation
8” & 10” Unloading Auger THEORY OF OPERATION MAINTENANCE AND STORAGE Lubricate the universal joint about every five hours and check to see that the set screws in the universal joint are tight. Clean the auger thoroughly after using as dirt draws moisture and causes metal to rust. Store in a dry place if possible. -
Page 13: Bolt Torque
8” & 10” Unloading Auger BOLT TORQUE... -
Page 14: Parts Drawings
8” & 10” Unloading Auger 8” & 10” HYDRAULIC UNLOADING AUGER... -
Page 15: Unloading Auger Drawing Parts List
8” & 10” Unloading Auger WHEN ORDERING PARTS Always give your dealer the Model, Color and Serial Number of your machine to assist him in ordering and obtaining the correct parts. Use the exploded view and tabular listing of the area of interest to exactly identify the required part. 8'' &... - Page 16 8” & 10” Unloading Auger 960237 Box Cover 6 3/4" x 14 1/4" - 8" Una 908344 Box Cover 6 1/2" x 16" - 10" Una 963026 1/4'' Sq. x 1 1/2'' Key (8") 960177 1/4" x 1 1/4" Key (10") 967460 3/8'' x 3/4'' Sq.
-
Page 17: Electric Motor Drive Unloading Auger Drawing
8” & 10” Unloading Auger 8” & 10” ELECTRIC MOTOR DRIVE UNLOADING AUGER... -
Page 18: Electric Motor Drive Unloading Auger Parts List
8” & 10” Unloading Auger 8'' & 10'' ELECTRIC MOTOR DRIVE UNLOADING AUGER ITEM PART # DESCRIPTION 960187 Tube Weldment (8'') 960462 Tube Weldment (10'') 960325 Hopper Weldment (8'') 960440 Hopper Weldment (10'') 960188 Tube Flighting (8'') 960463 Tube Flighting (10'') 960268 Hopper Flighting (8'') 960233... - Page 19 8” & 10” Unloading Auger 81568 5/16'' Hex Nut 86171 3/8'' x 1 1/4'' Hex Bolt 81593 3/8'' Lock Washer 81592 3/8'' Hex Nut 86170 3/8" x 1" Hex Bolt (8") 81620 1/2'' x 1 1/4'' Hex Bolt (10") 81593 3/8"...
-
Page 20: Shipping Kit And Bundle Numbers
8” & 10” Unloading Auger SHIPPING KIT AND BUNDLE NUMBERS 8” UNLOADING AUGER The following is a list of Kit Numbers for this product and the Bundle Numbers, Descriptions, and Quantities for each Kit. QUANTITY BUNDLE NO. DESCRIPTION Y810H Hydraulic Unloading Auger F1050 8"... - Page 21 NOTES...
- Page 22 NOTES...
- Page 24 011-441-506-842280 (306) 781-2300 Chihuahua, Mexico Skovde, Sweden ON, Woodstock 011-52-158-90306 011-46-500-452651 (519) 539-0435 Naestved, Denmark QC, Dorion 011-45-557-29511 (450) 455-4840 Buhler Manufacturing 301 Mountain Street S. Morden MB. R6M 1X7 Ph.: (204) 822-4467 Fax: (204) 822-6348 www.buhler.com Printed in Canada...
