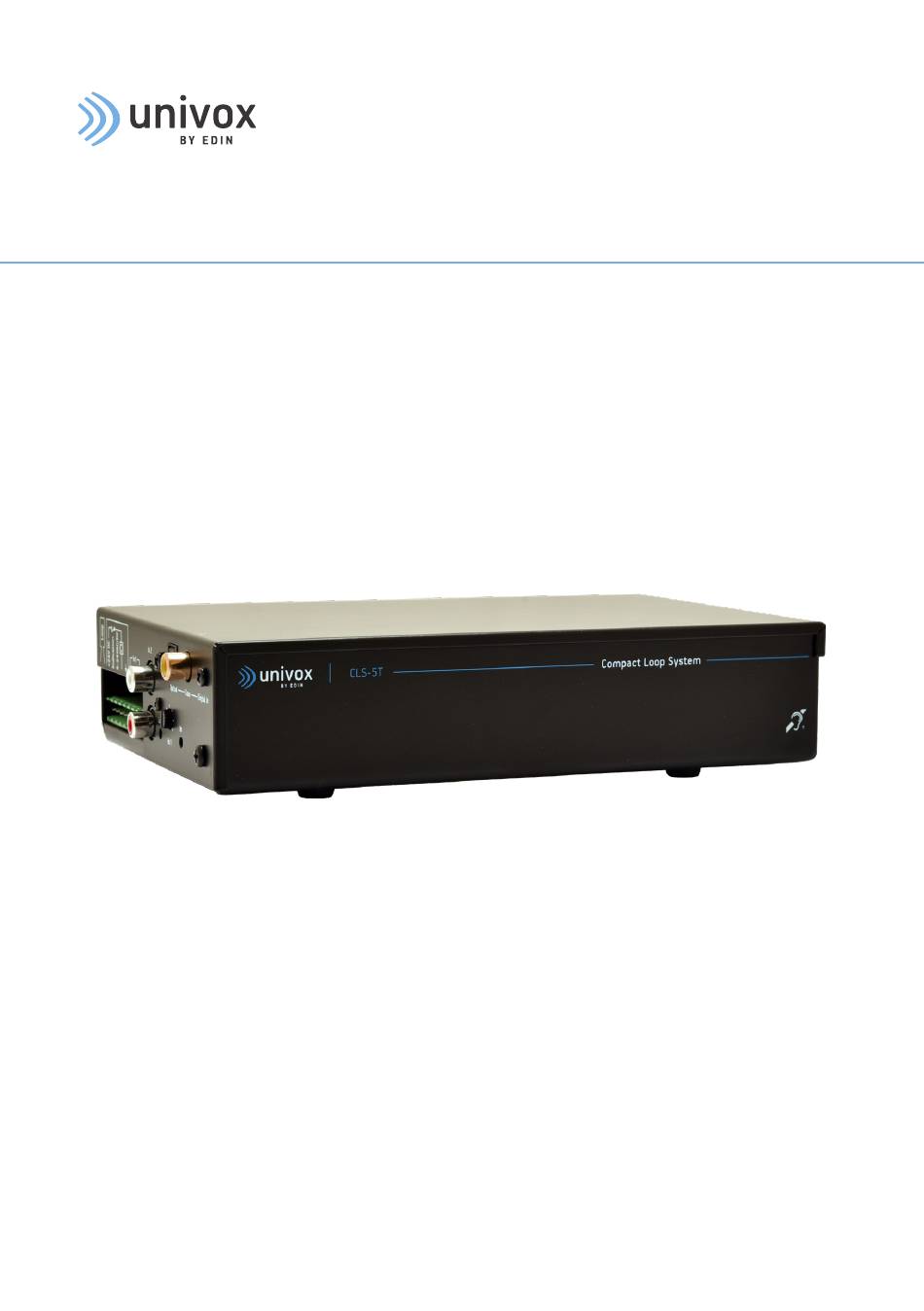

Univox® CLS-5T
Compact Loop System
for vehichles and TV-lounges
Installation Guide
Univox CLS-5T
part no 212060

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Univox CLS-5T and is the answer not in the manual?

Questions and answers

Summary of Contents for Edin Univox CLS-5T

  • Page 1 Univox® CLS-5T Compact Loop System for vehichles and TV-lounges Installation Guide Univox CLS-5T part no 212060...
  • Page 2: Table Of Contents

    Contents Introduction ����������������������������������������������������������������������������������������������������������������������������������������������� 3 Connection and controls ������������������������������������������������������������������������������������������������������������������������� 4 Overview ���������������������������������������������������������������������������������������������������������������������������������������������� 4 Description ������������������������������������������������������������������������������������������������������������������������������������������ 5 User information �������������������������������������������������������������������������������������������������������������������������������������� 6 Mounting and placement ����������������������������������������������������������������������������������������������������������������������� 6 Installation setup ������������������������������������������������������������������������������������������������������������������������������������� 6 Default settings ���������������������������������������������������������������������������������������������������������������������������������������� 7 Special settings for TV connection ������������������������������������������������������������������������������������������������������� 7 Connecting an alert signal ���������������������������������������������������������������������������������������������������������������������� 7 Loop installation guidance ���������������������������������������������������������������������������������������������������������������������...
  • Page 3: Introduction

    Please read this user guide carefully before installation and usage of the product� Univox CLS-5T is a modern loop amplifier designed for wireless listening through T-coil equipped hearing devices� The high-current output, essential for optimal signal broad-...
  • Page 4: Connection And Controls

    Overview Connections and controls CLS-5T Front panel Rear panel 12-24V DC Loop Current Developed in Sweden by Bo Edin AB www.univox.eu 1� 10� 9� 6� 11� 12� Side 4� 13� 5� 7� 3� 8� 2�...
  • Page 5: Description

    Description 1� On/Off� Yellow LED indicates mains power connection 2� In LED – Green� Input 1 and 2� Indicates signal source connection 3� Loop LED – Blue� Indicates that loop is transmitting 4� Loop connection terminal, pin 1 and 2 5�...
  • Page 6: User Information

    DC power supply connection 12 or 24VDC direct power source connection requires a 5-8A external fuse� When installing Univox CLS-5T in an application with a DC power supply, if Unbalanced In 2 is used, a FGA- 40HQ ground isolator (part�no: 286022) must be installed between the loop amplifier input and the signal source�...
  • Page 7: Default Settings

    Default settings 1� Check that there is an input signal, green LED In (2�) illuminated during program peaks 2� Adjust the magnetic field strength to 0dB (400mA/m) in the program peaks� Verify the field strength with Univox® FSM field strength meter� Check the sound quality with the loop reciever, Univox®...
  • Page 8: Loop Installation Guidance

    Loop installation guidance • The installation should initially be planned with a 2 x 1�5mm² paired wire� Connect the wires in series as a 2-turn loop� If the desired field strength is not achieved, connect the wires in parallel creating a 1-turn loop� In installations where a standard round wire is not suitable e�g�...
  • Page 9: Safety

    Bo Edin AB shall not be held responsible or liable for interference to radio or TV equipment, and/or to any direct, incidental or consequential damages or losses to any person or entity, if the equipment has been installed by unqualified personnel and/or if installation instructions stated in the product Installation Guide have not been strictly followed�...
  • Page 10: Measuring Devices

    Bo Edin directly for further instructions� The appropriate Service form, available at www�univox�eu, should be completed before sending any products back to Bo Edin AB for technical consultation, repair or replacement� Technical data For additional information, please refer to product data sheet and CE certificate which can be downloaded from www.univox.eu/products�...
  • Page 11: Technichal Specifications

    Technnical specifications CLS-5T Power supply 110-240VAC, external switching power supply 12-24VDC as primary power or backup, 12V will reduce output Loop output Max current 10Arms Max voltage 24Vpp Frequency range 55Hz to 9870Hz @ 1Ω and 100μH Distortion <1% @ 1Ω DC and 80μH Connection Phoenix screw terminal Inputs...
  • Page 12: Notes

    Notes (Univox) Bo Edin AB +46 (0)8 767 18 18 Stockby Hantverksby 3, info@edin.se SE-181 75 Lidingö, Sweden www.univox.eu Hearing excellence since 1965...
