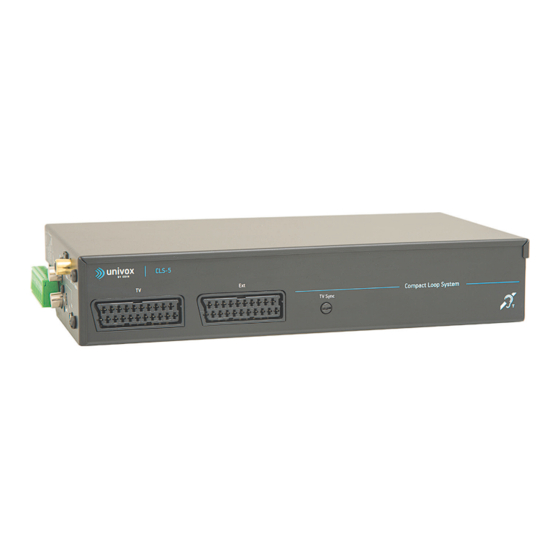

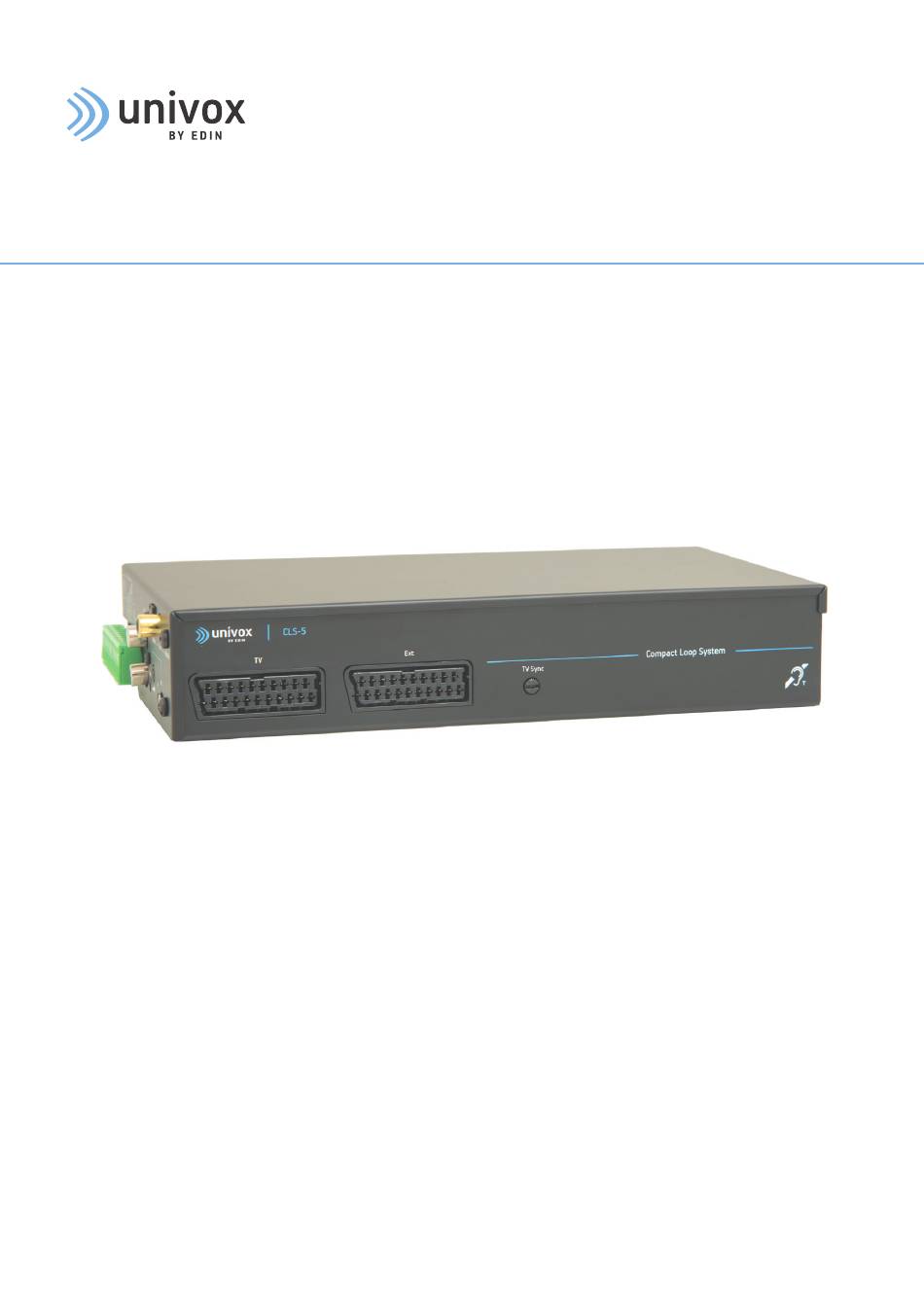

- Page 1 Univox® CLS-5 Environment-friendly loop amplifier for TV rooms and installations in elevators/buses Installation Guide Univox CLS-5, art nr 212012...
-
Page 2: Table Of Contents
Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Product overview . -
Page 3: Introduction
Please read this user guide carefully before installation and usage of the product. Univox CLS-5 is a modern loop amplifier designed for wireless listening through T-coil equipped hearing devices. Wide range of operating voltages,110-240 VAC and 12-24 VDC, supports its suitability for a number of applications, from on board vehicles to large TV lounges and meeting rooms. -
Page 4: Product Overview
Product overview Front panel 10 . Rear panel 12 . 13 . Side 11 . Terminal block... -
Page 5: Features And Controls
Features and controls 1. On/Off. Yellow led indicates that the amplifier is connected to the mains power 2. In. Green led indicates that the amplifier is connected to the mains power and to a signal source (TV, DVD, radio, etc.) 3. -
Page 6: Product Maintenance And Care
Product maintenance and care Under normal circumstances the product does not need any special maintenance. Should the unit become dirty, wipe it with a clean damp cloth. Do not use any solvents or detergents. Mounting and placement CLS-5 can be wall-mounted (see template for wall mounting at the end of this Installation Guide) or placed on a flat and stable surface. -
Page 7: Special Settings For Tv Connection
Special settings for TV connection • Digital In (12-13.) Connect with optical or coax cable to TV models with digital output. • RCA/phono (7.) Connect the TV's audio output (AUDIO OUT or AUX OUT) to In 3 RCA/Phono (7.) • SCART (9-10.) Check that the TV´s SCART system works, i.e. -
Page 8: Loop Installation Guidance
• A completely installed loop system should be tested with Univox® FSM field strength meter and certified according to the IEC 60118-4 standard. Univox Certificate of conformity, including a measurement procedure checklist, is available at www.edin.se/support. -
Page 9: Technical Description
Technical description Power Built-in switched power supply 110-240 VAC 12-24 VDC as primary power supply or backup. Connection to 12 VDC will reduce the effect Loop Output Max current 10 Arms, short-circuit driven Max voltage 24 Vpp (open output) Frequency range 70-5000 Hz (±3dB) Distortion <1% at 1 Ω... -
Page 10: Safety And Warranty
Please observe that the product warranty does not include faults caused by tampering with the product, carelessness, incorrect connection/ mounting or maintenance. Bo Edin AB shall not be held responsible or liable for interference to radio or TV equipment, and/or to any direct, incidental or consequential damages or losses to any person or entity, if the equipment has been installed by unqualified personnel and/or if installation instructions stated in the product Installation Guide have not been strictly followed. -
Page 11: Technical Data
Technical data For additional information, please refer to product data sheet/brochure and CE certificate available at www.univox.eu. For other technical documentation please contact support@edin.se. Environment and Recycling In case of product disposal follow the official regulations. Measuring devices Univox® FSM Basic, Field Strength Meter Professional instrument for measurement of performance and certification of loop systems in accordance with IEC 60118-4. - Page 12 Distributor Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
