Univox® 7-Series
High Efficiency Linear Technology
Univox
Univox
Univox
Univox
Installation Guide
PLS-7
part no 217700
®
SLS-7
part no 227000
®
PLS-7D
part no 217710
®
SLS-7D
part no 227010
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Univox 7 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Edin Univox 7 Series

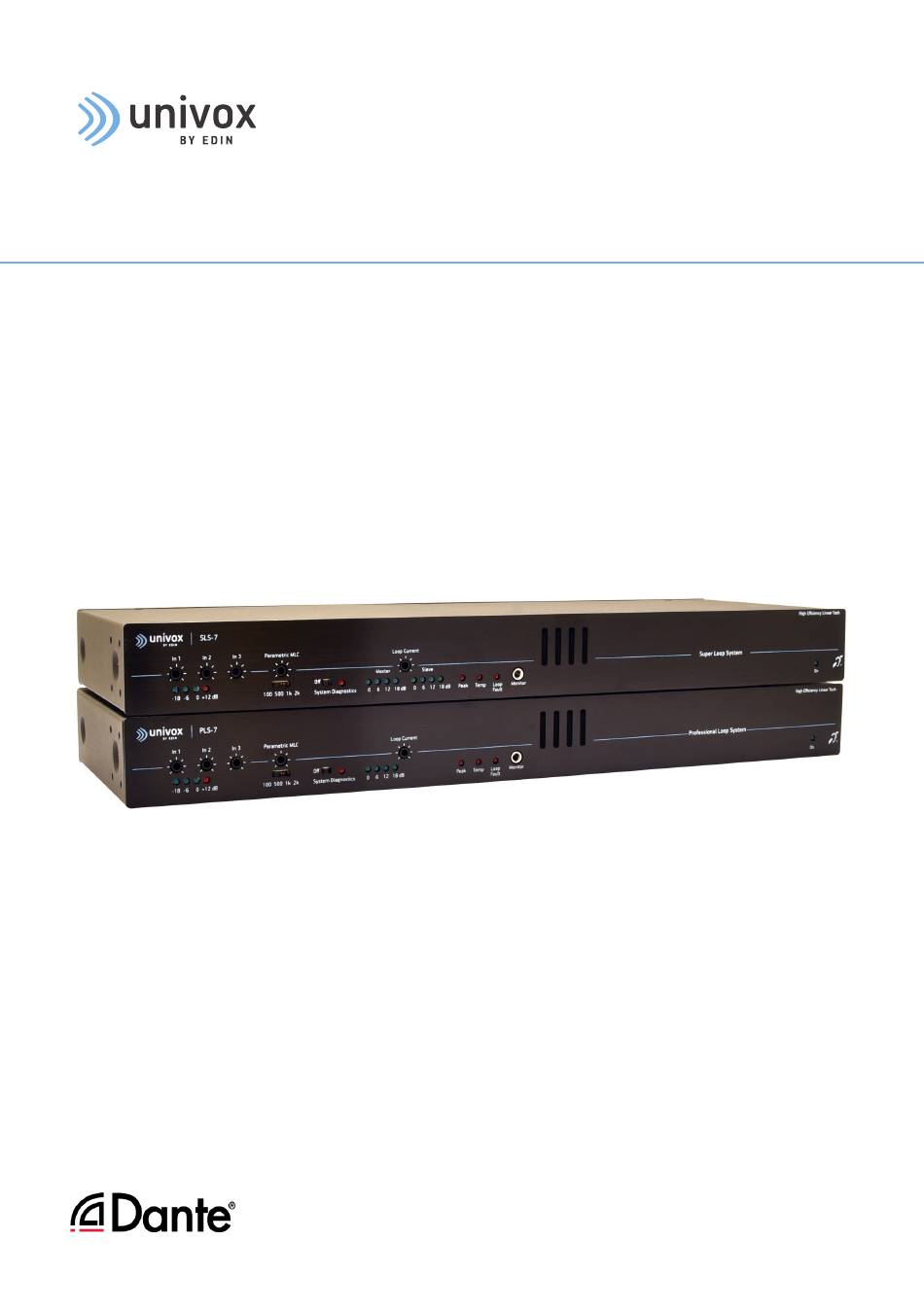

  • Page 1 Univox® 7-Series High Efficiency Linear Technology Installation Guide Univox PLS-7 part no 217700 ® Univox SLS-7 part no 227000 ® Univox PLS-7D part no 217710 ® Univox SLS-7D part no 227010 ®...
  • Page 2: Table Of Contents

    Contents Introduction ����������������������������������������������������������������������������������������������������������������������������������������������� 3 Univox® 7-series ������������������������������������������������������������������������������������������������������������������������������� 3 SLS system ����������������������������������������������������������������������������������������������������������������������������������������� 3 Connections and controls ���������������������������������������������������������������������������������������������������������������������� 4 Overview PLS-7 ������������������������������������������������������������������������������������������������������������������������������ 4-5 Overview SLS-7 ������������������������������������������������������������������������������������������������������������������������������ 6-7 Description ������������������������������������������������������������������������������������������������������������������������������������������ 8 Installation ���������������������������������������������������������������������������������������������������������������������������������������������� 10 Planning ��������������������������������������������������������������������������������������������������������������������������������������������� 10 Tools required ����������������������������������������������������������������������������������������������������������������������������������� 10 Loop cable ���������������������������������������������������������������������������������������������������������������������������������������� 10 Placement of the driver �����������������������������������������������������������������������������������������������������������������...
  • Page 3: Introduction

    Introduction Univox ® 7-Series Univox® 7-Series drivers combine 50 years of experience with the newest electronic design to deliver unrivalled quality in a compact stylish housing� Developed on Univox linear switching technology the 7-Series provide extraordinary sound clarity, power and performance as well as outstanding features such as low weight, size, and exceptionally high efficiency�...
  • Page 4: Connections And Controls

    Overview Connections and controls PLS-7 1� Input level potentiometers 2� Input level LED bar graph 3� Parametric MLC control 4� Parametric MLC knee point switch 5� System diagnostics switch and LED 13� DC supply input 14� Loop connector 15� Monitor volume control for both headphones and speaker output 16�...
  • Page 5 6� Loop current potentiometer 7� Loop current LED bar graph 8� Peak LED 9� Temp LED 10� Loop fault LED 11� Loop monitor headphones socket 12� Power LED C. INPUT 2 22� Speech enhancement switch (Flat/Speech) • • 23� 50-100 V Line switches On/Off •...
  • Page 6: Overview Sls-7

    Overview Connections and controls SLS-7 1� Input level potentiometers 2� Input level LED bar graph 3� Parametric MLC control 4� Parametric MLC knee point switch 5� System diagnostics switch and LED 13� DC supply input 14� Master/Slave loop connector 15� Monitor volume control for both headphones and speaker output 16�...
  • Page 7 6� Loop current potentiometer master/slave 7� Loop current LED bar graphs 8� Peak LED Master/Slave 9� Temp LED 10� Loop fault LED 11� Loop monitor headphones socket 12� Power LED C. INPUT 2 22� Speech enhancement switch (Flat/Speech) • • 23�...
  • Page 8: Description

    Description 1-2� Input level should be set to 0 dB (ie the 0 dB LED should be lit most of the time during the audio programme The +12 dB LED indicator should not be lit at any time) 3-4� Parametric MLC control makes it possible to fine tune the frequency response, compensating for the effects of different metal types and configurations�...
  • Page 9 19� Loop Fault – remote output monitor connection; Monitors the function of the system� Whenever there is an inconsistency of the system a fault signal triggers relay contacts to: OPEN RELAY = FAULT CLOSED RELAY (short circuit) = OK B. INPUT 3 (PHOENIX SCREW TERMINAL/RCA) 20�...
  • Page 10: Installation

    Installation Planning Calculations for coverage area, metal loss, signal sources, power outlets, dissipating heat and ventilation for loop driver placement and other practical installation issues, must be done prior to the on-site installation� Please refer to www.univox.eu/planning Use Univox Loop Designer (ULD), a free, web-based project planning and design software for easy and accurate assistance in designing loop systems�...
  • Page 11: Placement Of The Microphones

    Placement of the microphones Microphone placement and proximity between microphone and mouth is crucial for improved speech intelligibility� Use shortest distance possible between microphone and mouth/sound source� Commissioning and certification Check the system when the installation is completed� Properly installed systems should meet the requirements for field strength, consistency and frequency response according to the international standard IEC 60118-4�...
  • Page 12: System Setup

    System setup Start-up procedure 1� Each loop must be securely isolated (particularly to safety-ground and other loop connections)� Verify the resistance of each loop (approximately 1-3 Ω) (21/25/29) (14) 2� Connect the input and output connections • SLS model: Connect Master and Slave loop cables. The Master loop cable connects to loop terminal screws 1 and 2�...
  • Page 13: Output Connection And Adjustments

    Output connection and adjustments 12� Field strength setting: Start with the highest efficiency connection, I) 2-turn serial connection� For loop connection use a junction box, see the diagram below� 13� Set field strength in range -3 dB to 0 dB at the peaks� If Peak LED flickers occasionally the connection is acceptable�...
  • Page 14: Metal Loss Correction Frequency Setting

    Note: To quickly set up the field strength for a programme material, a PPM instrument, like the Univox Listener can be helpful� The Univox Listener has a calibrated level indicator that quickly detects the highest peak� Note: The field strength peaks should be adjusted to -2 dB field to suit dynamic headroom in various hearing aids 14�...
  • Page 15: Troubleshooting

    Troubleshooting Symptom Possible cause Solution General malfunction Check the system with the start-up procedure� See page 10� Loop fault LED On No input signal Check the input signal No output signal Both master and slave loop must be connected Loop not connected properly Check the loop connection Power LED is off Power supply not connected...
  • Page 16 Troubleshooting Symptom Possible cause Solution Microphone connected, Phantom power not turned on Turn phantom power on input LEDs are off Input level too low Increase input level/reduce speaking distance Microphone needs higher Use valid microphone or connect a phantom voltage microphone mixer (amplifier) Microphone/LED/connectors Exchange faulty part...
  • Page 17: Safety

    Bo Edin AB shall not be held responsible or liable for interference to radio or TV equipment, and/or to any direct, incidental or consequential damages or losses to any person or entity, if the equipment has been installed by unqualified personnel and/or if installation instructions stated in the product Installation Guide have not been strictly followed�...
  • Page 18: Maintenance And Care

    For additional information, please refer to product data sheet and CE certificate which can be downloaded from www.univox.eu/products� If required, other technical documents can be ordered from support@edin.se� Environment To prevent possible harm to the environment and human health, please dispose of the product responsibly by following statutory disposal regulations�...
  • Page 19: Technical Data Pls-7/Sls-7

    Technical data Univox PLS-7/PLS-7D Univox SLS-7/SLS-7D Loop Output Max Drive Voltage 100 Vpp 100 Vpp Max Drive Current 20 Arms 2 x 10 Arms Power supply 110-240 VAC primary switched class VI electronic power supply; Enhanced power connection with 4-pin DIN power connector Input 1 Balanced XLR, Line/Mic;...
  • Page 20 Notes (Univox) Bo Edin AB +46 (0)8 767 18 18 Stockby Hantverksby 3, info@edin.se SE-181 75 Lidingö, Sweden www.univox.eu Hearing excellence since 1965...
