Univox
DLS-30 Loop amplifier
®
Loop pad
Part No Description
203010

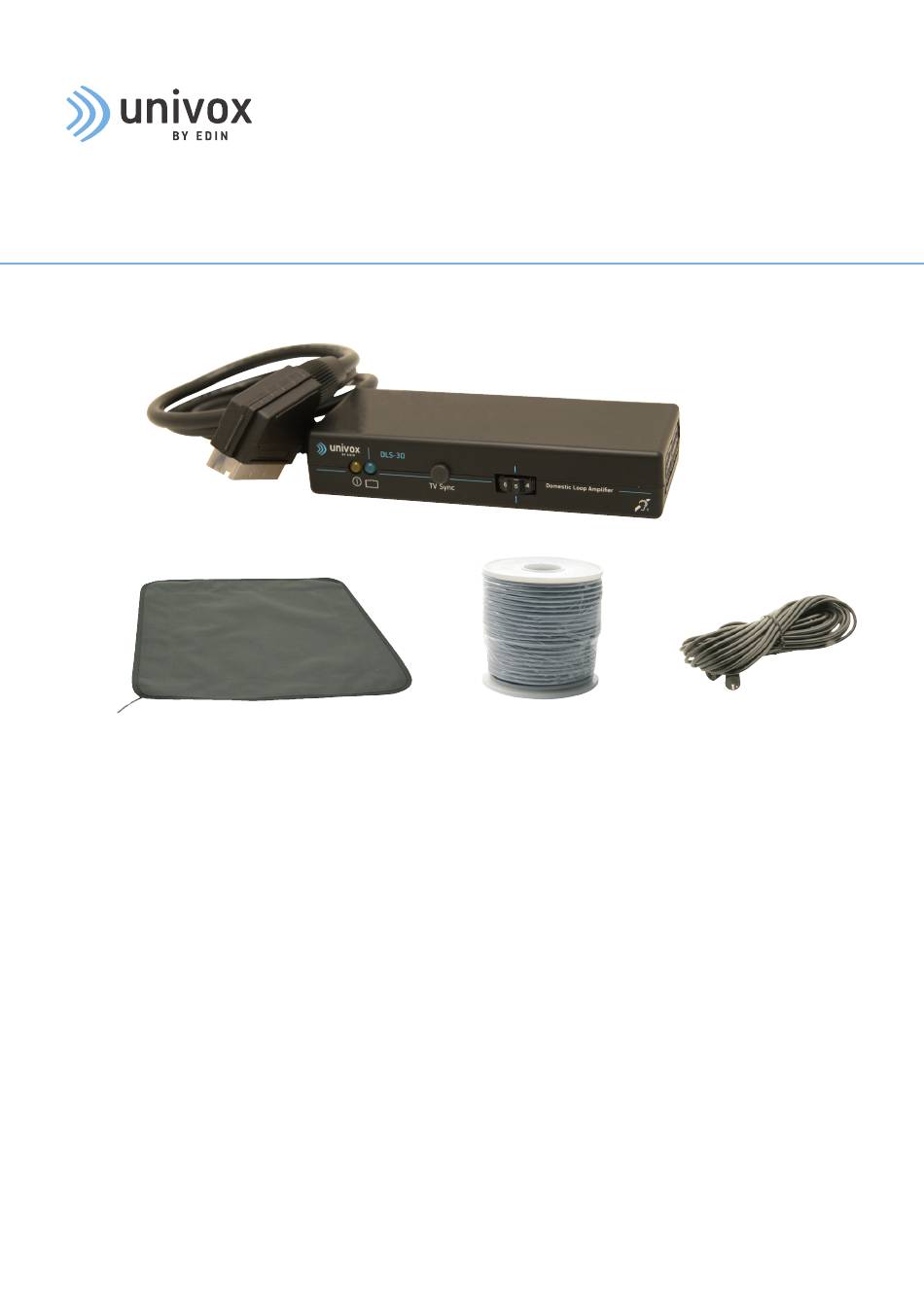

Univox DLS-30, Loop amplifier with AutoScart and loop pad
203010S Univox DLS-30, Loop amplifier with AutoScart and sofa loop
203011P Univox DLS-30 UK, Loop amplifier with AutoScart and loop pad
203011S Univox DLS-30 UK, Loop amplifier with AutoScart and sofa loop
203040
Univox DLS-30TV, Loop amplifier with AutoScart, TV Sync and loop pad
203040S Univox DLS-30TV, Loop amplifier with AutoScart, TV Sync and sofa loop
203041P Univox DLS-30TV UK, Loop amplifier with AutoScart, TV Sync and loop pad
203041S Univox DLS-30TV UK, Loop amplifier with AutoScart, TV Sync and sofa loop
203030
Univox DLS-30SC, Loop amplifier with AutoScart and loop terminal
203030R Univox DLS-30SC, Loop amplifier with AutoScart, loop terminal and room loop
203031
Univox DLS-30SC UK, Loop amplifier with AutoScart and loop terminal
203031R Univox DLS-30SC UK, Loop amplifier with AutoScart, loop terminal and room loop
203043
Univox DLS-30TVSC, Loop amplifier with AutoScart, TV Sync and loop terminal
203044
Univox DLS-30TVSC, Loop amplifier with AutoScart, TV Sync, loop terminal and loop pad
Univox® DLS-30(SC)/DLS-30TV(SC)
Loop amplifier with AutoScart and
loop pad/sofa loop/room loop
Room loop (DLS-30SC/
DLS-30TVSC only)
User Guide
Sofa loop
1
Advertisement
Table of Contents
Related Manuals for Edin Univox DLS-30
Summary of Contents for Edin Univox DLS-30
- Page 1 Univox DLS-30, Loop amplifier with AutoScart and loop pad 203010S Univox DLS-30, Loop amplifier with AutoScart and sofa loop 203011P Univox DLS-30 UK, Loop amplifier with AutoScart and loop pad 203011S Univox DLS-30 UK, Loop amplifier with AutoScart and sofa loop...
- Page 2 Content Introduction ....................2 About Univox® DLS-30(SC)/DLS-30TV(SC) ..........3 Check before connection ................3 Connect the Univox® DLS-30/DLS-30TV ............4 Connecting the loop pad/sofa loop to the amplifier ........4 Connecting the room loop wire to the amplifier ..........4 Connecting the amplifier to the TV ..............5 Connecting other signal sources ................

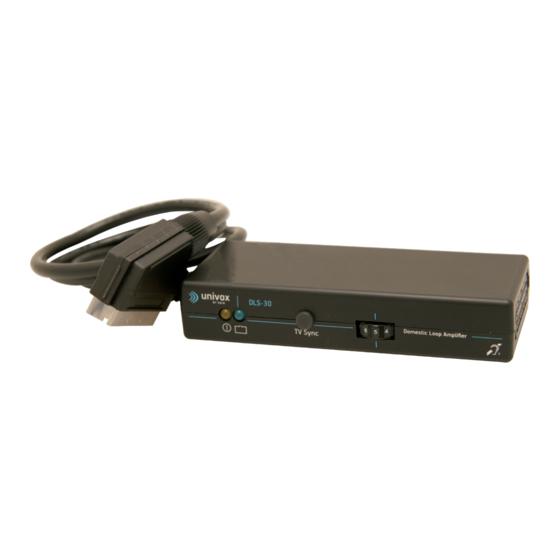

- Page 3 About Univox® DLS-30(SC)/DLS-30TV(SC) Univox® DLS-30(SC)/DLS-30TV(SC) features automatic routing and connection to a TV via Scart (Euroconnector), as well as two extra ports that can be connected to external microphones or other audio sources, such as radio or MP3 player. The DLS-30TV(SC) models can compensate for the audio time delay that ‘flat’ televisions often have.
- Page 4 Connect the Univox® DLS-30/DLS-30TV (11) (10) Connecting the loop pad/sofa loop to the amplifier 1. Place the loop pad on or under the seat cushion where you usually sit and watch TV. Place the sofa loop cable on the floor/under the carpet around the sofa. 2.
- Page 5 Connecting the amplifier to the TV 1. Connect the DLS-30(SC)/DLS-30TV(SC)’s Scart (3) to the TV’s Scart socket number 1. 2. If the TV does not have a Scart socket, connect a cable from the TV’s audio output to any of the IN inputs (4) in the DLS-30(SC)/DLS-30TV(SC). 3.
- Page 6 If the product is to be sent to Bo Edin AB, please enclose a filled Service Form, which can be downloaded at www.univox.eu, Support, or mark the package with your name, address,...
- Page 7 Please note that the warranty is not valid for any damage or defects on the product due to incorrect or incautious installation or usage. Bo Edin AB is not responsible for interference from radio or TV equipment, or damage caused by the product to any property or liable for the consequences of such damages.
- Page 8 581050 Tie clip microphone, 3.5mm male, cable=1.1m Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
