4. Input and output voltage
The controller supports a wide range of supply voltage, both in AC or DC. The self-lock power supply can be used to feed the
controller. See technical specifications on section 7.
Important note:
Make sure that the supply voltages of the lock and the controller are compatible. Especially in the case
of using the supply voltage of the controller to feed the lock (Jumper in position A - Dry Contact-). See
section 4.2.

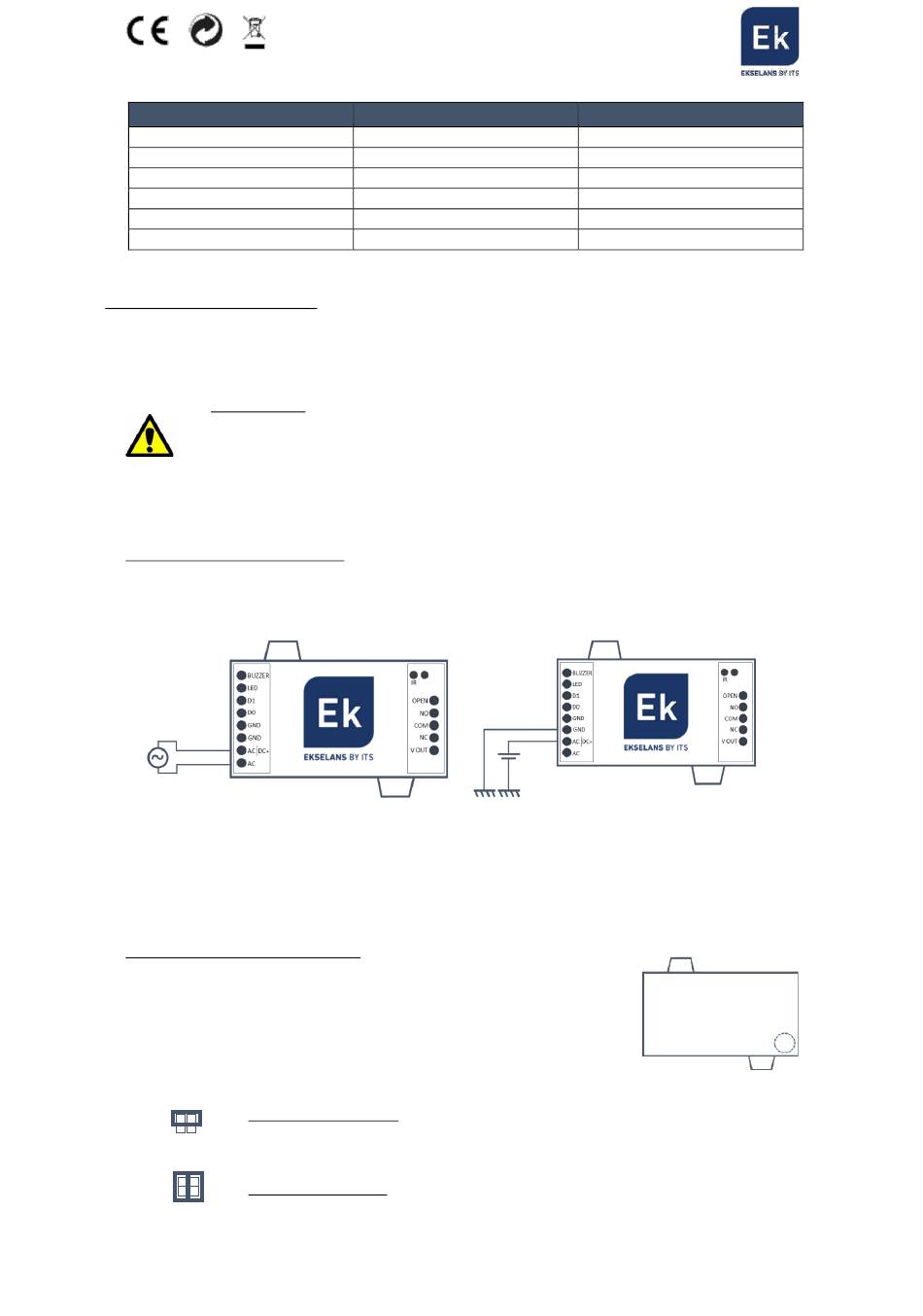

4.1. Controller voltage feeding
The controller can be fed both in AC or DC voltage
In case of powering the controller with alternating
current, connect the source to the terminals
indicated as "AC and AC".
Check the maximum rating voltage in the technical specification.
4.2. Door opener voltage feeding
The controller may act on the door-opener in two modes depending on the position
of some jumpers. These jumpers are inside the device, in the lower right corner.
Open carefully.
There are two positions:
A-Position (Dry Contact): It allows the passage of current between an external power
supply and the lock. It acts as a switch. Make sure that the lock supports the power supply
voltage of the external power supply. This is the factory configuration.
B-Position (Input pass): It feeds the lock with the same voltage that feeds the controller
itself.
LED
Red
Blinking red One bip
Orange Two bips
- Three bips
Red One bip
Green One bip
In case of powering the controller with direct current,
connect the source to the terminals indicated as "GND
and DC +". Respect the polarity.
