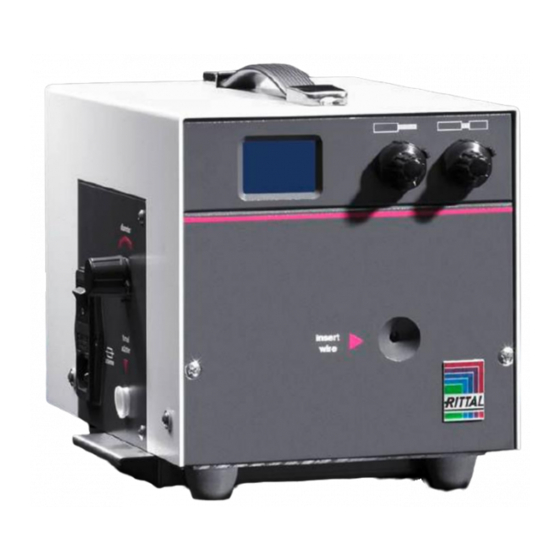

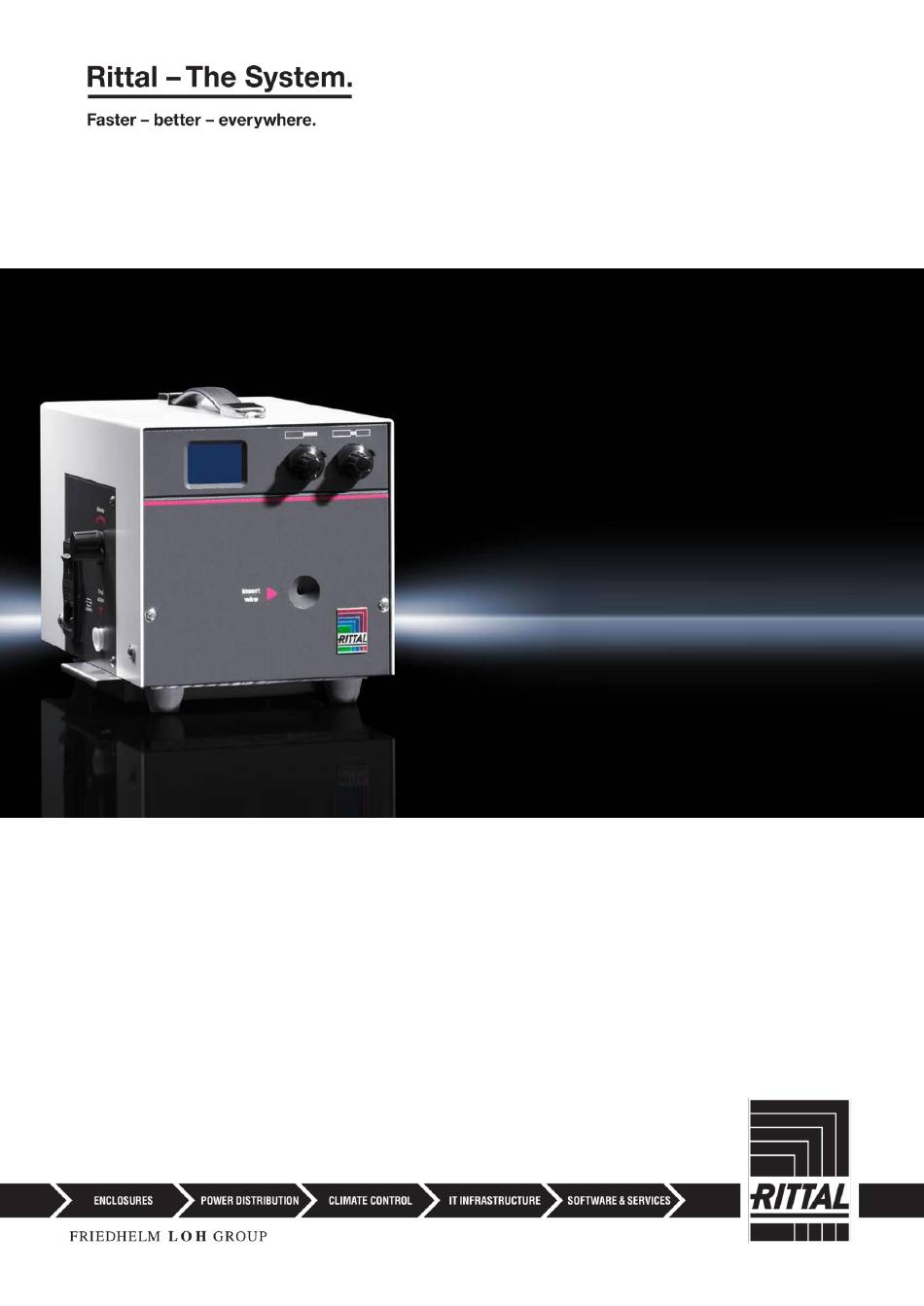

- Page 1 Stripping machine S22 AS 4050.451 Operating instructions...
-
Page 2: Table Of Contents
Machine does not start..................14 No start for inserted wire ..................15 Larger number of rejects ...................15 Error messages ....................15 Electrical connection diagram..........16 Spare parts ................16 Disposal .................17 We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 3: About This Documentation
This constitutes information which is not related to safety, but which provides important information regarding correct and effective work. ◼ This symbol indicates an "action point" and shows that you should perform an operation or procedure. Ritta l S22 insulation stripping machine We reserve the right to make technical modifications. -
Page 4: General Safety Instructions
Caution! Risk of injury due to missing safety equipment! ◼ Never remove safety equipment or decommission it by making changes to the machine. We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 5: Safety Equipment
– All notes on machines must be kept legible, and renewed when necessary. ◼ Notify the manufacturer without delay should defects become apparent, provid- ed they were not caused intentionally. Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. -
Page 6: Noise
The A-evaluated equivalent continuous sound pressure level of the insulation strip- ping machine is ≤70 dB(A). Consequently, ear muffs are not required for operating the machine. We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 7: Device Description
Max. outer diameter 5.1 mm Stripping length 3…20 mm Pull-off length 3…20 mm Drive Electric motor Voltage 100…240 V Frequency 50/60 Hz Power consumption 45 VA Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. -
Page 8: Operating Instructions
Setting the length unit (mm or inch) ◼ Press the touch display briefly. appears. ◼ Press the touch display and keep pressed for at least 5 seconds. The length unit switches. We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 9: Setting The Cross-Section
Depending on the wire properties, a small readjustment may be needed. Note: Insert the supplementary funnel in the feed funnel for wire cross- sections from 0.05 – 0.34 mm². Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. -
Page 10: Setting The Stripping Length
Set the stripping length (fig. 4, item 2) via the setting button (length in mm, guide value). Fig. 4: Stripping length in the display ◼ Apply the brake. We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 11: Setting The Draw-Off Length
– The cable must be cut straight and must not have any kinks or bends. – Inserting the wire in the insertion funnel triggers the work cycle. Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. -
Page 12: Menu
"Manual" menu (manual control for removing the stripped insulation scrap) ◼ Start manual cycle. To do this, press the touch display briefly. The display switches automatically to menu 1. We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 13: Counter" Menu
– Place the front panel and, by moving from right to left, fasten it to the front frame of the machine (attach with the alignment pin on the right-hand side). – Fasten the front panel with the screws. Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. -
Page 14: Replacing The Insulation Stripping Blade
– Fasten the front panel with the screws. Troubleshooting Machine does not start The power supply is interrupted. ◼ Check the mains cable and the fuses. We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 15: No Start For Inserted Wire
The Stop switch does not switch or remains pressed. Start switch fault Start switch not free. Motor fault The motor does not run or jams (current too high). Service message Service quantity attained. Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. -
Page 16: Electrical Connection Diagram
7 Electrical connection diagram Electrical connection diagram Display Spare parts Designation Model no. AS Insulation stripping blade kit, V-blade, titanium 4050464 We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine... -
Page 17: Disposal
Machine disposal as house refuse is not permitted. The machine should be disposed of environmentally conform and properly. The local waste disposal regulations and the legal requirements for disposal must be observed. Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications. - Page 18 Notes Ritta l S22 insulation stripping machine We reserve the right to make technical modifications.
- Page 19 Notes Ritta l S22 insulation stripping machine We reserve the right to make technical m odifications.
- Page 20 Notes We reserve the right to make technical m odifications. Rittal S22 insulation stripping machine...
- Page 21 ◾ Climate Control ◾ IT Infrastructure ◾ Software & Services You can find the contact details of all Rittal companies throughout the world here. www.rittal.com/contact RITTAL GmbH & Co. KG Auf dem Stuetzelberg · 35745 Herborn · Germany Phone +49 2772 505-0...
