OWNER'S MANUAL
READ BEFORE USE!
WARNING:
• Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
• An LP cylinder not connected for
use should not be stored in the
vicinity of this or any other appliance.
• Service must be performed by a
qualified installer, service agency or
the gas supplier.
DANGER
IF YOU SMELL GAS:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department .
C
US
Design certified under ANSI Z21.97 •
CSA 2.41-2012 Requirements for
Outdoor Gas Fireplaces
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.

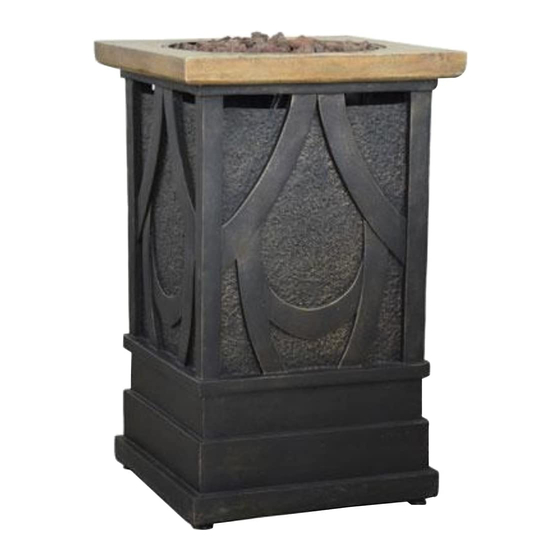

Model No.: HYFP40205-2 Item No.: 66599
WARNING:
For Outdoor Use Only!
Use Liquid Propane Gas (LP-Gas) Only !
Propane cylinders sold separately.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Read the
owner's manual thoroughly before
installing or servicing this equipment. If the
information in this manual is not followed
exactly, a fire or explosion may result
causing property damage, personal injury
or loss of life. Save these instructions for
future use. If you are assembling this unit
for someone else, give this manual to him
or her to read and save for the future.
WARNING:
Turn off gas supply when the appliance
is not in use.
If the appliance is stored indoors,
detach and leave LP-Gas cylinder outdoors.
WARNING:
This appliance must be attended at all
times!
WARNING:
Battery may contain mercury. Do not
deposit in fire or put in trash. Recycle the
battery as hazardous waste.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYFP40205-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOND MANUFACTURING HYFP40205-2

  • Page 1 OWNER’S MANUAL READ BEFORE USE! Model No.: HYFP40205-2 Item No.: 66599 WARNING: For Outdoor Use Only! Use Liquid Propane Gas (LP-Gas) Only ! Propane cylinders sold separately. WARNING: WARNING: Improper installation, adjustment, • Do not store or use gasoline or...
  • Page 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to follow the dangers, warnings and cautions contained in this owner's manual may result in a fire or explosion causing damage to property, serious bodily injury or death. WARNING ...
  • Page 3 SAFETY INFORMATION  Never lean over the open firebowl or place hands or fingers on the upper portion of an operational unit.  Keep any electrical supply cords and the fuel supply hose away from any heated surfaces.  Combustible materials should never be within 72 inches of the top, 48 inches of the back or sides of the firebowl.
  • Page 4 Inspect the burner before each use of the appliance. If the burner shows signs of damage of any kind, do not operate the appliance. Fix or replace the burner as required before using the appliance. For assistance with repair or replacement of the burner, call Bond Manufacturing at 1-866-771-2663. Use only replacement parts from the manufacturer.
  • Page 5 WARNING: LAVA ROCK USE 1. Do not light or use gas unit if lava rocks are wet. Ensure lava rocks are completely dry before lighting as intense heat could cause the lava rocks to crack. 2. Lava rocks could hit somebody's face or eyes during the initial start of this unit, so please keep away from the appliance for the first 20 minutes.
  • Page 6 ASSEMBLY INSTRUCTIONS______________________ _ *Please keep the owner’s manual for future reference *If you have opened the carton and removed all packages, please disregard STEP 1. See STEP 2 directly. STEP 1 Unpack and identify all parts using the parts list provided. STEP 2 (1) Check each part before using the product.
  • Page 7: Visual Check

    LP (Liquid Propane) gas supply connection____________ • Always confirm that the burner control knob is in the OFF position before connecting the gas supply. • Do not obstruct the flow of combustion air and ventilation air to the appliance. To Connect: •...
  • Page 8 LEAK TEST 1.Perform a leak test in a well-ventilated area outside. 2.Make sure any open flames or cigarettes are extinguished. 3.Remove the battery. 4.Ensure the burner control knob is in the "OFF" position. 5.In a bowl, create a soap solution using 1 part water and 1 part liquid detergent. 6.Apply the soapy water solution to all connections.
  • Page 9: Routine Care

    USING A LONG MATCH OR LIGHTER 1. Connect propane (LP) cylinder (see above pages). 2. Before lighting, move the lava rocks with a small shovel to allow access to the burner. WARNING: Lava rocks can become very hot. DO NOT touch unless they are completely cooled.
  • Page 10: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE CORRECTIVE ACTION Igniter pin and burner are wet Wipe dry with a cloth Igniter battery is incorrectly Check that battery is correctly inserted. inserted. Call customer service for replacement Igniter pin cracked or broken part Appliance won't light Electrode wire is loose or Reconnect wire to the igniter...
  • Page 11 IF YOU HAVE QUESTIONS OR CONCERNS PLEASE CALL BOND TOLL FREE # 1-866-771-BOND(2663) OR TO BETTER EXPEDITE YOUR REQUEST FEEL FREE TO EMAIL US customer.service@bondmfg.com OR VISIT TO OUR WEBSITE UNDER CUSTOMER SERVICE SUPPORT www.bondmfg.com BOND MANUFACTURING CO. 1700 West 4th Street, Antioch, CA 94509...
  • Page 12: Manual Del Usuario

    MANUAL DEL USUARIO ¡LEER ANTES DE USAR! No de modelo: HYFP40205-2 No de artículo: 66599 ADVERTENCIA: ¡Solamente para uso en exteriores! ¡Usar Solamente Gas Propano (Gas LP)! ADVERTENCIA: Las bombonas de propano se venden por • No almacene ni use gasolina o separado.
  • Page 13 INFORMACIÓN DE SEGURIDAD Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto. No seguir los avisos de peligro, las advertencias y las precauciones de este manual del usuario podría provocar incendios o explosiones que causen daños a la propiedad, lesiones personales graves o la muerte.
  • Page 14 INFORMACIÓN DE SEGURIDAD primeros 20 segundos después de haberla encendido.  No use la chimenea para exteriores, a menos que todas las piezas estén correctamente instaladas y estén en su lugar.  Preste atención cuando haga funcionar la chimenea para exteriores. Se calienta durante el uso y nunca debe dejarse sin supervisión.
  • Page 15 Repare o reemplace la manguera según la necesidad antes de usar el aparato. Para obtener ayuda con la reparación o el reemplazo de la manguera, póngase en contacto con Bond Manufacturing al 1-866-771-2663. Utilice sólo piezas de repuesto del fabricante.
  • Page 16 ADVERTENCIA: USO DE PIEDRAS DE LAVA 1. No encienda ni utilice la unidad de gas si las piedras de lava estén húmedas. Asegúrese de que las piedras de lava estén completamente secas antes del encendido, pues el calor intenso podría hacer rajarse las piedras. 2.
  • Page 17: Instrucciones De Montaje

    INSTRUCCIONES DE MONTAJE _________________ * Por favor quédese con este manual del usuario para referencia futura. *Si usted abrió el cartón y sacó todos los paquetes, por favor ignore PASO 1. Véase el PASO 3 directamente. PASO 1 Desempaquete y identifique todas las piezas utilizando la lista proporcionada. PASO 2 (8) Revise cada pieza antes de usar el producto.
  • Page 18 Conexión del Suministro de Gas LP (Propano Líquido)____ • Siempre asegúrese de que el botón de control esté en la posición ‘OFF’ antes de conectar el suministro de gas. • No obstruya el flujo del aire para la combustión ni del aire para la ventilación al aparato. Para Conectar: 3.
  • Page 19: Para Encender

    ENSAYO DE FUGAS 1. Compruebe si hay fugas afuera en un área con buena ventilación. 2. Asegúrese de que cualquier llama desnuda o cigarrillo esté apagado. 3. Quite la pila. 4. Asegúrese de que el botón de control esté en la posición ‘OFF’. 5.
  • Page 20: Para Apagar

    UTILIZAR UN CERILLO LARGO O UN ENCENDEDOR LARGO 1. Conecte la bombona de propano (LP) (véase las páginas arriba). 2. Antes del encendido, mueva las piedras de lava con una pala pequeña para permitir el acceso al quemador. ADVERTENCIA: Las piedras de lava pueden estar muy calientes. NO las toque hasta que estén completamente enfriadas.
  • Page 21: Mantenimiento

    MANTENIMIENTO • Almacene el aparato en un lugar seco y fresco, fuera de la luz directa del sol. • Asegúrese de que el suministro de gas y el aparato estén apagados antes de cambiar la pila. Se ruega consultar el proceso de inserción de la pila. •...
  • Page 22 SE RUEGA LLAMAR A BOND SIN CARGOS al 1-866-771-BOND(2663) O PARA ACELERAR SU PEDIDO NO DEJE DE MANDARNOS UN CORREO ELECTRÓNICO AL customer.service@bondmfg.com O VISITE NUESTRA PÁGINA WEB BAJO ATENCIÓN AL CLIENTE CUSTOMER SERVICE SUPPORT www.bondmfg.com BOND MANUFACTURING CO. 1700 West 4th Street, Antioch, CA 94509...
