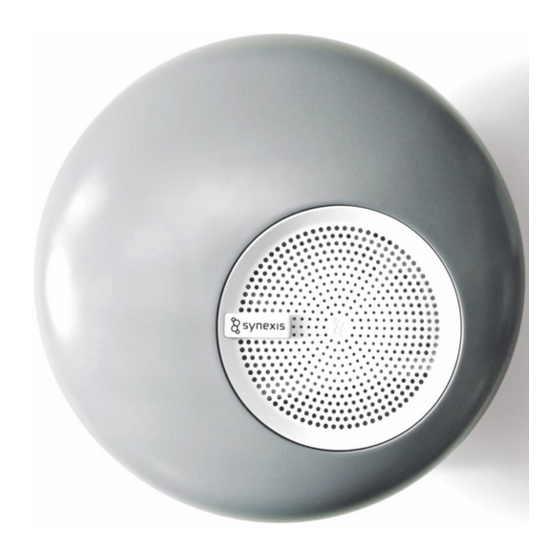

Synexis SPHERE Quick Start Manual

Hide thumbs Also See for SPHERE:

Download this manual

SPHERE

QUICK START GUIDE

Need help?

Do you have a question about the SPHERE and is the answer not in the manual?

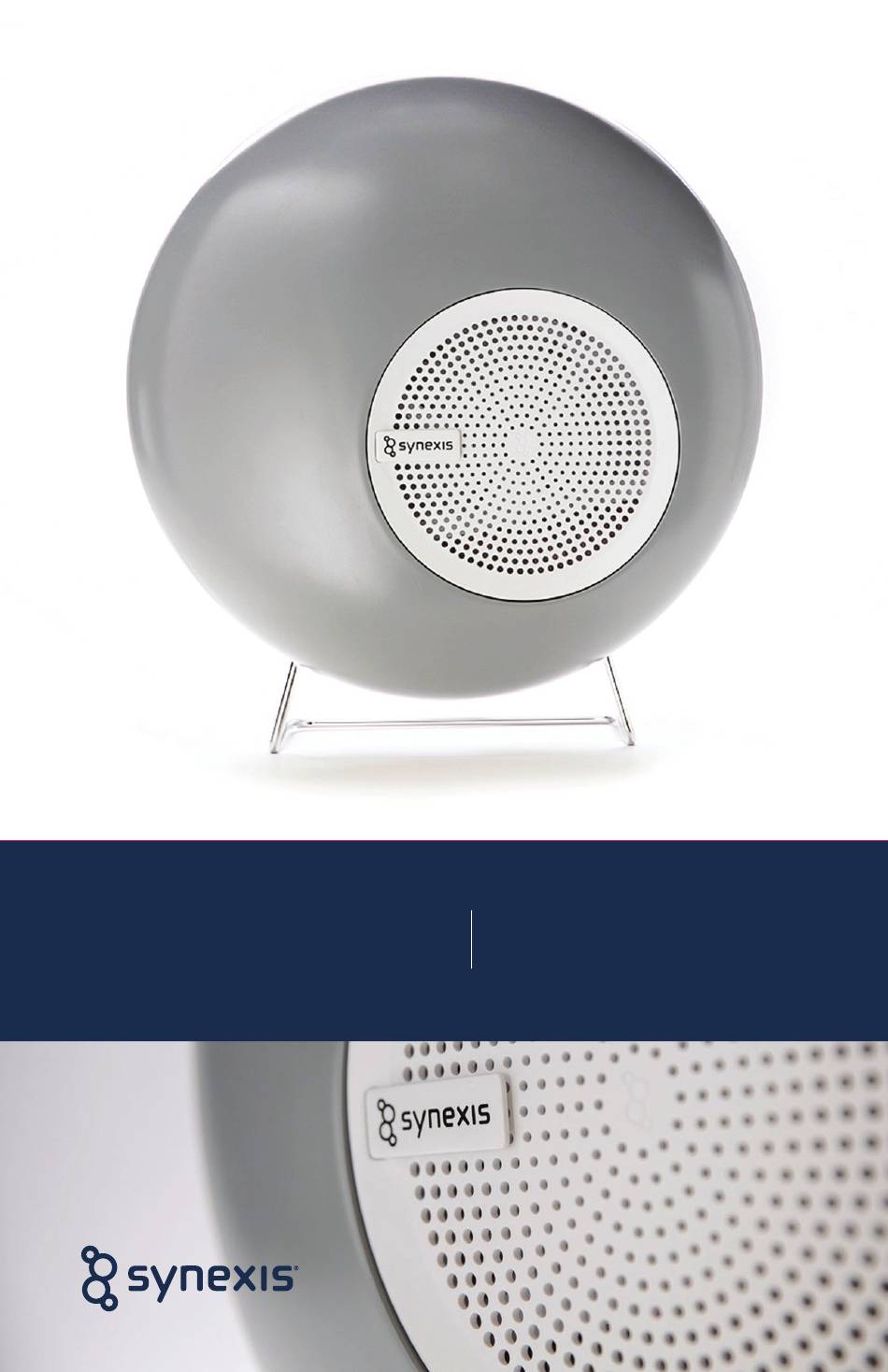

Page 1 SPHERE QUICK START GUIDE...
Page 2 First use DO NOT OPERATE THIS DEVICE IF ANY DAMAGE IS NOTED. If the device is damaged, contact your Synexis Account Representative at (844) 352-7680. On/Off switch and plug - located on back side of the device...
Page 3 - 1 power cord - bulb: approx. 2 years - 1 stand (already installed) or wall mount bracket Visit Synexis.com/manuals for detailed product - 1 Torx T10 T-Handle screwdriver information and wall mounting installation instructions. (for Locking Screw) - 1 Security Torx T10 “L” Shaped tool...
Page 4 Insert the new Sail Hold tabs of the Sail (Sail ships separately) and pull toward you Remove and insert the new Sail Turn the tabs 90° Insert new filters and turn tabs to secure - airflow arrow on MERV 11 filter points Remove the filters toward unit - carbon filter on top of MERV 11 filter...
Page 5 (and bulb if already inserted) Insert new bulb - align the 4 pins to the female Replace bulb cover and fasten the screw socket connectors Phone: (844) 352-7680 11711 W 79th Street Email: info@synexis.com Lenexa, KS 66214 Online: synexis.com United States of America...
Page 6 SYN-GEN-1120-001...
