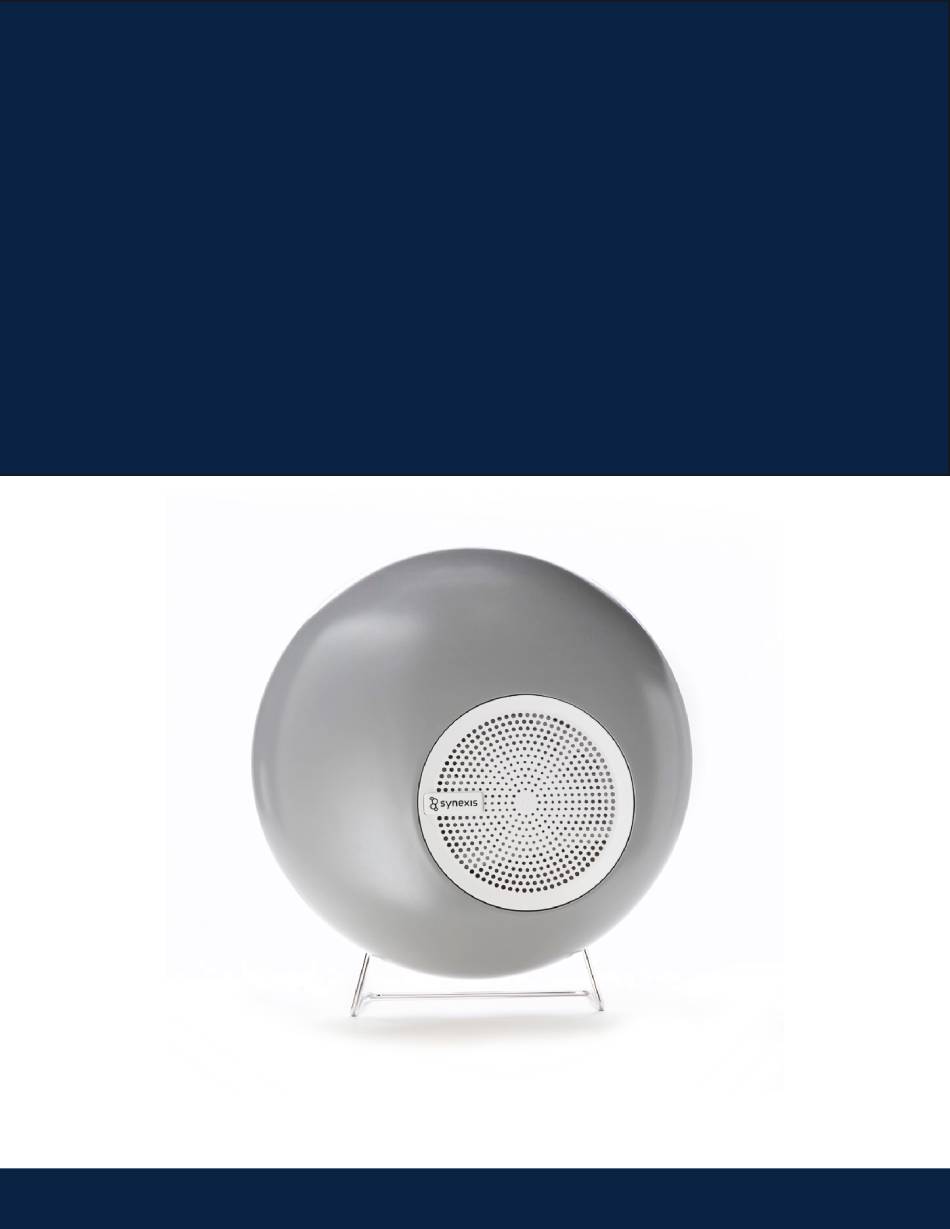

  • Page 1 Sphere Setup Instructions...
  • Page 2 Installing the UV Bulb Carefully open shipping box and Remove Sphere from shipping box. Position Sphere face-down on foam place foam cover on tabletop. insert on a tabletop. Locate power cord and UV-A Bulb UV bulb is located in the cardboard...
  • Page 3 Installing the UV Bulb cont. Remove UV bulb cover safety screw. Match wide UV-A bulb pins to Remove bulb cover. wide pattern in the bulb socket. Replace bulb cover. Gently press bottom of bulb to With wide pins on the left, insert ensure it is fully inserted.
  • Page 4 Sphere Sail Installation Remove top safety screw with the Remove bottom safety screw with Grab recess and pull top and bottom L-shaped TORX tool. the L-shaped TORX tool. of cover to disengage magnets. Holding tabs, insert Sail into Remove front cover.

  • Page 5: Replacing The Filters

    Replacing the Filters 14 Days: Replace Sail & MERV filter 3 Months: Replace Sail & MERV filter 6 Months: Replace Sail, MERV & Carbon filters Follow maintenance schedule On front cover, turn the white tabs You will see two filters here. shown here.
  • Page 6 Use appropriate-sized screws to Ensure mounting screws stick out far Mark drill holes on wall using the secure wall mount bracket to the enough from the Sphere to fit into the bracket as a guide. wall. slots of the mounting bracket.
  • Page 7 Mounting Sphere to Wall cont. Remove rubber grommet. Tighten security screw. Select green T-handle screwdriver. Re-insert rubber grommet into Rubber grommet is now in place. security screw hole. Make sure device is securely hung Push front cover back into place.

  • Page 8: Installing The Stand

    Installing the Stand Align legs of metal stand to the two Stand ships with screws pre-in- Remove left and right screws from recessed holes on bottom of Sphere stalled. metal stand. with horizontal piece closest to you. Squeeze ends slightly together to fit Insert and tighten screw to secure Insert first leg into left recessed hole.
  • Page 9 Powering Up the Sphere Locate power cord. Connect power cord to the Sphere Ensure that the power supply cord device. is fully inserted. Green indicator will illuminate Turn on power switch. To adjust the device airflow, use the when the power is on.
