Summary of Contents for Synexis Blade Inline

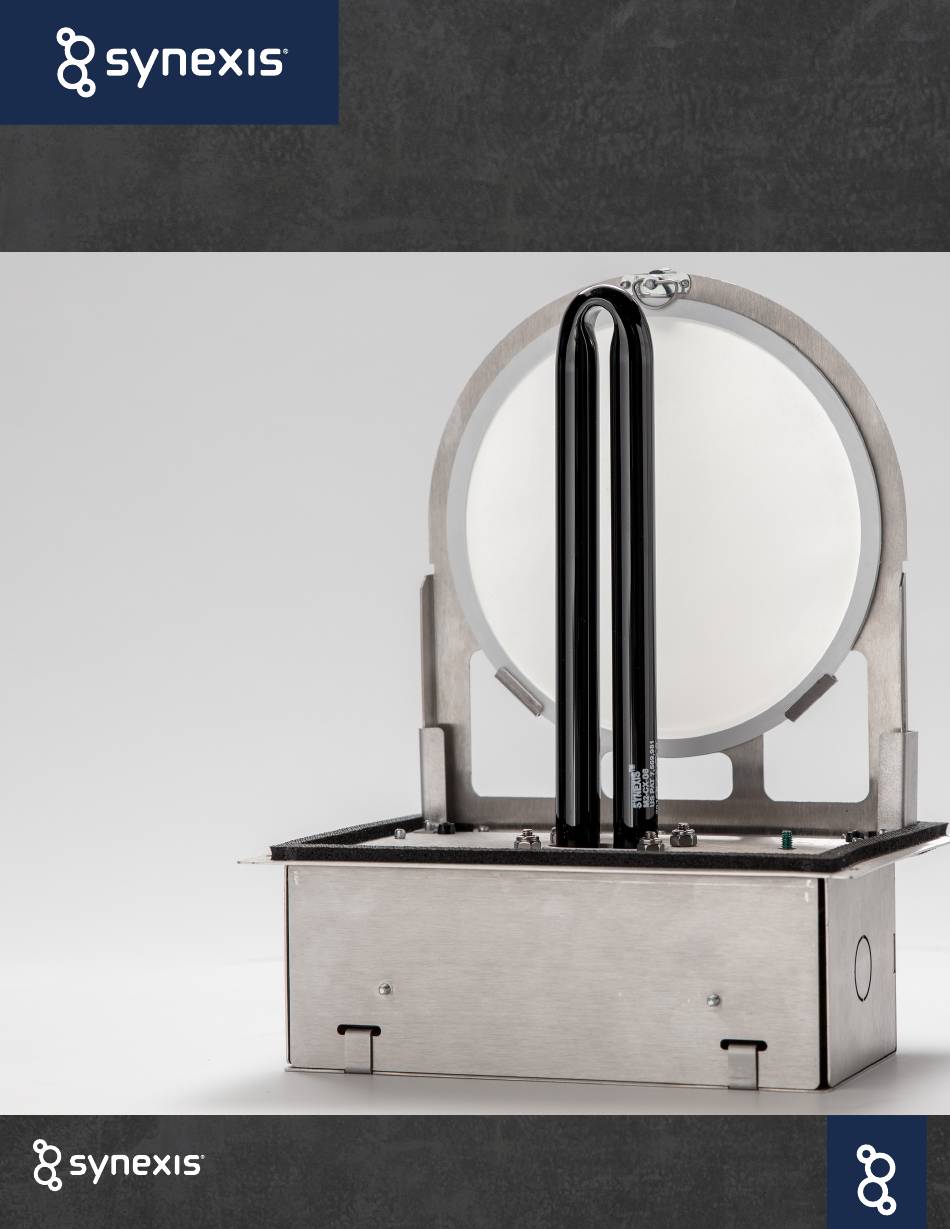

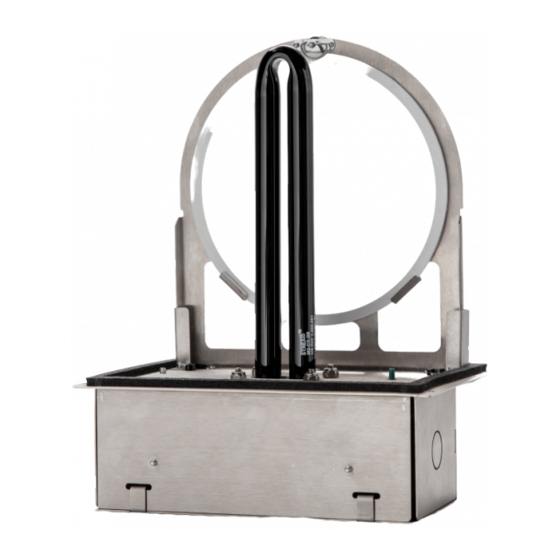

- Page 1 OWNERS MANUAL BLADE INLINE SYNEXIS SYSTEM www.synexis.com www.synexis.com +1 844-352-7680 +1 844-352-7680...
-
Page 2: Table Of Contents
Troubleshooting, Replacement Parts List Records About Dry Hydrogen Peroxide (DHP Synexis is the sole developer of hydrogen peroxide gas and Dry Hydrogen Peroxide (DHP™) Technology ® for occupied spaces. Using DHP, our patented microbial reduction technology allows for the natural and continuous reduction of microbial contamination in occupied spaces. -
Page 3: Indications For Use, Legal, Patent Info
To the extent permitted by law, Synexis shall not be liable to any person or entity for any loss or damage which may arise from the use of this manual. We reserve the right at any time and without any notice to remove, amend or vary any of the content which appears herein. -
Page 4: Welcome, Included Parts
Welcome Thank you for choosing Synexis, developers of the Dry Hydrogen Peroxide (DHP) Blade Inline System. Before using the DHP system, please take a few minutes to: ✔ Familiarize yourself with the Blade Inline DHP System ✔ Familiarize yourself with the installation steps and required tools ✔... -
Page 5: System Specifications
Electrical Requirements Weight 5 lbs. Input Voltage 120 VAC / 60 Hz US 18 Gauge Stainless Material Current .56 Amps Steel Color Stainless Steel Width: 8.6” (21.84 cm) Height: 10.9” (27.69 cm) Dimensions Depth: 6.8” (17.27 cm) www.synexis.com +1 844-352-7680... -
Page 6: Inspecting Your System, Tools
No damage to the sail holder DO NOT INSTALL THIS UNIT IF ANY DAMAGE IS NOTED. If the unit is damaged, contact your distributor or Synexis Technical Support for guidance. Prior to Installation To ensure optimal performance, inspect ductwork prior to installation. -
Page 7: Safety, Warranty
✔ Do not use any combustible or flammable items on or near the Blade Inline system. ✔ Do not spill or spray any liquids or aerosols into the Blade Inline system or on the DHP Technology Sail. ✔ Do not place the Blade Inline system near a heat source. -
Page 8: Best System Performance
Synexis units may be necessary. Be sure to change the sail according to the recommended replacement schedule. Leave the replacement sail in its plastic bag and store it in a dark, dry location until you need to replace the current sail in your Synexis Blade Inline DHP system. -
Page 9: Installation
Out Area’ with a marker and remove the Remove the remaining section of sheet template. metal from the ‘Cut Out Area’ using a pair of tin snips or a jig saw. www.synexis.com +1 844-352-7680... - Page 10 The unit is designed so that the sail can unit. only be inserted in the correct orientation or the push rivets will not line up. Power on and inspect your Synexis Blade Inline DHP system www.synexis.com +1 844-352-7680...
-
Page 11: Bulb Maintenance, Replacement
Check with your local waste management authority for local disposal or recycling requirements. Additional disposal and recycling information can be found at: www.lamprecycle.org. ✔ Power on Blade Inline system. Ensure bulb and HVAC are properly functioning. www.synexis.com +1 844-352-7680... -
Page 12: Sail Replacement
✔ Your DHP technology sail comes in an opaque, food-grade plastic bag to keep it fresh until your Synexis Blade Inline DHP system is installed and ready for the sail to be inserted. ✔ For best performance, only handle the outer plastic frame of the sail. Do not remove the sail from the opaque plastic bag until it is ready to use in the system. -
Page 13: Troubleshooting, Replacement Parts List
Troubleshooting ✔ All Synexis system maintenance must be performed by a qualified technician. ✔ If the bulb is not emitting a purple glow, verify that the power is turned on. ✔ If the bulb still does not light up, using a voltmeter, verify that the ballast has power on the input side. -
Page 14: Records
Telephone Warranty Contact your Account Representative for any device questions, service material needs or device issues. When contacting Synexis for a system issue that is under warranty, please be prepared to provide the following: ✔ The unit and distributor info above ✔... - Page 15 Synexis LLC 11711 W 79th St | Lenexa, KS | 66214 +1 (844) 352-7680 info@synexis.com SYN-GEN-0820-005...
