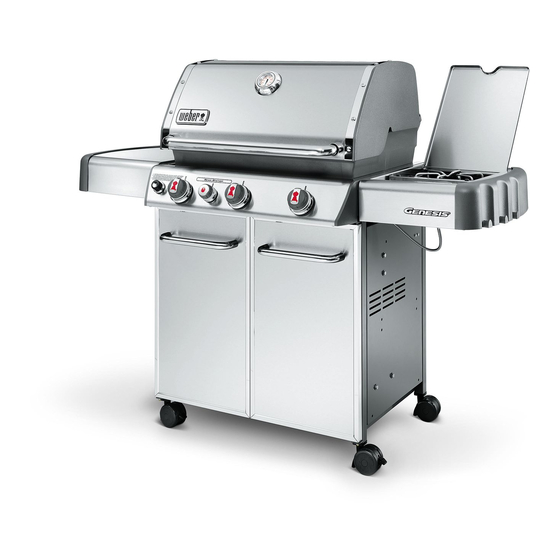

Weber Genesis Replacement Instructions Manual

Hide thumbs Also See for Genesis:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
THIS PROCEDURE SHOULD ONLY BE PERFORMED BY AN AUTHORIzED
m WARNING: GENUINE WEBER-STEPHEN REPLACEMENT PARTS MUST BE USED FOR ANY REPAIR OR REPLACEMENT.
YOUR ACTIONS, IF YOU FAIL TO FOLLOW THIS PRODUCT WARNING, MAY CAUSE A FIRE, AN ExPLOSION, OR
STRUCTURAL FAILURE RESULTING IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAGE TO PROPERTY.
m DANGER: BEFORE PERFORMING ANY WORk MAkE SURE THE GAS SUPPLY IS TURNED OFF AT THE SOURCE.
FAILURE TO FOLLOW DANGERS, WARNINGS AND CAUTIONS CONTAINED IN THIS INSTRUCTION SHEET MAY CAUSE A
FIRE OR AN ExPLOSION RESULTING IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAGE TO PROPERTY.
m BEFORE STARTING: Make sure lid is
closed and casters are locked to prevent
grill from moving.
1
FOR LP UNITS:
A) Unscrew regulator coupling from tank valve; turn counter-clockwise, or to
the left (1).
m WARNING: Do not use a wrench to loosen connection. Using
a wrench could damage regulator coupling and could cause a
leak.
1
WEBER-STEPHEN PRODUCTS LLC SERVICE TECHNICIAN
(Will vOid all WarraNTy prOTEcTiON.)
HOSE FROM GAS SOURCE DiSCOnnECtiOn
NOTE: Grills illustrated may have slight differences than model purchased.
BURNER TUBE
REPLACEMENT INSTRUCTIONS
BURnER tUBE
REplACEMEnt
FOR NG UNITS:
A) Slide back collar of the
quick-disconnect to remove
hose from gas source.
iGnitER
WiRE ClipS
REplACEMEnt
56445 02/25/11
AA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Genesis and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weber Genesis

Summary of Contents for Weber Genesis

  • Page 1 THIS PROCEDURE SHOULD ONLY BE PERFORMED BY AN AUTHORIzED WEBER-STEPHEN PRODUCTS LLC SERVICE TECHNICIAN m WARNING: GENUINE WEBER-STEPHEN REPLACEMENT PARTS MUST BE USED FOR ANY REPAIR OR REPLACEMENT. YOUR ACTIONS, IF YOU FAIL TO FOLLOW THIS PRODUCT WARNING, MAY CAUSE A FIRE, AN ExPLOSION, OR STRUCTURAL FAILURE RESULTING IN SERIOUS PERSONAL INjURY OR DEATH AS WELL AS DAMAGE TO PROPERTY.

  • Page 2: Lid Assembly Removal

    DOOR REMOVAl liD ASSEMBlY REMOVAl m CAUTION: Two people are required to lift and remove lid assembly. TOOLS NEEDED: - FLATHEAD A) While lid assembly is in closed position, remove A) Locate door pin release in door assembly (1). cotter pins out of clevis B) Using a screwdriver, push down on door pin release pins (1).

  • Page 3: Burner Tube Removal

    BURnER tUBE REMOVAl WinD DEFlECtOR REMOVAl TOOLS NEEDED: - 5/16" NUT-DRIVER TOOLS NEEDED: - PHILLIPS A) Remove screws that secure burner tubes to cookbox (1) using a 5/16" A) Locate Phillips head screws under control panel. nut-driver. B) Remove screws that secure wind deflector to control panel (1) with a B) Remove igniter electrode wires from wire harness clips (2).

  • Page 4: Burner Tube Installation

    iGnitER ElECtRODE REinStAllAtiOn iGnitER WiRE Clip inStAllAtiOn A) Slide igniter electrode (1) into the burner tube mounting bracket (2). IMPORTANT NOTE: This step only needs to be done if one or more REASSEMBLY NOTE: DO NOT USE ANY TOOLS TO INSTALL igniter wire clips are missing from manifold assembly.
  • Page 5 m WARNING: Make sure all control knobs are turned GREASE tRAY / DRip pAn REinStAllAtiOn to the OFF position before reconnecting gas supply and operating grill. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property.

  • Page 6: Check For Gas Leaks

    Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com ® G) Valves-to-manifold connections (3). H) LP: Regulator hose-to-cylinder connection (4).
  • Page 7 COntROl pAnEl REinStAllAtiOn WinD DEFlECtOR REinStAllAtiOn TOOLS NEEDED: TOOLS NEEDED: - PHILLIPS - PHILLIPS A) Position front edge of wind deflector onto bottom lip of control panel (1). m IMPORTANT: To do a proper leak check, control panel must be removed.

  • Page 8: Door Reinstallation

    WARNING: All repairs to gas carrying, gas burning, igniter or structural components must be performed by an authorized Weber-Stephen Products LLC service technician. These parts may be gas carrying, gas burning, igniter or structural components. Please contact Weber-Stephen Products LLC, Customer Service Department for Genuine Weber-Stephen Products LLC replacement part(s) information.
