OMSID # 308824415
Model #WSFP48HD-38
OMSID # 308824423
#WSFP48HD-38AE
ASSEMBLY INSTRUCTIONS

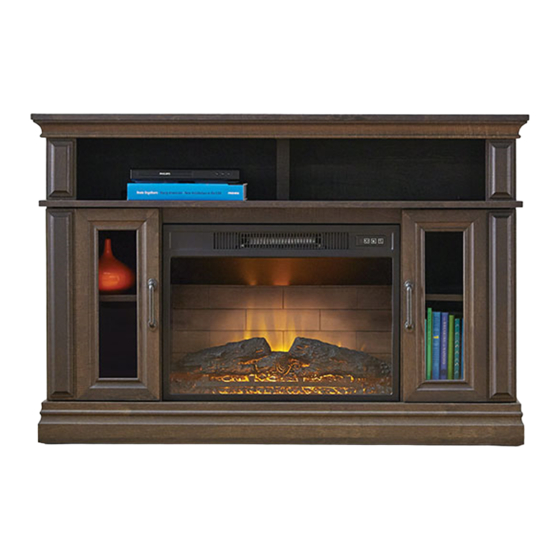

Flint Mill 48in Media Console Electric Fireplace
OR
Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in StyleWell through the purchase of this electric fireplace/heater. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing StyleWell!
Advertisement
Table of Contents
Related Manuals for StyleWell WSFP48HD-38
Summary of Contents for StyleWell WSFP48HD-38
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this electric fireplace/heater. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Tools Required ..............2 Safety Information ..............2 Hardware Included ............3 Warranty ................2 Package Contents ............4 Pre-Assembly ............... 2 Assembly................5 Planning Assembly ............2 Care and Maintenance ............18 Safety Information Fits up to most 152.4 cm / 60 in. -
Page 3: Hardware Included
Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Wood dowel 45+2 extra Floor leveler Cam lock 46+2 extra Cam lock cover 32+1 extra Cam bolt 46+2 extra Acrylic stopper Short flat head screw 4+1 extra Handle Long flat head screw... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Top panel Right lower partition panel Center shelf Right lower side panel Bottom panel Wood door insert panel Bottom back stretcher Lower back panel Bottom front stretcher Adjustable shelf Upper front molding Left middle stile Upper side panel Right middle stile... -
Page 5: Assembly
Assembly Screwing the cam bolts NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the assembly easier. □ Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratches. - Page 6 Assembly (continued) Combining the upper moldings and side panels NOTE: Refer to the dowel and cam lock assembling guide drawings in this step for further clarification on how to properly glue in the wooden dowels and install cam locks. Apply this method whenever instructed to install wood dowels and cam locks □...
- Page 7 Assembly (continued) Screwing the cam bolts □ Securely screw the cam bolts (CC) into the designated small holes on the center shelf (B) and bottom panel (C) using a Phillips screwdriver. Attaching the middle crossbar □ Glue two wood dowels (AA) into the inner holes on the middle crossbar (T) and attach it to the center shelf (B) by engaging three cam locks (BB).
- Page 8 Assembly (continued) Attaching the bottom back stretcher □ Glue two wood dowels (AA) into the inner holes on the bottom back stretcher (D) and attach it to the bottom panel (C) by engaging three cam locks (BB). Attaching the bottom front stretcher □...
- Page 9 Assembly (continued) Attaching the lower partition panels □ Align and attach the lower partition panels (K and L) to the bottom panel (C) with four wood dowels (AA) and four long flat head screws (EE). Attaching the side panels □ Glue six wood dowels (AA) into the inner holes of the bottom panel assembly at both ends.
- Page 10 Assembly (continued) Attaching the center shelf □ Glue eight wood dowels (AA) into the top inner holes of both side panels (J and M) and partition panels (K and L). □ Ask for assistance to position the center shelf (B) onto the inserted wood dowels (AA) and attach it in place by engaging eight cam locks (BB).
- Page 11 Assembly (continued) Installing the floor levelers □ Screw two floor levelers (KK) into the installed triangle metal plates (JJ). Screwing the cam bolts □ Stand the assembled unit upright. □ Securely screw the cam bolts (CC) into the designated small holes on the center shelf (B) using a Phillips screwdriver. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 12 Assembly (continued) Attaching the upper side panels and partition panel □ Glue seven dowels (AA) into the inner holes of both upper side panel assemblies and partition panel (H) and attach them to the center shelf (B) by engaging six cam locks (BB). Attaching the top panel □...
- Page 13 Assembly (continued) Fastening the middle crossbar □ Ask for assistance to lay down the assembled unit at its front edges. □ Using the pilot holes as a guide, attach two small metal plates (HH) at the joints where the middle crossbar (T) meets the middle stiles (Q and R) with four short screws (DD).
- Page 14 Assembly (continued) Installing the handles □ Attach one handle (NN) to the front side of each door (I) with the handle bolts (OO). Attaching the doors □ Stand the assembled unit upright. □ Pick up one door (I) and attach the extended hinge arms to the hinge bases installed on the left side panel (J). Loosen the bolt on the back of the hinge base for an easy fit.
- Page 15 Assembly (continued) Installing the adjustable shelves □ Open the doors (I) and insert four shelf supports (II) into the desired holes inside each side compartment. Make sure you place the four shelf supports in the same level so the shelf is not tilted. Rest the adjustable shelves (P) onto the shelf supports (II).
- Page 16 Assembly (continued) Installing the fireplace insert □ Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and Side Trims to the fireplace insert. □ Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the insert across the bottom panel (C) as it may scratch the unit.
- Page 17 Assembly (continued) Interchanging wood door panels □ To change door panels, loosen the screws on the inside of the door and rotate the clips to remove the panel. Replace with the desired panel, then rotate clips to secure the panel within the door frame and tighten screws. NOTE: The glass door panels are pre-attached when shipping.
-
Page 18: Care And Maintenance
Care and Maintenance A touch-up pen has been provided to minimize the small nicks or scratches that may occur during assembly or shipping. To clean and care for your furniture: □ Use a soft, clean cloth that will not scratch the surface when dusting. □... - Page 20 Questions, problems, missing parts? Before returning to the store, call StyleWell Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
