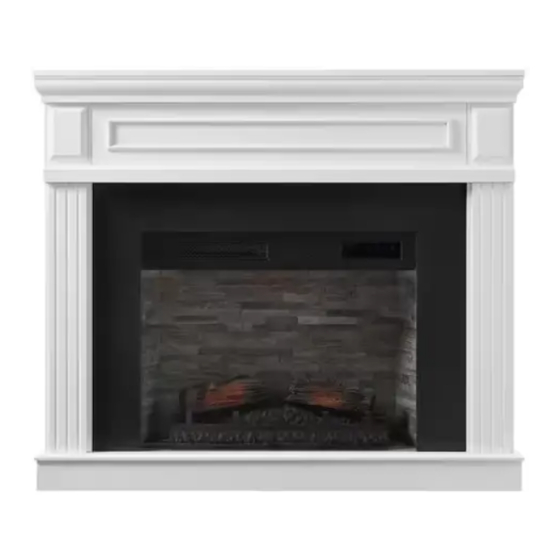

GRANTLEY 50-IN. WALL MANTEL WITH ELECTRIC FIREPLACE
We appreciate the trust and confidence you have placed in StyleWell through the purchase of this electric fireplace. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
USE AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call StyleWell Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
HOMEDEPOT.COM
needs. Thank you for choosing StyleWell!
1007529386/319988350/611768150632/28WM90383-PT01
1007529171/319988346/611768150649/28WM90383-PC78
1007529378/319988352/611768150656/28WM90383-PB01
1-877-527-0313
THANK YOU
Advertisement
Table of Contents
Related Manuals for StyleWell GRANTLEY 1007529386-PT01
Summary of Contents for StyleWell GRANTLEY 1007529386-PT01
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this electric fireplace. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement...
-
Page 2: Table Of Contents
Table of Contents Maximum Load Warning ........... 2 Package Contents .............. 7 Safety Information ............. 3 Assembly ..............8 Warranty ..............5 Operation ..............17 Pre-Assembly ............. 6 FCC/IC Information ............20 Hardware Included ........... 6 Care and Cleaning ........... 20 Product Specifications ............ -
Page 3: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-877-527-0313, 8 a.m.-7 p.m., EST, Monday-Friday, WARNING: Under no circumstances should this fireplace be 9 a.m. - Page 4 Safety Information (continued) NOTE: Use care in assembling your new fireplace. Take your time and use the hardware provided and a quality Phillips head screwdriver. Never overtighten bolts. Do not sit on any part of the mantel. It is recommended to work on a soft surface like a rug or to lay out a blanket to protect the furniture from getting scratched during the assembly process.
-
Page 5: Warranty
Warranty Warranty 1 Year Limited Warranty: The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. -
Page 6: Pre-Assembly
Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity Screw- 3 x 12 mm PH-SCRBLK007 Screw- 4 x 25 mm PH-SCRBLK018 Screw- 3.5 x 12 mm PH-SCRBLK013 Bolt- 6.3 x 12 mm PH-BLTBLK002 Wire clip P28WM90383-EE Bolt- 4 x 12 mm PH-BLTBLK013 Screw- 4 x 50 mm PH-SCRBLK006... -
Page 7: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Base Left Surround Panel Upper Front Panel Right Surround Panel Left Surround Panel 1 Upper Back Panel Top Panel Right Surround Panel 1 Center Shelf Left Side Panel... -
Page 8: Assembly
Assembly Assembling the Surround Panels Locate the pre-attached metal brackets found on the Upper Front Panel (C) and rotate to span across the edges of the Left Surround Panel (B) and Right Surround Panel (D). Secure each bracket across each joint with a Screw (AA) and Phillips screwdriver. - Page 9 Assembly (continued) Assembling the Fireplace Locate the Front Panel with Control Button (EA). Using Screws (CC), secure the Front Panel with Control Button (EA) inside the inner surround assembly (H, F, and E) as shown. Preparing the Center Shelf Insert bolts (DD) into pre-drilled holes in Center Shelf (I) as shown, but do not tighten all the way.
- Page 10 Assembly (continued) Attaching the Side Panels Locate the Left and Right Side Panels (J and K). Align the Left and Right Side Panels (J and K) with ends of the Center Shelf (I), as shown. Insert the pre-installed dowels and screws on the ends of the Center Shelf (I) into the pre-drilled holes on the edges of the Left and Right Side Panels (J and K) as shown.
- Page 11 Assembly (continued) Installing the Fireplace Heater Rest the hinges of the Heater Box (EB) on the previously installed mounting bolts. Secure the heater in place by screwing Bolts (DD) through the other side of the hinges on the Heater Box (EB) and into the Center Shelf (I) above.
- Page 12 Assembly (continued) Attaching the Base Locate the Base (A). Align the pre-installed hardware on the edges of the main assembly with the pre-drilled holes on Base (A). Insert Screws (GG) through the Base (A) and into the pre- drilled holes on the edges of the center assembly as shown. Securely tighten all screws using a Phillips screwdriver.
- Page 13 Assembly (continued) Assembling the Log Set Place the Log Set Left (EC) into the Ember Bed (EG) as shown. Repeat with the Log Set Right (ED). Assembling the Log Set Route the wires of the Log Set Left (EC) and the Log Set Right (ED) down the back of the Ember Bed (EG) and into the receiving tabs to secure in place.
- Page 14 Assembly (continued) Securing the Log Set Once the log set is in place, secure with Screws (CC) through the bottom of the log set and into the base. Placing the Fireplace Back Panel Locate the Fireplace Back Panel (M). Slightly fold the Fireplace Back Panel (M) with the taped corners facing the rear of the cabinet and fit into the back of the fireplace.
- Page 15 Assembly (continued) Connecting the Fireplace Wiring Key Button Connection Wire Connect Key Button Connection Wire to heater. Ember Bed Insert the Ember Bed Connection Wire into the heater. Connection Wire Route the Ember Bed Connection Wire down the side surround rail and along the back of the log set, securing it in place with the clips as shown.
- Page 16 Assembly (continued) Installing the Tipping Restraint Hardware When the Tipping Restraint Hardware (JJ) is properly installed, it can provide protection against unexpected tipping of the unit due to small tremors, bumps or climbing. Each Tipping Restraint Hardware (JJ) includes one Unit Anchor, one Wall Anchor, one Anchor Tether, and four Anchor Screws.
-
Page 17: Operation
Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. Powering the Fireplace Adjusting the Flame Push the Power button to supply power to all There are 5 brightness levels that can be selected and OFF functions of the fireplace and put the insert in a (00) setting. - Page 18 Operation (continued) Replacing the Remote Control Battery Disposing of Used Batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the environment and human health. seems reduced, it is time to replace the batteries with new ones.
- Page 19 Operation (continued) Power Cord Information This heater is for use on 120 volts. The cord has a plug as shown in the figure. Connect to properly grounded outlets only. Do not use a two-prong adapter. Never use with an extension cord or relocatable power tap (outlet/ power strip).
-
Page 20: Fcc/Ic Information
FCC/IC Information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 21: Troubleshooting
Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION Fireplace has reached set temperature. Fireplace stopped heating before reaching Set the fireplace to a higher temperature or Temperature around fireplace might be a few the desired temperature. always “on”. degrees higher than other area in the room. Unplug the fireplace, remove the back panel of the fireplace and check that the The thermostat sensor is... - Page 22 Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION There are no batteries. Change the remote batteries. Operate remote transmitter at a slow measured pace. Press the remote control buttons with an even The signal is poor. motion and gentle pressure. The remote control is not working. Repeatedly pressing buttons in rapid succession may cause the transmitter to malfunction.
-
Page 23: Replacement Parts
Replacement Parts For replacement parts, call our customer service department at 1-877-527-0313, 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Qty. PART NUMBER Thermostat Sensor Y21-S307-P186 Blower/ Heater Assembly Y21-S307-P01 Main Circuit Board Y21-S307-P15 Key Button Connection Wire Y21-S327-P187 Ember Bed Connection Wire... - Page 24 Questions, problems, missing parts? Before returning to the store, call StyleWell Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
