Installation Manual and Operating Instructions
TA360 Series
USB Power Delivery Charging Port
®
True Blue Power
is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
9400 E. 34
th
Street N.
Wichita, KS 67226
Manual number 9019411
PH (800) 821-1212
FX (316) 630-0723
Revision A, October 18, 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for True blue power TA360 Series
Summary of Contents for True blue power TA360 Series

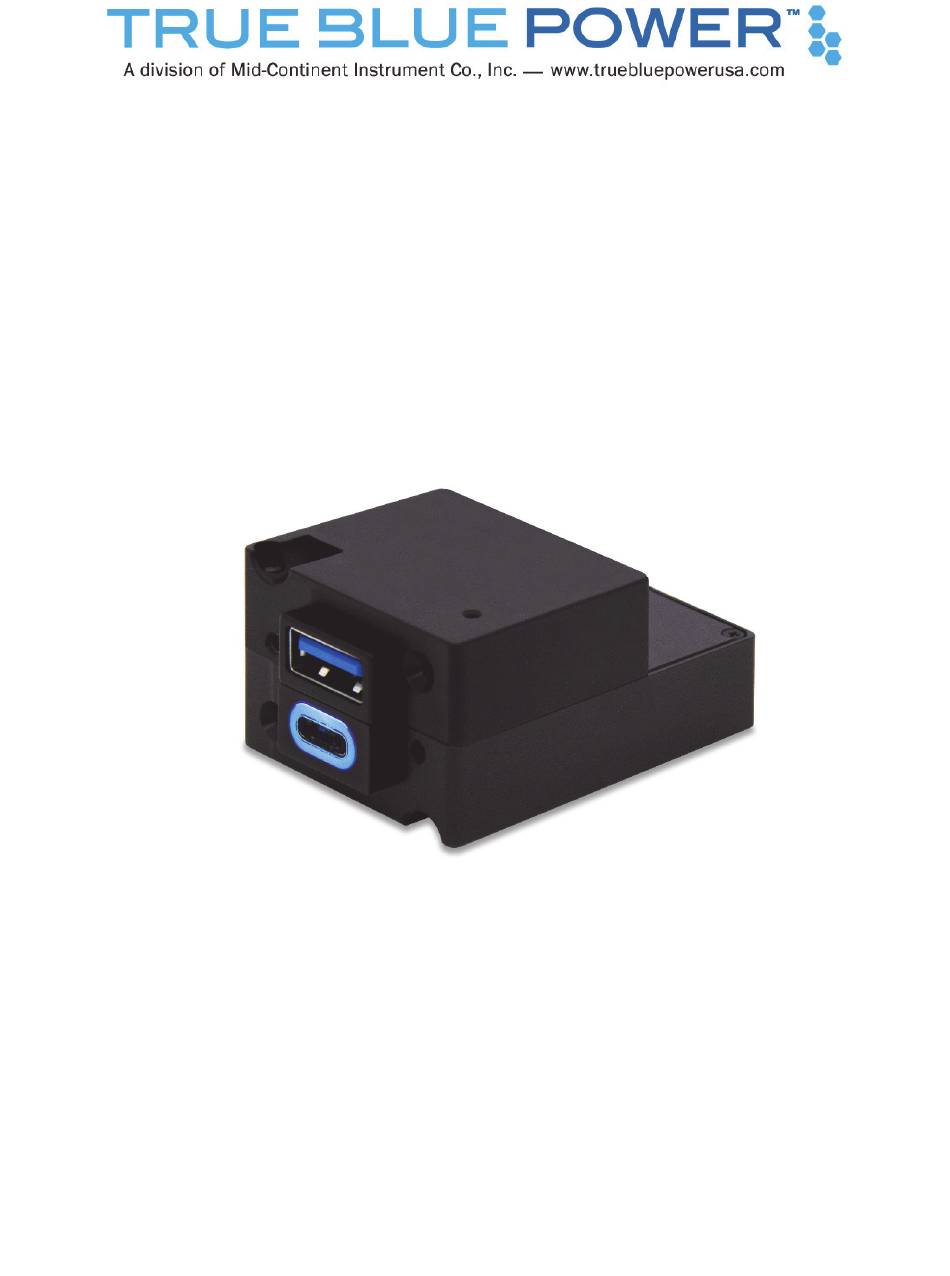

- Page 1 Installation Manual and Operating Instructions TA360 Series USB Power Delivery Charging Port ® True Blue Power is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Wichita, KS 67226...
- Page 2 PH (316) 630-0101 FX (316) 630-0723 All products produced by Mid-Continent Instrument, Co., Inc., including those identified as Mid- Continent Instruments and Avionics or True Blue Power, are designed and manufactured in Wichita, KS, USA. © Copyright 2019 Mid-Continent Instrument Co., Inc.
- Page 3 REVISION HISTORY Rev. Date Approved Detail 10/18/19 Initial release. Rev A, October 18, 2019 Manual Number 9019411...
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES 1.2.3 QUALIFICATIONS 1.2.4 VERSIONS SECTION 2 PRE-INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS MODIFICATIONS SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION UNPACKING AND INSPECTING CABLE HARNESS 3.3.1 WIRE GAUGE SELECTION... -
Page 5: General Description

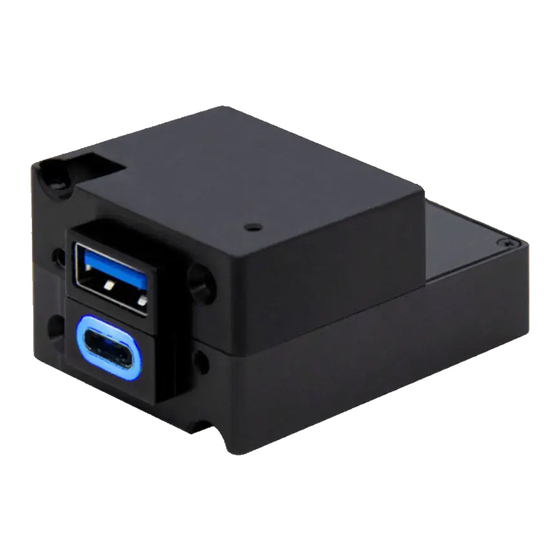

SECTION 1 GENERAL DESCRIPTION INTRODUCTION The TA360 Series USB Power Delivery (PD) Charging Port is a certified accessory that charges any electronic device that uses either a USB Type-A or USB Type-C charging connector. The TA360 supports the latest version of the USB charging standard, known as USB Power Delivery (PD) version 2.0 and 3.0. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS 1.2.1 Electrical Attributes Input Voltage 22-32 VDC Input Power 135 watts max; 4.8 amps @ 28 VDC Output Voltage Auto-adjustable: 5VDC, 9VDC, 15VDC, 20VDC per port (±0.25 VDC) Output Power 3.0 amps max per port Efficiency ~90% nominal Table 1.1 1.2.2 Physical Attributes... -
Page 7: Pre-Installation Considerations
However, compatibility with all devices may not be guaranteed. True Blue Power continues to be proactive in evaluating new devices and strives to continually improve the product as needed to serve the vast majority of USB-charged electronic products. -
Page 8: Modifications
MODIFICATIONS Each TA360 USB Power Delivery Charging Port (part number 6430360-( )) has a nameplate that identifies the manufacturer, model, part number, description, certifications and technical specifications of the unit. The nameplate also includes the “MOD” or modification status representing notable changes in the design of the unit. -
Page 9: Installation Procedures
SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the TA360 Single and Dual USB Charger. After installation of cabling and before installation of the equipment, ensure that power and ground are applied to the proper pins specified in Section 3.3.2, Pin Assignment Information. -
Page 10: Pin Assignment Information
3.3.2 Pin Assignment Information INPUT POWER: Pin A (keyed): +28 VDC Pin B: Ground 3.3.3 Harness Verification Note: The TA360 has built-in reverse polarity protection for the Pin B Pin A power connector. If Pins A and B are swapped, the unit will not function but will not be damaged. - Page 11 Figure 3.2 TA360 Outline Drawing (Dual port, Type A/C version shown) Figure 3.3 TA360 Outline Drawing (Dual port, Type C/C version shown) Figure 3.4 TA360 Outline Drawing (Single, Type C version shown) Panel Cutout Detail Figure 3.5 Dual Port Rear Mount Installation Rev A, October 18, 2019 Manual Number 9019411...
- Page 12 Step 1: attach adapter plate to unit Step 2: attach adapter plate to panel Figure 3.6 Dual Port Instrument Mount Installation Latch and front of unit - flush Step 1: install grommets Flush Detail Step 2: place screw through mounting plate (x4) with front latches set flush to front of unit (see detail view) Step 3: place unit in panel...
- Page 13 Circular Cover Plate is Ø1.50 Note: screws provided with unit Figure 3.8 Dual Port Rear Mount Installation with Circular Cover Plate Figure 3.9 Single Port Rear Mount Installation with Circular Cover Plate Rev A, October 18, 2019 Manual Number 9019411...
- Page 14 Port protrusion toward top Figure 3.10 Single Port Rear Mount Installation Step 4: place adhesive on Step 3: place unit in panel cutout and panel (x2) in locations secure with screws (x2) shown and remove provided with unit Step 2: Place mounting backing plate over port protrusion...
-
Page 15: Electrical Performance
SECTION 4 OPERATION ELECTRICAL PERFORMANCE The TA360 USB Power Delivery Charging Port converts an aircraft (DC) input voltage within the range specified to a voltage between 5VDC and 20VDC on the output, depending on the level negotiated between the device and the charger. This output power is independently applied to single or dual USB-C connectors in accordance with the USB 3.1 and USB Power Delivery standards. -
Page 16: Continued Airworthiness Statement
PART NUMBER: 6430360-( ) NOMENCLATURE: USB Power Delivery Charging Port CERTIFICATION: FAA TSO-C71 MANUFACTURER: True Blue Power, a division of Mid-Continent Instrument Co., Inc. ADDRESS: 9400 E. 34 St. North, Wichita, KS 67226, USA. MANUFACTURERS SPECIFICATIONS: Minimum Performance Specifications: TS742, TDS742...
