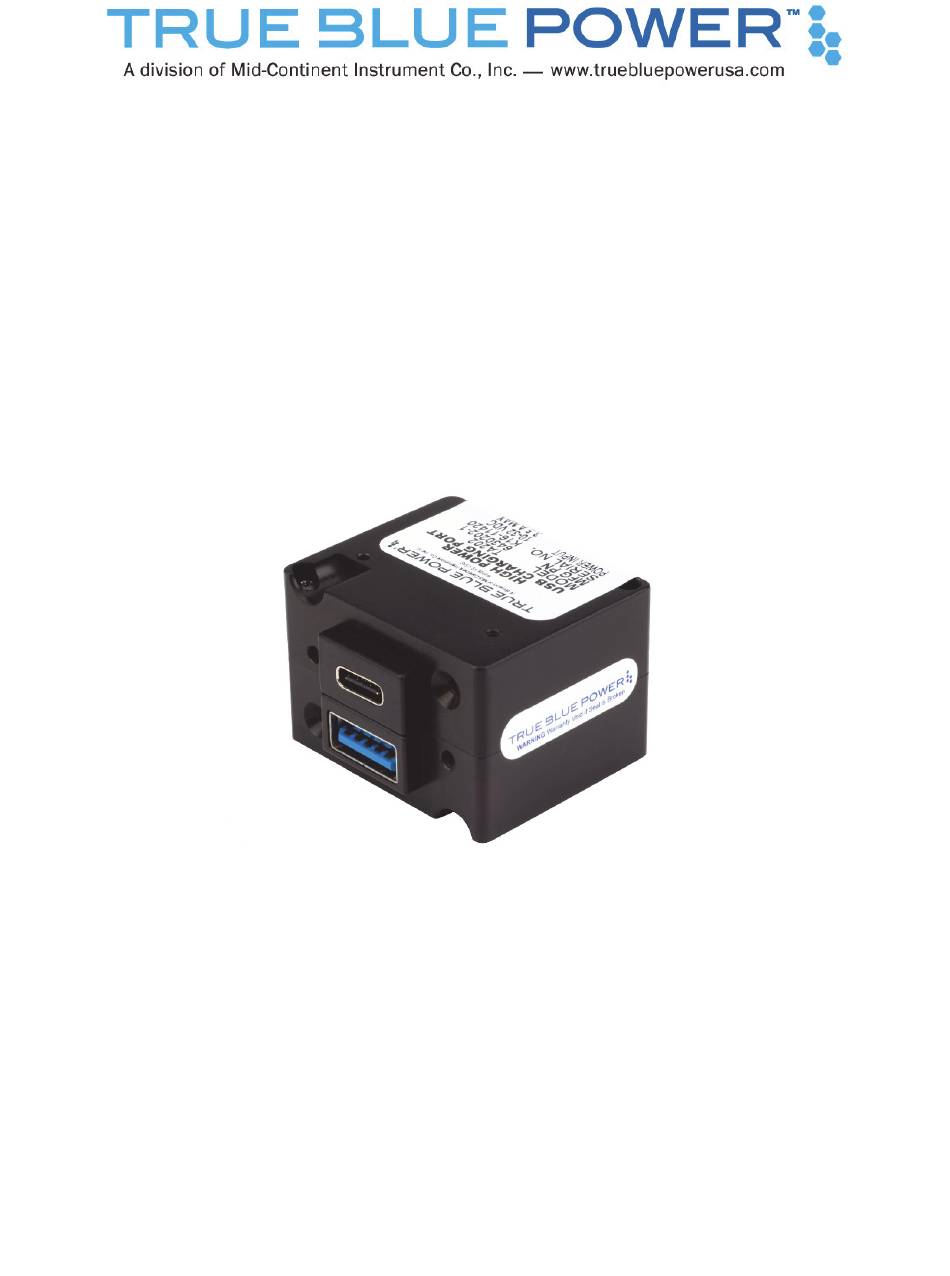

Installation Manual and Operating Instructions
TA202 Series
High Power USB Charging Port
®
True Blue Power
is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
9400 E. 34
th
Street N.
Wichita, KS 67226
Manual number 9017899
PH (800) 821-1212
FX (316) 630-0723
Revision G, June 6, 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for True blue power TA202 Series
Summary of Contents for True blue power TA202 Series
- Page 1 Installation Manual and Operating Instructions TA202 Series High Power USB Charging Port ® True Blue Power is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Wichita, KS 67226...
- Page 2 PH (316) 630-0101 FX (316) 630-0723 All products produced by Mid-Continent Instrument, Co., Inc., including those identified as Mid- Continent Instruments and Avionics or True Blue Power, are designed and manufactured in Wichita, KS, USA. © Copyright 2019 Mid-Continent Instrument Co., Inc.
- Page 3 REVISION HISTORY Rev. Date Approved Detail 03/14/16 Initial release. 04/25/16 Updated formatting, added AEH statement to table 1.3 05/10/16 Added single port unit mounting options, removed configurations table. 06/23/16 Added two screws (1/4”) to included connector kit. 01/04/17 Updated to include new mounting option. Added 1.2.4. 05/07/19 Added single rear mount with cover plate option.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES 1.2.3 QUALIFICATIONS 1.2.4 CONFIGURATIONS SECTION 2 PRE-INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS MODIFICATIONS SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION UNPACKING AND INSPECTING CABLE HARNESS 3.3.1 WIRE GAUGE SELECTION... -
Page 5: General Description

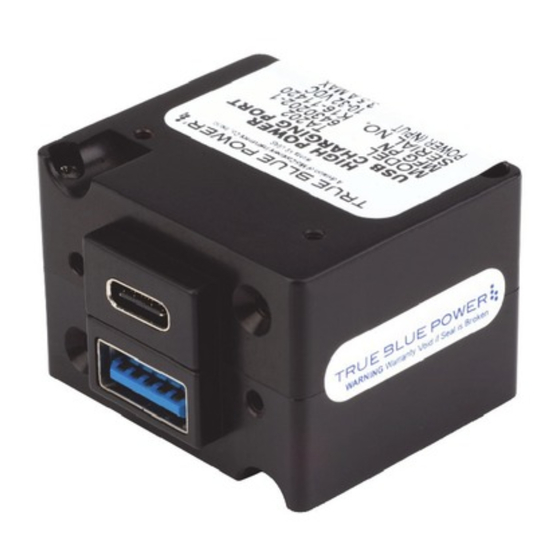

SECTION 1 GENERAL DESCRIPTION INTRODUCTION The TA202 Series High Power USB Charging Port is a certified accessory that converts 10 to 32 volts of DC electrical input from the aircraft to standard 5 volt power for any electronic product that charges using a USB connector. -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS 1.2.1 Electrical Attributes Input Voltage: 10-32 VDC Input Power: 35 watts max; 2.5 amps @ 14 VDC / 1.25 amps @ 28 VDC Output Voltage: 5 VDC ±0.25 per port Output Power: 3.0 amps max per port Efficiency: ~90% nominal Table 1.1 1.2.2... -
Page 7: Pre-Installation Considerations
However, compatibility with all devices may not be guaranteed. True Blue Power continues to be proactive in evaluating new devices and strives to continually improve the product as needed to serve the vast majority of USB Type-C electronic products. -
Page 8: Modifications
The following identifies each “MOD” or modification. Modification (MOD) 0 is the initial release of the TA202 series High Power USB Charging Port and is identified on the nameplate by the lack of marking on the MOD numbers 1 through 9 (i.e. 1-9 are visible). -
Page 9: Installation Procedures
SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the TA202 Single and Dual USB Charger. After installation of cabling and before installation of the equipment, ensure that power and ground are applied to the proper pins specified in Section 3.3.2, Pin Assignment Information. -
Page 10: Pin Assignment Information
3.3.2 Pin Assignment Information INPUT POWER: Pin A (keyed) – Positive DC input +10 to 32 VDC power Pin B – Negative DC input / ground 3.3.3 Harness Verification Pin B Pin A Note: The TA202 has built-in reverse polarity protection for the (rear input versions) power connector. - Page 11 Figure 3.2 TA202 Outline Drawing (dual port, rear input version shown) Figure 3.3 TA202 Outline Drawing (single port, rear input version shown) Panel Cutout Detail Figure 3.4 Dual Port Rear Mount Installation Rev G, June 6, 2019 Manual Number 9017899...
- Page 12 Step 1: attach adapter plate to unit Step 2: attach adapter plate to panel Figure 3.5 Dual Port Instrument Mount Installation Step 3: loosely attach mounting plate to unit using screws included with unit Step 1: install grommets Gap Set Detail Step 2: place screw through mounting plate (x4) with front recess set to panel thickness...
- Page 13 Step 1: install Latch and front of unit - flush grommets Flush Detail Step 2: place screw through mounting plate (x4) with front latches set flush to front of unit (see detail view) Step 4: place adhesive on Step 3: place unit in panel panel (x2) in locations cutout and secure with shown and remove backing...
- Page 14 Port protrusion toward top Figure 3.9 Single Port Rear Mount Installation Step 4: place adhesive on panel (x2) in locations Step 3: place unit in panel cutout shown and remove and secure with screws (x2) Step 2: Place mounting backing provided with unit plate over port protrusion...
-
Page 15: Electrical Performance
SECTION 4 OPERATION ELECTRICAL PERFORMANCE The TA202 Series High Power USB Charging Port converts an aircraft (DC) input voltage within the range specified to a 5V (DC) output. This output power is applied to a single or dual USB-A or USB-C connector in accordance with the USB Implementers Forum. -
Page 16: Continued Airworthiness Statement
6430202-( ) NOMENCLATURE: Single and Dual USB Charger CERTIFICATION: FAA TSO-C71 MANUFACTURER: True Blue Power, a division of Mid-Continent Instrument Co., Inc. ADDRESS: 9400 E. 34 St. North, Wichita, KS 67226, USA. MANUFACTURERS SPECIFICATIONS: Minimum Performance Specifications: TS365 (03/14/2016), TDS365 (03/14/2016)_______________...
