WARNING: This appliance
is equipped for (Natural and
Propane) gas. Field conversion
is not permitted other than
between natural or propane
gases.
CAUTION - FOR YOUR SAFETY
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
- Do not store or use gasoline or other flammable vapors and Iiquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 8 of this manual.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket, permanently located manufactured (mobile)
home, where not prohibited by local codes. This appliance is only for use with propane or
natural gas. This appliance is equipped with a simple means to switch between propane and
natural gas. Field conversion by any other means including the use of a kit is not permitted.
The Installation instructions for an appliance for installation on combustible flooring
shall specify that when the appliance is installed directly on carpeting, tile or other
combustible material, other than wood flooring, the appliance shall be installed on a
metal or wood panel extending the full width and depth of the appliance.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday or
email us at customerservice@ghpgroupinc.com.
INSTALLER: Leave this manual with the appliance.
NG
Dual Fuel
1

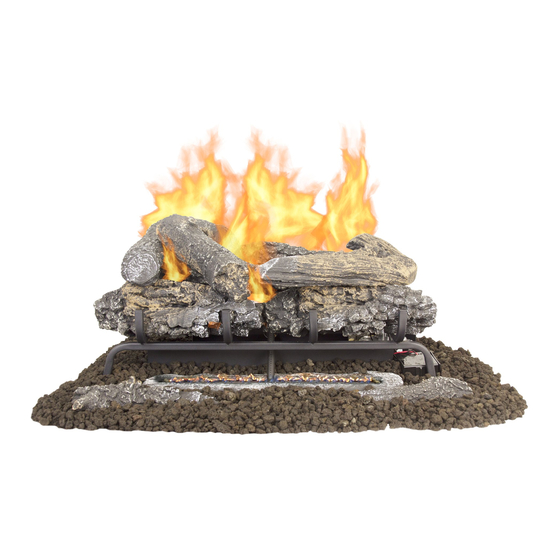

VENT-FREE
GAS LOG SET
MODEL # VFL2-VO24DR
VFL2-RO24DR
VFL2-VO30DR
VFL2-RO30DR
VFL2-MO24DR
VFL2-MO30DR
Patent Pending Dual
Fuel System
LP
C
C
US
ANS Z21.11.2 2013
80-10-443 - 2018-06-01
US
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for pleasant hearth VFL2-VO24DR
Summary of Contents for pleasant hearth VFL2-VO24DR
- Page 1 VENT-FREE GAS LOG SET MODEL # VFL2-VO24DR VFL2-RO24DR VFL2-VO30DR VFL2-RO30DR VFL2-MO24DR VFL2-MO30DR WARNING: This appliance is equipped for (Natural and Patent Pending Dual Propane) gas. Field conversion Fuel System is not permitted other than between natural or propane gases. CAUTION - FOR YOUR SAFETY Dual Fuel ANS Z21.11.2 2013...
- Page 2 CARE AND MAINTENANCE BURNER FLAME PATTERN Figure 31 shows a correct burner flame pattern. Figure 32 shows an incorrect burner flame pattern. The incorrect burner flame pattern shows sporadic, irregular flame tipping. The flame should not be dark or have an orange/reddish tinge. Note: When using the heater the first time, the flame will be orange for approximately one hour until the log cures.
- Page 3 CARE AND MAINTENANCE 1. Shut off unit including pilot. Allow unit to cool for at least 30 minutes. 2. Inspect burner, pilot and primary air inlet holes on orifice holder for dust and dirt (See Fig. 33). 3. Blow air through the ports/slots and holes in the burner. 4.
- Page 4 TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. •...
- Page 5 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Control knob is not fully 1. Press in control knob fully. ODS/pilot lights pressed in. but flame goes out 2. Control knob is not pressed 2. After ODS/pilot lights, keep control when control knob is in long enough.
- Page 6 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION White powder resi- 1. When heated, the vapors 1. Turn heater off when using furniture due forming within from furniture polish, wax, polish, wax, carpet cleaner or similar burner box or on carpet cleaners, etc., turn into products.
- Page 7 REPLACEMENT PARTS LIST For replacement parts, call our Technical Service Department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday. PART NO. ITEM DESCRIPTION VFL2-VO24DR VFL2-VO30DR VFL2-MO24DR VFL2-MO30DR VFL2-RO24DR VFL2-R030DR Log Set (complete) 80-06-045 80-06-046 Log 1 4UB2A...
