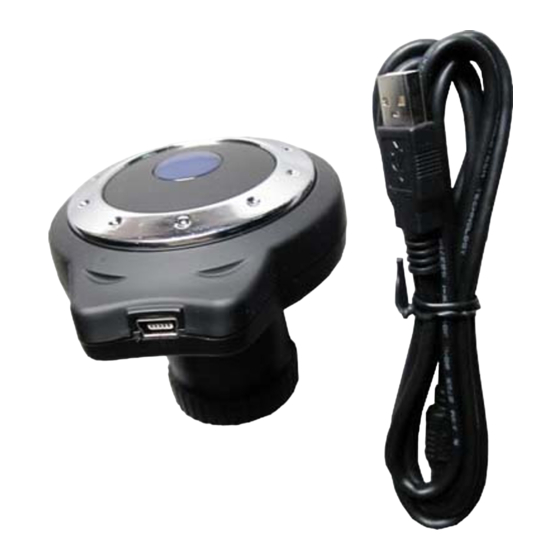

iE1300 Electronic Eyepiece
# 8429
Instruction Manual
iOptron Corporation, 6E Gill Street, Woburn, MA 01801
www.iOptron.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the iE1300 and is the answer not in the manual?

Questions and answers

Summary of Contents for iOptron iE1300

  • Page 1 Electronic Eyepiece # 8429 Instruction Manual iOptron Corporation, 6E Gill Street, Woburn, MA 01801 www.iOptron.com...
  • Page 2: System Requirement

    Aim and focus your telescope to an observing target using a regular eyepiece. Always start with a large number eyepiece, such as a 25mm one. Remove the eyepiece and insert the iE1300 camera into the telescope focuser. Slowly adjust the focuser knob to bring the image to focus.
  • Page 4: Specifications

    1.0 V/lus-sec @550nm Spectrum response 400nm-1000nm White Balance AUTO USB Cable Length 1.5m O/P compatibility Win2k,WinXP,Vista and Windows 7 November 2011 V1.0 iOptron reserves the rights to revise this instruction without notice. Actual color/contents/design may differ from those described in this instruction.
  • Page 5 Example: Using Future WinJoe For Image and Video Capture Install software of Future WinJoe Download Future WinJoe from http://www.ioptron.com/v/Support/future.rar and save on your desktop Double click on “future.rar” to open the compressed file package and double click on “setup.exe” to start install the software Select your language, then click “OK”...
  • Page 6 6. Select the destination folder to install Future WinJoe. The default location is "C:\Program Files\Future\WinJoe". Click on “Next”. You may change it to the destination folder you want by click on “Browse”. 7. Click on "finish" to exit when InstallShield wizard has been completed.
  • Page 7 Operation of Future WinJoe 1. Connect the iE1300 to the USB port, 2. Double click on the Future WinJoe icon on desktop “ ”. Or go to startall programsFuture WinJoe. A preview window of Future WinJoe will be shown, with a large live image in the middle and captured image thumbnails at the bottom.
  • Page 8 4. Click on " " to connect the camera. An image (probably an unfocused one in most time) will be displayed. Adjust the focusing-knob to bring the image to focus. 5. Click on " " to set the attributes of images shown, such as brightness and contrast. 6.
  • Page 9 8. Click on “ ” to start video capturing, and click it again to stop. 9. For more detailed software functions, please click on “ " or "F1"...
