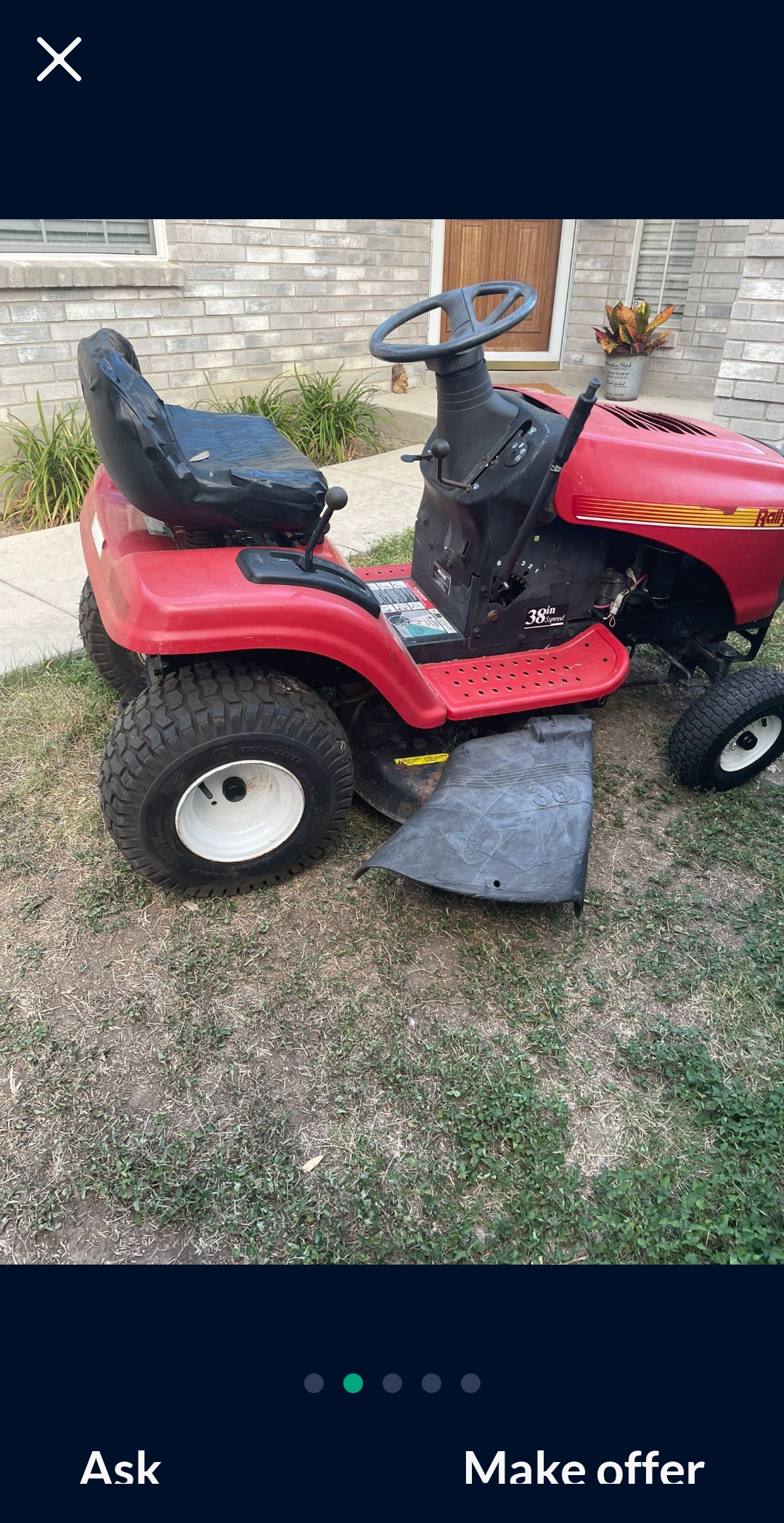

- Page 1 REPAIR PARTS MANUAL MODEL NO. CO15538LT (96012007403) Lawn Tractor 532 42 19-01 07.17.08 AP Printed in the U.S.A.
-
Page 2: Table Of Contents
The model number for your tractor can be found on the fender under the seat. When ordering parts, always give the following information: • Product - “Tractor” • MODEL NUMBER - “CO15538LT (96012007403)” • Part Number • Part Description TABLE OF CONTENTS SCHEMATIC ........................ -
Page 4: Schematic
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 SCHEMATIC SCH03 BATTERY STARTER FUSE AMMETER (OPTIONAL) WHITE CLUTCH / BRAKE ATTACHMENT CLUTCH (PEDAL UP) (CLUTCH OFF) BLACK BLACK SEAT SWITCH (NOT OCCUPIED) BLACK BLACK GRAY GRAY REVERSE SWITCH... -
Page 5: Electrical
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 ELECTRICAL With Ammeter Option D .C Without Ammeter Option With Service Minder Option Without Service Minder Option... - Page 6 TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 ELECTRICAL KEY PART NO. NO. DESCRIPTION 532 16 34-65 Battery 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4 532 17 66-89 Box Battery 532 17 61-38...
-
Page 7: Chassis
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 CHASSIS Chassis-Alpha_Stlt_2... - Page 8 TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 CHASSIS KEY PART DESCRIPTION 532 17 46-19 Chassis 532 17 65-54 Drawbar, Stretch 532 15 52-72 Bumper, Hood/Dash 532 19 41-97 Dash 872 14 06-08 Bolt, Carriage 3/8-16 x 1...
-
Page 9: Drive
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 DRIVE drive-stlt_D6800_fender_4_r2... - Page 10 TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 DRIVE PART PART DESCRIPTION DESCRIPTION - - - - - - - Transaxle DANA D6800-5 (Order 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16 parts from transaxle manufacturer)
-
Page 11: Engine
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 ENGINE OPTIONAL EQUIPMENT Spark Arrester engine-stlt_bs_5... - Page 12 TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 ENGINE KEY PART NO. NO. DESCRIPTION 532 17 05-51 Control Th/ch Flag 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2 - - - - - - - - Engine, B&S 31A607 (Order parts...
-
Page 13: Steering
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 STEERING Steering-stlt_OPP_1... - Page 14 TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 STEERING KEY PART NO. NO. DESCRIPTION 532 18 67-80 Wheel Steering 532 41 81-68 Axle Asm 532 16 98-40 Spindle Asm LH 532 16 98-39 Spindle Asm RH...
-
Page 15: Mower Deck
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 MOWER DECK 190 191 38-8_deck_manual_1_r1... - Page 16 TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 MOWER DECK KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 532 19 25-56 Mower Housing Assembly 532 19 32-16 Spring Brake Return 872 14 05-06 Bolt Carriage 5/16-18 x 3/4 819 13 13-11 Washer 13/32 x 13/16 x 11 Ga.
-
Page 17: Decals
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 DECALS PART PART DESCRIPTION DESCRIPTION 532 40 20-77 Decal, Chassis 38" 532 41 24-90 Decal, Hood RH 532 42 11-08 Decal, Replacement 532 41 24-91 Decal, Hood LH... -
Page 18: Seat
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 SEAT seat_lt.bolt_9 KEY PART KEY PART NO. NO. DESCRIPTION NO. NO. DESCRIPTION 532 40 10-42 Seat 872 05 04-12 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2... -
Page 19: Mower Lift
TRACTOR - - MODEL NUMBER CO15538LT (96012007403), PRODUCT NO. 960 12 00-74 MOWER LIFT 16 17 lift-rh.1piece_27 KEY PART KEY PART DESCRIPTION DESCRIPTION 532 40 49-81 Plunger Asm Lift Lever 532 17 32-88 Link Front 532 15 94-71 Shaft Asm Lift RH... - Page 20 SERVICE NOTES...
