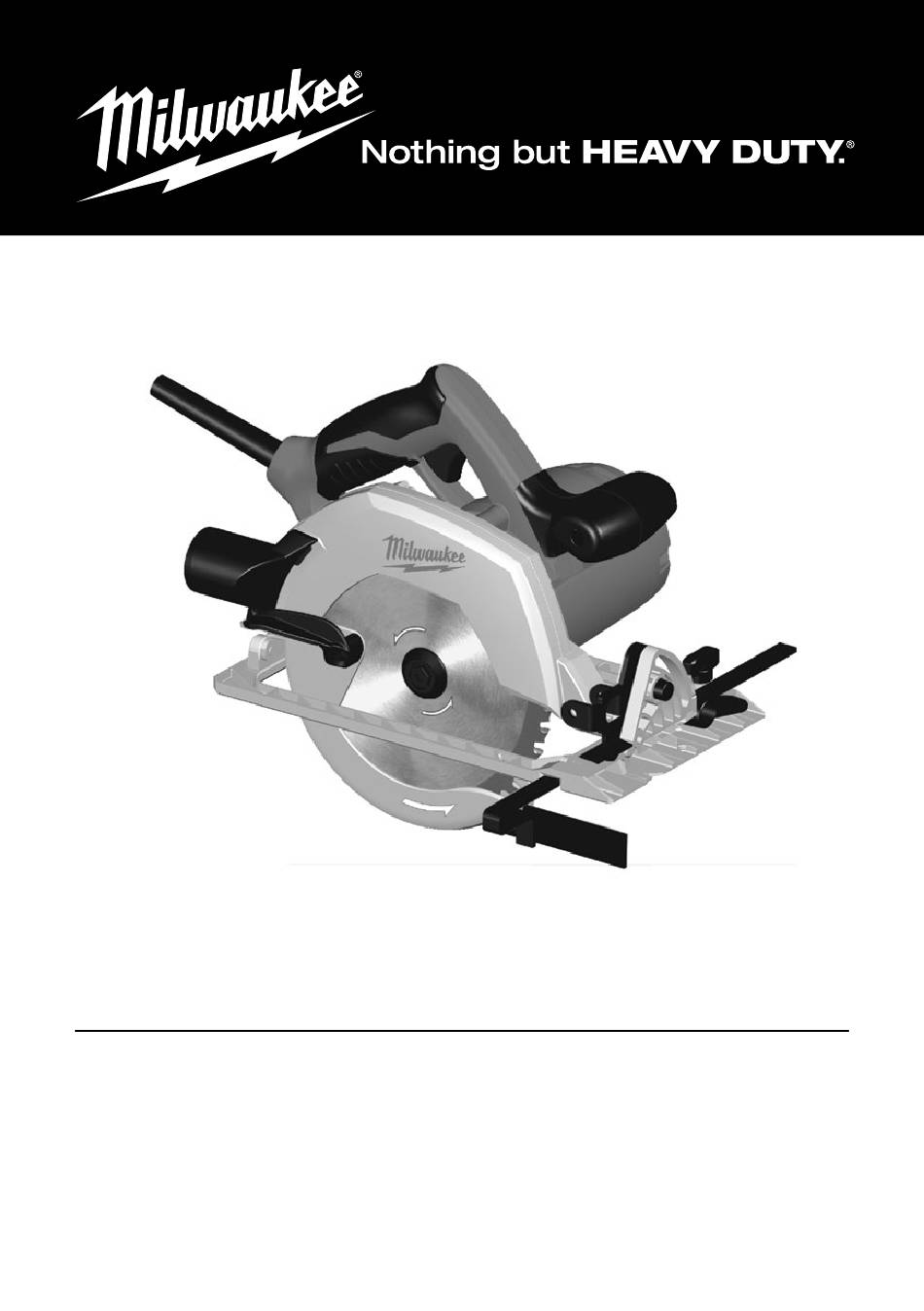

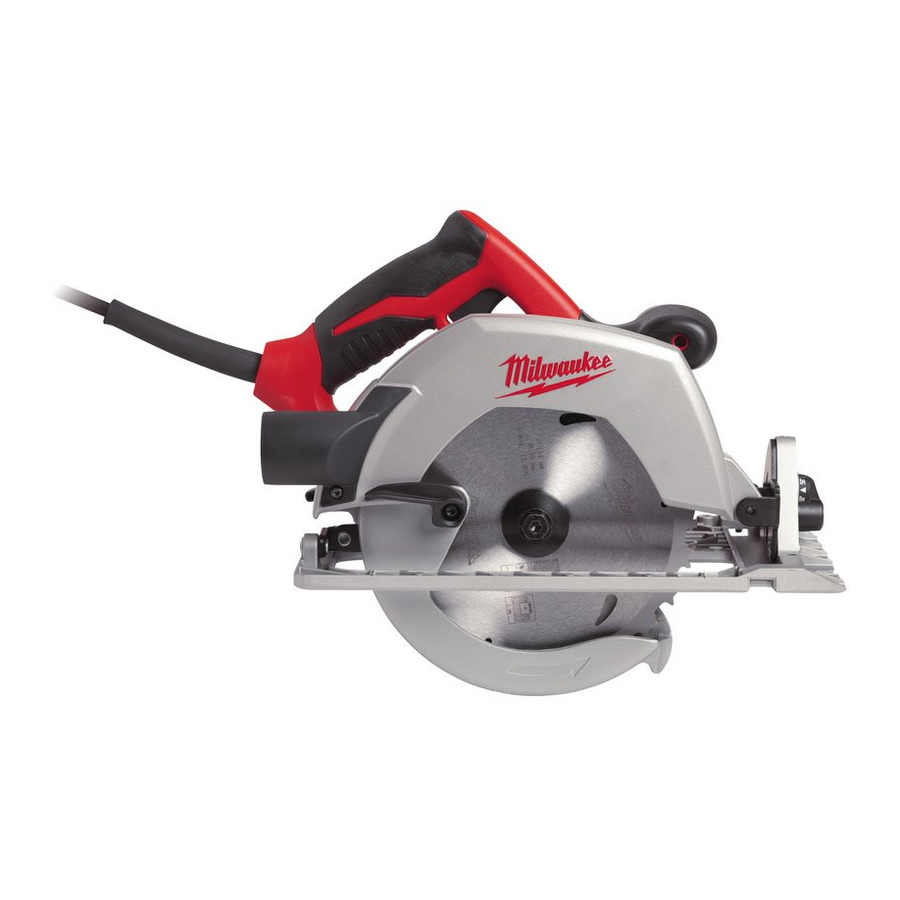

  • Page 1 CS60 Original instructions...
  • Page 2 Aufnahme aufschrauben x cm x cm VIII Technical Data,Safety Instructions, Specified Conditions of Use, Declaration of Conformity, Batteries, Maintenance, Symbols Please read and save these instructions!
  • Page 4 EN 847-1...
  • Page 6 Start Stop...
  • Page 7 Insulated gripping surface...
  • Page 8 0 – 45° 0 – 56° 0 – 45° 0 – 56° 35 mm 49 mm 61 mm 45° 0° ........56°...
  • Page 9 90° If a correction of the 90° angle of the guide-plate to the saw blade is necessary, use the correction screw.
  • Page 10 x cm x cm Carry out a test cut 0° 45° x cm x cm...
  • Page 11 0 – 61 mm...
  • Page 12 Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
  • Page 13 Aufnahme aufschrauben AS 300 ELCP...
  • Page 14 Aufnahme aufschrauben 1. Start 3. Stop 0° 45°...
  • Page 15 Aufnahme aufschrauben 0° > 0° 2. Start...
  • Page 16 Aufnahme aufschrauben...
  • Page 17 Aufnahme aufschrauben 5. Stop...
  • Page 18 Aufnahme aufschrauben max. 61 mm...

  • Page 19: Noise Information

    Technical Data CS 60 Circular saw Production code 4108 66 06 ... 4192 26 06 ..000001-999999 Rated input 1600 W No-load speed 6300 min Saw blade dia. x hole dia 184 x 30 mm Max. Cutting depth at 90° / 45° / 56° 61 / 49 / 35 mm Saw blade thickness 1,8 mm...

  • Page 20: Working Instructions

    – when the blade is pinched or jammed tightly by the kerf closing d) Always observe that the lower guard is covering the blade down, the blade stalls and the motor reaction drives the unit rapidly before placing the saw down on bench or floor. An unprotected, back toward the operator;...

  • Page 21: Ec Declaration Of Conformity

    Use only Milwaukee accessories and Milwaukee spare parts. Should VIII components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses). Alexander Krug / Managing Director If needed, an exploded view of the tool can be ordered. Please state Authorized to compile the technical file the Article No.
  • Page 22 SYMBOLS CAUTION! WARNING! DANGER! Please read the instructions carefully before starting the machine. Always wear goggles when using the machine. Wear ear protectors! Wear a suitable dust protection mask. Wear gloves! Always disconnect the plug from the socket before carrying VIII out any work on the machine.
