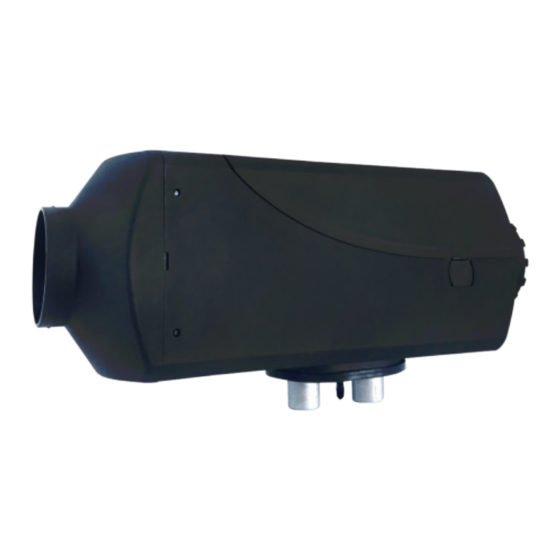

Introduction Thank you for purchasing our PHP-20A heater kit. The PHP-20A heater is designed to provide cabin heating for trucks, off-highway equipment, RVs and boats by using on-board diesel fuel and battery systems. Operation is simple and the heater provides a safe and reliable alternative to engine idling or need for electrical plug ins.
Heater Warnings Special Notes Note: Highlight areas requiring special attention or clarification. Caution Indicates that personal injury or damage to equipment may occur unless specific guidelines are followed. Warning Indicates that serious or fatal injury may result if specific guidelines are not followed. Warning - Asphyxiation Hazards Warning - Installation Hazards •...
Heater Kit List Description Part Number 2Kw Air Heater P20A-T802 Heater Only Description Part Number Operating Switch P65D-T303 2 Sided Mounting Tape Description Part Number Mounting Plate U65A-X702 Mounting Plate Seal U65A-X701 Description Part Number Wiring Harness 3.2M (10.5’) Power Harness, 30A Fuse 2.5M (8’) Fuel Pump Harness 2M (6’) Switch Harness Description...
Page 7
Heater Kit List Description Part Number Fuel Pickup Tube & Fuel Tube Hardware Kit U65D-X405 - Compression Fitting - Large Flat Washer - Small Flat Washer - Large Rubber Gasket - Large Hex Nut - Brass Hex Nut - Brass Securing Body Fuel Metering Pump P20A-T401 Fuel Pump Holder...
H. Hot / Process Air Outlet 5) Overheat / Flame Sensor 10) Operating Unit / Controller D. Fuel Intake How the PHP-23A Air Heater Works • The fuel pump delivers fuel to the combustion chamber. • The combustion air blower delivers air to the combustion chamber.
Heater Mounting Heater Location Typically, air heaters are mounted inside a tool compartment with the OEM HVAC System. However, the heater may be mounted anywhere inside the cabin provided you adhere to the following conditions: • Combustion air intake, exhaust and fuel inlet connections must be on outside of the vehicle.
Page 10
Heater Mounting Mounting • A mounting plate and hardware are provided with the truck heater kit. • Refer to Figures M2 & M3 for assembly orientation. Note: If the mounting plate will not be used, the heater flange can be used as a template to mark where the individual components openings should be made.
Page 11
Heater Mounting Figure M3 Heater Flange Wiring Harness Seal Exhaust Combustion air Fuel Line...
Page 12
Heater Mounting Figure M4 4” x 5” Rectangle Ø3” x 2 2 1/8”...
Fuel System The PHP-20A fuel pump and fuel system are the heart of the heater. The fuel pump not only delivers fuel to the heater but also controls the amount of fuel delivered. The pump is designed to operate like an electric solenoid and works using electric pulses.
Page 14
Fuel System Figure F2 Figure F3 Fuel Pump Mounting • Using the bracket and rubber mount provided, install fuel pump as shown in Figure F2. • Isolating the pump with the rubber holder helps to minimize noise created during operation. •...
Page 15
Fuel System Fuel Pick-Up Pipe Installation (Drill Option) • Drill mounting holes in tank to accommodate pick-up pipe as shown in Figure F4 • Drill the two (1/4”) holes first as shown in Figure F5. • Drill a 7/8” hole as shown in Figure F6. •...
Electrical Connections Electrical System Installation The heater harness has all the electrical connections preassembled for easy installation. • Route cables using either an existing cable passage or drill holes as required. • Seal the hole around the cables and make sure they are protected from chaffing and pinching. •...
Page 17
Electrical Connections Main Harness Wiring Legend Open end view of main heater harness connector Note: There are no corresponding numbers on the connector. Numbers are for reference only. Terminal Wire Color Function White Switch Blue Switch Yellow Fuel Pump Red / White Main Power “+”...
Operating Switch Figure E2 The PHP-20A is provided with a multifunctional controller. It is capable of manual and timer controlled switching of the heater and conveys heater operational parameters and diagnostics. Refer to the Operating Switch Instructions for operational details.
Page 19
Operating Switch Overview: The PHP Control Switch allows you to set and regulate temperature, set operating mode and set timed shutdown and timed startup functions. It also facilitates troubleshooting by providing PHP Gen II Air Heater Control Switch - Operation Instructions diagnostic codes.
Page 20
Operating Switch PHP Gen II Air Heater Control Switch - Operation Instructions Operating Modes: Operating Modes: The heater is designed to function in two different operating modes. The heater is designed to function in two different operating modes. mode (Manual) allows you to control the heater output in 4 operating levels.
Page 21
Operating Switch PHP Gen II Air Heater Control Switch - Operation Instructions Timed Shutdown (Heater must be operating) Default setting is for heater to run continuously when Count down time will be displayed. switched on manually “00.00” To establish a timed shutdown (Operating Duration):...
Page 22
PHP Gen II Air Heater Control Switch - Operation Instructions Operating Switch Timer Functions: The control switch can be used to automatically turn the heater on then off at desired preset times. Timer Functions: First Set current clock time (24 hour clock) The control switch can be used to automatically turn the heater on then off at desired preset times.
Page 23
Operating Switch PHP Gen II Air Heater Control Switch - Operation Instructions Set Automatic Start Time Once your Clock Time has been set and you have pressed Upper Dot in Colon ONLY appears Flashing You will be able to set the Automatic Start Time.
Page 24
Operating Switch PHP Gen II Air Heater Control Switch - Operation Instructions Additional Features - Heater in Off Mode Fuel Pump Priming Running Blower Only Upon initial installation and before heater has be run Press and Hold 3 Seconds it is possible to fill the fuel line / bleed air out of the system using the controller.
Exhaust & Combustion Air Intake Connections The combustion air intake tube channels clean air into the heater. The exhaust tube channels exhaust safely away from the heater and vehicle. It also assists in providing a required amount of back pressure required to balance the combustion process. Connect the combustion air intake tube and exhaust as shown in Figure A1 Exhaust Considerations: •...
Page 26
Exhaust & Combustion Air Intake Connections Figure A1 25mm Combustion Air Intake 24mm Exhaust Min. 0.4M (8”) Min. 0.4M (8”) Max. 1.0M (39”) Max. 2.0M (78”)
Heater Ducting Hot Air Ducting Distribute heat efficiently throughout the cabin by using the high temperature, 60mm flex-ducting and rotatable outlet components provided in the installation kit. • Route ducting with smooth bends to avoid crushing. • Ensure ducting components will not come in contact with combustible materials •...
Heater Operation Starting The Heater Note: It is important to understand that this heater does not simply turn on and turn off. Rather, it has a sophisticated operating system similar to a household furnace to provide reliable heating comfort. The operator should familiarize themselves with the normal operation of the heater.
Page 29
Heater Operation Shut Down Process Caution The heater should only be controlled using the operating switches provided. Switching the heater off by interrupting it’s power source will bypass the heater’s normal cool down process and will cause stress and premature wear of the combustion components. Switching Off –...
Page 30
Heater Operation Voltage: If the lower or upper voltage limit is reached, the heater will turn OFF after a 20 second delay. Fan Speed: The fan speed is continuously monitored. If the fan motor does not start or if the speed deviates by more than 40%, the heater will turn OFF after 60 seconds.
Maintenance • Switch heater ON at least once monthly for 10 minutes • Clear combustion air supply and the exhaust system after longer standstill periods. • Ensure that the vehicle batteries are maintained • Inspect and clean all electrical connections and apply dielectric grease. •...
Visual inspection of hot air ducting to ensure there are no blockages. Self Diagnostics The PHP-20A has an automatic built in error code detection system. When the heater detects a fault, it should display a two-digit error code on the Operating Switch. Refer to the Fault Codes section of this manual for further direction.
Page 33
Troubleshooting Fuel Ensure you are supplying a good quality diesel fuel. Fuel is not frozen or gelled Fuel system falls within parameters outlined in installation section. All connections are secure and there are no air leaks Try removing the fuel line at the heater during start up to ensure that fuel is being delivered. Check for fuel filter or fuel metering pump blockage.
Fault Code Chart Error Code Description of Error Diagnostic Instruction & Correct Action & Repair High Voltage Voltage at main connector pins 4 & 8 must be less than 16.0 volts Repair vehicle electrical system as required Low Voltage Voltage at main connector pins 4 & 8 must be more than 10.5 volts Repair wiring connections or vehicle electrical system as required Fuel Pump Check fuel pump wiring connections &...
Page 35
® Unit B -1465 Kebet Way Port Coquitlam, British Columbia, Canada V3C 6L3 help@dksi.com 877-508-3900 www.parkingheaterproducts.com PHP-022021-TM20A-REV2...
