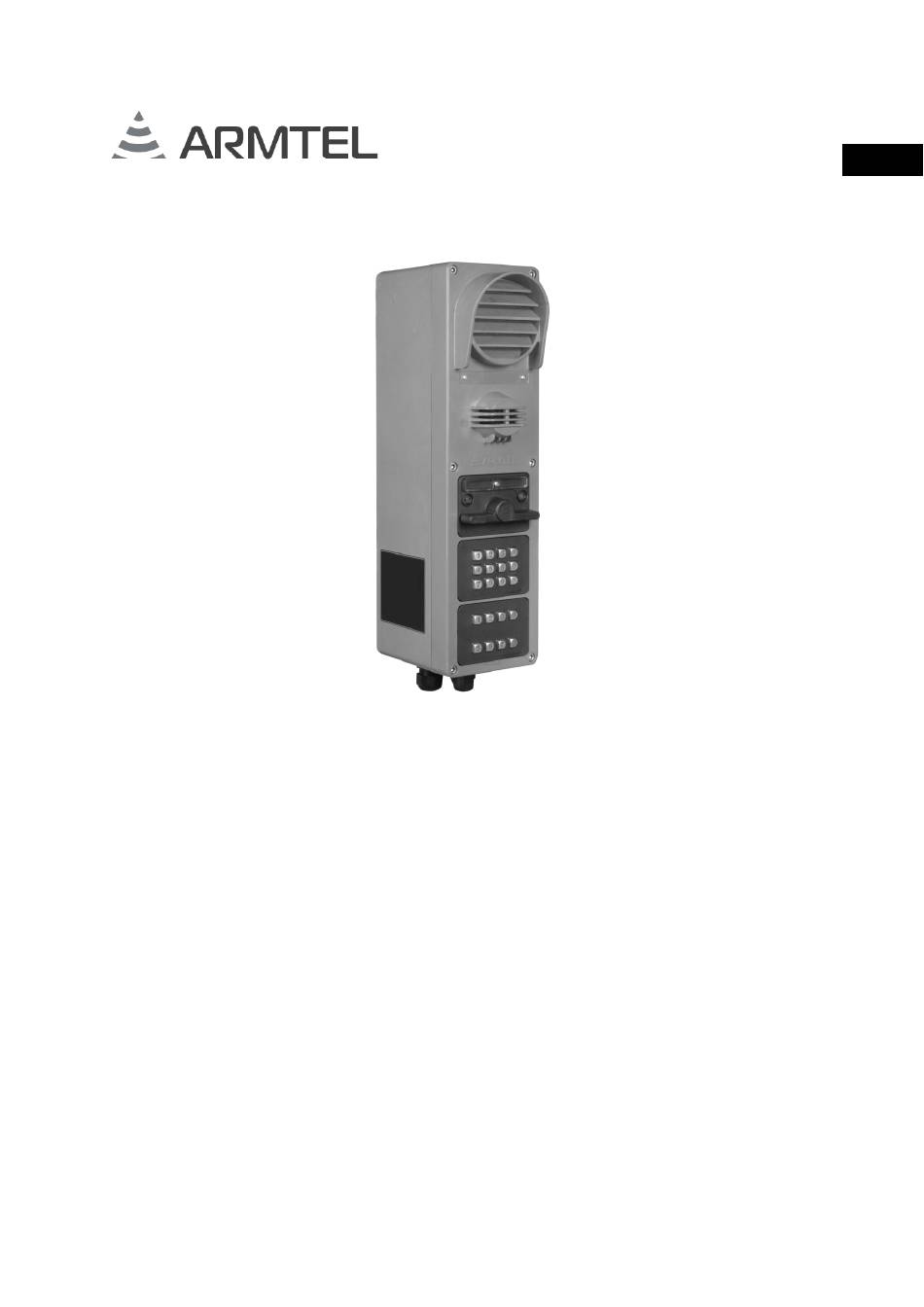

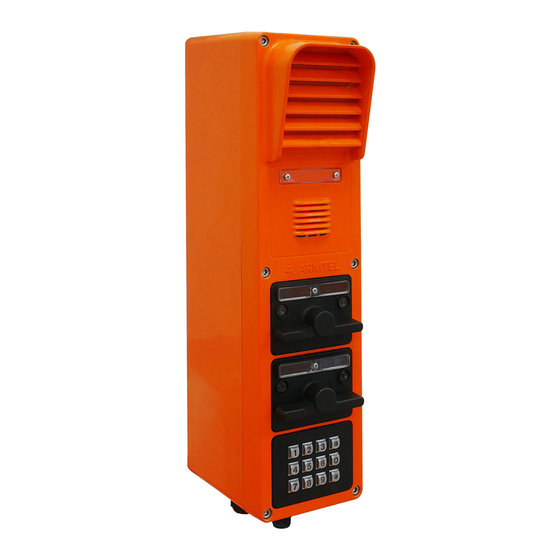

  • Page 1 DW-IP2 Weatherproof call station RMLT.465311.006UM1 User Manual Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 Document version 6 26.30.11.190 2020...
  • Page 2 © Armtel info@armtel.com...

  • Page 3: Introduction

    (PA/GA) communication system IPN manufactured by Armtel LLC. Short name of product – DW-IP2. DW-IP2 can be used in chemical, mining, oil and gas, metal processing and wood processing industries and other. Maintenance personnel for DW-IP2 shall be appointed by the management at the installation site.

  • Page 4: Safety Provisions

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 SAFETY PROVISIONS During installation and operation, observe safety precautions laid out in “Occupational safety rules when operating electrical installations” when working with electrical receivers with voltage of up to 1000 V.

  • Page 5: Table Of Contents

    1.2.5 Pushbuttons (direct call buttons) ......................21 1.2.6 «SOS» and «INFO» modules ........................22 1.2.7 Handset ................................22 1.2.8 Electrical mechanical relay ........................22 1.2.9 CCS-DW-IP2 main board .......................... 23 1.2.10 DART-6UL processor module ....................... 23 1.2.11 DW-BC board .............................. 24 2 INTENDED USE ................................25 2.1 Operating limits ..............................
  • Page 6 5 STORAGE .................................... 37 6 TRANSPORTATION ................................. 38 7 DISPOSAL ................................... 38 APPENDIX A (reference) External appearance of DW-IP2 versions ..............39 APPENDIX B (reference) PoE function in DW-IP2 ....................42 APPENDIX C (reference) Connection........................... 44 APPENDIX D (reference) light indication ........................48 page 4/48 armtel.com...

  • Page 7: Description And Operation

    SIP server manufactured by Armtel LLC) public address systems in industrial facilities and on transportation. DW-IP2 has a modular design, and depending on the modules installed. The version may vary in accordance with Table 1. Table 1 – Versions of the DW-IP2 (beginning)
  • Page 8 -171 -189 -207 INFO, info module External appearance of version DW-IP2 with 2 connections, dial pad and handset is shown on Figure 1. The external appearance of all DW-IP2 versions is shown in Appendix А. page 6/48 armtel.com © Armtel...
  • Page 9 UF-resistant fiber-glass reinforced polyester resin. Rubber gasket seals under the cover, integrated loudspeaker, and microphone, two- way toggle, as well as in cables glands of DW-IP2 ensure its IP66 ingress protection rating as per GOST 14254-2015 (IEC 60529:2013).
  • Page 10 − control (commutation) of external actuating devices using an integrated electro- mechanical relay (lamp-type signaling device). Configuration of the DW-IP2 shall be carried out using the personal computer of the IPN network administrator on which IPN2 RU.RMLT.00041-01 IPN Config Tool software configuration application is installed.

  • Page 11: Main Spetifications

    Maximum current consumption*, max, А 0,28 Maximum power consumption*, max, W Maximum power of integral relay when external execution units (devices) are connected (in supply voltage range of DW-IP2)*, max, W, Rated voltage*, V Supply voltage range*, V from 37 to 57 Conformity with the PoE class IEEE 802.3af Class 0...
  • Page 12 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 Table 2 – Main specifications and performance characteristics (continuation) Parameter Value Communication protocols SIP, Armtel-IP, SNMP Audio data format (coder/decoder)): - over SIP protocol G.711A (A-Law) G.711U (µ-Law) G.722.1...

  • Page 13: Operations Conditions

    GOST 30804.6.2-2013 (IEC 61000-6-2:2005) with performance criteria not lower than B. Note – Performance criteria when DW-IP2 powered via PoE injector is not lower then A, via terminal block is not lower then B. Under the influence of electrostatic discharges on the product enclosure from 2 kV to 6 kV, when connected to the PoE injector, it is necessary to connect by shielded cable to an earthed PoE injector.

  • Page 14: Dw-Ip2 Design

    13 – dial pad (keypad module); 14 – nameplate; 15 – kit for the flexible metal tubing of the handset. Figure 2 – External appearance and overall dimensions of DW-IP2 1.1.4.2 The rear side of DW-IP2 enclosure is equipped with M6 thread bushings for fastening to the workstation with the brackets from the supply package (see Section 2.4 “Installation, connection, and dismantling”).
  • Page 15 Depending on DW-IP2 version, one to three modules with two- way toggle (6) or dial pad (13)/pushbuttons (direct call buttons)/buttons/handset with...
  • Page 16 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 1.1.4.4 DW-BC board is fixed by supports on inside of the cover. Figure 4 – External appearance of DW-BC board The board comprises the following components: 1, 4, 7 – «X1», «X2» and «X3» sockets for connection pushbuttons and dial pad (see back side of the board);...
  • Page 17 Figure 5) are mounted on the CCS-DW-IP2 main board by М2 threaded bushings. Also, the cooling radiator is installed above the ADSL module through the M2 threaded bushings. The standard 35 mm DIN rail (1) is fasten in the DW-IP2 enclosure by M4 screws through the threaded bushings.
  • Page 18 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 Via the cable glands can be connected to the DW-IP2: − Ethernet line with PoE function; − additional Ethernet line; − external power supply 48 VDC; − ADSL line;...
  • Page 19 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 1 – DIN rail, 2 – amplifier 25W, 3 – CCS-DW-IP2 main board, 4 – NE01 board, 5 – chassis, 6 – cable glands, 7 – terminal blocks, 8 – cable for DW-BC board connection, XS1 (CCS-DW-IP2 main board) –...

  • Page 20: Marking

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 1.1.5 Marking On the DW-IP2 enclosure is plased bilingual nameplate The nameplate contains the following information: − name, trademark and reference information of the manufacturer; − product name and description;...

  • Page 21: Package

    Versions from RMLT.465311.006-100 to RMLT.465311.006-207 1.1.6 Package The DW-IP2 with the assembly kit and documents, which come with the supply package, is packed in consumer package (cardboard box) according to GOST 23088-80. A label in Russian language and English language is glued onto the consumer package, said label containing the following inscriptions and symbols: −...

  • Page 22: Description And Operation Of Product Components

    Versions from RMLT.465311.006-100 to RMLT.465311.006-207 1.2 Description and operation of product components 1.2.1 General information This subsection describes basic parts of the DW-IP2: − ADSL IB02 module (for versions with an ADSL module, listed in Table 1); − DART-6UL processor module;...

  • Page 23: Adsl Module

    1.2.3 ADSL module DW-IP2 versions with an ADSL module (refer Table 1) re equipped with an integrated ADSL IB02 module, which is mounted in the enclosure of DW-IP2 parallel for the CCS-DW-IP2 main board. When operating via an ADSL line, the module supports the IEEE802.3i (10BaseT), ITU-T G.992.1…992.5 standards, which provide duplex...

  • Page 24: Sos" And "Info" Modules

    1.2.8 Electrical mechanical relay On the CCS-DW-IP2 main board has the electrical mechanical relay, which serves to switch external alarm devices, such as, a signal horn or a lighting alarm device (alarm devices are not included into the scope of supply).

  • Page 25: Ccs-Dw-Ip2 Main Board

    The CCS-DW-IP2 main board receives and processes notification signals and voice messages, amplifies and transfers them to the DW-BC board. Depending on the DW-IP2 version, the following lines are routed from terminal blocks to main board: − Ethernet interface line with РоЕ;...

  • Page 26: Dw-Bc Board

    Versions from RMLT.465311.006-100 to RMLT.465311.006-207 1.2.11 DW-BC board DW-BC board is installed on the inner side of the DW-IP2 cover and is designed to switch the integrated loudspeaker, microphone, button modules/ two-way toggle and the handset with CCS-DW-IP2 main board.

  • Page 27: Intended Use

    2.1.1 The product shall be used under exposure factors and ambient parameters which do not exceed permissible values given in 1.1.3. 2.1.2 In is allowed to supply power to DW-IP2 versions with amplifier 25 W (see Table 1) from PoE injector only if the requirement for amplifier 25 W connection to 48 V external power source is complied with.

  • Page 28: Preparation For Use

    192.168.100.10, subnet mask: 255.255.255.0. Since units with identical IP addresses are not allowed in the same network, it is necessary to set an IP address for each DW-IP2 before connection to the common network. IP address is set from the network administrator PC on which RU.RMLT.00041-01 IPN Config Tool software.

  • Page 29: Installation, Connection And Dismantling

    Versions from RMLT.465311.006-100 to RMLT.465311.006-207 Enter a record on the set IP address in the “Special notes” section of the product passport; Install the cover into its place and fasten it with screws. Install DW-IP2 at the place of operation.

  • Page 30: Connection

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 Figure 6 – Installation of DW-IP2 2.4.2 Connection ATTENTION! TO PROVIDE IP CLASS, IT IS NECESSARY TO USE CABLES WHICH DIAMETER CORRESPOND TO THE DIAMETERS OF THE CABLE GLANDS. IN CASE...

  • Page 31: Dismantling

    Versions from RMLT.465311.006-100 to RMLT.465311.006-207 Enter communication and power cables through the sealing cable glands into the DW-IP2 housing. Strip the cable wires from insulation (connection cables are not supplied with the product). Peeled wire end length for the corresponding sockets is given in Tables C.1 –...
  • Page 32 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 − install the cover and fasten with screws; − unscrew the screw nails fastening the product, remove and place the product in the consumer package. page 30/48 armtel.com...

  • Page 33: Operation

    Volume Amplifier should be no more than 48, Speaker volume – no more than 63. Note - Besides the IPN Config Tool, the DW-IP2 can be configured using a built-in WEB interface, which can also be used to update software, upload and store configurations.
  • Page 34 Half-duplex communication mode with manual control of the receive/transmit direction can be used within an IPN communication system, when communicating with duplex user equipment, for example, telephone sets. In this case, the communication between DW-IP2 and telephone set will be carried in both directions without disconnection pressing preprogrammed “Ring...

  • Page 35: Eng 2.5.3 Troubleshooting

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 2.5.3 Troubleshooting Possible problems and their solutions are given in Table 4. Table 4 – Possible problems (beginning) Problem Possible cause Solution Check if there is power supply...
  • Page 36 An external actuating device is Check the injector operability of faulty an external actuating device * Configuration of DW-IP2 connections and functions is carried out using IPN Config Tool software or a built-in WEB interface page 34/48 armtel.com © Armtel...

  • Page 37: Maintenance

    − removal of dust and dirt from the surface of the product. Depending on the level of dirt, the surface of the DW-IP2 can be cleaned using a wet sponge soaked with a mild soap solution, or modern chemicals for cleaning and protecting equipment at facilities with corrosive gases and chemical vapors;...

  • Page 38: Checking Operability

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 3.4 Checking operability 3.4.1 Checking the audio path The audio path should be checked via test communication sessions with subscribers, operation with which is programmed during product configuration. Checking is carried out using provisions of section 2.5.

  • Page 39: Pepair

    Versions from RMLT.465311.006-100 to RMLT.465311.006-207 4 PEPAIR No scheduled repair work is provided for DW-IP2. Unscheduled repair shall be performed by the manufacturer at the request of the User. The place, time, procedure and cost of the work shall be agreed with the manufacturer in advance.

  • Page 40: Transportation

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 6 TRANSPORTATION The product shall be transported in in the manufacturer's individual package as a packaging unit by road, river, railway and air transport (expect unsealed compartments), with compliance with the following conditions: −...

  • Page 41: Appendix A (Reference) External Appearance Of Dw-Ip2 Versions

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 APPENDIX A (REFERENCE) EXTERNAL APPEARANCE OF DW-IP2 VERSIONS RMLT.465311.006-100, RMLT.465311.006-101, RMLT.465311.006-102, RMLT.465311.006-103, -118, -136, -154, -172, -190 -119, -137, -155, -173, -191 -120, -138, -156, -174, -192 -121, -139, -157, -175, -193 RMLT.465311.006-104,...
  • Page 42 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 RMLT.465311.006-108, RMLT.465311.006-109, RMLT.465311.006-110, RMLT.465311.006-111, -128, -146, -164, -182, -200 -129, -147, -165, -183, -201 -126, -144, -162, -180, -198 -127, -145, -163, -181, -199 RMLT.465311.006-112, RMLT.465311.006-113, RMLT.465311.006-114, RMLT.465311.006-115,...
  • Page 43 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 RMLT.465311.006-116, RMLT.465311.006-117, -134, -152, -170, -188, -206 -135, -153, -171, -189, -207 Figure А.1 – External appearance of DW-IP2 versions armtel.com page 41/48 info@armtel.com © Armtel...

  • Page 44: Appendix B (Reference) Poe Function In Dw-Ip2

    Figure B.1 – IEEE 802.3af standard DW-IP2 satisfies requirements of the IEEE 802.3af standard on automatic determination of power rating (it is taken into account, that amplifier 25 W is not supplied from PoE injector). When using a load detection procedure in an active PoE power device (injector), supply voltage in the line will be turned on only after confirmation that the load class matches power supply capabilities.
  • Page 45 DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 DW-IP2 satisfies Class 0 load parameters, the characteristics of this class are given in Table B.1: Table B.1 – Characteristics IEEE 802.3af Class 0 Name Value from 37 to 57 V...

  • Page 46: Appendix C (Reference) Connection

    The DW-IP2 may be connected through various sockets depending on the version of the product. In DW-IP2 versions with amplifier 25 W (see Table 1) the amplifier shall be connected to the external 48 VDC power source via contacts 3 and 4 of the terminal block The location of the connection interfaces is shown in Figure 5.
  • Page 47 The contact numbering and assignment of the RJ45 type power supply and communication socket XS1 is given in Table C.2. Table C.2 – Contact numbering and assignment of the RJ45 type XS1 socket on the CCS-DW-IP2 main board Function...
  • Page 48 XS3 (Table C.1). The contact numbering and assignment of clip connector X1 is given in Table C.3. Table C.3 – Contact numbering and assignment of clip connector X1 on the CCS-DW-IP2 main board Contact External appearance of the X1 clip...
  • Page 49 0,205 to 0,518 mm Peeled wire end length: 11 mm To avoid damage during transportation and operation of the DW-IP2, internal wiring cables are securely fixed at special points. Do not use cables of types not supposed for this purpose by the manufacturer.

  • Page 50: Appendix D (Reference) Light Indication

    DW-IP2 WEATHERPROOF CALL STATION User Manual. Part 2 Versions from RMLT.465311.006-100 to RMLT.465311.006-207 APPENDIX D (REFERENCE) LIGHT INDICATION D.1 Light indication of DW-IP2 is given in Table D.1 Light indication of Table D.1 – DW-IP2 Full indication cycle – 1200 ms Next cycle...
