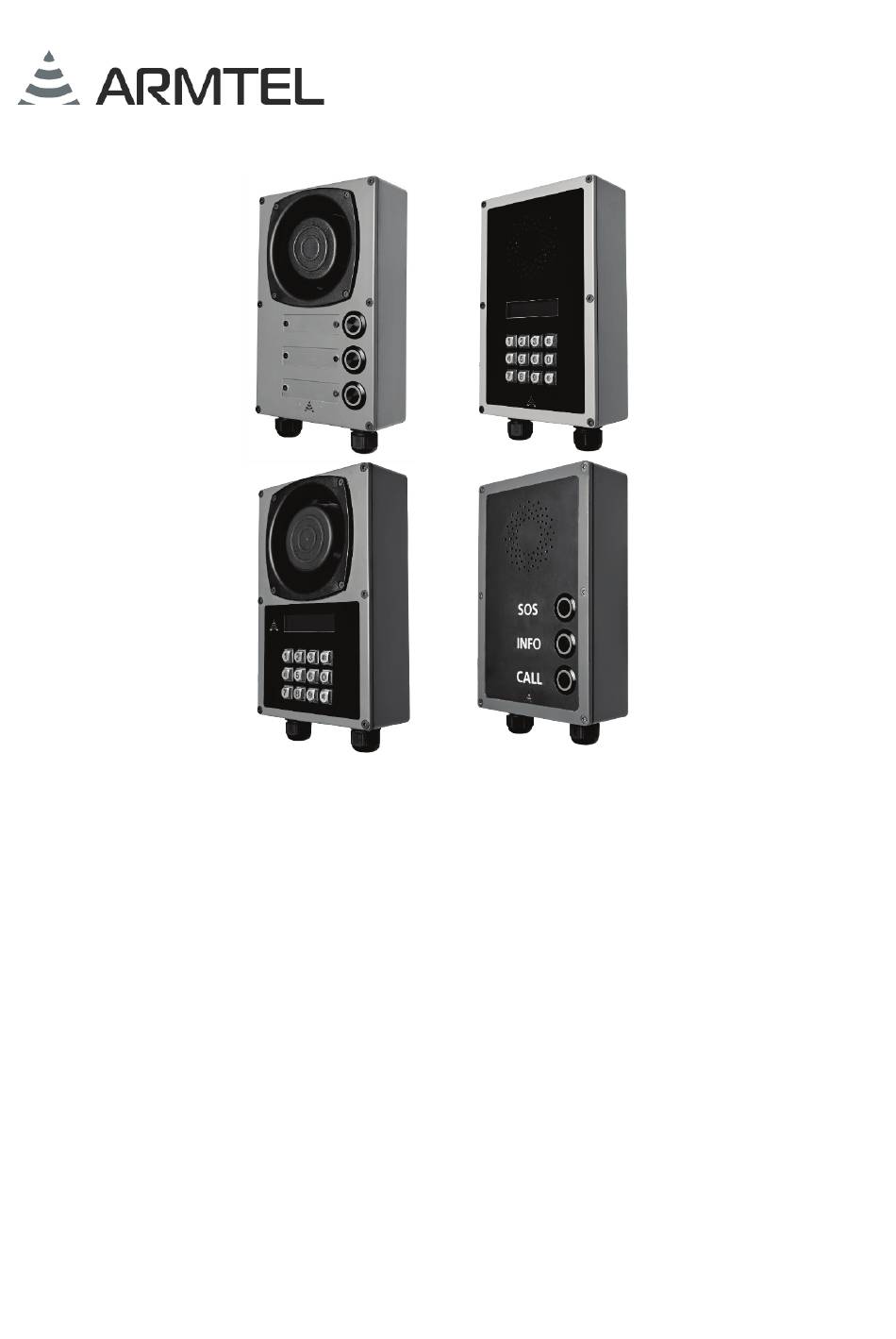

CCS-IP2 Call Station
RMLT.465311.015UM
User Manual
Document version 11
2020
26.30.23.000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCS-IP2 and is the answer not in the manual?

Questions and answers

Related Manuals for ARMTEL CCS-IP2

Summary of Contents for ARMTEL CCS-IP2

  • Page 1 CCS-IP2 Call Station RMLT.465311.015UM User Manual Document version 11 26.30.23.000 2020...
  • Page 2 © Armtel info@armtel.com...

  • Page 3: Introduction

    Systems. Short name of the product – CCS-IP2. The CCS-IP2 can be used in the metals, chemical, mining, oil and gas, metal processing and wood processing industries, in facilities of the Transportation Ministry, Emergencies Ministry, Interior Ministry and Defense Ministry, Maintenance personnel for the CCS-IP2 shall be appointed by the management at the installation site.

  • Page 4: Safety Provisions

    CCS-IP2 CALL STATION User Manual SAFETY PROVISIONS During installation and operation of CCS-IP2, observe safety precautions laid out in “Occupational safety rules when operating electrical installations” when working with electrical receivers with voltage of up to 1000 V. Never operate the product with a damaged power, communication or earthing cables.

  • Page 5: Table Of Contents

    1.1.1 Functions ................................5 1.1.2 Specifications (properties) .......................... 9 1.1.3 Operations conditions ..........................11 1.1.4 Package contents ............................12 1.1.5 CCS-IP2 design .............................. 13 1.1.6 Labeling ................................20 1.1.7 Package ................................21 1.2 Description and operation of product components ................22 1.2.1 General information ............................
  • Page 6 4 PEPAIR ....................................41 5 STORAGE .................................... 41 6 TRANSPORTATION ................................. 42 7 DISPOSAL ................................... 43 APPENDIX A (reference) External appearance of CCS-IP2 ................44 APPENDIX B (reference) PoE function in CCS-IP2 ..................... 46 APPENDIX C (reference) Connection ........................48 APPENDIX D (reference) Light indication ......................

  • Page 7: Description And Operation

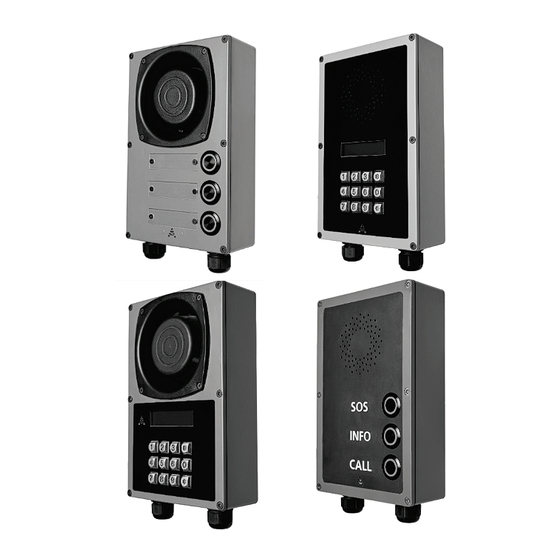

    Armtel LLC) public address systems in industrial facilities and on transportation. The external appearance of the CCS-IP2 for various design versions is shown on Figure 1. The external appearance of all CCS-IP2 versions is shown in Appendix А. a) version b) version...
  • Page 8 CCS-IP2 CALL STATION User Manual Table 1 – Versions of the CCS-IP2 Versions of the CCS-IP2 Version identification Product type code Cover fitting Enclosure code fitting code RMLT.465311.015 RMLT .465311.015-01 EЕ RMLT .465311.015-02 RMLT .465311.015-03 RMLT .465311.015-04 EЕ RMLT .465311.015-05 RMLT .465311.015-06...
  • Page 9 CCS-IP2 CALL STATION User Manual The design and material of the casing of the CCS-IP2 ensure protection from external effects in accordance with the design versions. The casing is made of aluminum alloy and is coated with environment resistant paint.
  • Page 10 − control (commutation) of external actuating devices using an integrated electro-mechanical relay (lamp-type signaling device). Configuration of the CCS-IP2 shall be carried out using the personal computer of the IPN network administrator on which IPN2 RU.RMLT.00041-01 IPN Config Tool software configuration application is installed.

  • Page 11: Specifications (Properties)

    CCS-IP2 CALL STATION User Manual 1.1.2 Specifications (properties) Main specification of the CCS-IP2 are given in Table 2. Table 2 – Main specifications of the CCS-IP2 (beginning) Parameter Value Rated supply voltage*, V Supply voltage range*, V from 37 to 57 Conformity with the PoE class IEEE 802.3af Class 0...
  • Page 12 CCS-IP2 CALL STATION User Manual Table 2 – Main specifications of the CCS-IP2 (end) Parameter Value Communication protocols SIP, Armtel-IP, SNMP Audio data format (coder/decoder): − over SIP protocol G.711A (A-Law) G.711U (µ-Law) G.722.1 − over Armtel-IP protocol Armtel-IP Overall dimensions, no more than, mm - versions from RMLT.465311.015 to RMLT.465311.015-20...

  • Page 13: Operations Conditions

    The CCS-IP2 satisfies requirements for electromagnetic interference resistance according to GOST 30804.6.2-2013 (IEC 61000-6-2:2005) with performance criteria not lower than B. Electromagnetic interference from CCS-IP2 does not exceed standards set by GOST 30804.6.4-2013 (IEC 61000-6-4:2006). Note − Under the influence of electrostatic discharges on the product enclosure...

  • Page 14: Package Contents

    CCS-IP2 CALL STATION User Manual 1.1.4 Package contents The supply package the CCS-IP2 according to Table 4. Table 4 – Supply package Quantity, Identification Name Note pcs. RMLT.465311.015* CCS-IP2 Call Station Mounting kit RMLT.734311.003 Bracket Bolt M6×16 DIN 933 Washer М6 DIN 934...

  • Page 15: Ccs-Ip2 Design

    Example external appearance with design description and overall dimensions prefer Figure 2. 1.1.5.2 In order to mount the CCS-IP2 at the work station, there are four holes at the back of the casing with a diameter of 6.4 mm (10), into which mounting screws and brackets from the supply package are fitted (refer to the “Installation, connection and...
  • Page 16 5 – keypad module; 6 – М4×10 screw; 7 – casing; 8 – nameplate, 9 – plastic gland for 4-10 mm diameter cable (metal gland for 4,5-10 mm diameter); 10 – mounting hole; 11 – labeling panel; 12 – button; 13 – integrated speaker; 14 – engraving. Figure 2 – CCS-IP2 external appearance and overall dimensions page 14/52 armtel.com ©...
  • Page 17 1 – CCS-BC board; 2 – horn loudspeaker; 3 – microphone; 4 – button; 5 – integrated speaker; 6 – backlit character display; 7 – keypad module Figure 3 – CCS-IP2 cover assembled with electronics armtel.com page 15/52 info@armtel.com...
  • Page 18 – «R35» - microphone sensitivity control; – «R76» - speaker volume control; – «XS1» - socket for the keypad module; – «XS2» - socket for the backlit character display; – «XS3» - socket for the CCS-IP2 cover and casing; page 16/52 armtel.com © Armtel...
  • Page 19 VOLTAGE OF MORE THAN 5 V TO POWER THE DISPLAY AND KEYPAD MODULE! 1.1.5.5 The enclosure of the CCS-IP2 (Figure 5) is fitted with thread bushings for mounting the CCS-DW-IP2 board (5) and cable for connecting functional earthing. The NE01 board (4) or ADSL module (installed in place of the NE01 board, not shown on Figure 5) is installed on the CCS-DW-IP2 board.
  • Page 20 – «XS1» - RJ45 socket for connecting an Ethernet interface which supports PoE; – «XS3» - clip connector for connecting an external power supply, ADSL line, and external devices; – «XS5.1», «XS5.2» - sockets for connecting the CCS-IP2 cover; – «SB1» - board “RESET” button; – «SB2» - not used.
  • Page 21 4 – NE01 board; 5 – CCS-DW-IP2 board; 6 – М3 bushing; 7 – casing; 8 - cable for connecting functional earthing Figure 5 – External appearance of the CCS-IP2 enclosure (version with two Ethernet ports) 1.1.5.7 The CCS-DW-IP2 board may be connected to a PoE power supply (injector) as a device which complies with the PoE IEEE 802.3af standard Class 0.

  • Page 22: Labeling

    CCS-IP2 CALL STATION User Manual 1.1.6 Labeling On the left side of the CCS-IP2 casing is plased bilingual nameplate. The nameplate contains the following information: name, trademark and reference information of the manufacturer; − product name and description; − permissible operating temperature range;...

  • Page 23: Package

    User Manual 1.1.7 Package The CCS-IP2 with the assembly kit and documents, which come with the supply package, is packed in consumer package (cardboard box) according to GOST 23088-80. A label in Russian language and English language is glued onto the consumer package, said label containing the following inscriptions and symbols: −...

  • Page 24: Description And Operation Of Product Components

    To enable operation of the integrated speaker, the CCS-BC board comes with an integrated amplifier with output power of at least 2 W. Optional for CCS-IP2 can be used an auxiliary amplifier 25 W (Amplifier 25W retrofit kit RMLT.465937.001), which is mounted in seats in casing for installation.

  • Page 25: Keypad Module

    The keypad module performs the function of a dialing unit and is installed in the cover of the CCS-IP2 (refer to Figure 2). The keypad has 10 digital buttons for dialing a call number and 2 service buttons for controlling communication. Permanent connection buttons are highlighted in orange color.

  • Page 26: Dart-6Ul Processor Module

    The CCS-DW-IP2 board receives and processes notification signals and voice messages, amplifies and transmits said signals to the CCS-BC board. Depending on the CCS-IP2 version, the following are connected to sockets on the main board: − Ethernet interface line with PoE function;...

  • Page 27: Ccs-Bc Board

    User Manual 1.2.8 CCS-BC board The CCS-BC is installed on the inner side of the CCS-IP2 cover and is designed to switch the integrated speaker, microphone, button module/buttons and backlit character display, which are installed in the cover, with the CCS-DW-IP2 main board.

  • Page 28: Intended Use

    2.1.1 The product shall be used under exposure factors and ambient parameters which do not exceed permissible values given in 1.1.3. 2.1.2 CCS-IP2 may be powered from a PoE injector or a 48 V external power supply. 2.1.3 The requirements for operating conditions and the choice of the place of installation given in this document take into account the most typical factors that affect the operation of CCS-IP2.

  • Page 29: Safety Precautions

    − protect power and communication cables from damage. 2.3 Preparation for use Preparation of the CCS-IP2 for use shall be carried out by the manufacturer’s representatives, or personnel trained to operate Armtel LLC products. The main preparation of the product for use is carried out during installation and connection.
  • Page 30 PC via an IP network. The product may be powered by a PoE injector or a 48 V external power supply. Note – During production, each CCS-IP2 is assigned the same default IP address: 192.168.100.10, subnet mask: 255.255.255.0. If DHCP is turned on, the product is automatically assigned an IP address when connecting to a shared network.

  • Page 31: Installation, Connection And Dismantling

    Figure 6 (a, b). The height at which the CCS-IP2 is mounted on the wall recommended be such that the microphone is at the mouth level of an average-sized human, i.e. 1500–1600 mm from the floor level.

  • Page 32: Connection

    Figure 6 – Installation of CCS-IP2 (end) 2.4.2 Connection 1. Enter communication and power cables through the sealing cable glands into the CCS-IP2 enclosure. Peel off the insulation from cable wires. Install UTP cable without protective cap. 2. Variants of connection a) Connect the Ethernet interface line: –...

  • Page 33: Functional Earthing Connection

    The Ethernet interface line on the other side is connected to the digital subscriber interface of the communication system through station cross equipment. The availability of reverse polarity protection at the CCS-IP2 input prevents damage to the device, and so the performance of the device is not affected when reverse polarity supply voltage is applied across contacts 1, 2, 3 and 4 of clip connector XS3.
  • Page 34 CCS-IP2 CALL STATION User Manual a) connection via PoE injector b) connection of the functional c) connection via ADSL line and and functional earthing earthing when connection via functional earthing PoE injectior Figure 7 – Examples of variants functional earthing connection 2.4.3.2 Installation of the connector for earthing cable on an earthing conductor...
  • Page 35 3 Functional earthing bus connection (Figure 7 a), c)) Putting of two cables into CCS-IP2 housing is carried out through the seal insert supplied, which pre-installed in the corresponding cable gland. The seal insert is installed instead of the cable gland rubber seal washers.

  • Page 36: Dismantling

    TIGHTENING OF STOVER NUTS, MAKE SURE THE CABLES ARE TIGHTLY PRESSED. INSTALL SEALING GASKETS IF NECESSARY. 2.4.4 Dismantling The CCS-IP2 is dismantled in the following order: − power off the product; − unscrew the screws fastening the cover and remove the cover. Disconnect the wires of cables fed into the enclosure from terminal blocks and from sockets on the boards of the enclosure;...

  • Page 37: Operation

    If necessary, adjust the volume level. The maximum values of the Microphone volume and Volume Amplifier parameters should be no more than 48. Note - Besides the IPN Config Tool, the CCS-IP2 can be configured using a built-in WEB interface, which can also be used to update software, upload and store configurations.
  • Page 38 The CCS-IP2 supports two SIP (RFC 3261) telecommunication protocols and the Armtel-IP protocol. Operation of the device via the SIP protocol is carried out via the SIP server. Calls over the SIP protocol occur in simplex mode, while call reception occurs in half-duplex mode.

  • Page 39: Troubleshooting

    CCS-IP2 CALL STATION User Manual 2.5.3 Troubleshooting Possible problems and their solutions are given in Table 5. Table 5 – Possible problems Problem Possible cause Solution No power supply to the Check if there is power supply device to the device...
  • Page 40 Set the correct configuration of the CCS-IP2* parameters Faulty display Check if the display is faulty * Configuration of CCS-IP2 connections and functions is carried out using IPN Config Tool software or a built-in WEB interface page 38/52 armtel.com © Armtel...

  • Page 41: Maintenance

    – removal of dust and dirt from the surface of the product. Depending on the level of dirt, the surface of the CCS-IP2 can be cleaned using a wet sponge soaked with a mild soap solution, or modern chemicals for cleaning and protecting equipment at facilities with corrosive gases and chemical vapors;...

  • Page 42: Checking Operability

    CCS-IP2 CALL STATION User Manual Maintenance should be approximately 0,5 hour long. All operations performed with the product, identified malfunctions, as well as negative maintenance results must be recorded in a special log for form filling. 3.4 Checking operability 3.4.1 Checking the audio path The audio path should be checked via test communication sessions with subscribers, operation with which is programmed during product configuration.

  • Page 43: Pepair

    User Manual 4 PEPAIR No scheduled repair work is provided for CCS-IP2. Unscheduled repair shall be performed by the manufacturer at the request of the User. The place, time, procedure and cost of the work shall be agreed with the manufacturer in advance.

  • Page 44: Transportation

    CCS-IP2 CALL STATION User Manual 6 TRANSPORTATION The product shall be transported according to group Zh as per GOST 23170 and group 5 (OZh4) as per GOST 15150 in consumer package as a packaging unit by road, river, railway and air transport (except unsealed compartments), with compliance with the following conditions: −...

  • Page 45: Disposal

    CCS-IP2 CALL STATION User Manual 7 DISPOSAL The product shall not be disposed of together with household waste and must be delivered to a special center for the disposal of electronic products. The operating organization shall be responsible for the disposal of the product.

  • Page 46: Appendix A (Reference)

    APPENDIX A (REFERENCE) EXTERNAL APPEARANCE OF CCS-IP2 RMLT.465311.015 RMLT.465311.015-03 RMLT.465311.015-06 RMLT.465311.015-01 RMLT.465311.015-04 RMLT.465311.015-11 RMLT.465311.015-02 RMLT.465311.015-05 RMLT.465311.015-16 RMLT.465311.015-07 RMLT.465311.015-08 RMLT.465311.015-09 RMLT.465311.015-12 RMLT.465311.015-13 RMLT.465311.015-14 RMLT.465311.015-17 RMLT.465311.015-18 RMLT.465311.015-19 Figure А.1 – External appearance of CCS-IP2 versions (beginning) page 44/52 armtel.com © Armtel info@armtel.com...
  • Page 47 CCS-IP2 CALL STATION User Manual RMLT.465311.015-10 RMLT.465311.015-21 RMLT.465311.015-22 RMLT.465311.015-15 RMLT.465311.015-23 RMLT.465311.015-20 Figure А.1 – External appearance of CCS-IP2 versions (end) armtel.com page 45/52 info@armtel.com © Armtel...

  • Page 48: Appendix B (Reference)

    When using a load detection procedure in an active PoE power device (injector), supply voltage in the line will be turned on only after confirmation that the load class matches power supply capabilities. CCS-IP2 satisfies Class 0 load parameters, the characteristics of this class are given in Table B.1.
  • Page 49 CCS-IP2 CALL STATION User Manual Table B.1 – Characteristics IEEE 802.3af Class 0 Name Value from 37 to 57 V DC voltage range on powered device (rated 48 V) Source voltage range from 44 to 57 V Maximum power of PoE source...

  • Page 50: Appendix C (Reference)

    User Manual APPENDIX C (REFERENCE) CONNECTION The CCS-IP2 may be connected through various sockets depending on the version of the product. The arrangement of connection interfaces in the product is shown on Figure 5. The contact assignment of the XS3 socket of the CCS-DW-IP2 main board for connection of a 37-57 V external power supply, connection to an ADSL line, external devices of versions without additional modules is given in Table C.1.
  • Page 51 CCS-IP2 CALL STATION User Manual The contact numbering and assignment of the RJ45 type power supply and communication socket XS1 is given in Table C.2. Table C.2 – Contact numbering and assignment of the RJ45 type XS1 socket on the CCS-DW-IP2...
  • Page 52 CCS-IP2 CALL STATION User Manual The contact numbering and assignment of clip connector X1 is given in Table C.3. Table C.3 – Contact numbering and assignment of clip connector X1 on the CCS-DW-IP2 main board Contact Cable color Function External appearance of...
  • Page 53 White-brown Not used Brown Not used To avoid damage during transportation and operation of the CCS-IP2, internal wiring cables are securely fixed at special points. Do not use types of cables not provided for by the manufacturer. armtel.com page 51/52 info@armtel.com...

  • Page 54: Appendix D (Reference)

    CCS-IP2 CALL STATION User Manual APPENDIX D (REFERENCE) LIGHT INDICATION Table D.1 – Light indication of the CCS-IP2 Microphone Keypad module Button Device operating mode Green Green Blue The device is not connected to power, power is on, malfunction Device in standby mode,...
