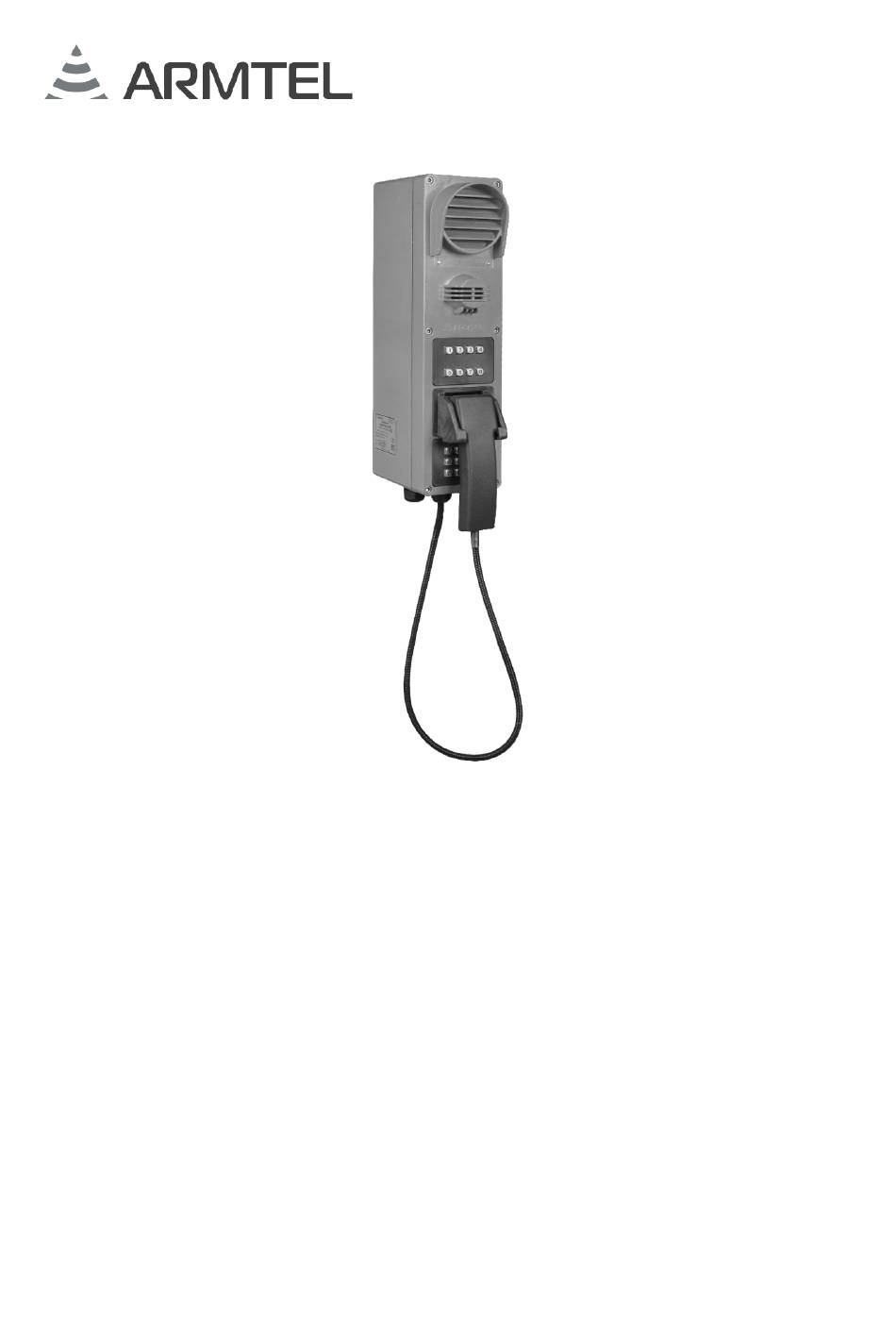

  • Page 1 DW Weatherproof Digital Call Station RMLT.465311.002UM User Manual Document version 15 26.30.23.000 2021...
  • Page 2 © Armtel info@armtel.com...

  • Page 3: Introduction

    This User Manual is intended for introducing DW Weatherproof Digital Call Station RMLT.465311.002 manufactured by Armtel LLC, Russia to the User. DW Weatherproof Digital Call Station is the subscriber equipment to use at industrial and transportation enterprises within digital Intercom and Public Address /General Alarm (PA/GA) communication systems DCN and IPN manufactured by Armtel, Russia.

  • Page 4: Safety Provisions

    DW Weatherproof Digital Call Station User Manual SAFETY PROVISIONS During installation and operation of DW, observe safety precautions laid out in local regulations on electrical safety. To avoid electric shock, do not: − operate the product with a damaged power or communication cable;...

  • Page 5: Table Of Contents

    DW Weatherproof Digital Call Station User Manual CONTENTS INTRODUCTION ..................................1 SAFETY PROVISIONS ................................2 CONTENTS ....................................3 1 DESCRIPTION AND OPERATION ..........................5 1.1 Product description and operation ........................5 1.1.1 Features ................................5 1.1.2 Main specifications ............................10 1.1.3 Scope of supply ............................
  • Page 6 4 REPAIR ....................................32 5 STORAGE .................................... 33 6 TRANSPORTATION ................................. 33 7 DISPOSAL ................................... 33 APPENDIX А (reference) External appearance of DW ................... 34 APPENDIX B (reference) Connection DW ......................37 APPENDIX C (reference) Installation and connection of the external microphone ......39 page 4/40 armtel.com...

  • Page 7: Description And Operation

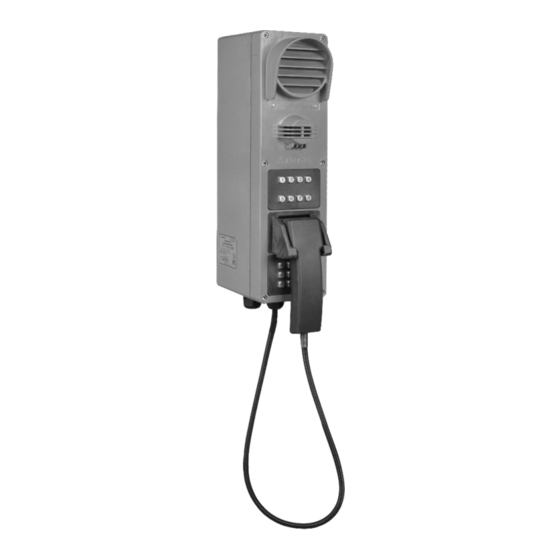

    1 to 3 functional modules and an auxiliary integrated amplifier. The version of the unit may differ depending on modules and auxiliary amplifier installed. Possible versions of DW unit are given in Table 1. The external appearance of DW functional modules are shown in 1.2.
  • Page 8 DW Weatherproof Digital Call Station User Manual Table 1 – Versions of DW Name Weight, (with the number Identification Interchangeable modules no more programmable then, kg connections / functions) DW for 2 connections / − Two-way toggle 1 pcs RMLT.465311.002 functions with 25 W −...
  • Page 9 DW Weatherproof Digital Call Station User Manual Table 1 (continuation) Name Weight, (with the number Identification Interchangeable modules no more programmable then, kg connections / functions) RMLT.465311.002-10 DW for 18 connections / − Two-way toggle 1 pcs; functions with 25 W −...
  • Page 10 − Pushbuttons 1 pcs; and handset − Dial pad1 pcs; − holder with reed switch 1 pcs RMLT.465311.002-25 DW с with dial pad and − handset1 pcs; handset − Dial pad1 pcs; − holder with reed switch 1 pcs; − Plug 1 pcs RMLT.465311.002-26...
  • Page 11 DW Weatherproof Digital Call Station User Manual DW can operate only under control of the central exchange of the communication systems DCN or subscriber module IPN-8U, and it is unable to perform any functions without connection to the communication system via the digital interface.

  • Page 12: Main Specifications

    DW Weatherproof Digital Call Station User Manual 1.1.2 Main specifications Main specifications and performance characteristics for DW are given in Table 2. Table 2 – Main specifications and performance characteristics Parameter Value Rated supply voltage, V Supply voltage range, V...
  • Page 13 DW Weatherproof Digital Call Station User Manual End of Table 2 Parameter Value -interface Line interface Ua/Ub DW according to CCITT Transfer protocol «Armtel» Overall dimensions (versions without handset)), maximum, mm 515×130×205 Overall dimensions (versions with handset), maximum, mm 540×130×225...

  • Page 14: Scope Of Supply

    DW Weatherproof Digital Call Station User Manual 1.1.3 Scope of supply The Scope of supply for DW is provided in Table 3. Table 3 – Scope of supply Quanti- Identification Name Note ty, pcs. RMLT.465311.002* DW Weatherproof Digital Call Station Installation kit RMLT.734311.002...

  • Page 15: Design

    19 - Information module Figure 1 – External appearance of DW DW consists of case (12) and a cover (11). he cover is attached to the case with six captive screws (9). DW case design and material provide impact and chemical resistance. The DW body is made from a specified fiberglass-reinforced polyester resin that is resistant to solar UV radiation.
  • Page 16 The above features of the DW design allow the product to be operated in open space and (or) at facilities with high levels of humidity, noise, dustiness and temperature, the presence of smoke, corrosive gases and chemical vapors in the air.

  • Page 17: Dw Case

    User Manual 1.1.5 DW case Inside the DW housing (see Figure 2), chassis (1) is fixed on the racks, on which, depending on the version, either only the DWEx board (2) or the DWEx board (2) and the 25 W amplifier (4) are installed. The terminal block (3) is fixed to the rail.

  • Page 18: Dw Cover

    DW Weatherproof Digital Call Station User Manual 1.1.6 DW cover On the inside of the cover, in addition to the loudspeaker and microphone, a DW-BC board (3, Figure 3) is installed. 1 – microphone module; 2 – horn loudspeaker; 3 – DW-BC board Figure 3 –...
  • Page 19 15 – integrated microphone sensitivity control (MIC.INT); 16 – handset microphone sensitivity control (MIC.HS); 17 – socket «X7» for DW main board; 18 – switch «SW8» for switching of integrated microphone amplifier: 1. MIC – integrated microphone amplifier is OFF;...

  • Page 20: Labeling

    The serial number is unique for each product. 1.1.8 Package DW with the assembly kit and documents, which come with the supply package, is packed in consumer package (cardboard box) according to GOST 23088-80. A label in Russian language and English language is glued onto the consumer package, said label containing the following inscriptions and symbols: −...

  • Page 21: Description And Operation Of Product Components

    Power is supplied to the external microphone via the “SW2” DIP switch (see Figure 4) and to the handset via the “SW3” DIP switch of the DW-BC board. The position of the contacts in these switches is determined by the type of built-in and external...

  • Page 22: Two-Way Toggle Module

    The keypad module can be used for connection both with duplex and simplex subscriber. In the IPN system, when connecting the DW to the IPN-8U module, the keypad module is used to select the target button numbers assigned to the device by the IPN Config Tool.

  • Page 23: Holder With Reed Switch And Handset

    1.2.6 Holder with reed switch and handset Holder with reed is installed in the center compartment for replaceable modules in the DW cover in accordance with the DW variants. The handset is fixed on holder. The handset is designed to provide duplex communication, but it can be used in other communication modes, depending on the characteristics and parameters of the communication system.

  • Page 24: Intended Use

    Table 2.1.2 DW has operating limits when used as part of Communication System IPN: − no duplex; − the dial pad is not used for dial;...

  • Page 25: Preparation For Use

    − check position of DIP-switch contacts «SW1», «SW2», «SW3», «SW8» of DW-BC board (see Figure 4) in accordance with 1.1.6; − check the settings of the controllers on the DW-BC board in accordance with Figure 4. The volume controllers of the main amplifier (VOLUME INT), auxiliary amplifier (VOLUME EXT) and sensitivity controllers of external microphone (MIC.EXT), integrated microphone (MIC.INT) and handset microphone (MIC.HS)

  • Page 26: Installation, Connection And Dismantling

    Before installing the unit at the workplace make the markings in accordance with Figure 6. The height of the DW attachment to the wall is determined so that the microphone is at the level of the person's mouth, i.e. 1500 -1600 mm from the floor elevation. At this level, make a mark on the wall.

  • Page 27: Connection Dw

    SOCKET LOCATED ON THE COVER IS ALLOWED! − Connect the cable lines to DW unit as per item 2.4.2; − In case of disconnection of DW-BC, installed on the cover, with the DWEx board installed in the enclosure, connect the boards with each other;...

  • Page 28: Dismantling Dw

    DW Weatherproof Digital Call Station User Manual When the power is turned on, DW unit is automatically initialized. After initialization, the unit is ready for operation. If necessary, check the communication quality, and adjust the volume of the amplifiers and the sensitivity of DW microphones.

  • Page 29: Operation

    DW unit enables to realize different communication modes, depending on the possibilities and configuration of the communication system. An individual function can be assigned to each DW key / key, for example, a call of a subscriber or a group, reproduction of a speech fragment.
  • Page 30 When receiving a call, you can either pick up the handset or use the integrated speaker by pressing the appropriate key or key. In any case, DW works at the same time in the modes of sending and receiving voice messages.

  • Page 31: Troubleshooting

    DW Weatherproof Digital Call Station User Manual 2.5.3 Troubleshooting Possible problems and their solutions are given in Table 4. Table 4 – Possible problems of DW and their solutions Problem Possible causes Solutions No power supply Check power supply circuit...

  • Page 32: Maintenance

    − Clean, if necessary, terminal strips and the board from dust by air flow (dirt cleaned by air flushing shall not get into other units) with DW enclosure cover being removed; ATTENTION: DW COVER REMOVAL AND AIR FLUSHING ARE ONLY ALLOWED IF DW ECHANGE IS DEENERGIZED! Approximate maintenance time is 0,5 hour.

  • Page 33: Checking The Functionality Of The Product

    DW Weatherproof Digital Call Station User Manual 3.4 Checking the functionality of the product The operability of the enabled DW is checked in two stages. 3.4.1 Checking the acoustic path Checking the acoustic path is carried out by trial sessions with all subscribers, the work with which is programmed.

  • Page 34: Repair

    User Manual 4 REPAIR No scheduled repair work is provided for DW. Unscheduled repair shall be performed by manufacturer at the request of the User. The place, time, procedure and cost of the work shall be agreed with the manufacturer in advance.

  • Page 35: Storage

    DW Weatherproof Digital Call Station User Manual 5 STORAGE Conditions for storage of the DW unit are in the manufacturer's individual package in heated and ventilated warehouses or air-conditioned storage facilities with a temperature range from +5 to + 40°C.

  • Page 36: Appendix А (Reference) External Appearance Of Dw

    DW Weatherproof Digital Call Station User Manual APPENDIX А (REFERENCE) EXTERNAL APPEARANCE OF DW а) RMLT.465311.002, b) RMLT.465311.002-01, c) RMLT.465311.002-02, RMLT.465311.002-17 RMLT.465311.002-18 RMLT.465311.002-19 Other see fig. a) Other see fig. a) d) RMLT.465311.002-03, e) RMLT.465311.002-04, f) RMLT.465311.002-05, RMLT.465311.002-20 RMLT.465311.002-21 RMLT.465311.002-22 Other see fig.
  • Page 37 DW Weatherproof Digital Call Station User Manual g) RMLT.465311.002-06, h) RMLT.465311.002-07, i) RMLT.465311.002-08, RMLT.465311.002-23 RMLT.465311.002-24 RMLT.465311.002-25 Other see fig. a) Other see fig. a) Other see fig. a) j) RMLT.465311.002-09, k) RMLT.465311.002-10, l) RMLT.465311.002-11, RMLT.465311.002-26 RMLT.465311.002-27 RMLT.465311.002-28 Other see fig. a) Other see fig.
  • Page 38 DW Weatherproof Digital Call Station User Manual m) RMLT.465311.002-12, n) RMLT.465311.002-13, o) RMLT.465311.002-14, RMLT.465311.002-29 RMLT.465311.002-30 RMLT.465311.002-31 Other see fig. a) Other see fig. a) Other see fig. a) p) RMLT.465311.002-15, q) RMLT.465311.002-16, r) RMLT.465311.002-34, RMLT.465311.002-32 RMLT.465311.002-33 RMLT.465311.002-35 Other see fig. a) Other see fig.

  • Page 39: Appendix B (Reference)

    Power supply input for the main board, circuit -48 V ОR1 Relay executive contacts ОR2 Power supply connection Connection of DW unit to the central exchange is illustrated at Figure B.1. Contact of the terminal block Central exchange (DCN, IPN)
  • Page 40 DW Weatherproof Digital Call Station User Manual Connection of external microphone is illustrated at Figure B.2. Figure B.2 – Connection of external microphone Connection of the handset is illustrated at Figure B.3. Figure B.3 – Connection of the handset page 38/40 armtel.com...

  • Page 41: Appendix C (Reference)

    INSTALLATION AND CONNECTION OF THE EXTERNAL MICROPHONE C.1 Unscrew and remove the cover. C.2 Put the cable from the external microphone through the cable gland. C.3 Connect the external microphone to «Х5» socket of DW-BC board according to Figure B.2. Set: 6, 7, 8 –...
  • Page 42 DW Weatherproof Digital Call Station User Manual NOTES page 40/40 armtel.com © Armtel info@armtel.com...
  • Page 43 © Armtel...
  • Page 44 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: 12 building 1, Zaporozhskaya street, office 1/2, Saint Petersburg, 192012, Russia TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
