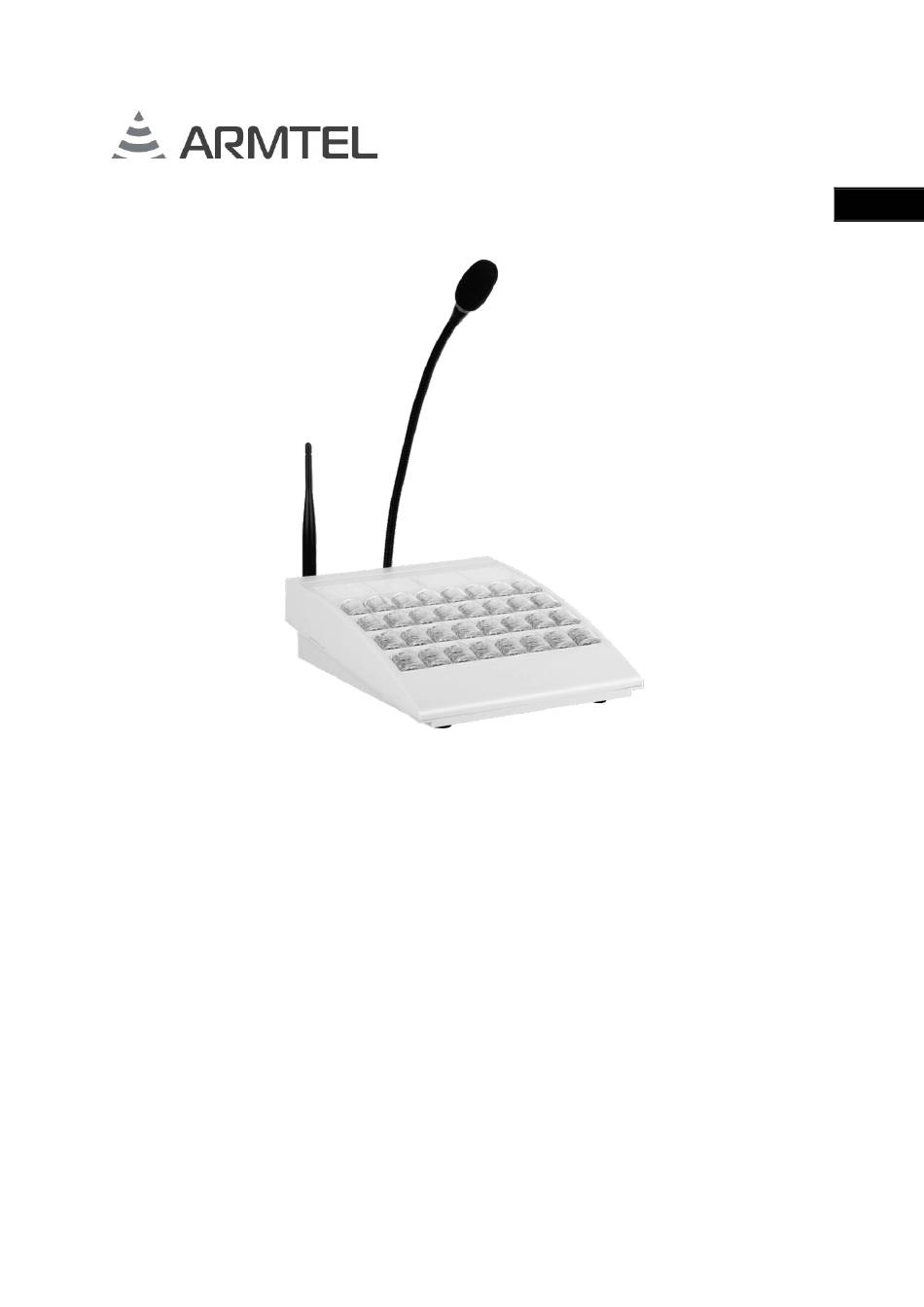

Page 1 DIS-IP2 Desktop call station RMLT .465311.001 UM User Manual Version 11 26.30. 23 . 00 0 20 2 1...
Page 3: Introduction ............................................................................................................................................. 1 Eng
INTRODUCTION This User Manual applies to the DIS-IP2 Desktop call station RMLT.465311.001 manu- factured by Armtel LLC, and is intended to familiarize the User with the device and the pro- cedure for its operation at the installation site. DIS-IP2 Desktop call station is a subscriber's equipment of the operational- technological communication and loud notification system.
Page 4: Safety Provisions
ATTENTION! IT IS FORBIDDEN TO CONNECT THE EXTERNAL 48 VOLT POWER SUPPLY TO THE 12 VOLT SOCKET, AS THIS WILL LEAD TO THE DIS-IP2 OUT OF SERVICE! It is strictly forbidden to disassemble the product connected to an Ethernet network or to an external power adapter.
Page 5: Table Of Contents
DIS-IP2 DESKTOP CALL STATION USER MANUAL CONTENTS INTRODUCTION ............................. 1 SAFETY PROVISIONS ............................ 2 Contents ................................3 1 DESCRIPTION AND OPERATION ......................4 Product description and operation ..................4 1.1.1 Product function ..........................4 1.1.2 Specifications ............................7 1.1.3 Design description ..........................8 1.1.4 Labeling ..............................
Page 6: Description And Operation
1.1 Product description and operation 1.1.1 Product function DIS-IP2 Desktop call station is designed for use in distributed and centralized (on the basis of dedicated SIP-server manufactured by LLC Armtel) PA systems in industrial and transport enterprises. DIS-IP2 is not for use within public networks and systems.
Page 7 − control of АСМ-IP2 analogue subsystem module for organization of zone loud-speaking address system, using Relay function. The configuration of DIS-IP2 is carried out from the personal computer of IPN net- work administrator, where the software “Configuration software tool of IPN2 system”...
Page 8 DIS-IP2 DESKTOP CALL STATION USER MANUAL Figure 1 – Examples of using DIS-IP2 in distributed loud-speaking intercom and PA systems For example, organization of communication over the routes: − simplex: DIS-IP2 – Ethernet interface –Fast Ethernet Switch – Ethernet inter- face –...
Page 9: Specifications
DIS-IP2 DESKTOP CALL STATION USER MANUAL 1.1.2 Specifications Main technical and operational characteristics of DIS-IP2 are given in Table 2. Table 2 - Main technical and operational characteristics of DIS-IP2 Parameter Value Power supply through PoE line (IEEE 802.3af/ IEEE 802.3at), V...
Page 10: Design Description
PoE. 1.1.3 Design description The enclosure and cover of DIS-IP2 are made of ABS gray color plastic RAL7035, the cover has special form for better view of the pushbuttons. The external appearance of DIS-IP2 with eight pushbuttons with the overalls and fully turned-up microphone is shown in Figure 2.
Page 11: Labeling
48 V; 11 –socket for output of DIS expansion unit in case of its use. Figure 2 – External appearance and overalls of DIS-IP2 1.1.4 Labeling On the bottom of the DIS-IP2 enclosure is placed bilingual laser engraved nameplate. The nameplate contains the following information: − name, trademark and reference information of the manufacturer;...
Page 12: Package
The serial number and MAC addresses are unique for each product. 1.1.5 Package The DIS-IP2 with the assembly kit and documents, which come with the supply pack- age, is packed in consumer package (cardboard box) according to GOST 23088-80. A label in Russian language and English language is glued onto the consumer pack- age, said label containing the following inscriptions and symbols: −...
Page 13: Description And Operation Of Product Components
1.2.2 Main board The main board external appearance is shown in Figure 3. The main board is a printed circuit board with electronic components, necessary for functioning and connecting DIS-IP2 in the process of operation. Figure 3 – DIS-IP2 main board armtel.com page 11/37 info@armtel.com...
Page 14: Led Pushbuttons
DIS-IP2 DESKTOP CALL STATION USER MANUAL The main board includes the following: − Х8, Х9 – connectors for connection of Ethernet with РоЕ function; Indicators on the connectors: 1) Green – lights, when physical connection with Ethernet is established, flashes, when the network interface is active (packet data receipt or transfer);...
Page 15: Wi-Fi Module
To that end, it is necessary with deactivated DIS-IP2 to press two pushbuttons placed to the right and to the left from that one, where the caption is to be inserted, and, holding them pressed, to press lightly on the cap side walls, disengaging it from the latch.
Page 16 DIS-IP2 DESKTOP CALL STATION USER MANUAL microphone part is equipped with red LED ring. The microphone is supplied with a wind- screen, presented in Figure 5, which allows making sound more clear (to exclude the oc- currence of unwanted whistle and other similar disturbances).
Page 17: Functional Operation
2.1.3 When using up to four DIS ARMT.665230.207 expansion units in combination with DIS-IP2, it is not recommended to apply PoE power of IEEE 802.3af standard, as cor- rect operation of the devices is not guaranteed in this case. It is necessary to use alterna- tive supply methods (from the external power supply source through 12 V/48 V adapter or PoE plus IEEE 802.3at standard).
Page 18: Preparation For Use
When using DIS expansion unit, connect the flexible flat cable included into the ex- pansion unit scope of supply to Х26 connector in accordance with Figure 3 and output it through the socket between the cover and enclosure of DIS-IP2 in accordance with Figure 2бb.
Page 19: Product Operation
− pack DIS-IP2 and components into the customer manufacturer’ package. 2.4 Product operation 2.4.1 DIS-IP2 can be used as intended in various modes, e.g. in simplex mode, in communication mode with telephone system based on SIP, when establishing communica- tion session, using ADSL or Wi-Fi. The mode selection and setting is performed, when con- figuring DIS-IP2.
Page 20 2.4.3 To return to the default settings, remove the cover (2, Figure 2) from the case (1, Figure 2), press and hold the "S4" button (Figure 4) on the DIS-IP2 board for at least 5 sec- onds. After releasing the button, the configuration file is read with the default settings "de- fault.par", followed by saving the settings to the main configuration file and rebooting the...
Page 21 4 on the main board *The DIS-IP2 connections and functions are configured using the IPN Config Tool software. 2.4.5 Safety provisions, when using the product as intended To prevent electrical shock, it is prohibited to operate the system products with damaged power supply and/or communication cables.
Page 22 2.4.7.1 The product supports two telecommunication protocols SIP (RFC 3261) and protocol Armtel-IP. The product operation via SIP protocol is carried out through SIP serv- er. SIP calls are made in both simplex and duplex modes, and calls are received in half- duplex mode.
Page 23 After the DK release the initial direction of speech information transfer from initiating subscriber restores; − the function operates via Armtel-IP protocol; − the similar priority must be set on the DK of subscriber calls. In the simplex communication mode, two group communication scenarios are im- plemented, such as "Circular"...
Page 24 DIS-IP2 DESKTOP CALL STATION USER MANUAL Selector function is a two-side communication between subscribers, where at any given time only single Selector participator can transfer speech information. The Selector features are: − all the Selector participators always hear only the Selector organizer or one of the Selector participators;...
Page 25 “АСМ-IP analogue subsystem module” ARMT.665230.134 manufactured by LLC Armtel. The relay control is performed, using the DK Relay. In this mode, the control lines on the ACM-IP2 are not activated, while the module is free for voice calls. The function operates via Armtel-IP and SIP protocols.
Page 26: Product Maintenance
− safety check of connection to the connectors on the cable - the cable shall have no tension; − cleaning of DIS-IP2 surface from dirt, using for this purpose the wet sponge impregnated with mild soap solution or wet wipes for cleaning office appli- ances ;...
Page 27: Checking Operability
DIS-IP2 DESKTOP CALL STATION USER MANUAL 3.4 Checking operability The efficiency of DIS-IP2 should be tested in two stages. 3.4.1 Checking acoustic path The acoustic path is checked by trial communication sessions with several subscribers, the work with which is programmed, while the volume of the built-in speakers, the clarity and intelligibility of speech are subjectively controlled both when transmitting a voice message and when listening.
Page 28: Repair
DIS-IP2 DESKTOP CALL STATION USER MANUAL 4 REPAIR Planned product repairs are not provided. Unscheduled repairs are carried out by the manufacturer at the request of the user. The place, time, procedure and cost of work are agreed in advance with the manufacturer.
Page 29: Storage
DIS-IP2 DESKTOP CALL STATION USER MANUAL 5 STORAGE The storage conditions for the product – in the manufacturer individual package, in heated and ventilated warehouses or stores, with air conditioning and temperature range from + 5 to +40 °С. The air of the product storeroom should not contain aggressive substances (acid va- pors, alkali).
Page 30: Transportation
DIS-IP2 DESKTOP CALL STATION USER MANUAL 6 TRANSPORTATION The product shall be transported in customer package as a packaging unit by road, river, railway and air transport (expect unsealed compartments), with compliance with the following conditions: − absence of direct ingress of atmospheric precipitation, water splashes, solar UV radiation, dust, sand, aerosols;...
Page 31: Disposal
DIS-IP2 DESKTOP CALL STATION USER MANUAL 7 DISPOSAL The sign with crossed wastebasket applied on the nameplate indicates that the prod- uct is not subjected to disposal together with domestic wastes and should be delivered for disposal to a specialized center. An operating company bears the responsibility for the product disposal.
Page 32: Appendix А External Appearance Of Call Stations With 16, 24 And 32 Keys

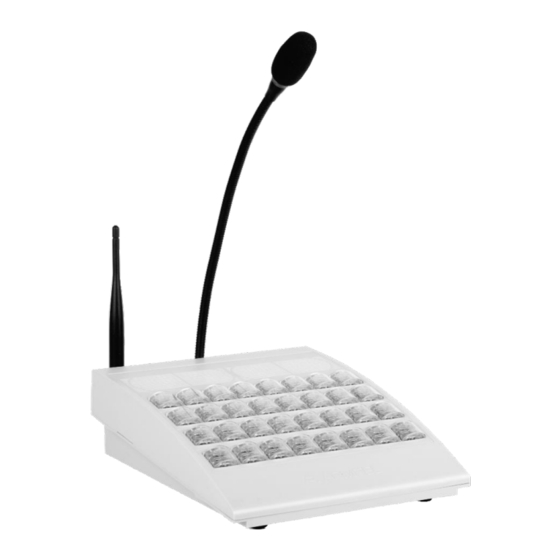

APPENDIX А EXTERNAL APPEARANCE OF CALL STATIONS WITH 16, 24 AND 32 KEYS Figure А.1 – External appearance of DIS-IP2 with 16 keys Figure А.2 – External appearance of DIS-IP2 with 24 keys Figure А.3 – External appearance of DIS-IP2 with 32 keys page 30/37 armtel.com...
Page 33: Appendix Bproduct Connection
DIS-IP2 DESKTOP CALL STATION USER MANUAL APPENDIX B PRODUCT CONNECTION DIS-IP2 is connected to IP-network via 100BaseT Ethernet interface with PoE function, providing power supply. The pin assignment of RJ-45 supply and communication is given in Table B.1. Table B.1 - Power and Communication RJ-45 Connector Pinouts Contact No.
Page 34 DIS-IP2 DESKTOP CALL STATION USER MANUAL Table B.2 - Pin assignment of the RJ-11 ADSL connector (end) Contact No. Assignment ADSL_RING no connected External appearance of RJ-11 with pin numbering is shown in Figure B.2. 1...4 Figure B.2 – External appearance of RJ-11 ADSL Requirements to connection of external adaptor 12 V/48 V.
Page 35: Appendix C Use Of Dis Expansion Unit
IDC16 connector is output to the left and right sides of the unit enclosure, to connect the ribbon cable for connection with DIS-IP2 or other DIS expansion unit. The sizes of expansion unit enclosure are the same as for DIS-IP2, not accounting the mi- crophone and Wi-Fi antenna overalls.
Page 36: Appendix D Indication Types Of Direct Key Backlight
USER MANUAL APPENDIX D INDICATION TYPES OF DIRECT KEY BACKLIGHT The indication types within SIP and Armtel-IP protocols are given in Table D.1. Table D.1 - Indication types within the SIP and "Armtel-IP" protocols Full indication cycle – 1,2 sec.
Page 40 ARMTEL LLC Tel./fax: +7 (812) 703-41-11 www.armtel.com | info@armtel.com Legal and physical address: Russia, 192012, Saint Petersburg, Zaporozhskaya str., 12 building 1, office 1/2 TECHNICAL SUPPORT 8-800-500-90-17 (for calls from Russian Federation) +7-812-633-04-02 (for international calls) support@armtel.com MORE INFORMATION ABOUT PRODUCT ON OFFICIAL SITE...
