- Page 1 Pack TYXAL+ www.deltadore.com Pre-configured wireless Alarm Starter Pack Quick installation guide...
- Page 2 Thank you for purchasing this DELTA DORE alarm pack. Activation: main steps This quick installation guide provides you with the basic installation instructions for your products. Refer to the system guide for an advanced installation of your Pack. The Pack TYXAL+ comprises:...

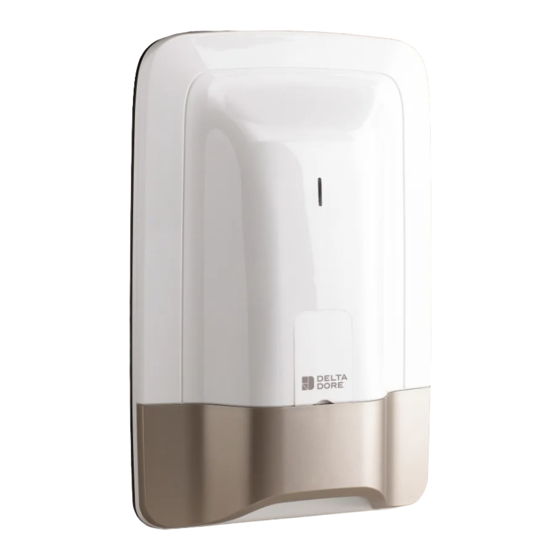

- Page 3 Installing and mounting the products 1.1 CS 8000 TYXAL+ control unit 1.2 CLT 8000 TYXAL+ touch screen keypad • Location • Location - On a fl at surface, with enough space all around for installation and opening the battery cover. It is advisable to install the touch screen keypad inside near one - In the centre of the system and fi...
- Page 4 Installing and mounting the products 1.3 DMB TYXAL+ motion detector • Mounting DMB TYXAL+ uses infrared (heat) to detect any moving presence in the room. It has 2 removable lenses: ❶ Open the unit. - no. 1: standard (fi tted on the product supplied). - no.
- Page 5 Installing and mounting the products Close the alarm control unit 1.4 Confi guring a TL 2000 TYXAL+ Activa- Deactivation remote control tion the alarm Button 1 Button 2 You can activate or deactivate the alarm system with the programmable programmable remote control.
- Page 6 Personalising the installation and the products Testing the installation Test under operating conditions The CLT 8000 TYXAL+ touch screen keypad allows all the personalisation operations of the system. The following menus can be accessed by the installer code. Test your installation under actual operating conditions by triggering an alarm The CLT 8000 TYXAL+ touch screen keypad can be used for all activation actions.
- Page 7 Overview of your installation Activation date: ........Name and stamp of installer: ........Items of the pack: No. or name of Immediate/delayed Type Name Comment (e.g. location) zone triggering DMB 0 01 02 Example: Zone 1 or Home Delayed (30 s) Ground floor corridor Motion detector or Corridor 1...
