1、 适用范围与用途/ Application Scope and Purpose
NDZ3X-100B/Z系列直流接触器适用于工作电压至DC1000V，工作电流至100A的直流系统中主要
用于电动汽车、充电桩、充电站、光伏等领域。
The NDZ3X-10010B/Z series of DC contactors apply to the DC system with the working voltage
up to DC1000V and working current at 100A or less, which are mainly used in electric vehicles,
charging piles , charging stations , photovoltaic and other fields.
2、 工作环境/ Operating Environment
-40~85℃

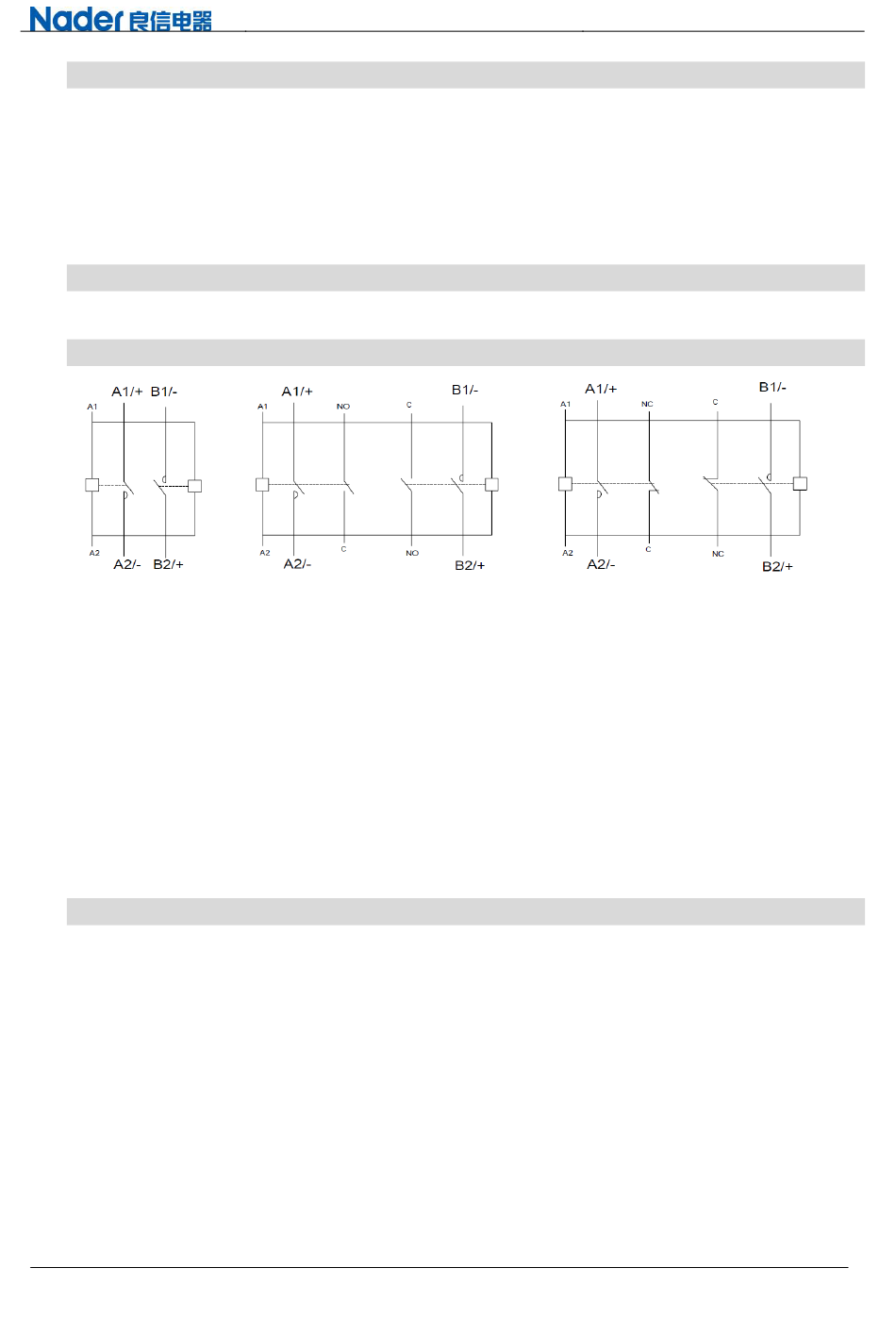

3、 接线方式（接线图）/ Wiring Mode (Wiring Diagrams)
NDZ3X-100B/Z
备注/ Remark:
a. NO为辅助常开触点(导线颜色：蓝色)；NC为辅助常闭触点(导线颜色：灰色)； C为辅助共用点(导线颜色：白色)。
a. NO for the auxiliary normally-open contact and the wire is blue
wire is gray, C for auxiliary communal contact and the wire is white
b. '+/A1'、'-/A2'、 '-/B1'、'+/B2'为负载端，有极性要求。
b. "+/A1"," -/A2"," -/B1"and "+/B2 "are the load ends with polarity requirements.
c. A1、A2为线圈端，无极性要求(导线黑色)；。
c. A1 and A2 are coil ends without polarity requirements and the wire is black.
