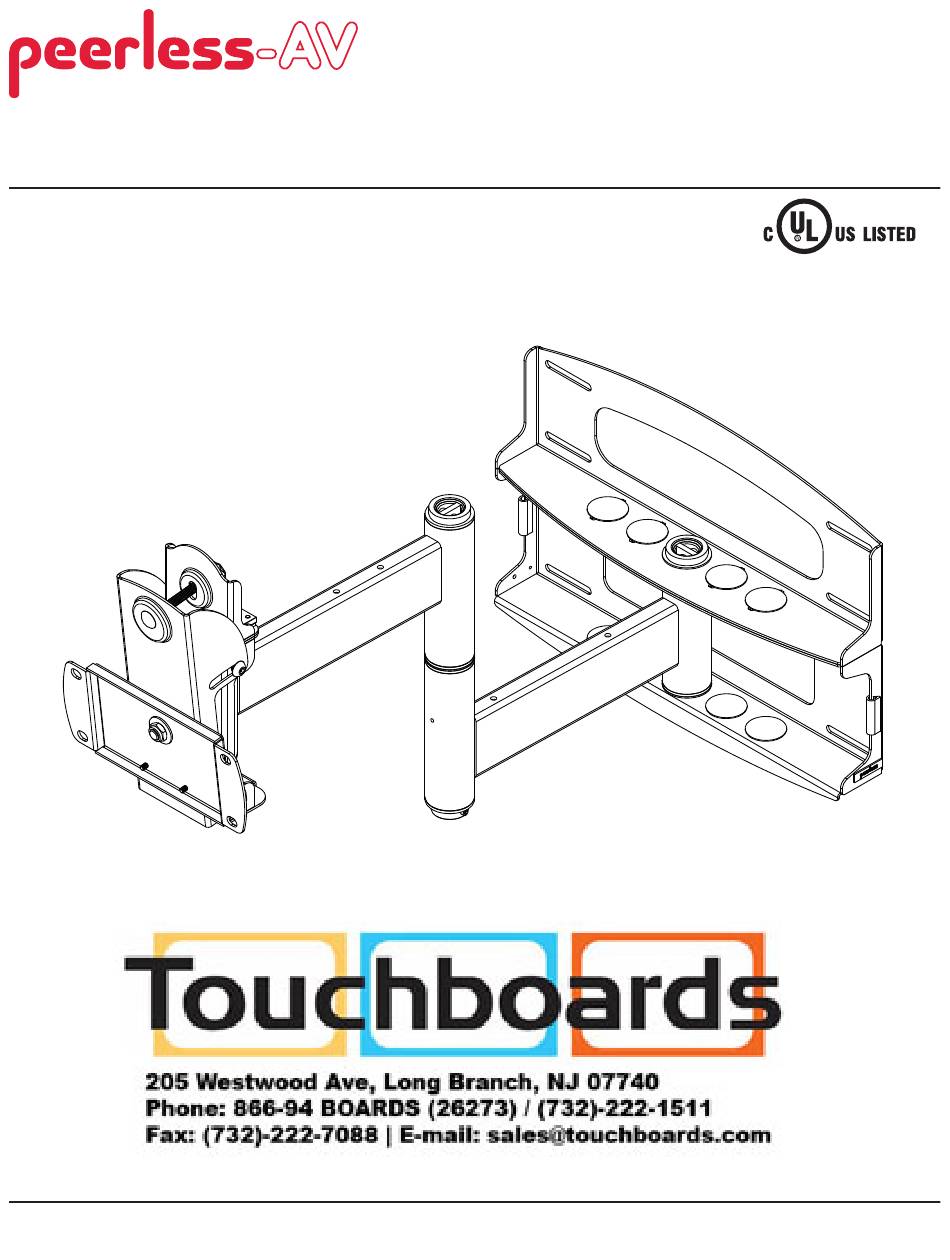

Installation and Assembly:
Articulating Swivel Arm for 37" - 60" Flat Panel Displays
Models: PLA60, PLA60-S, PLAV60, PLAV60-S
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
Max UL Load Capacity:
175 lb (79 kg)
ISSUED: 05-02-06
SHEET #: 202-9112-4 06-01-11
Advertisement
Table of Contents
Related Manuals for peerless-AV PLA60
Summary of Contents for peerless-AV PLA60
- Page 1 Installation and Assembly: Articulating Swivel Arm for 37" - 60" Flat Panel Displays Models: PLA60, PLA60-S, PLAV60, PLAV60-S Max UL Load Capacity: 175 lb (79 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com...
-
Page 2: Tools Needed For Assembly
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Before you start make sure all parts listed are included with your product. Parts List PLA60-S PLAV60 PLAV60-S PLA60 Description Qty. Part # Part # Part # Part # A wall plate 201-1040 201-4040 201-1040 201-4040 B tilt-roll assembly 201-1093... -
Page 4: Installation To Wood Stud Wall
Place wall plate on wall as a template. The top mounting slots should be located .36" above the desired screen center for PLA60 and PLA60-S and .43" below the desired screen center for PLAV60 and PLAV60-S. Level plate, and mark the center of the eight mounting holes. Make sure that the mounting holes are on the stud centerlines. - Page 5 Installation to Solid Concrete or Cinder Block Wall WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 6 WARNING • If you are uncertain that product is properly installed, call customer care. Note: There are fi ve mounting positions. The center position is shown (right). Slide washer (J) over wall support arm axle (D). Next, insert plastic cap (N) into axle. Then, insert holding pin (M) into axle.
- Page 7 Attach two pieces of vinyl trim (E) to wall plate (A). Next, attach one piece of vinyl trim to bottom of swivel box on arm assembly (C). Insert one fi nishing cap (L) into each unused hole of wall plate (A). SWIVEL BOX Note: Refer to adapter bracket instruction sheet for attachment of adapter bracket to plasma before proceeding with step 5.
- Page 8 WARNING • Use an assistant or mechanical lifting equipment to safely lift and position the plasma TV. Insert two M10 screws (F) into swivel box on arm assembly (C) as shown. Leave approx. 1/4" of exposed thread. SWIVEL BOX .25" Hook tilt-roll assembly (B) onto M10 screws (F).
- Page 9 Depending on the specifi c size & weight of the plas- If it is too diffi cult to adjust roll of plasma, loosen ma, articulating swing arm may be angled at different screws shown in fi gure 7.1 using a phillips screw- positions, causing plasma to appear to lean sideways driver.
-
Page 10: Limited Five-Year Warranty
LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
