peerless-AV PLP PAN42 Installation And Assembly

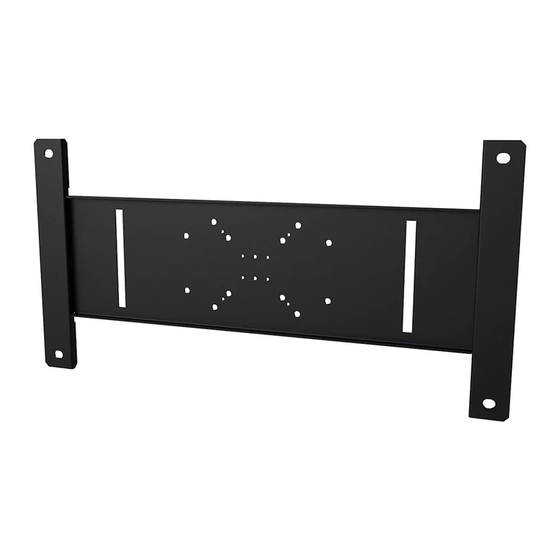

Installation and Assembly - Plasma Adapter Bracket for
Panasonic ® 42" Plasma Screens
IMPORTANT! Read entire instruction sheet
before you start installation and assembly.

Parts List

PARTS LIST
PART #
AA 201-1122
BB 590-1115
CC 590-1121
DD 520-1152
EE 560-9646
FF 540-9406
GG 540-1002
HH 520-1063
Some parts may appear slightly different than illustrated.

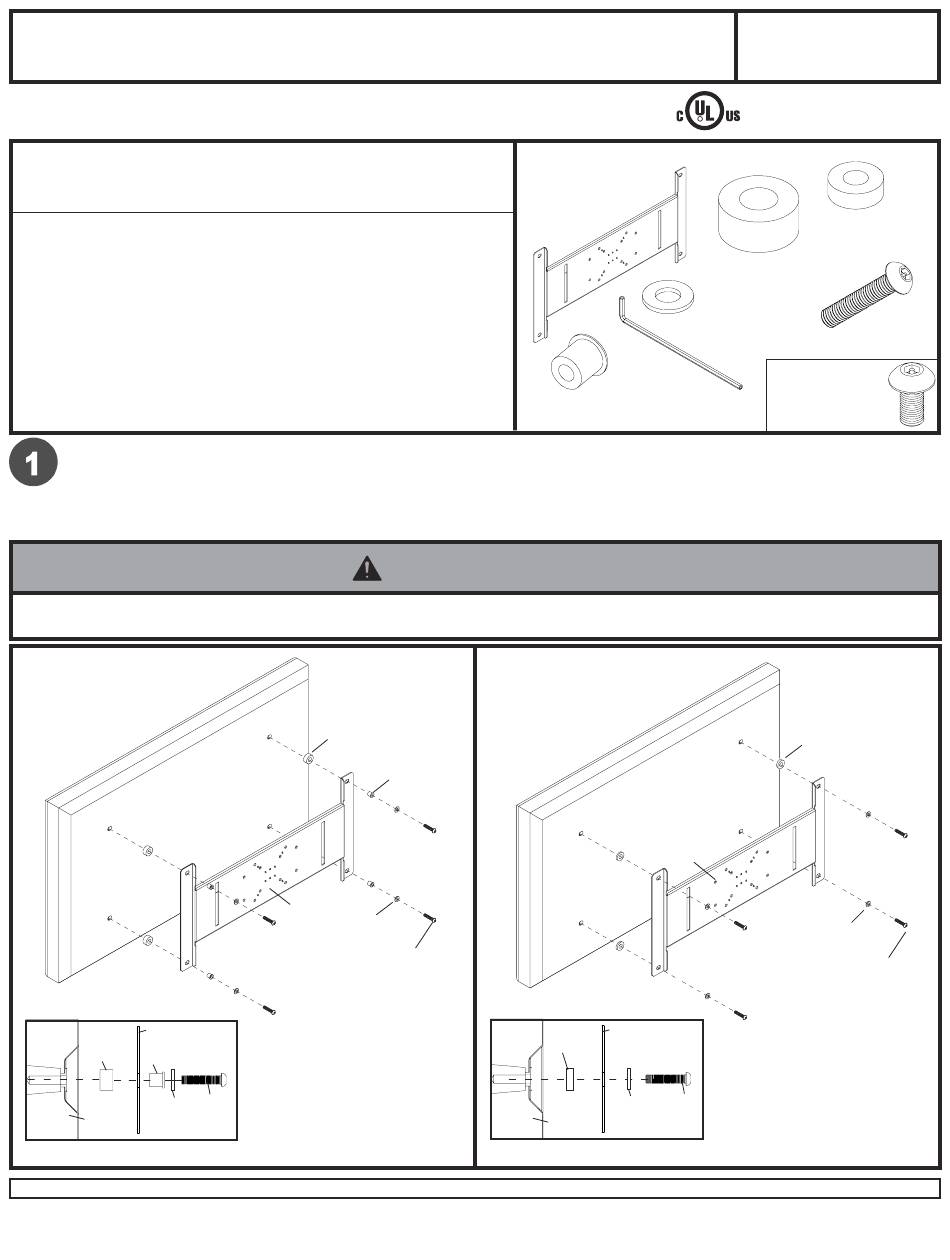

*Place four .52 ID x .8 OD x .5 H spacers (CC) inside recesses in back of plasma. Attach adapter plate (AA) to back of
plasma using four M8 x 40 mm socket pin screws (DD), four 5/16 washers (FF), and four screw insulators (BB) as shown in
figure 1 and detail 1. *Note: For Panasonic
spacers (GG) inside recesses in back of plasma. Attach adapter plate (AA) to back of plasma using four M8 x 40 mm socket
pin screws (DD) and four 5/16 washers (FF) as shown in figure 1.1 and detail 2.
Tighten M8 screws (DD) using 4 mm allen wrench (EE).
• Do not overtighten! Overtightening may cause permanent damage to the screen. Torque to 26-35 in • lb (30-40 kg • cm).
fig. 1
AA
CC
BB
FF
Plasma
(cut out)
DETAIL 1
Visit the Peerless Web Site at www.peerlessmounts.com
© 2004 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
QTY. DESCRIPTION
1 adapter bracket
4 1/2" OD screw insulator
4 .52 ID x .8 OD x .5 H spacer
4 M8 x 40 mm socket pin screw
1 security allen wrench
4 5/16 washer
4 .34 ID x .75 OD x .25 H spacer
4 M5 x 10 mm socket pin screw
®
CC
AA
FF
DD
TH42PA2OUP and TH37PA2OUP plasmas, place four .34 ID x .075 OD x .25 H
WARNING
fig. 1.1
BB
DD
GG
Plasma
(cut out)
1 of 2
For customer care call 1-800-729-0307 or 708-865-8870.
R
AA
FF
EE
BB
AA
AA
DD
FF
DETAIL 2
ISSUED: 04-06-01 SHEET #: 200-9203-9 05-12-06
Model: PLP PAN42
This product is UL Listed. It
must be installed by a qualified
professional installer.
GG
CC
DD
Used with specific
mounts only
HH
GG
FF
DD
